Dell Precision Mobile Workstation M4700/M6700
Setup And Features Information
About Warnings
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

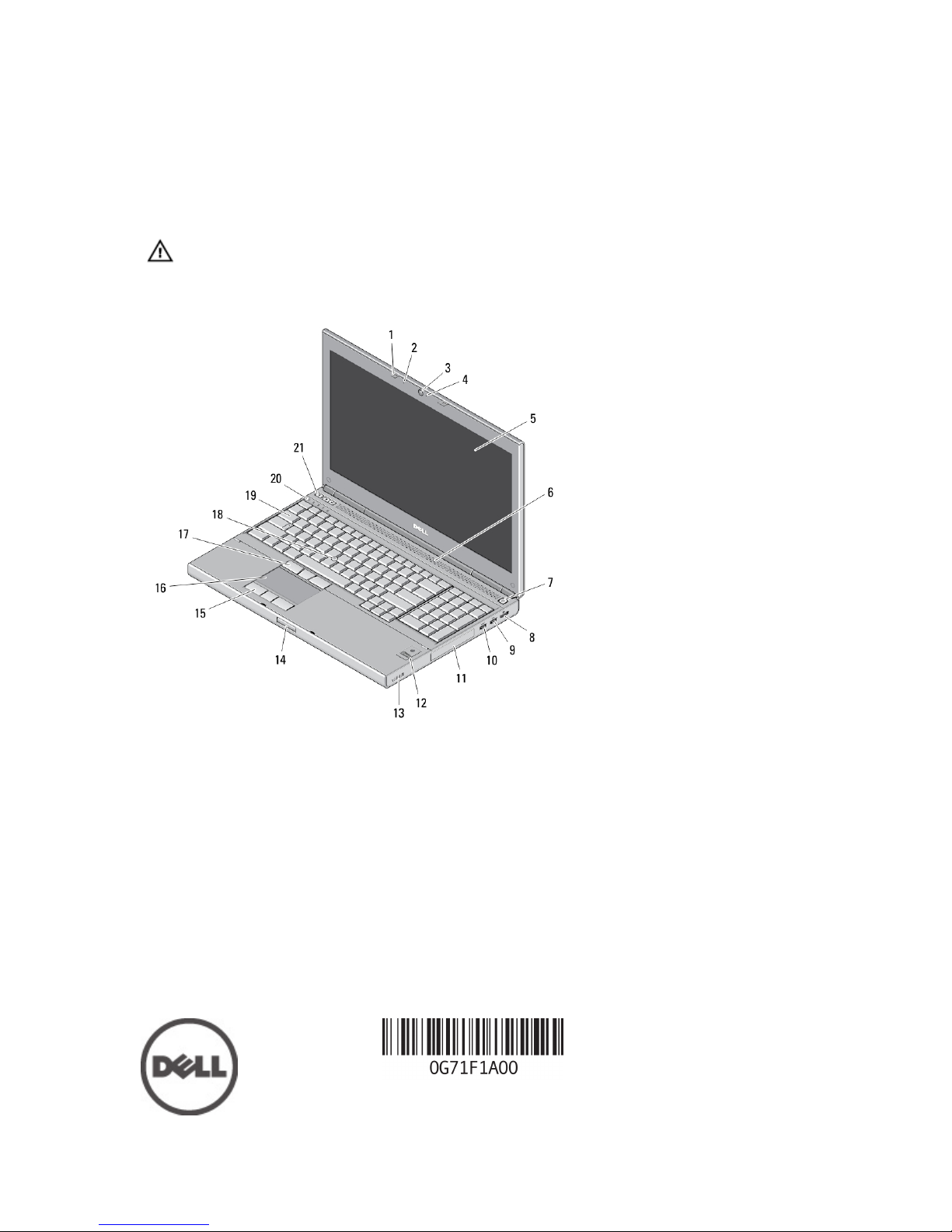

M4700 — Front and Back View
Figure 1. Front View
1. display latches (2)
2. microphones (2) (optional)
3. camera (optional)
4. camera LED (optional)
5. display
6. speakers (2)
7. power button
8. DisplayPort connector
9. USB 3.0 connector
10. USB 3.0 PowerShare connector
11. hard drive
12. fingerprint reader (optional)
13. wireless switch
14. display latch release button
15. touchpad buttons (3)
16. touchpad
17. track-stick buttons (3)
18. track stick
19. keyboard
20. device status lights
21. volume control buttons (3)
Regulatory Model: P21F, P22F
Regulatory Type: P21F001, P22F001
2012 - 06

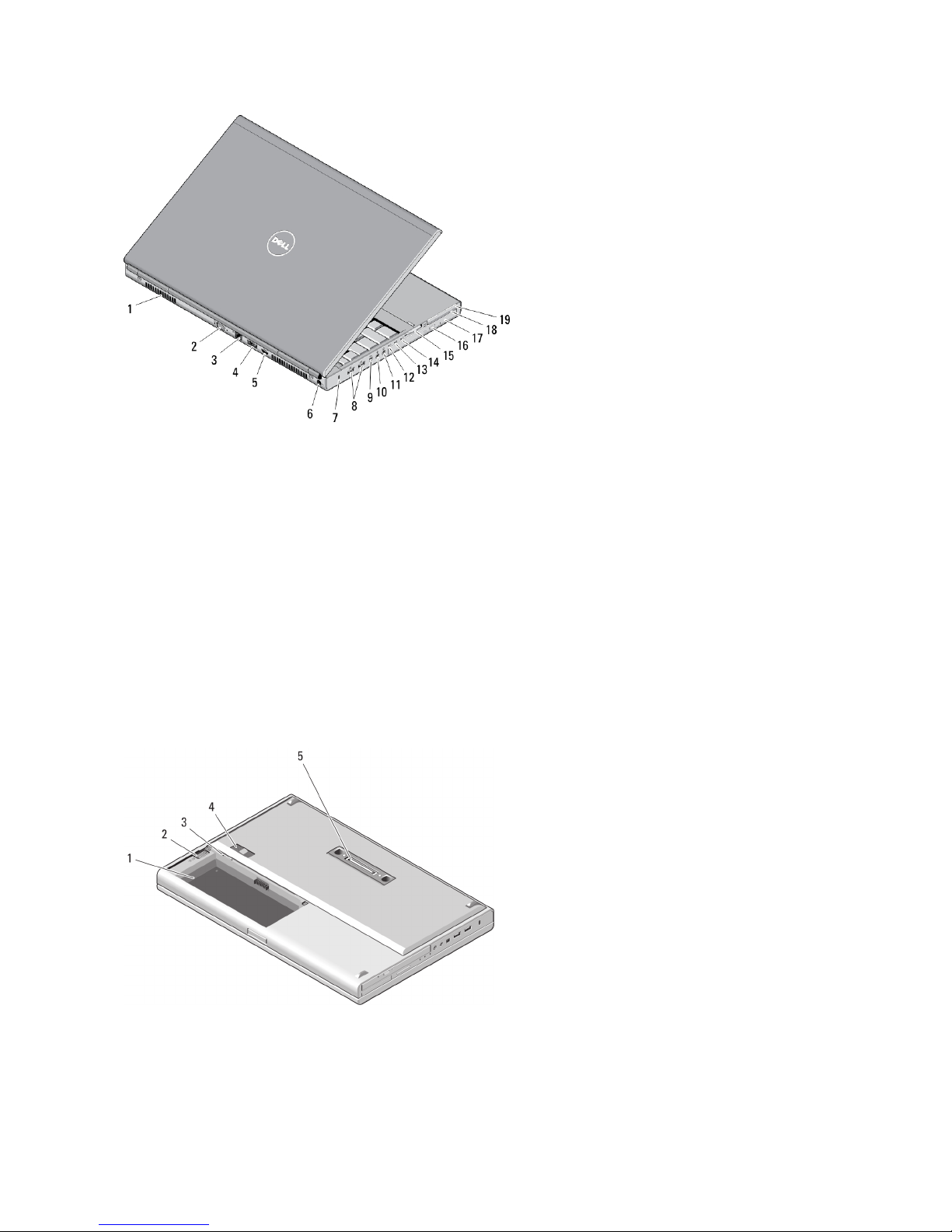

Figure 2. Back View
1. cooling vents (2)
2. VGA connector
3. network connector
4. eSATA/USB 2.0 connector
5. HDMI connector
6. power connector
7. security cable slot
8. USB 2.0 connectors (2)
9. IEEE 1394 port (4-pin)
10. microphone connector
11. headphone connector
12. hard-drive status light
13. battery status light
14. power light
15. 10-in-1 card reader slot
16. optical-drive eject button
17. optical drive
18. smart card reader slot
19. ExpressCard slot
M4700 — Base View
Figure 3. Base View
1. battery bay
2
2. HDD eject latch
3. SIM slot
4. battery release latch
5. dock I/O port

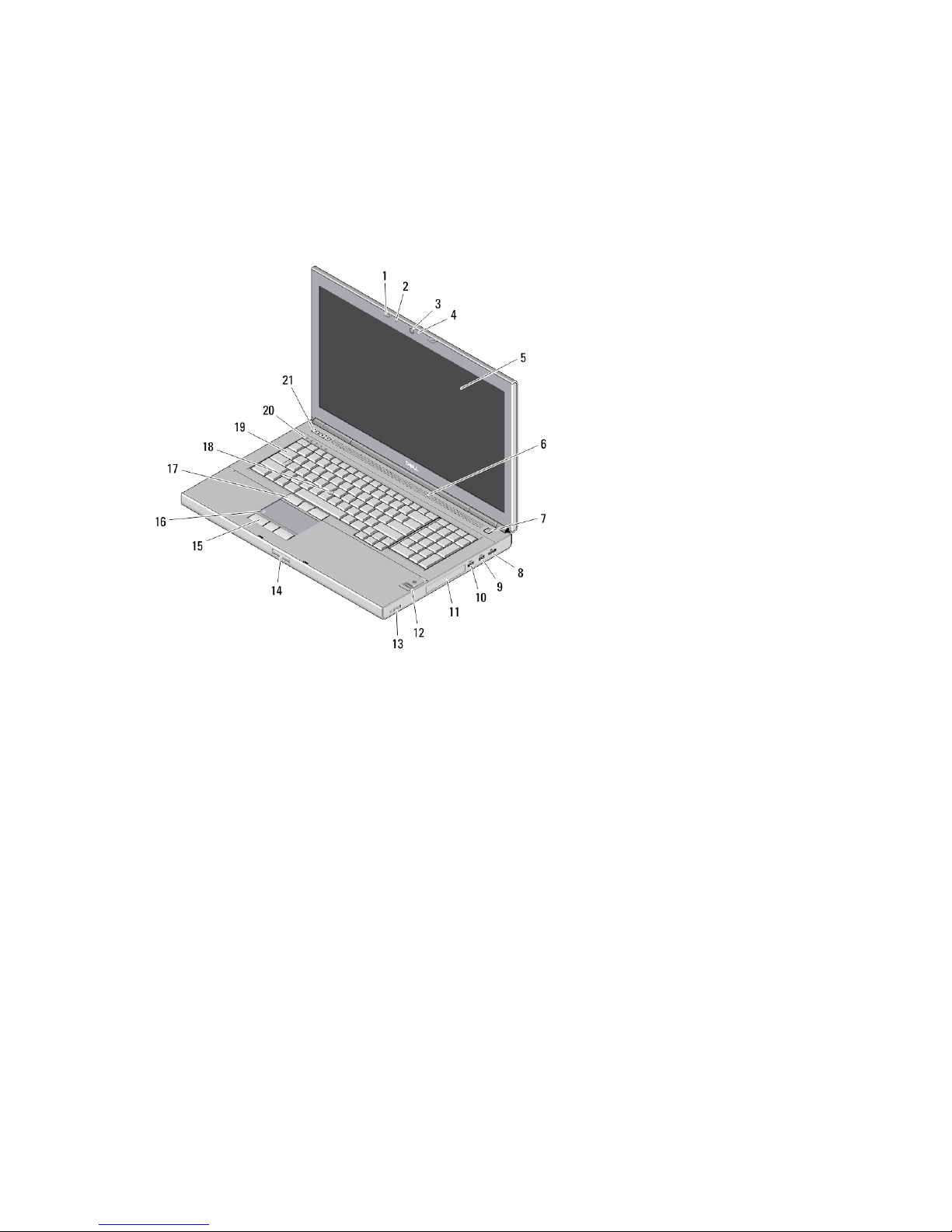

M6700 — Front and Back View
Figure 4. Front View
1. display latches (2)
2. microphones (2) (optional)
3. camera (optional)
4. camera LED (optional)
5. display
6. speakers (2)
7. power button
8. DisplayPort connector
9. USB 3.0 connector
10. USB 3.0 PowerShare connector
11. hard drive
12. fingerprint reader (optional)
13. wireless switch
14. display-latch release button
15. touchpad buttons (3)
16. touchpad
17. track-stick buttons (3)
18. track stick
19. keyboard
20. device status lights
21. volume control buttons (3)
3

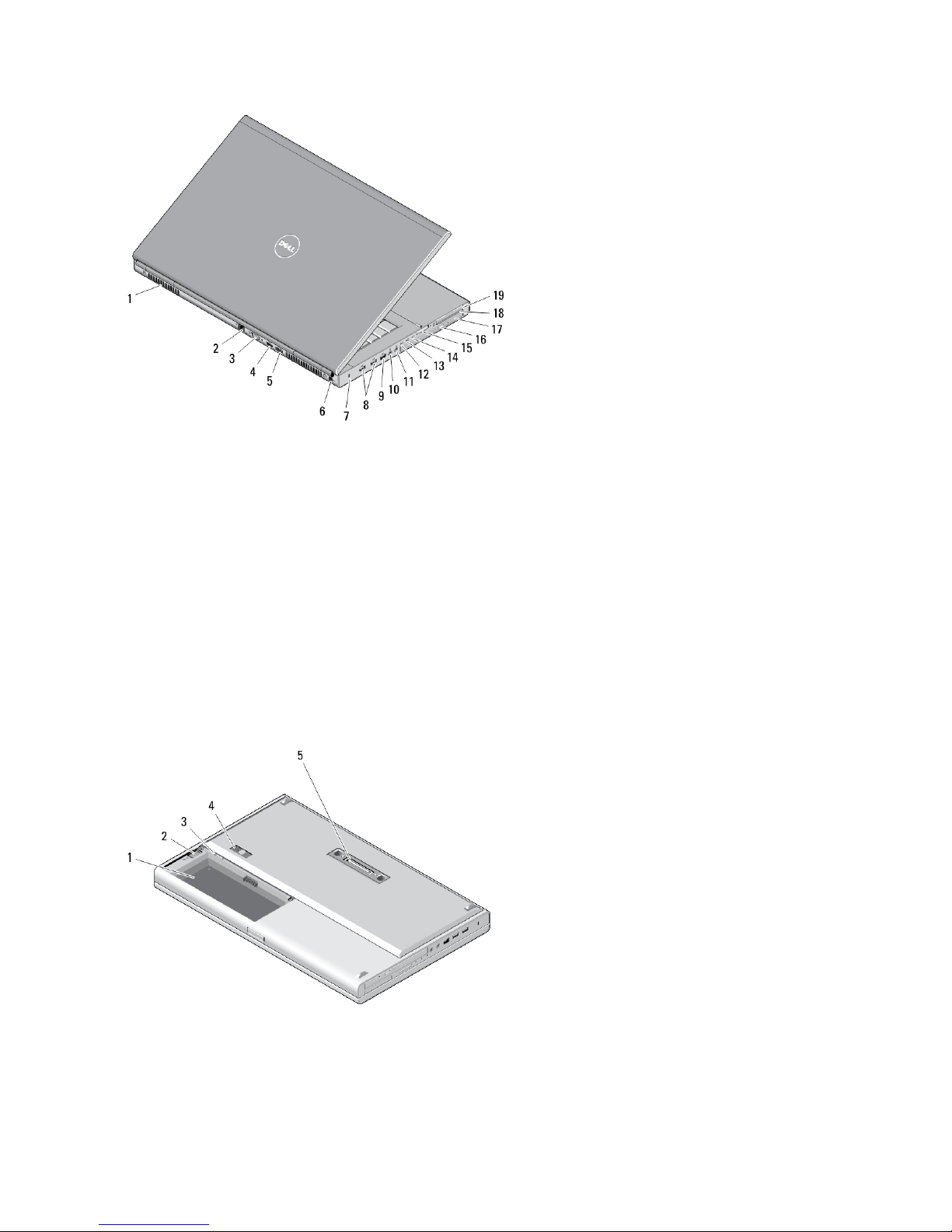

Figure 5. Back View
1. cooling vents (2)
2. network connector
3. VGA connector
4. HDMI connector
5. eSATA/USB 2.0 connector
6. power connector
7. security cable slot
8. USB 2.0 connectors (2)
9. IEEE 1394 port (6-pin, powered)
10. microphone connector
11. headphone connector
12. hard-drive status light
13. battery status light
14. power light
15. 10-in-1 card reader slot
16. optical-drive eject button
17. optical drive
18. smart card reader slot
19. ExpressCard slot
M6700 — Base View
Figure 6. Base View
1. battery bay
4
2. HDD eject latch
3. SIM slot
4. battery release latch
5. dock I/O port

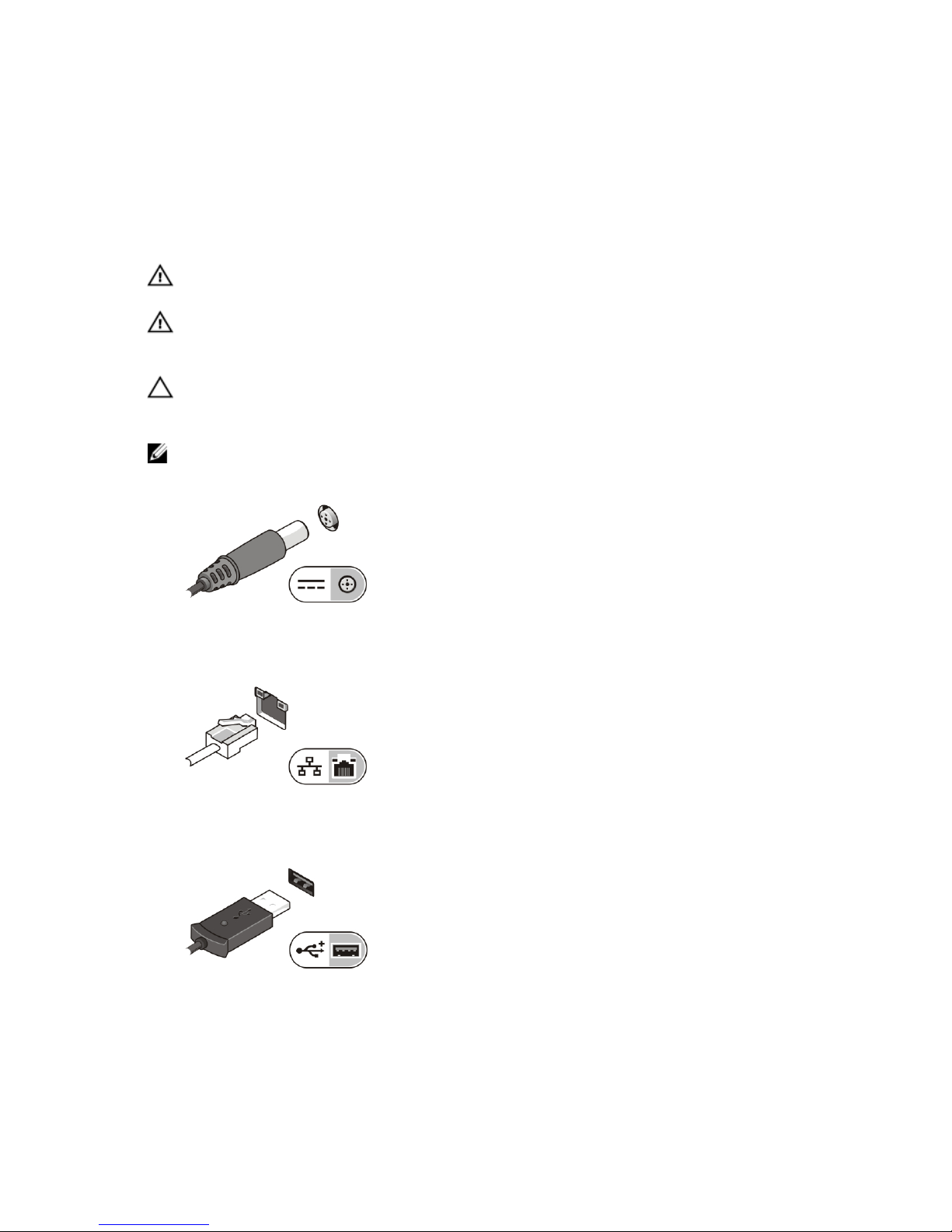

Quick Setup
WARNING: Before you begin any of the procedures in this section, read the safety information that shipped with
your computer. For additional best practices information, see www.dell.com/regulatory_compliance
WARNING: The AC adapter works with electrical outlets worldwide. However, power connectors and power strips
vary among countries. Using an incompatible cable or improperly connecting the cable to the power strip or
electrical outlet may cause fire or equipment damage.
CAUTION: When you disconnect the AC adapter cable from the computer, grasp the connector, not the cable itself,
and pull firmly but gently to avoid damaging the cable. When you wrap the AC adapter cable, ensure that you
follow the angle of the connector on the AC adapter to avoid damaging the cable.
NOTE: Some devices may not be included if you did not order them.
1. Connect the AC adapter to the AC adapter connector on the computer and to the electrical outlet.
Figure 7. AC Adapter
2. Connect the network cable (optional).
Figure 8. Network Connector
3. Connect USB devices, such as a mouse or keyboard (optional).
Figure 9. USB Connector
4. Connect IEEE 1394 devices, such as a 1394 hard drive (optional).
5

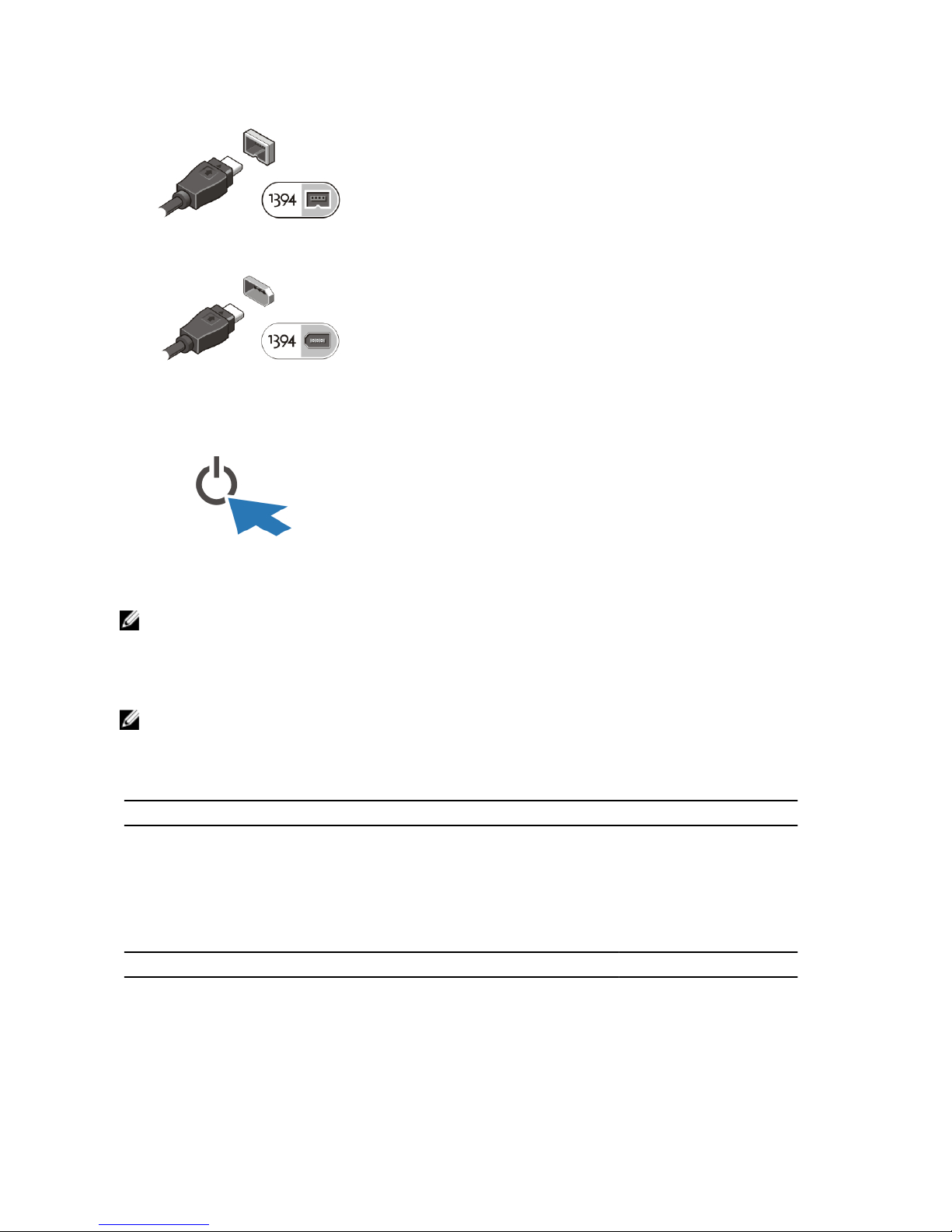

Figure 10. IEEE 1394 Connector on M4700
Figure 11. IEEE 1394 Connector on M6700
5. Open the computer display and press the power button to turn on the computer.
Figure 12. Power Button
NOTE: It is recommended that you turn on and shut down your computer at least once before you install any cards
or connect the computer to a docking device or other external device, such as a printer.
Specifications
NOTE: Offerings may vary by region. The following specifications are only those required by law to ship with your
computer. For more information regarding the configuration of your computer, click Start → Help and Support and
select the option to view information about your computer.
Table 1. Power
Feature Description
AC adapter 180 W and 240 W
Input voltage 90 VAC to 264 VAC
Coin-cell battery 3V / 210 mA
Table 2. Physical
Feature M4700 M6700
Height 32.70 mm (1.28 inches) 33.10 mm (1.30 inches)
Width 376 mm (14.80 inches) 416.70 mm (16.40 inches)
Depth 256 mm (10.07 inches) 270.60 mm (10.65 inches)
6
Feature M4700 M6700
Weight (minimum) 2.79 kg (6.15 lb) 3.52 kg (7.76 lb)
Table 3. Environmental
Feature Description
Operating temperature 0 °C to 35 °C (32 °F to 95 °F)
Information para NOM (únicamente para México)
The following information provided on the device described in this document in compliance with the requirements of the
official Mexican standards (NOM).
Voltaje de alimentación 100 V CA – 240 V CA
Frecuencia 50 Hz – 60 Hz
Consumo eléctrico:
M4700 2,34 A /2,5 A
M6700 3,5 A
Voltaje de salida 19,50 V de CC
Intensidad de salida 3,34 A /4,62 A
Finding More Information and Resources
See the safety and regulatory documents that shipped with your computer and the regulatory compliance website at
www.dell.com/regulatory_compliance for more information on:
• Safety best practices
• Regulatory certification
• Ergonomics
See www.dell.com for additional information on:
• Warranty
• Terms and Conditions (U.S. only)
• End User License Agreement
Additional information on your product is available at support.dell.com/manuals.
©2012 Dell Inc.
Trademarks used in this text: Dell™, the DELL logo, Dell Precision™, Precision ON™,ExpressCharge™, Latitude™, Latitude ON™,
OptiPlex™, Vostro™, and Wi-Fi Catcher™are trademarks of Dell Inc. Intel®, Pentium®, Xeon®, Core™, Atom™, Centrino®, and Celeron®
are registered trademarks or trademarks of Intel Corporation in the U.S. and other countries. AMD®is a registered trademark and
AMD Opteron™, AMD Phenom™, AMD Sempron™, AMD Athlon™, ATI Radeon™, and ATI FirePro™are trademarks of Advanced Micro
Devices, Inc. Microsoft®, Windows®, MS-DOS®, Windows Vista®, the Windows Vista start button, and Office Outlook®are either
trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Blu-ray Disc™is a trademark
owned by the Blu-ray Disc Association (BDA) and licensed for use on discs and players. The Bluetooth®word mark is a registered
7
trademark and owned by the Bluetooth®SIG, Inc. and any use of such mark by Dell Inc. is under license. Wi-Fi®is a registered
trademark of Wireless Ethernet Compatibility Alliance, Inc.
