This section provides information about setting up your Studio XPS™ 435T/9000 and connecting

peripherals.

WARNING: Before you begin any of the procedures in this section, read the safety information

that shipped with your computer. For additional safety best practices information, see the

Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

Setting Up Your Studio XPS Desktop

NOTE: Your computer’s Service Tag is

located on a label under the FlexBay panel

on the front of your computer. Use this

code to identify your computer when you

access the Dell Support website or contact

technical support.

WWW.DELL.COM

Service Tag: XXXXX

Express Service Code: XXX–XXX–XX

Setting Up Your Studio XPS Desktop

Before Setting Up Your Computer

When positioning your computer, ensure that you allow easy access to a power source, adequate

ventilation, and a level surface to place your computer.

Restricting airflow around your computer may cause it to overheat. To prevent overheating ensure

that you leave at least 10.2 cm (4 inches) at the back of the computer and a minimum of 5.1 cm

(2 inches) on all other sides. You should never place your computer in an enclosed space, such as

a cabinet or drawer when it is powered on.

Setting Up Your Studio XPS Desktop

Connect the Display

Your computer does not have an integrated

video connector. You must use the connector

available on the video card in the expansion

slot to connect to the display.

Connect the Video Cable to the Display

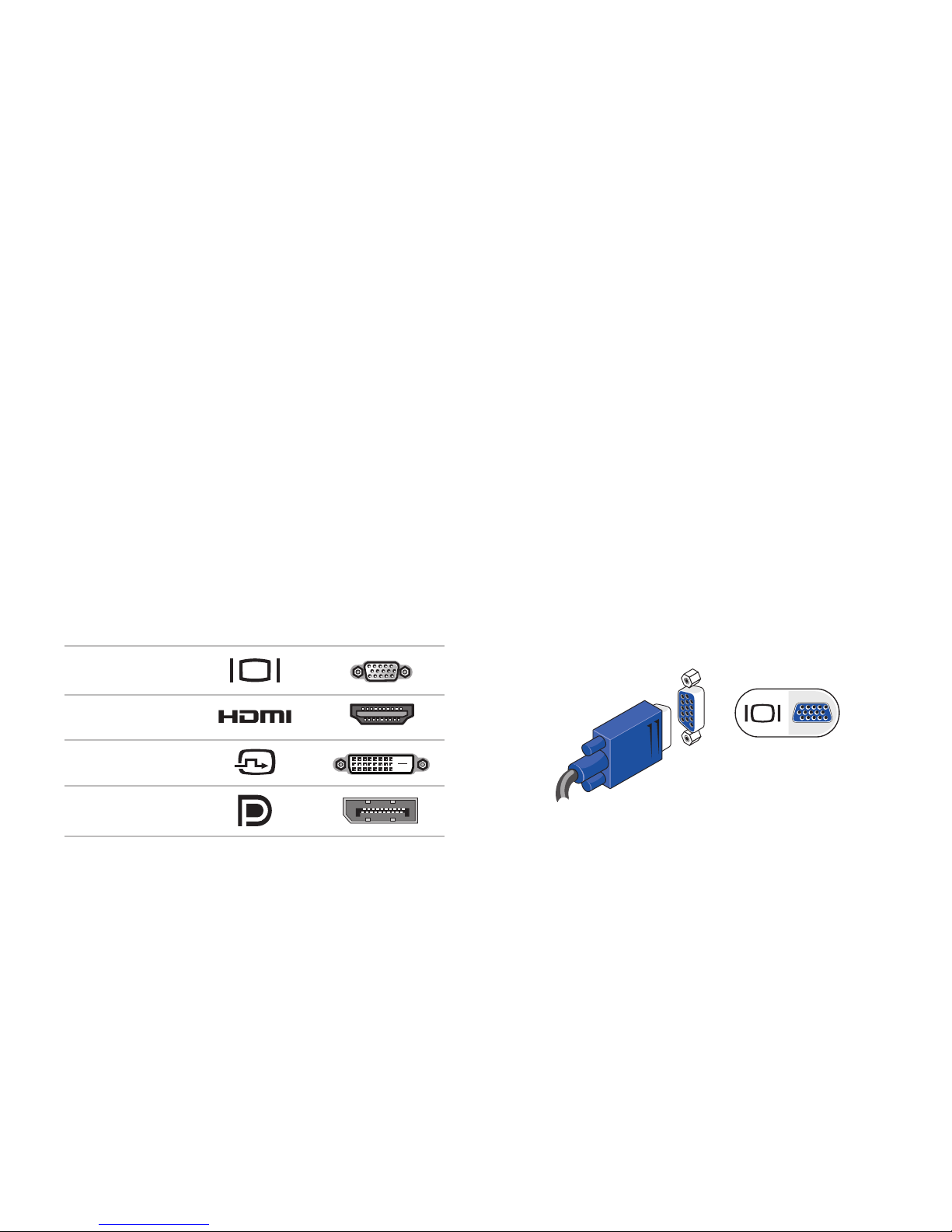

Check your TV or monitor to see which type of

connectors are available. Refer to the following

table when identifying the connectors on your

display to select the connection type you

will use.

VGA

HDMI

DVI

DisplayPort

Connect the display using either the VGA

connector, the DVI connector, the HDMI

connector, or the DisplayPort connector.

The HDMI connector is a high‑performance

digital connector that carries both video and

audio signals for displays such as TVs and

monitors with integrated speakers. The VGA

connector carries only video signals for displays

such as monitors and projectors.

Connect Using the VGA Connector

Connect the display using a VGA cable (which

usually has blue connectors at both ends).

If your computer has a DVI connector, use the

VGA cable (with blue connectors at both ends)

with a DVI‑to‑VGA adapter (white connector).
