Dell XPS 9Q34 Manuale utente

Dell XPS 12

Owner’s Manual

Computer model: XPS 9Q33/9Q34

Regulatory model: P20S

Regulatory type: P20S002

____________________

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better

use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of

data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage,

personal injury, or death.

Trademarks used in this text: Dell™, the DELL logo, and XPS™ are trademarks of Dell Inc.;

Microsoft®and Windows® are registered trademarks of Microsoft corporation in the

United States and/or other countries.

2013 - 06 Rev. A00

Contents

Before Working Inside Your Computer . . . . . . . . . 7

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Recommended Tools. . . . . . . . . . . . . . . . . . . . . . . . 7

Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . 8

After Working Inside Your Computer . . . . . . . . . . . 9

Removing the Base Cover . . . . . . . . . . . . . . . . . . . 10

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Replacing the Base Cover . . . . . . . . . . . . . . . . . . . 12

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Removing the Battery . . . . . . . . . . . . . . . . . . . . . . 13

Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . 14

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Removing the Wireless Card . . . . . . . . . . . . . . . . . 15

Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Replacing the Wireless Card . . . . . . . . . . . . . . . . . 16

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Removing the mSATA Card . . . . . . . . . . . . . . . . . . 17

Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Replacing the mSATA Card . . . . . . . . . . . . . . . . . . 18

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Contents | 3

Removing the Speakers . . . . . . . . . . . . . . . . . . . . . 19

Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Replacing the Speakers . . . . . . . . . . . . . . . . . . . . . 20

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Removing the Coin-Cell Battery. . . . . . . . . . . . . . 21

Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Replacing the Coin-Cell Battery . . . . . . . . . . . . . . 23

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Removing the I/O Board . . . . . . . . . . . . . . . . . . . . 24

Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Replacing the I/O Board . . . . . . . . . . . . . . . . . . . . 25

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Removing the Fan . . . . . . . . . . . . . . . . . . . . . . . . . 26

Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Replacing the Fan. . . . . . . . . . . . . . . . . . . . . . . . . . 28

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Removing the Heat Sink . . . . . . . . . . . . . . . . . . . . 29

Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Replacing the Heat Sink. . . . . . . . . . . . . . . . . . . . . 30

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

4| Contents

Removing the Power-Adapter Port . . . . . . . . . . . 31

Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Replacing the Power-Adapter Port . . . . . . . . . . . 32

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Removing the System Board . . . . . . . . . . . . . . . . . 33

Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Replacing the System Board . . . . . . . . . . . . . . . . . 36

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Entering the Service Tag in the BIOS. . . . . . . . . . . . . 36

Removing the Display Assembly . . . . . . . . . . . . . . 37

Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Replacing the Display Assembly . . . . . . . . . . . . . . 39

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Removing the Display Back-Cover . . . . . . . . . . . 40

Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Replacing the Display Back-Cover . . . . . . . . . . . . 42

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Removing the Camera Module . . . . . . . . . . . . . . . 43

Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Replacing the Camera Module . . . . . . . . . . . . . . 44

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Contents | 5

Removing the Windows-Button Board . . . . . . . . 45

Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Replacing the Windows-Button Board . . . . . . . . 46

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Removing the Display Panel . . . . . . . . . . . . . . . . . 47

Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Replacing the Display Panel . . . . . . . . . . . . . . . . . 49

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Removing the Keyboard . . . . . . . . . . . . . . . . . . . . 50

Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Replacing the Keyboard . . . . . . . . . . . . . . . . . . . . 54

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Flashing the BIOS . . . . . . . . . . . . . . . . . . . . . . . . . . 56

6| Contents

Before Working Inside Your Computer

Before You Begin

CAUTION: To avoid data loss, save and close all open files and exit all open

programs before turning off your computer.

1 Save and close all open files, exit all open programs, and turn off your computer.

Microsoft Windows 8: Point to the lower/upper-right corner of the screen to open

the Charms sidebar and click Settings→ Power→ Shut down.

NOTE: If you use a different operating system, see the documentation of your

operating system for shut-down instructions.

2 After the computer shuts down, disconnect it from the electrical outlet.

3 Disconnect all cables — such as power and USB cables — from your computer.

4 Disconnect all peripherals connected to your computer.

Recommended Tools

The procedures in this document require the following tools:

• Phillips screwdriver

• Torx #5 (T5) screwdriver

• Plastic scribe

Before Working Inside Your Computer | 7

Safety Instructions

Use the following safety guidelines to protect your computer from potential damage and

ensure your personal safety.

WARNING: Before working inside your computer, read the safety

information that shipped with your computer. For more safety best practices,

see the Regulatory Compliance home page at dell.com/regulatory_compliance.

WARNING: Disconnect all power sources before opening the computer

cover or panels. After you finish working inside the computer, replace all covers,

panels, and screws before connecting to the power source.

CAUTION: Only a certified service technician is authorized to remove the

computer cover and access any of the components inside the computer. See the

safety instructions for complete information about safety precautions, working

inside your computer, and protecting against electrostatic discharge.

CAUTION: To avoid damaging the computer, make sure that the work surface is

flat and clean.

CAUTION: When you disconnect a cable, pull on its connector or on its pull-tab,

not on the cable itself. Some cables have connectors with locking tabs or

thumb-screws that you must disengage before disconnecting the cable.

When disconnecting cables, keep them evenly aligned to avoid bending any

connector pins. When connecting cables, make sure that the ports and

connectors are correctly oriented and aligned.

CAUTION: To avoid damaging the components and cards, handle them by

their edges and avoid touching pins and contacts.

CAUTION: Before touching anything inside your computer, ground yourself

by touching an unpainted metal surface, such as the metal at the back of the

computer. While you work, periodically touch an unpainted metal surface to

dissipate static electricity, which could harm internal components.

8 | Before Working Inside Your Computer

After Working Inside Your Computer

CAUTION: Leaving stray or loose screws inside your computer may severely

damage your computer.

1 Replace all screws and make sure that no stray screws remain inside your

computer.

2 Connect any cables, peripherals, and other parts you removed before working on

your computer.

3 Connect your computer to the electrical outlet.

4 Turn on your computer.

After Working Inside Your Computer | 9

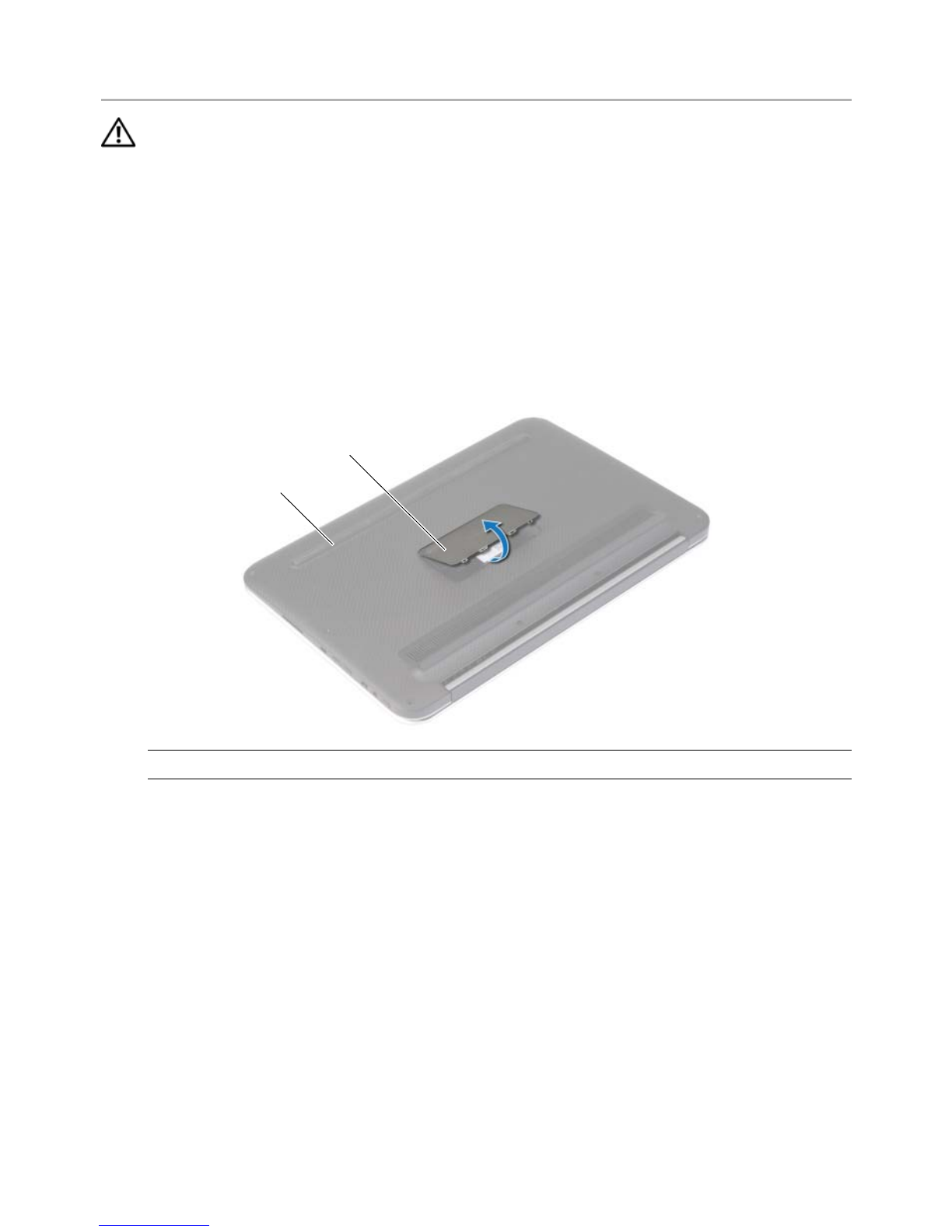

Removing the Base Cover

WARNING: Before working inside your computer, read the safety information

that shipped with your computer and follow the steps in "Before Working Inside

Your Computer" on page 7. After working inside your computer, follow the

instructions in "After Working Inside Your Computer" on page 9.

For more safety best practices, see the Regulatory Compliance home page at

dell.com/regulatory_compliance.

Procedure

1 Close the display, and turn the computer over.

2 Turn the system badge over and place it on the base cover.

1 base cover 2 system badge

10 | Removing the Base Cover

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Dell Computer portatile

Dell

Dell P181G001 Manuale utente

Dell

Dell Inspiron 17 5000 Series Manuale utente

Dell

Dell Inspiron 14 5000 Series Manuale utente

Dell

Dell P80F003 Manuale utente

Dell

Dell Inspiron 11 Manuale utente

Dell

Dell P169G Manuale operativo e di manutenzione

Dell

Dell Inspiron 7420 Manuale operativo e di manutenzione

Dell

Dell Alienware 17 R4 Manuale operativo e di manutenzione

Dell

Dell Latitude 5320 Guida utente

Dell

Dell XPS 13 Manuale utente

Dell

Dell P125F Manuale utente

Dell

Dell XPS 15 Manuale utente

Dell

Dell G15 5515 Manuale operativo e di manutenzione

Dell

Dell Vostro 5481 Manuale utente

Dell

Dell Inspiron 600m Manuale utente

Dell

Dell N1100 Manuale utente

Dell

Dell Latitude 7290 Manuale utente

Dell

Dell Inspiron 7500 2n1 Silver Manuale operativo e di manutenzione

Dell

Dell P61F Manuale operativo e di manutenzione

Dell

Dell Inspiron 1320 Manuale utente

Dell

Dell Latitude JD925 Manuale utente

Dell

Dell Latitude 2120 Manuale utente

Dell

Dell P89F Manuale operativo e di manutenzione

Dell

Dell Inspiron 15 5000 Series Manuale utente

Manuali Computer portatile popolari di altre marche

HP ze2401xt - Pavilion Notebook PC Manuale utente

Velocity

Velocity NoteMagix M10 Manuale utente

Toshiba

Toshiba A105-S2236 Manuale utente

HP ENVY 17 Manuale

Winbook

Winbook LM Manuale utente

HP PROBOOK 4520S Manuale

Sony

Sony VAIO PCG-FX270 Manuale utente

Sony

Sony VAIO PCG-R505JLK Manuale utente

Lenovo

Lenovo THINKPAD X32 Manuale utente

HP Compaq tc4200 Guida rapida

Toshiba

Toshiba mini NB300 Manuale utente

Lenovo

Lenovo ThinkPad X201 Tablet Manuale

Lenovo

Lenovo THINKPAD X31 Manuale

Sony

Sony VGN-T240P VAIO Manuale utente

Compaq

Compaq Armada E700 Series Manuale utente

Fujitsu

Fujitsu Lifebook A6230 Manuale utente

Acer

Acer Aspire ONE 722 Manuale utente

Toshiba

Toshiba L300-EZ1524 Manuale utente
