www.dell.com | support.dell.com

Dell™ W1900 LCD TV Display

Owner’s Manual

Model W1900

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of your TV display.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the

problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

____________________

Information in this document is subject to change without notice.

© 2004 Dell Inc. All rights reserved.

Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of Dell, Inc.; TruSurround XT, SRS, and symbol are

trademarks of SRS Labs, Inc.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.

Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

November 2004 Rev. A01

Contents 3

Contents

1 About Your TV Display

Front View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Right Side View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Left Side View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Bottom View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2 Setting Up Your TV Display

Proper Location for Your TV Display . . . . . . . . . . . . . . . . . . . . 11

Connecting Your TV Display . . . . . . . . . . . . . . . . . . . . . . . . 11

Connecting Your Computer to the TV Display . . . . . . . . . . . . . . . . 13

3 Your Remote Control

Installing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Using Your Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . 20

Using Your TV Display With a Universal or Learning Remote Control . . . . . 22

4 Using the On-Screen Display

Using Your Remote Control With the OSD . . . . . . . . . . . . . . . . . . 23

Selecting Your OSD Language . . . . . . . . . . . . . . . . . . . . . . . 24

Input Select Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Picture Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

PIP/POP/PBP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4Contents

Channel Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

OSD Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Teletext . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

5 Troubleshooting Your TV Display

Troubleshooting Tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

General Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

OSD Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Remote Control Problems . . . . . . . . . . . . . . . . . . . . . . . . . 37

Using the Self-Test Feature When Your TV Display is

Connected to Your Computer . . . . . . . . . . . . . . . . . . . . . . . . 37

Problems When Using the TV Display as a Monitor . . . . . . . . . . . . . 37

6 Specifications for Your TV Display

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

About Your TV Display 5

About Your TV Display

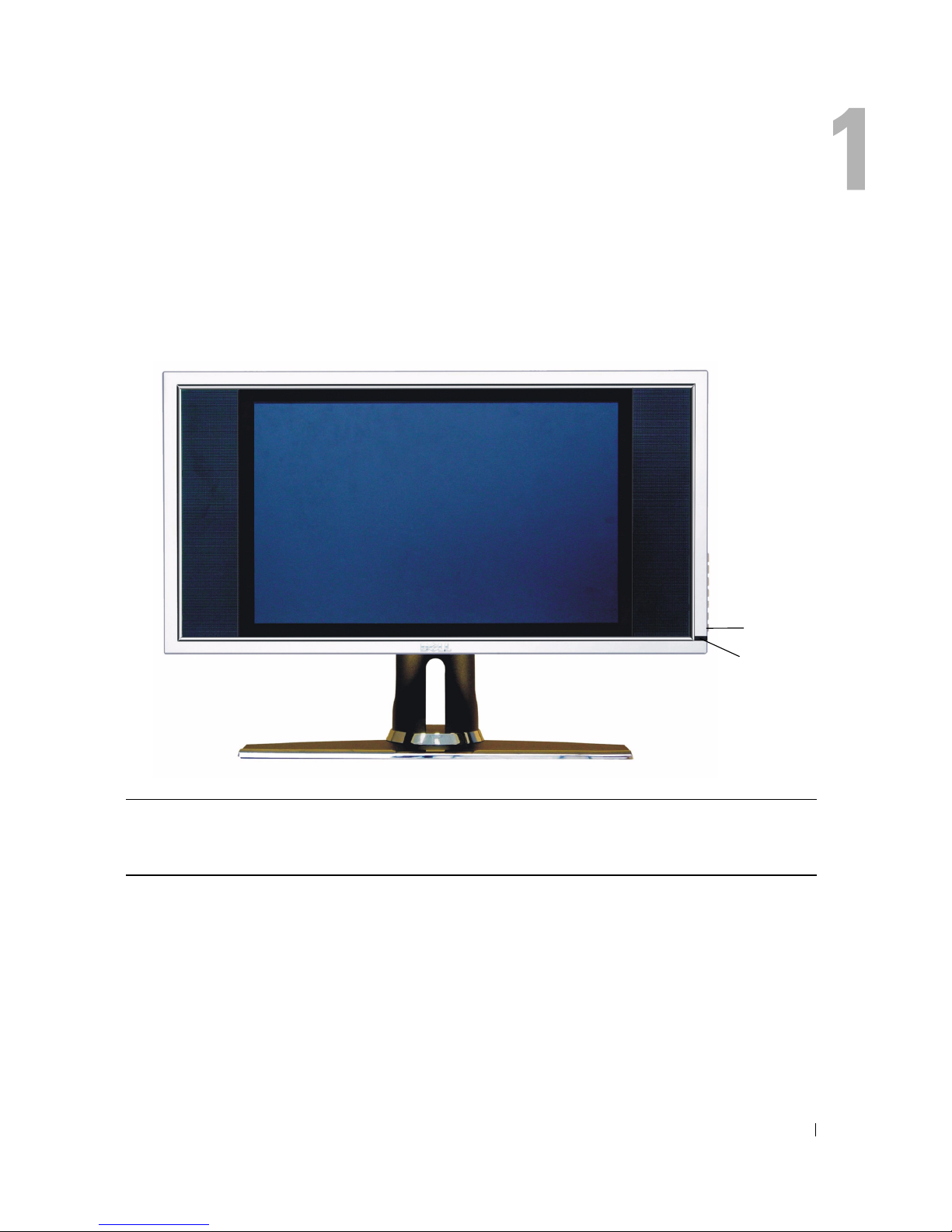

Front View

1IR receiver Senses the signal from the remote control

2Power indicator light (LED) The light is blue when the TV display is on and amber when the

TV display is in power save mode

2

1

6About Your TV Display

www.dell.com | support.dell.com

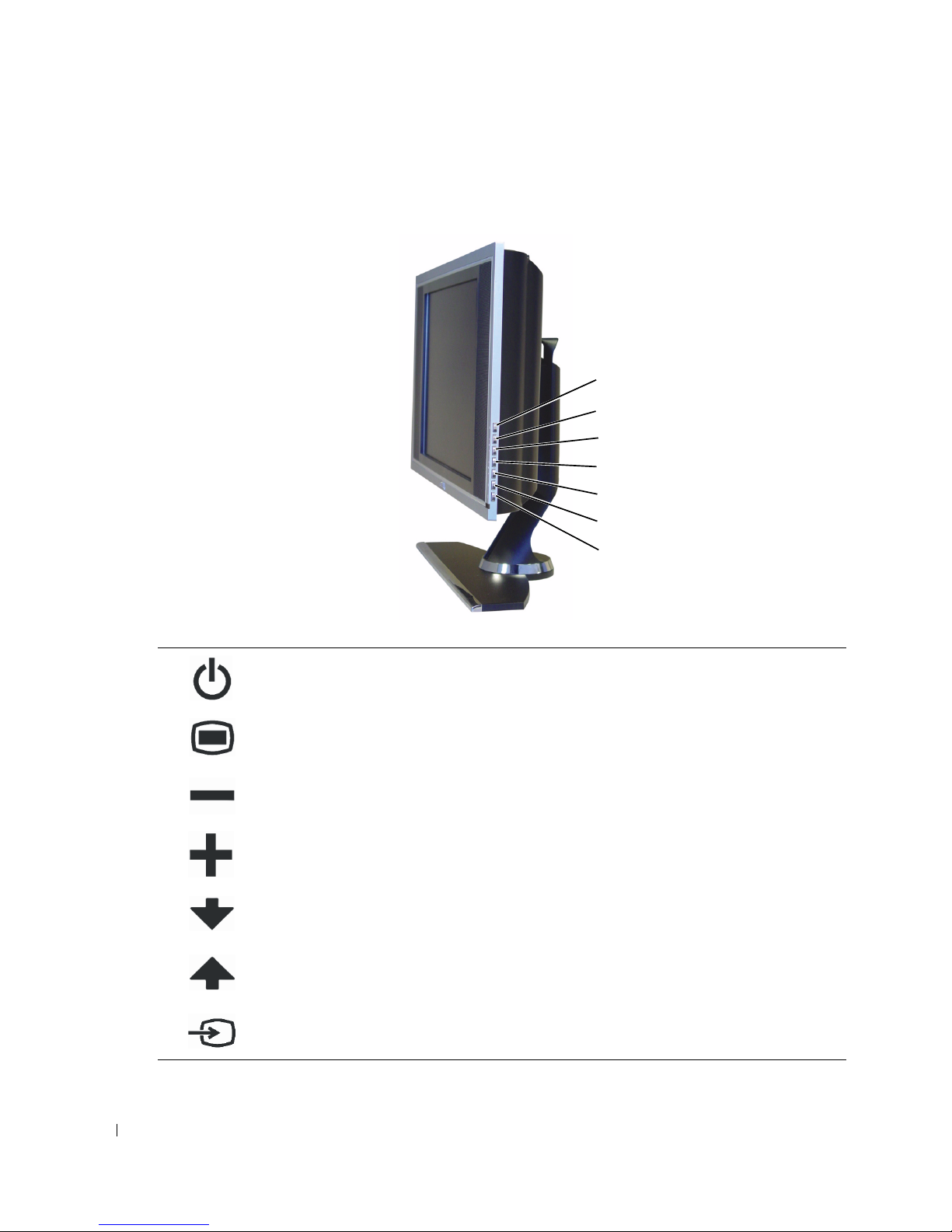

Right Side View

1Power button Push to turn the TV display on and off. The power button is

blue when it is on and amber when it is in power saving mode.

2OSD menu button Push to enable the on-screen display (OSD)

3Volume button Push to decrease the volume

4Volume button Push to increase the volume

5Channel button Push to select the previous channel or navigate through

the OSD

6Channel button Push to select the next channel or navigate through the OSD

7Input Select button Push to display the Input Select menu

2

1

3

4

5

6

7

About Your TV Display 7

Left Side View

1Composite out / Video out Connect a VCR

2Composite audio connector Use the audio connector if you have connected a device to

composite connector (AV1)

3Composite connector (AV1) Connect devices such as a VCR or DVD player

4S-Video connector (AV2) Connect devices such as a video game system or a VCR

5S-Video audio connector Use the audio connector if you have connected a device to

S-Video connector (AV2)

6Subwoofer out connector Connect a Subwoofer

7Headphone connector Connect headphones

1

2

3

4

5

6

7

8About Your TV Display

www.dell.com | support.dell.com

Bottom View

1Power connector Connect your power cord

2DVI audio connector (L / R) Use the DVI audio connector if you have connected a device

such as a DVD player to the DVI connector

3DVI connector Connect your computer or video devices such as a DVD player

4Audio connector for VGA or DVI Connect the audio cable from your computer to the TV display

5Component video and audio

connectors (AV3)

Connect devices such as a DVD player or cable TV box

6ANT/Cable Connect cable TV box or an antenna

7SCART connector (AV5) Connect devices such as a DVD player or VCR.

The SCART connector supports RGB in, composite video in,

composite video out, stereo audio in and stereo audio out.

8Component video and audio

connectors (AV4)

Connect devices such as a DVD player or cable TV box

9VGA Connect your computer

1235

46

8

9

7

About Your TV Display 9

Package Contents

NOTE: If you need additional cables, contact Dell.

Remote control

AAA batteries (2)

Composite video cable

Audio cables (2)

VGA cable

10 About Your TV Display

www.dell.com | support.dell.com

DVI cable

Computer audio cable

S-Video cable

Documentation
