Dell P5524Q Manuale utente

Monitor Model: P5524Q

Regulatory Model: P5524Qc

Dell P5524Q

User’s Guide

NOTE: A NOTE indicates important information that helps you make

better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss

of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage,

personal injury, or death.

are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective

owners.

2023 –08

Rev. A00

Contents

About your monitor ......................... 6

Package Contents . . . . . . . . . . . . . . . . . . . . . .6

Product Features . . . . . . . . . . . . . . . . . . . . . . 7

Identifying parts and controls . . . . . . . . . . . . . . . .8

Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Back view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Side view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Bottom view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Monitor specifications . . . . . . . . . . . . . . . . . . . 12

Resolution specifications . . . . . . . . . . . . . . . . . . . . . . 14

Support video mode. . . . . . . . . . . . . . . . . . . . . . . . . 14

Preset display modes . . . . . . . . . . . . . . . . . . . . . . . . 14

Electrical specifications. . . . . . . . . . . . . . . . . . . . . . . 15

Physical characteristics. . . . . . . . . . . . . . . . . . . . . . . 16

Environmental characteristics . . . . . . . . . . . . . . . . . . . 17

Plug and Play capability. . . . . . . . . . . . . . . . . . . . . . . 18

LCD monitor quality & pixel policy. . . . . . . . . . . . . 18

Setting up the monitor .......................19

Connecting your monitor . . . . . . . . . . . . . . . . . 19

Connecting the VGA cable . . . . . . . . . . . . . . . . . . . . . 19

Connecting the HDMI cable. . . . . . . . . . . . . . . . . . . . . 19

Connecting the DP cable . . . . . . . . . . . . . . . . . . . . . . 20

Connecting the USB cable . . . . . . . . . . . . . . . . . . . . . 20

Connecting the audio cable (optional purchase) . . . . . . . . . . 20

Wall mounting . . . . . . . . . . . . . . . . . . . . . . . 21

Remote control . . . . . . . . . . . . . . . . . . . . . . . 22

Inserting the batteries in the remote control . . . . . . . . . . . 23

Handling the remote control . . . . . . . . . . . . . . . . . . . . 23

Operating range of the remote control . . . . . . . . . . . . . . 24

Operating the monitor ...................... 25

Power on the monitor . . . . . . . . . . . . . . . . . . . 25

Using the control buttons . . . . . . . . . . . . . . . . . 26

OSD controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Using the On-Screen Display (OSD) menu . . . . . . . . 28

Accessing the OSD menu . . . . . . . . . . . . . . . . . . . . . . 28

OSD warning messages . . . . . . . . . . . . . . . . . . 40

Dell ethernet/web management for monitors. . . . . . . 43

OSD and Power button lock . . . . . . . . . . . . . . . . 49

Troubleshooting ............................51

Self-test . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Built-in diagnostics . . . . . . . . . . . . . . . . . . . . 53

Product-specific problems . . . . . . . . . . . . . . . . 57

Appendix................................. 58

Safety instructions . . . . . . . . . . . . . . . . . . . . . . . 58

FCC notices (U.S. Only) and other regulatory information58

Contacting Dell............................ 59

Setting up your monitor . . . . . . . . . . . . . . . . . . 60

Setting display resolution to 3840 x 2160 (maximum) . . . . . . .60

Maintenance guidelines . . . . . . . . . . . . . . . . . . 61

Cleaning your monitor. . . . . . . . . . . . . . . . . . . . . . . . 61

Pin assignments . . . . . . . . . . . . . . . . . . . . . . 62

6 |About your monitor

About your monitor

Package Contents

Your monitor ships with all the components shown below. Ensure that you have

received all the components and Contacting Dell if anything is missing.

NOTE: Some items may be optional and may not ship with your

monitor. Some features or media may not be available in certain

countries.

Monitor

Remote control & Batteries (AAA x 2)

Power cable (varies by countries)

VGA cable

HDMI cable

About your monitor |7

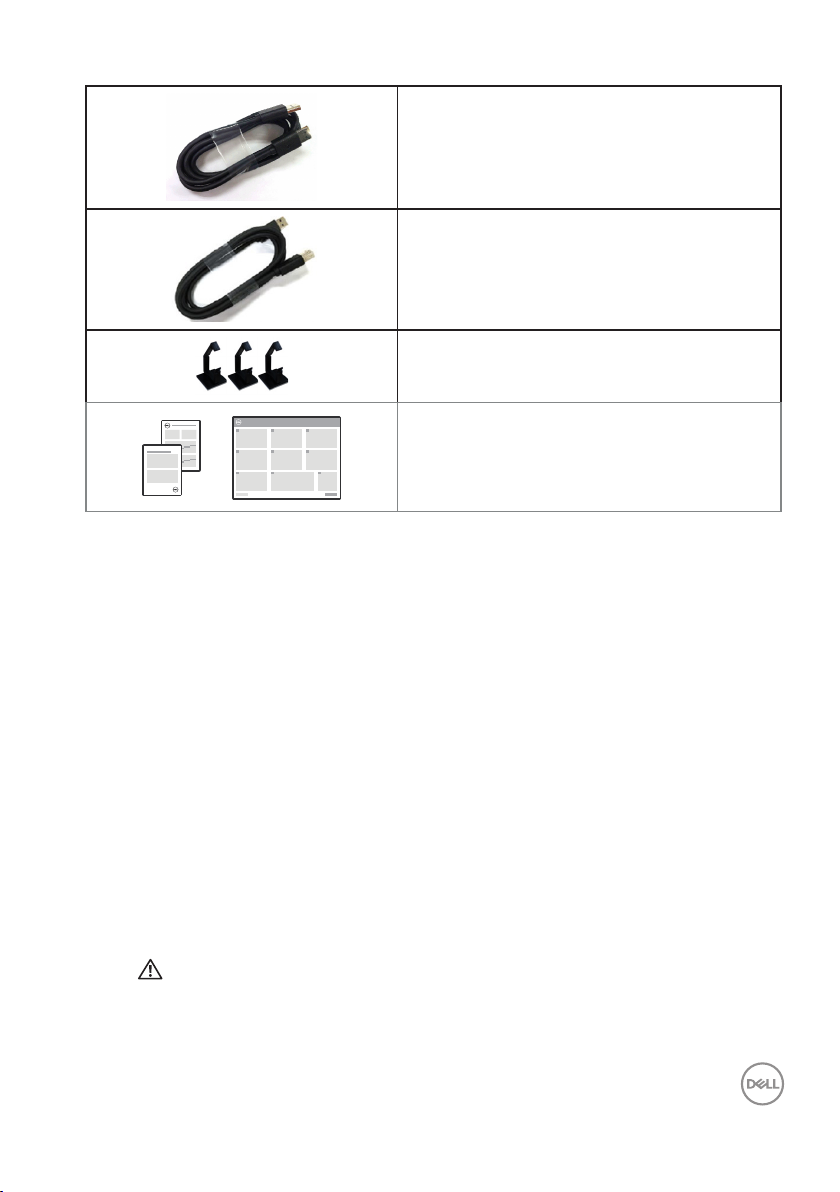

DP cable (DP to DP)

USB 3.0 upstream cable (enables the USB

ports on the monitor)

Cable clips: 3 pcs

• Quick Start Guide

• Safety, Environmental and Regulatory

Information

Product Features

The Dell P5524Q flat panel monitor has an active matrix, Thin-Film Transistor (TFT),

Liquid Crystal Display (LCD), and LED backlight. The monitor’s features include:

• P5524Q: 1386.84 mm (54.6 in.) viewable area display (measured diagonally),

3840 x 2160 resolution, plus full-screen support for lower resolutions.

• Video Electronics Standards Association (VESA) 400 mm x 400 mm mounting

holes for flexible mounting solutions.

• Plug and play capability if supported by your system.

• Digital connectivity with DisplayPort and HDMI.

• On-Screen Display (OSD) adjustments for ease of set-up and screen

optimization.

• Security lock slot

• Asset Management Capability.

• ≤0.5 W in the Standby Mode.

• Optimize eye comfort with a flicker-free screen.

WARNING: The possible long-term effects of blue light emission

from the monitor may cause damage to the eyes, including eye fatigue,

digital eye strain, and so on. ComfortView feature is designed to

reduce the amount of blue light emitted from the monitor to optimize

eye comfort.

8 |About your monitor

Identifying parts and controls

Front view

1IR lens (with LED indicator)

About your monitor |9

Back view

DELL P5524Q

XXXXX

XXXXXXX-XXXXX

R-R-E2K-P5524Qc

제조자:TPVElectronics(Fujian)Co., Ltd.

080-854-0066

SVCTag:

xxxxxxx

ExpressService

Code:

xxxxxxxxx x

S/N:XXXXXXXX

XXXXXXXXXXXX

XXX

DateofMfg/

MACaddress:XXXXXXXXXXXXXX

生产日期/生產日期:January.2023

R33037

RoHS

IS13252(Part 1)/

IEC60950-1

R-41018660

www.bis.gov.in

液晶显示器

型号:P5524Q

输入电源:100-240V 50/60Hz,2.5A

中国制造

XXXXXX-XX

Thisdevicecomplieswith part 15 of the FCC Rules.

courantmunied'unemise à la terre.

Q40G055N-700-07AXXP

CANICES-003(B)/NMB-003(B) 警語: 使用過度恐傷害視力。

MadeinChina/ /中國製造

ForUKonly:One Creechurch Place, London EC3A 5AF

入力:100V~,2.5A,50/60 Hz

デル・テクノロジーズ

FlatPanelMonitor/Monitor Plano Panel /

Moniteurécranplat/液晶顯示器

ModelNo./Modelo/N°de modelo /

모델명/モデル番号/型號:P5524Qc

/Tensiond’entrée/

정격입력：

100-240V 50/60Hz,2.5A

輸入電源:交流電壓100-240伏特,2.5安培,50/60赫茲

RaheenBusinessParkLimerick Ireland (for EU Only)

/중국제조

신청인:DELLINC.

Label Description Use

1VESA mounting holes (400

mm x 400 mm)

To mount the monitor.

2Regulatory label List of approved regulatory labels.

3AC power connector To connect the monitor power cable.

4Function buttons (For more

information, see Operating the

monitor)

Use the keys on the back of the monitor

to adjust the image settings.

5Security lock slot Secures monitor with security lock.

6Screw Hole For accessory mounting.

7Cable clips position Sticking cable clips on these positions to

organize the cables.

10 |About your monitor

Side view

Label Description Use

1Audio line-out port Connect to external audio peripherals.

Only supports 2-channel audio.

NOTE:

The audio line-out port does not

support headphones.

2Audio line-in port Analog audio (two channel) input.

3VGA connector Connect your computer with VGA cable.

4DP connector Connect your computer with DP cable.

5HDMI 1 connector Connect your computer with HDMI cable.

6HDMI 2 connector

7USB dedicated

charging port

USB 3.0 with 10 W - Power supply (5 V/2.0 A)

8USB 3.0

downstream port

Connect your USB device.

You can only use this connector after you have

connected the USB cable to the computer and

USB upstream connector on the monitor.
