Dell S2317HWI Manuale utente

Dell S2317HWi Monitor

User’s Guide

Model: S2317HWi

Regulatory model: S2317HWib

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better

use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of

data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage,

personal injury, or death.

____________________

This product is protected by U.S. and international copyright and intellectual property laws.

Dell™ and the Dell logo are trademarks of Dell Inc. in the United States and/or other

jurisdictions. All other marks and names mentioned herein may be trademarks of their

respective companies.

2016 - 02 Rev. X01

Safety Information | 3

Safety Information

WARNING: Safety Instructions

WARNING: Use of controls, adjustments, or procedures other than those

specified in this documentation may result in exposure to shock, electrical

hazards, and/or mechanical hazards.

Please read safety and instructions for use before operating the device.

Please retain this user's guide for future reference.

For information on safety instructions, see the Safety, Environmental, and Regulatory

Information.

Positioning the Monitor

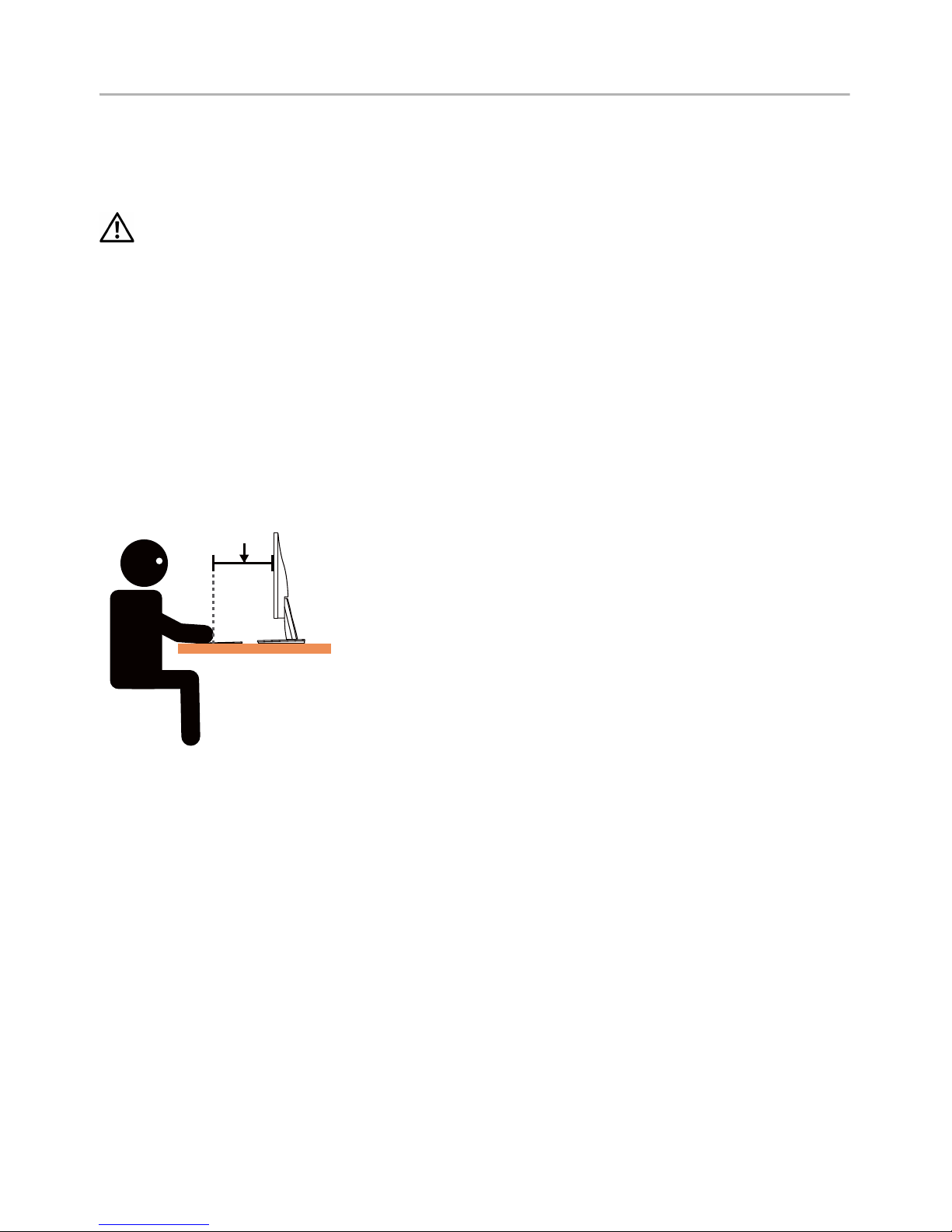

The monitor is equipped with an antenna of the radio transmitter, so we recommend that

you keep a safe distance of 20 cm at least between the monitor and you.

> 20 cm

Power connection - Monitor with external +19.5VDC power

adapter

•Power requirements: The monitor must be powered using the accompanied power

adapter.

•The power adapter must be powered by AC mains power.

•The power adapter is specified as a part of the monitor.

4| Safety Information

Regulatory compliance information

FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE

STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

•Reorient or relocate receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

CAUTION: This equipment complies with FCC radiation exposure limits set forth

for an uncontrolled environment. This equipment should be installed and

operated with minimum distance 20cm between the radiator & your body.

About Your Monitor | 5

About Your Monitor

Introduction

The Dell Wireless Monitor enables your laptop computer, Tablet & Mobile Phone devices

to display your screen image via WiFi Direct interface. When you connect the Laptop,

Tablet & Mobile Phone to the Dell Wireless Monitor, you can access the mouse &

keyboard connected to the Monitor to control the Compute device (Laptop, Tablet or

Mobile Phone).

Dell Wireless Monitor also enables your Laptop & Mobile Phone to be connected

simultaneously via WiFi Direct interface. The Laptop displayed in full screen and the

Mobile Phone will be displayed as an overlay (PiP) image.

Package Contents

Your monitor ships with the components shown below. Ensure that you have received all

the components and

Contact Dell

if something is missing.

Monitor

Stand Arm

NOTE: Some items may be optional and may not ship with your monitor. Some

features or media may not be available in certain countries.

NOTE: To set up with any other stand, please refer to the respective stand setup

guide for setup instructions.

Wireless Charging Base

Power Adapter

Power Cable (Varies by

Countries)

HDMI Cable

•Drivers and

Documentation

Media

•Quick Setup Guide

•Safety,Environmental,

and Regulatory

Information

•Wireless Safety and

Regulatory

Information

6| About Your Monitor

About Your Monitor | 7

Product Features

The Dell S2317HWi flat panel display has an active matrix, Thin-Film Transistor (TFT),

Liquid Crystal Display (LCD) and LED backlight. The monitor features include:

•58.42 cm (23-inch) viewable area display (measured diagonally).

1920 x 1080 resolution, plus full-screen support for lower resolutions.

•Wide viewing angle to allow viewing from a sitting or standing position, or while

moving from side-to-side.

•Wireless charging stand base makes wireless charging possible for your

smartphones or mobile devices.

•Plug and play capability if supported by your system.

•HDMI connectivity makes it simple and easy to connect with legacy and new

systems.

•Build-in Speaker (3 W) x 2.

•On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

•Software and documentation media includes an Information File (INF), Image Color

Matching File (ICM), and product documentation.

•Dell Display Manager Software included (in the CD shipped with the monitor).

•Energy Saver feature for Energy Star compliance.

•Screenovate drivers/app to support additional/enhanced HID sharing features will

be included for Windows®7/8.x/10.

•Security - lock slot.

•Capability to switch from wide aspect to standard aspect ratio while maintaining

the image quality.

•EPEAT Silver Rating.

•TCO-Certified Displays.

•BFR/PVC- Reduced.

•High Dynamic Contrast Ratio (8,000,000:1).

•0.3 W standby power when in the sleep mode.

•Energy Gauge shows the energy level being consumed by the monitor in real time

(consumption from the wireless charging base is not included).

8| About Your Monitor

Identifying Parts and Controls

Front View

Front panel controls

Description

1Function buttons (For more information, see

Operating the Monitor

)

2Power On/Off button (with LED indicator)

Label

About Your Monitor | 9

Back View

Back view with monitor stand

Label Description Use

1Stand release latch Releases stand from monitor by using a long

screwdriver to push.

2Security lock slot Secures monitor with security lock (optional

purchase).

3Barcode serial number

label

Refer to this label if you need to contact Dell for

technical support.

4Cable management slot Use to organize cables by placing them through

the slot.

5DC out cable Plugs to the power-adapter port on the monitor,

with a 19.5 V DC power supply.

6Power-adapter port Connect the power cable of the wireless charing

stand, with a 19.5 V DC power supply.

45-degree side view

Description Use

1Wireless charging LED Notifies the charging status of your Qi/PMA device.

(For more information, see

Indicator Lights

)

2Wireless charging pad •Charge your Qi (WPC) or PMA compliance devices.

•Align your device to the pad to get max charging.

10 | About Your Monitor

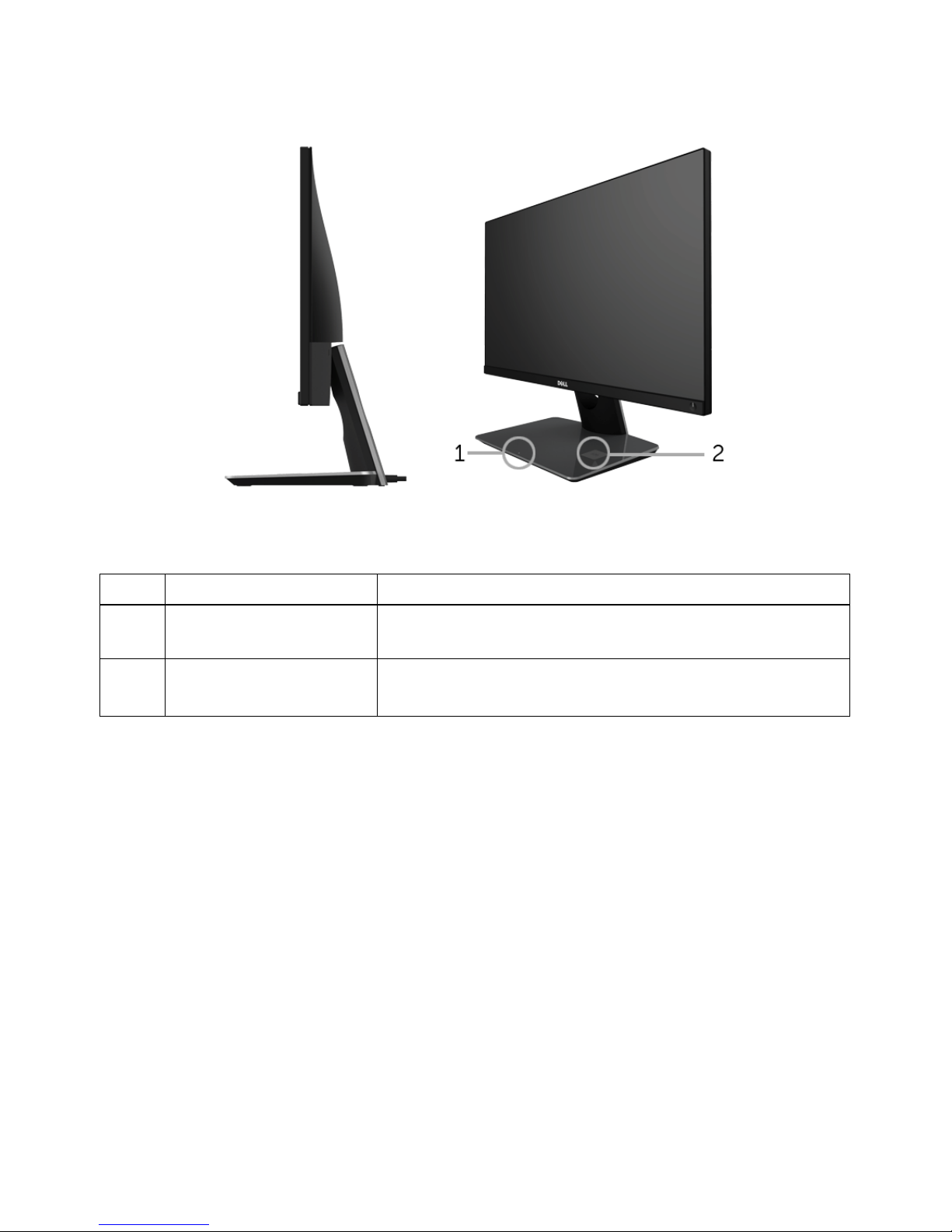

Side View

Label
