Dell S2721HGF Manuale utente

Model: S2721HGF

Regulatory model: S2721HGFt

Dell 27 Curved Gaming Monitor

-S2721HGF

User’s Guide

NOTE: A NOTE indicates important information that helps you make

better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of

data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage,

personal injury, or death.

are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective

owners.

2020 – 07

Rev. A00

Contents

Safety instructions..............................5

About your monitor .............................6

Package contents . . . . . . . . . . . . . . . . . . . . . . . . . 6

Product features. . . . . . . . . . . . . . . . . . . . . . . . . .7

Identifying parts and controls. . . . . . . . . . . . . . . . . . .8

Front view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Back view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Bottom view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Monitor specifications. . . . . . . . . . . . . . . . . . . . . . .11

Resolution specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Preset display modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Electrical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Physical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Environmental characteristics . . . . . . . . . . . . . . . . . . . . . . . . 15

Power management modes . . . . . . . . . . . . . . . . . . . . . . . . . 16

Pin assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Plug-and-Play . . . . . . . . . . . . . . . . . . . . . . . . . . 19

LCD monitor quality and pixel policy . . . . . . . . . . . . . . 19

Ergonomics . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Handling and moving your display. . . . . . . . . . . . . . . . 22

Maintenance guidelines . . . . . . . . . . . . . . . . . . . . . 23

Cleaning your monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Setting up the monitor..........................24

Connecting the stand . . . . . . . . . . . . . . . . . . . . . . 24

Using the tilt and vertical extension . . . . . . . . . . . . . . 27

Connecting your monitor . . . . . . . . . . . . . . . . . . . . 28

Organizing your cables . . . . . . . . . . . . . . . . . . . . . 29

Securing your monitor using Kensington lock (optional) . . . 29

Removing the monitor stand . . . . . . . . . . . . . . . . . . 30

Wall mounting (Optional) . . . . . . . . . . . . . . . . . . . . 31

Contents | 3

4| Contents

Operating the monitor ..........................32

Turning on the monitor . . . . . . . . . . . . . . . . . . . . . 32

Using the joystick control . . . . . . . . . . . . . . . . . . . . 32

Using the rear-panel controls . . . . . . . . . . . . . . . . . . 33

Using the On-Screen Display (OSD) menu . . . . . . . . . . . 35

Accessing the menu system . . . . . . . . . . . . . . . . . . . . . . . . .35

OSD warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Locking the rear-panel control buttons . . . . . . . . . . . . . . . . . . .47

Setting the maximum resolution. . . . . . . . . . . . . . . . . . . . . . .48

Troubleshooting ...............................49

Self-test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Built-in diagnostics . . . . . . . . . . . . . . . . . . . . . . . 51

Common problems . . . . . . . . . . . . . . . . . . . . . . . . 52

Product specific problems . . . . . . . . . . . . . . . . . . . 54

Appendix.....................................55

FCC notices (U.S. only) and other regulatory information . . . 55

Contacting Dell . . . . . . . . . . . . . . . . . . . . . . . . . 55

Outline Dimension .............................56

Safety instructions | 5

Safety instructions

WARNING: Use of controls, adjustments, or procedures other than those

specified in this documentation may result in exposure to shock, electrical

hazards, and/or mechanical hazards.

• Place the monitor on a solid surface and handle it carefully. The screen is fragile

and can be damaged if dropped or hit sharply.

• Always be sure that your monitor is electrically rated to operate with the AC

power available in your location.

• Keep the monitor in room temperature. Excessive cold or hot conditions can have

an adverse effect on the liquid crystal of the display.

• Do not subject the monitor to severe vibration or high impact conditions. For

example, do not place the monitor inside a car trunk.

• Unplug the monitor when it is going to be left unused for an extended period of

time.

• To avoid electric shock, do not attempt to remove any cover or touch the inside of

the monitor.

For information on safety instructions, see the Safety, Environmental, and Regulatory

Information (SERI).

6| About your monitor

About your monitor

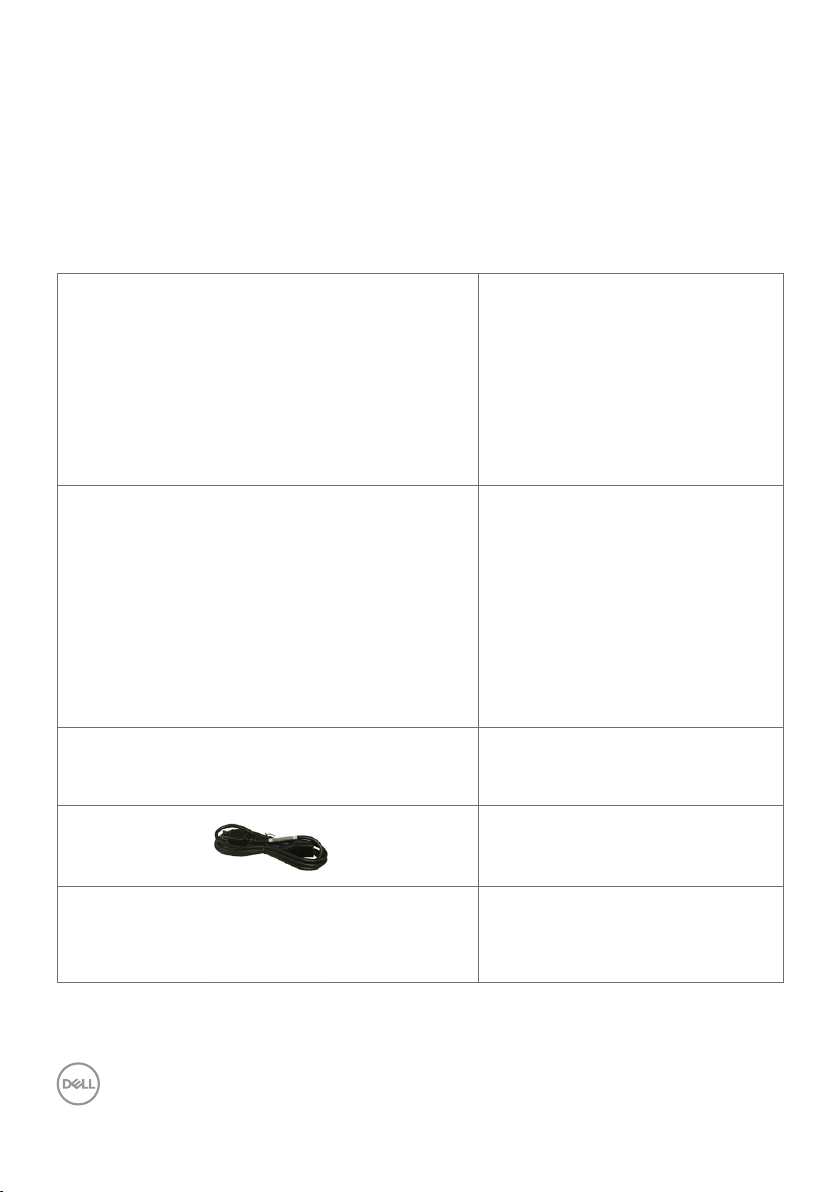

Package contents

Your monitor ships with the components shown in the table below. If any component is

missing, contact Dell. For more information, see Contact Dell.

NOTE: Some components may be optional and may not ship with your

monitor. Somefeatures may not be available in certain countries.

Display

Stand riser

Stand base

Power cable (varies by country)

HDMI cable

About your monitor | 7

• Quick Setup Guide

• Safety, Environmental, and

Regulatory Information

Product features

The Dell S2721HGF monitor has an active matrix, Thin-Film Transistor (TFT), Liquid

Crystal Display (LCD), and LED backlight. The monitor features include:

• 68.47 cm (27 in.) viewable area (Measured diagonally) 1920 x 1080 (16:9)

resolution, plus full-screen support for lower resolutions.

• Color gamut of 72% NTSC, CIE 1931, and 83% NTSC, CIE 1976.

• Digital connectivity with DisplayPort and HDMI.

• Tilt and height adjustment capabilities.

• Removable pedestal stand and Video Electronics Standards Association (VESA™)

100 mm mounting holes for flexible mounting solutions.

• Plug and play capability if supported by your computer.

• On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

• Game enhanced features such as Timer, Frame Rate Counter and Dark Stabilizer

in addition to enhanced game modes such as FPS, MOBA/RTS, SPORTS, or RPG

, and 3 additional game modes to personalize your preferences.

• Power and OSD buttons lock.

• Security lock slot.

• Stand lock.

• 0.5 W standby power when in the sleep mode.

• AMD FreeSync™ Premium for fluid, tear-free gameplay.

• Premium Panel Exchange for peace of mind.

• Optimize eye comfort with a flicker-free screen and ComfortView feature which

minimizes blue light emission.

WARNING: The possible long-term effects of blue light emission from the

monitor may cause damage to the eyes, including eye fatigue, digital eye

strain, and so on. ComfortView feature is designed to reduce the amount

of blue light emitted from the monitor to optimize eye comfort.

8| About your monitor

Identifying parts and controls

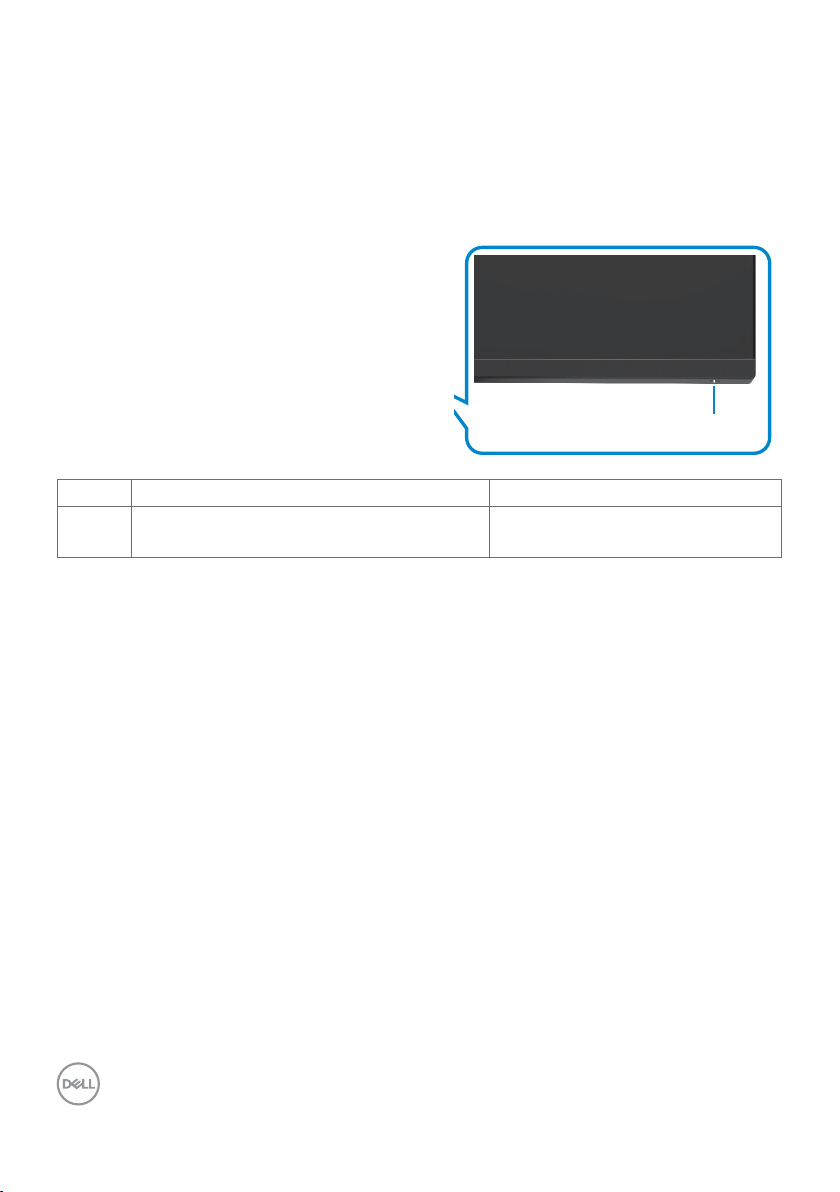

Front view

Label Description Use

1Power On/Off button (with LED

indicator)

To turn the monitor on or off.

About your monitor | 9

Back view

Label Description Use

1VESA mounting holes (100 mm x

100 mm-behind attached VESA

cover)

Wall mount monitor using VESA-

compatible wall mount kit (100 mm x 100

mm).

2Regulatory label Lists the regulatory approvals.

3Stand release button Releases stand from the monitor.

4Joystick Use it to control the OSD menu.

5Function buttons For more information, see Operating the

monitor.

6Barcode, serial number, and Service

Tag label

Refer to this label if you need to contact

Dell for technical support. The Service

Tag is a unique alphanumeric identifier

that enables Dell service technicians

to identify the hardware components

in your computer and access warranty

information.

7Cable-management slot Use to organize cables by inserting them

through the slot.

10 | About your monitor

Bottom view

1 2 4 5 63 7

Label Description Use

1Power connector Connect the power cable (shipped with your monitor).

2Security lock slot Secures monitor with security cable lock (sold separately).

3Stand lock Lock the stand to the monitor using a M3 x 6 mm screw

(screw not included).

4HDMI port

(HDMI 1)

Connect your computer with the HDMI cable (shipped with

your monitor).

5HDMI port

(HDMI 2)

Connect your computer with the HDMI cable (shipped with

your monitor).

6DisplayPort Connect your computer with the DisplayPort cable.

7Headphone port Connect a headphone

1 2 3 4 5 6 7
