Attaching the Cables: Dell™ UltraScan P780 Color Monitor

User's Guide

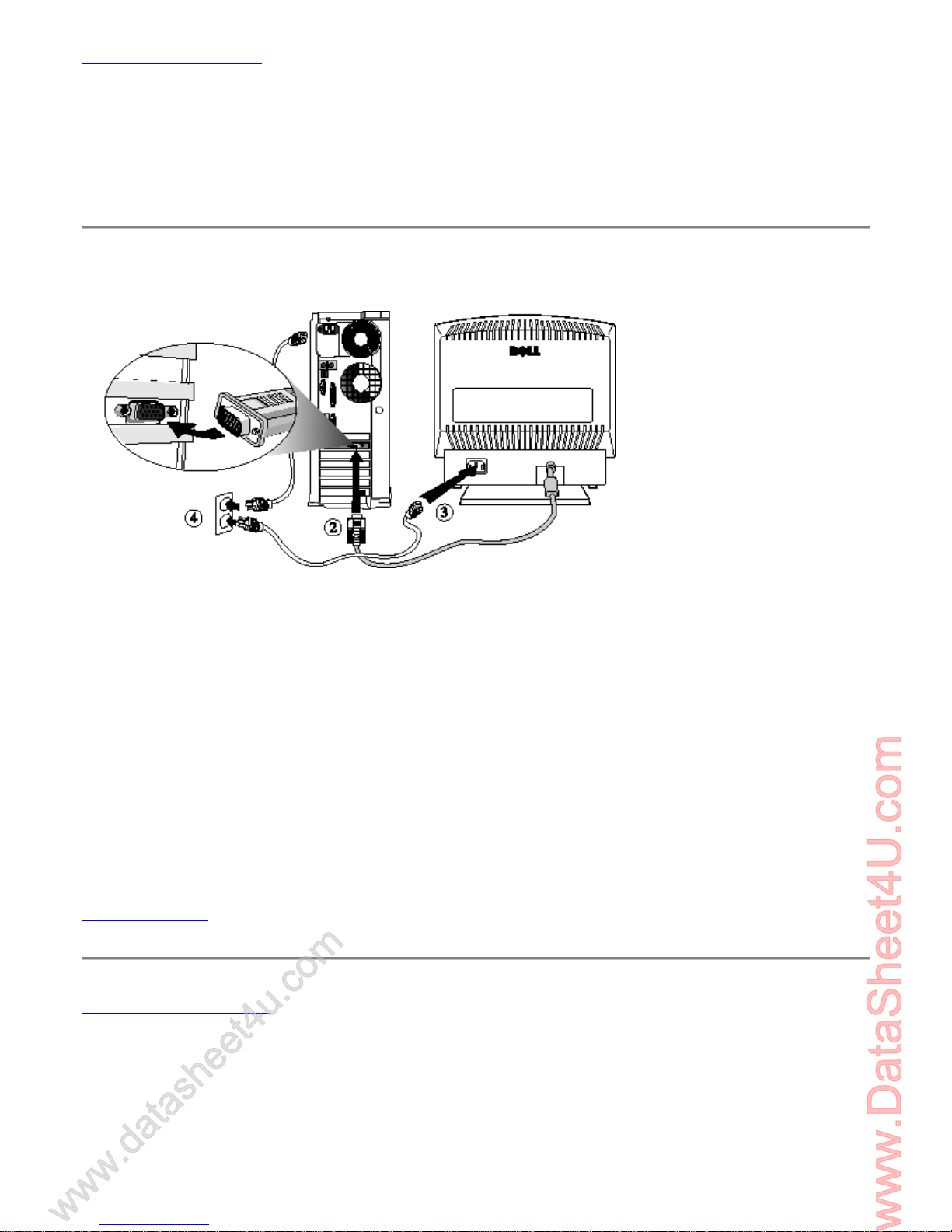

Cable Connections On Back of Monitor and Computer

1. Turn off your computer and unplug its power cable.

2. Connect the blue connector of signal cable to the blue video port on the back of your computer.

3. Connect the power cable for your monitor to the power port on the back of the monitor.

4. Plug the power cables of your computer and your monitor into a nearby outlet.

5. Turn on your monitor and computer.

If your monitor displays an image, installation is complete. If it does not display an image, see

Troubleshooting.

Back to Contents Page

www.DataSheet4U.com

www.datasheet4u.com

Back to Contents Page

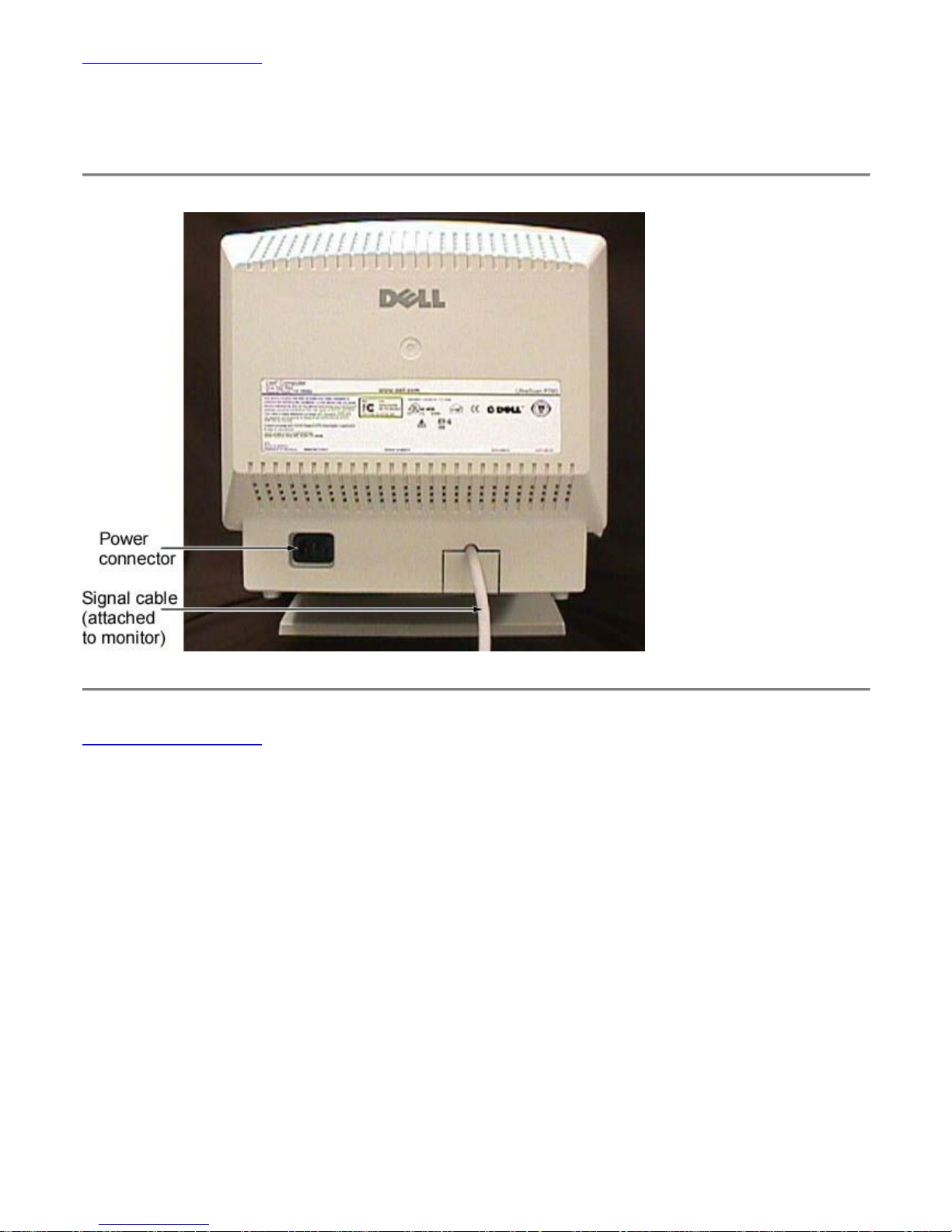

Back View: Dell™ UltraScan P780 Color Monitor User's Guide

Back to Contents Page

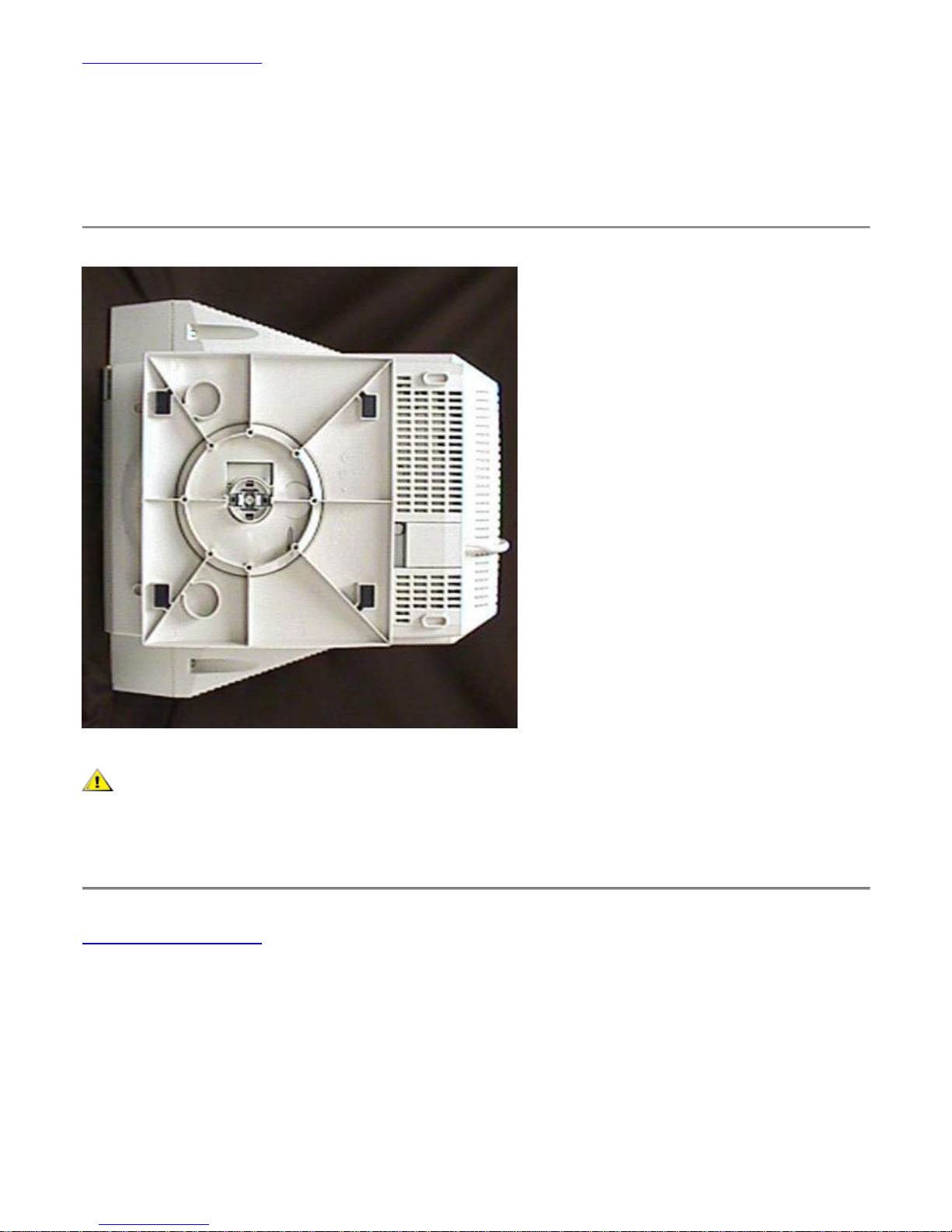

Bottom View: Dell™ UltraScan P780 Color Monitor User's

Guide

CAUTION: The tilt/swivel base is not detachable.

Back to Contents Page

Controls and Indicators: Dell™ UltraScan P780 Color Monitor

User's Guide

Overview • Introducing the On Screen Display (OSD) System • Automatic Save • Size/Center •

Geometry • Color • Convergence • Language • Options • Help • Recall Features • All OSD Messages

• LED Indicators

Overview

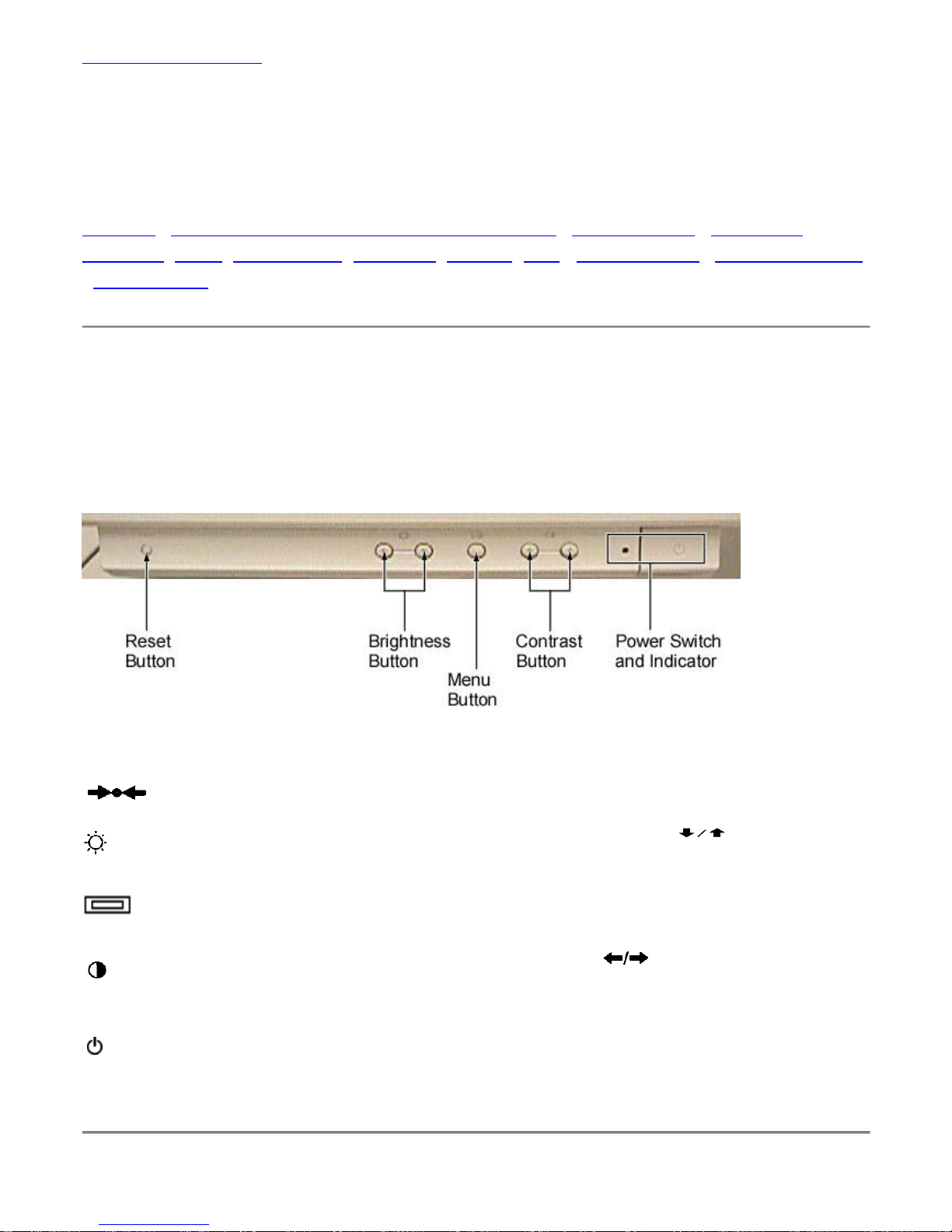

Use the control buttons on the front of the monitor to adjust the characteristics of the image being

displayed. As you use these buttons to adjust the controls, an on-screen display (OSD) shows their

numeric values as they change.

Button Name Description

Reset button Resets the adjustments to the factory settings.

Brightness buttons Adjust the picture brightness. Operate as the buttons when

adjusting other items.

Menu button Displays the MENU OSD.

Contrast buttons Adjust the contrast. Operate as the buttons when adjusting

other items.

Power switch and

indicator (LED)

Turns the monitor on and off. The indicator lights up green when

the

monitor is on, and lights up orange when the monitor is in Power

Saving mode.

Introducing the On Screen Display (OSD) System

1. Press the MENU button to display the Main MENU on your screen.

2. Use the (BRIGHTNESS) buttons to highlight/select the desired function.

3. Press the (MENU) button to activate the desired function.

4. The left and right arrow button can be used for making the actual adjustments.

If the buttons are held down, the functions are selected circularly in intervals of

one second.

Automatic Save

Once an adjustment is made it is automatically saved for the specific timing used during

the adjustment. The monitor can be reset to factory settings if necessary (see Recall

Features ).

SIZE/CENTER

Select SIZE/CENTER from the MENU to adjust the picture's horizontal/vertical size and

centering. Use the buttons to select the function you wish to adjust and the

buttons to make the adjustment.

Select To

Change the horizontal centering

Change the vertical centering

Change the horizontal sizing

Change the vertical sizing

Change the degree of zoom

GEOMETRY

Select GEOMETRY from the MENU to adjust the picture's rotation and shape. Use the

buttons to select the function you wish to adjust and the buttons to make the

adjustment.

Select To

ROTATION Rotate the picture

PINCUSHION Expand or contract the picture sides

PIN BALANCE Shift the picture sides to the left or right

KEYSTONE Adjust the picture width at the top and bottom of

the screen

KEY BALANCE Shift the picture to the left or right at the top and

bottom of the screen

COLOR

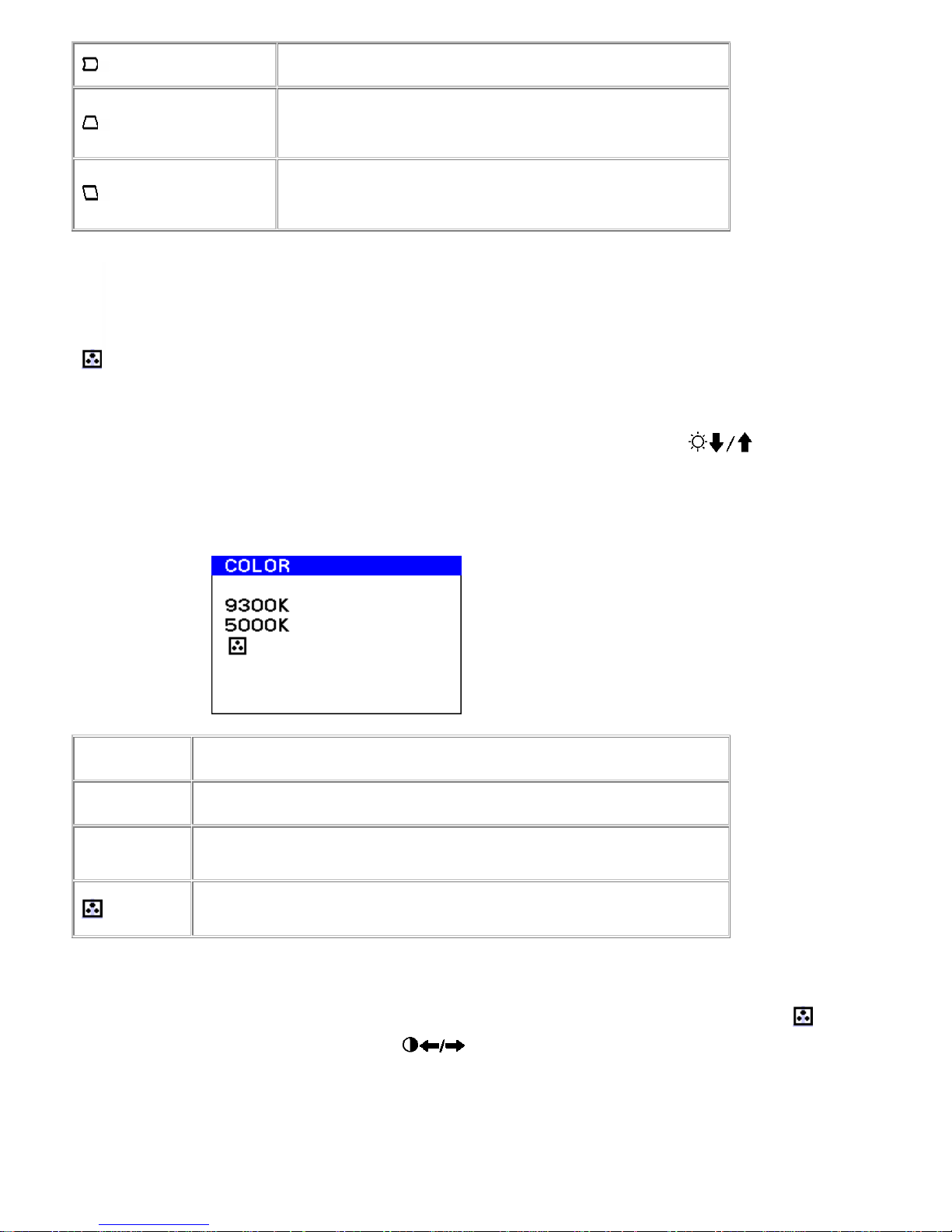

Select COLOR from the MENU to determine the color temperature you would like. You

can use this to help with monitor and printer color matching. Use the buttons to

select the between the two preset color temperatures and the variable color temperature

selection.

Select To

9300K Set at 9300K

5000K Set at 5000K

Specify any color temperature between 9300K and 5000K

You can also fine tune the color temperature from 9,300K to 5,000K by selecting (Color

Variable adjustment), and using the buttons to adjust the color temperature

manually.

CONVERGENCE

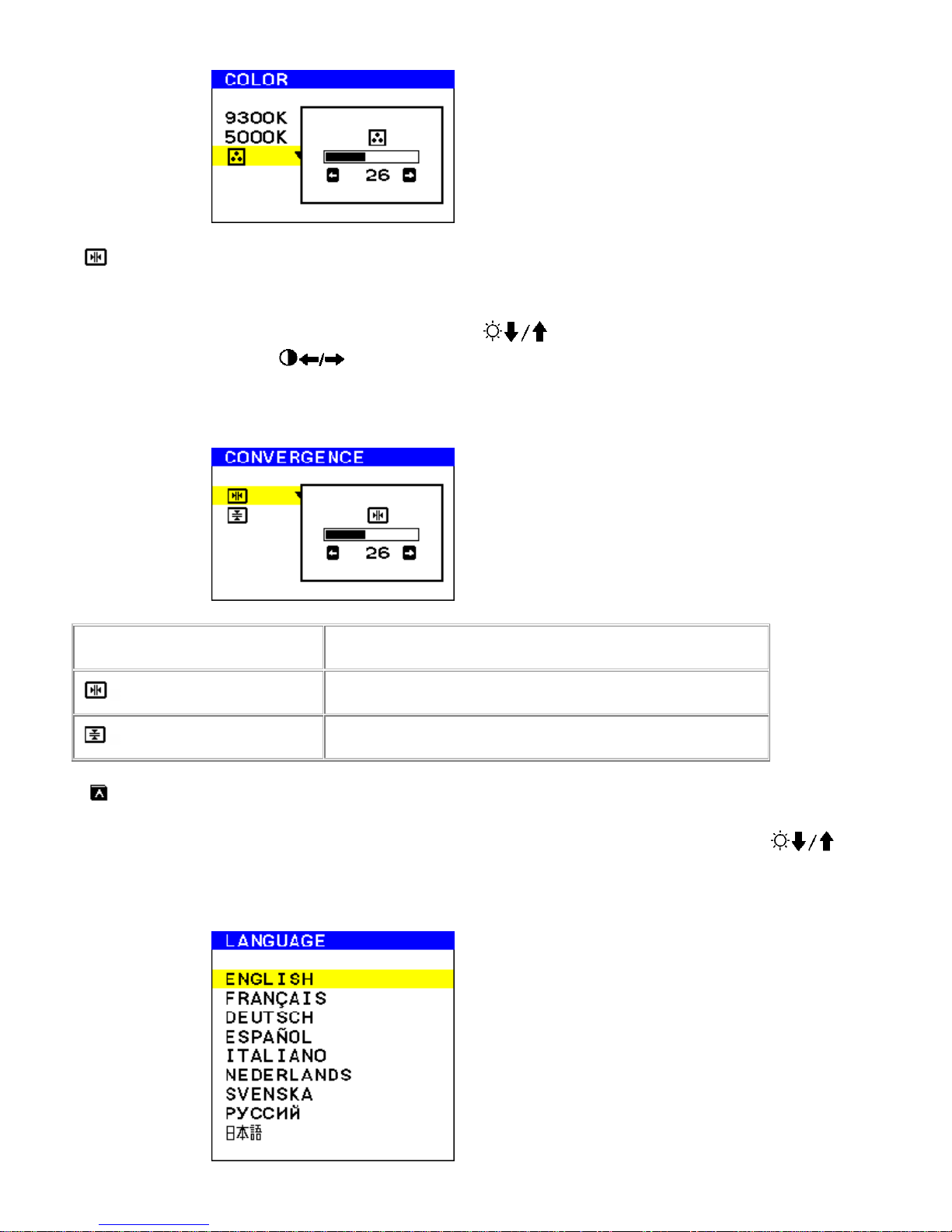

Select CONVERGENCE from the MENU to adjust the picture's quality. You can adjust the

vertical and horizontal convergence. Use the buttons to select the function you

wish to adjust and the buttons to make the adjustment.

Select To

H CONVERGENCE Eliminate horizontal red or blue color shadows

V CONVERGENCE Eliminate vertical red or blue color shadows

LANGUAGE

Select LANGUAGE from the MENU to choose desired OSD language. Use the

buttons to select the desired language.

OPTION

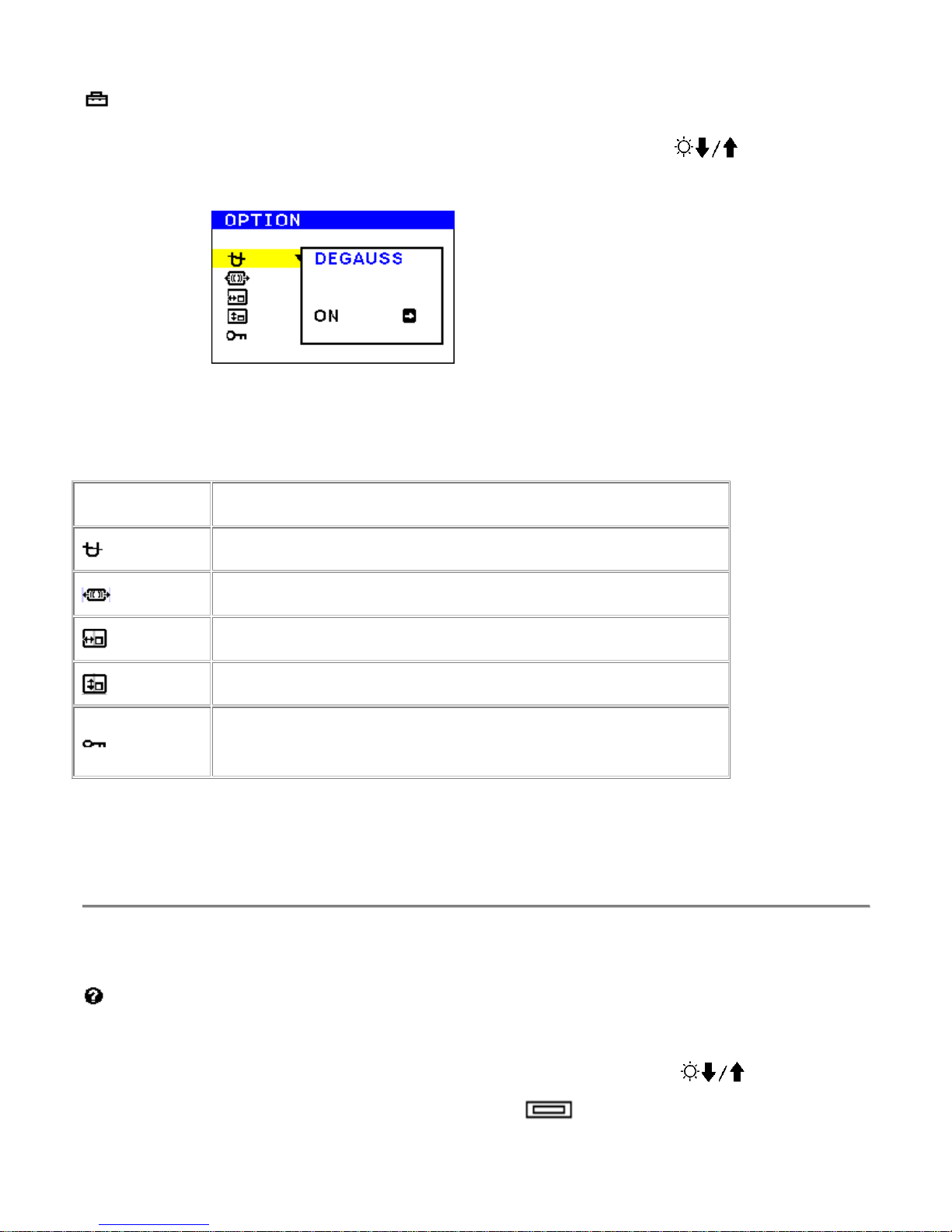

Select OPTION from the MENU to adjust various functions. Use the buttons to

select the functions you wish to adjust.

Select To

Demagnetize the monitor manually

Adjust moiré

Adjust horizontal position of the OSD

Adjust vertical position of the OSD

Lock / Unlock OSD features. In the lock mode, a "key"

symbol appears.

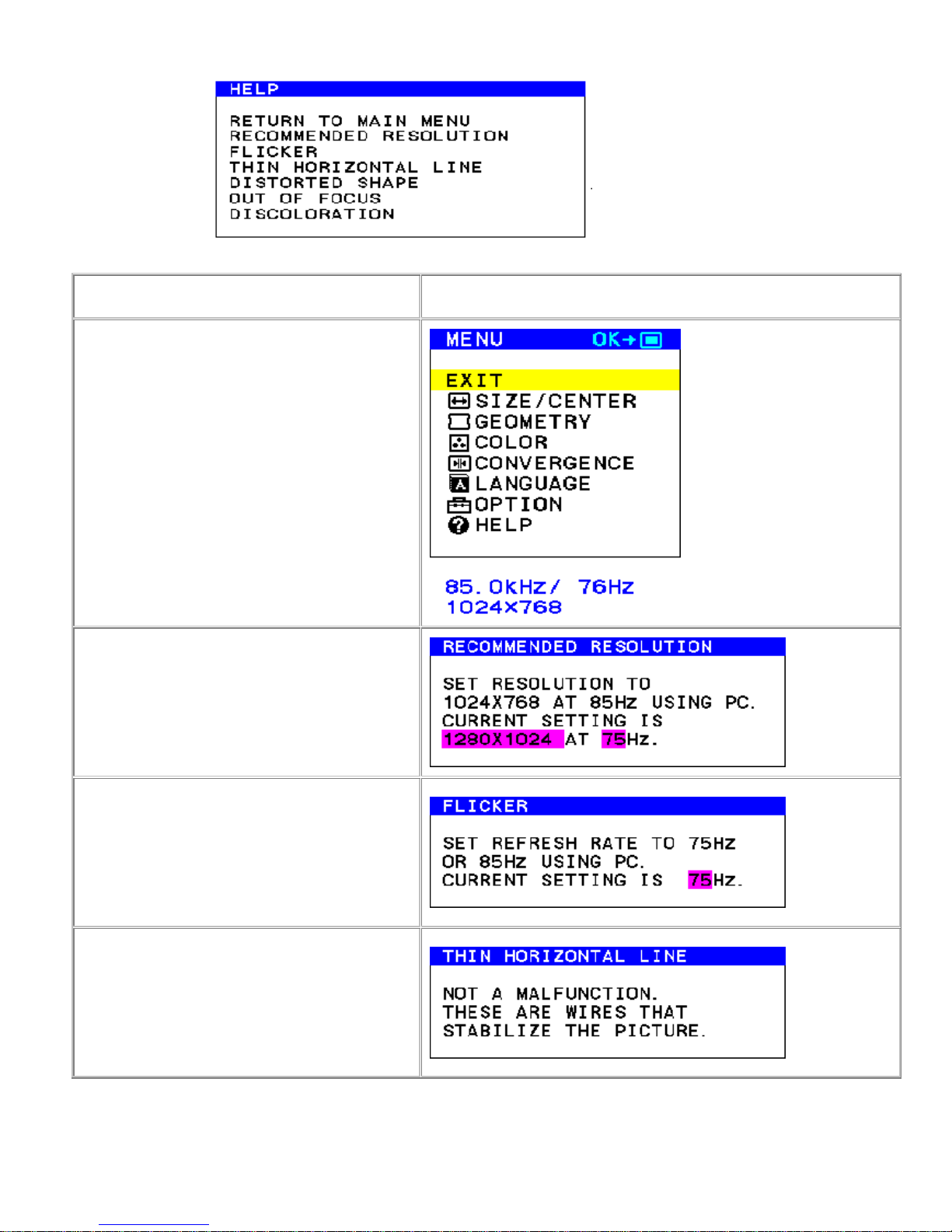

HELP menu

Questions that are frequently asked regarding the picture quality can be answered using

the HELP menu. To use, select HELP from the MENU and press the buttons to

highlight the topic you want to view, then press the MENU button. Follow the

instructions in each topic.

Select What you will see

RETURN TO MAIN MENU

RECOMMENDED RESOLUTION

FLICKER

THIN HORIZONTAL LINE
