Dell PowerVault NX3610 Manuale utente
Dell FluidFS NAS Solutions
Getting Started Guide
Regulatory Model: E02T and C11M Series
Regulatory Type: E02T001 and C11M001
Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use of your computer.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the
problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
Information in this publication is subject to change without notice.
©2012 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell™, the Dell logo, Dell Precision™, OptiPlex™, Latitude™, PowerEdge™, PowerVault™,
PowerConnect™, OpenManage™, EqualLogic™, Compellent™, KACE™, FlexAddress™, Force10™and Vostro™are trademarks of Dell
Inc. Intel®, Pentium®, Xeon®, Core®and Celeron®are registered trademarks of Intel Corporation in the U.S. and other countries. AMD®
is a registered trademark and AMD Opteron™, AMD Phenom™and AMD Sempron™are trademarks of Advanced Micro Devices, Inc.
Microsoft®, Windows®, Windows Server®, Internet Explorer®, MS-DOS®, Windows Vista®and Active Directory®are either trademarks
or registered trademarks of Microsoft Corporation in the United States and/or other countries. Red Hat®and Red Hat®
Enterprise Linux®are registered trademarks of Red Hat, Inc. in the United States and/or other countries. Novell®and SUSE®are
registered trademarks of Novell Inc. in the United States and other countries. Oracle®is a registered trademark of Oracle Corporation
and/or its affiliates. Citrix®, Xen®, XenServer®and XenMotion®are either registered trademarks or trademarks of Citrix Systems, Inc. in
the United States and/or other countries. VMware®, Virtual SMP®, vMotion®, vCenter®and vSphere®are registered trademarks or
trademarks of VMware, Inc. in the United States or other countries. IBM®is a registered trademark of International Business Machines
Corporation.
Other trademarks and trade names may be used in this publication to refer to either the entities claiming the marks and names or their
products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
2012 – 04
Rev. A01
Installation And Configuration
WARNING: Before performing the following procedure, review the safety instructions that came with the system.
Unpacking A Rack System
Unpack your system and identify each item.
Assemble the rails and install the system in the rack following the safety instructions and the rack installation
instructions provided with your system.

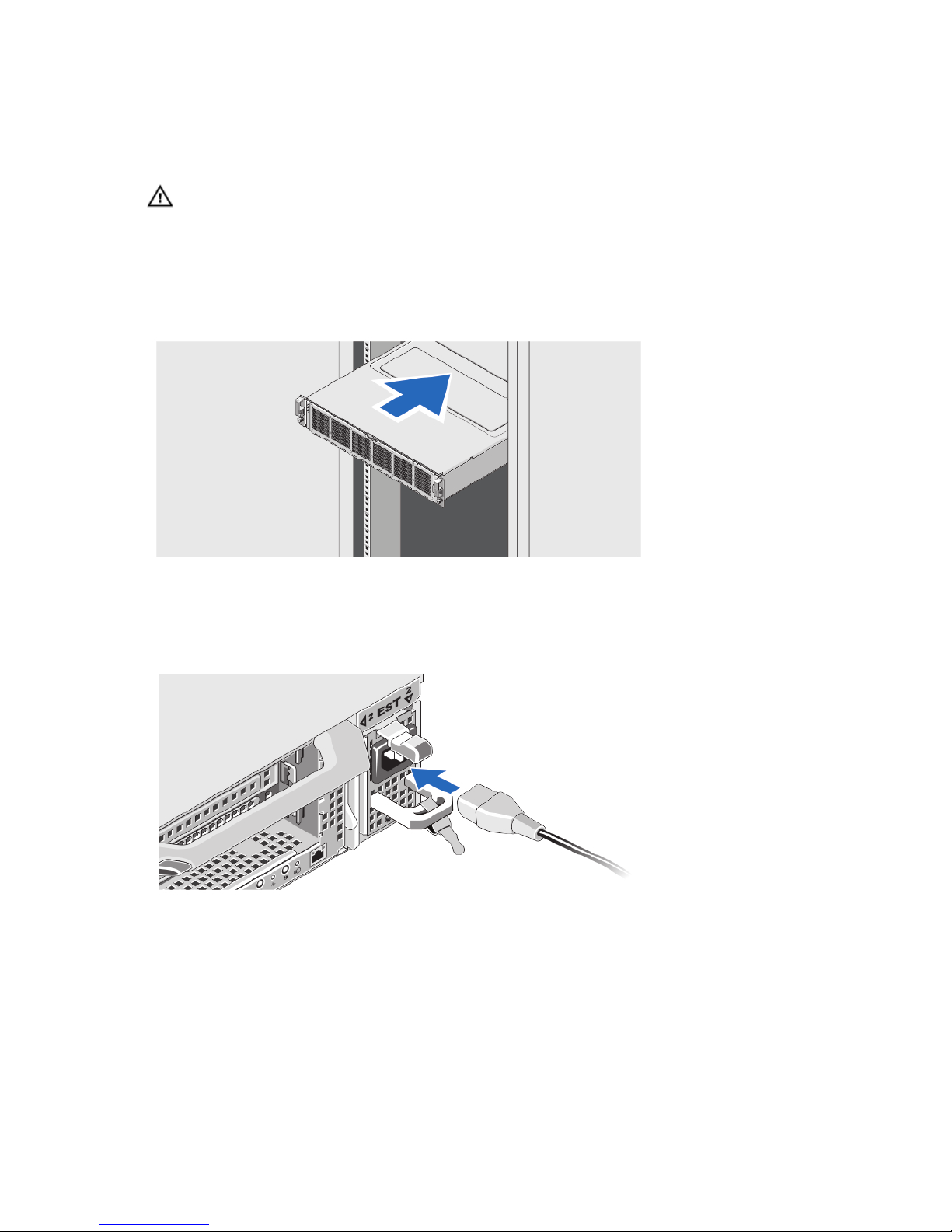

Figure 1. Installing the System in a Rack
Connecting The Power Cable(s)
Figure 2. Connecting Power Cable(s)
Connect the system’s power cable(s) to the system.
3
Securing The Power Cable(s)
Figure 3. Securing Power Cable(s)
Bend the system power cable(s), as shown in the illustration, and attach to the cable strap.
Plug the other end of the power cable(s) into a grounded electrical outlet or a separate power source such as an
uninterruptible power supply (UPS) or a power distribution unit (PDU).
NOTE: Connect each of the two power cables to independent power sources for maximum redundancy.
Turning On The System
The system turns on automatically when you connect the power supply to a power source.
Installing The Optional Bezel
Figure 4. Installing the Bezel
Install the bezel (optional).
4
Dell Software License Agreement
Before using your system, read the Dell Software License Agreement that came with your system. You must consider
any media of Dell-installed software as BACKUP copies of the software installed on your system’s hard drive. If you do
not accept the terms of the agreement, call the customer assistance telephone number. For customers in the United
States, call 800-WWW-DELL (800-999-3355). For customers outside the United States, visit support.dell.com and select
your country or region from the top of the page.
Other Information You May Need
WARNING: See the safety and regulatory information that shipped with your system. Warranty information may be
included within this document or as a separate document.
• The
Owner’s Manual
provides information about system features and describes how to troubleshoot the system
and install or replace system components. This document is available online at support.dell.com/manuals.
• The rack documentation included with your rack solution describes how to install your system into a rack, if
required.
• Any media that ships with your system that provides documentation and tools for configuring and managing your
system, including those pertaining to the operating system, system management software, system updates, and
system components that you purchased with your system.
NOTE: Always check for updates on support.dell.com/manuals and read the updates first because they often
supersede information in other documents.
Obtaining Technical Assistance
If you do not understand a procedure in this guide or if the system does not perform as expected, see your
Owner’s
Manual
. Dell offers comprehensive hardware training and certification. See dell.com/training for more information. This
service may not be offered in all locations.
NOM Information
The following information is provided on the device described in this document in compliance with the requirements of
the official Mexican standards (NOM):
Importer: Dell Inc. de México, S.A. de C.V.
Paseo de la Reforma 2620 -11º Piso
Col. Lomas Altas
11950 México, D.F.
Model number: E02T
Supply voltage: 100–240 V CA
Frequency: 50/60 Hz
Current consumption: 10 - 6.5 A X2
NOTE: (X#), # = max number of power supplies per system
5
Technical Specifications
NOTE: The following specifications are only those required by law to ship with your system. For a complete and
current listing of the specifications for your system, go to support.dell.com.
Power
AC Power Supply (per power supply)
Wattage 717 W
Heat dissipation
NOTE: Heat dissipation is calculated using the
power supply wattage rating. The heat
dissipation values are for the entire system
which includes (chassis and two controllers).
2446.8 BTU/hr
Voltage
NOTE: This system is also designed to be
connected to IT power systems with a phase to
phase voltage not exceeding 230 V.
90 V AC to 264 V AC, autoranging, 47 Hz/63 Hz
Battery
Storage controller backup power supply 12.8 V to 13.2 V, 4.8 Ah to 6 Ah, 63 Wh to 77 Wh
Physical
Height 86.40 mm (3.40 inch)
Width 481.50 mm (18.96 inch) with rack latches
446.30 mm (17.57 inch) without rack latches
Depth 741.0 mm (29.21 inch) without bezel and handle
813.10 mm (32.01 inch) with bezel and handle
Weight (maximum configuration) 30.50 kg (67.0 lb)
Weight (empty) 12.86 kg (28.36 lb)
Environmental
NOTE: For additional information about environmental measurements for specific system configurations, see
dell.com/environmental_datasheets.
Temperature
Operating Continuous operation: 5 °C to 40 °C (41 °F to 104 °F) with a
maximum temperature gradation of 20 °C per hour
Storage –40 °C to 60 °C (–40 °F to 140 °F) with a maximum temperature
gradation of 20 °C per hour
Relative humidity
6
Environmental
Operating 20% to 80% (noncondensing) with a maximum humidity
gradation of 10% per hour at maximum wet bulb temperature of
29 °C (89.2 °F)
Storage 5% to 95% with a maximum humidity gradation of 10% per hour
at a maximum wet bulb temperature of 38 °C (100.4 °F)
Maximum vibration
Operating 0.26 Grms (5 Hz to 350 Hz at 0.0002 G2/Hz) in operational
orientation for 5 min (maximum)
Storage 1.88 Grms with the following PSD profile (all 6 sides tested for 15
minutes each side)
Frequency (Hz) G2/Hz
10 0.13
20 0.13
70 0.004
130 0.004
165 0.0018
500 0.0018
Maximum shock
Operating 31 G half-sine shock +/-5% with pulse duration of 2.6 ms +/-10%
in the operational orientation (Maximum)
Storage Square wave shock of 27 G, at 235 inches/second (596.90 cm/
second) velocity change (all six sides tested)
Altitude
Operating –16 m to 3048 m (–50 ft to 10,000 ft)
NOTE: For altitudes above 2950 ft, the maximum operating
temperature is derated 1 ºF/550 ft.
Storage –15.2 m to 10,668 m (–50 ft to 35,000 ft)
Airborne Contaminant Level
Class G1 as defined by ISA-S71.04-1985
