DellTM OptiPlexTM SFF 980 All In One (AIO) Stand
The Dell OptiPlex SFF 980 All-in-One Stand is a unique
design that can integrate monitor, system and cables
management to adapt to your unique environment.
User's Guide
www.dell.com/regulatory_compliance
2/15

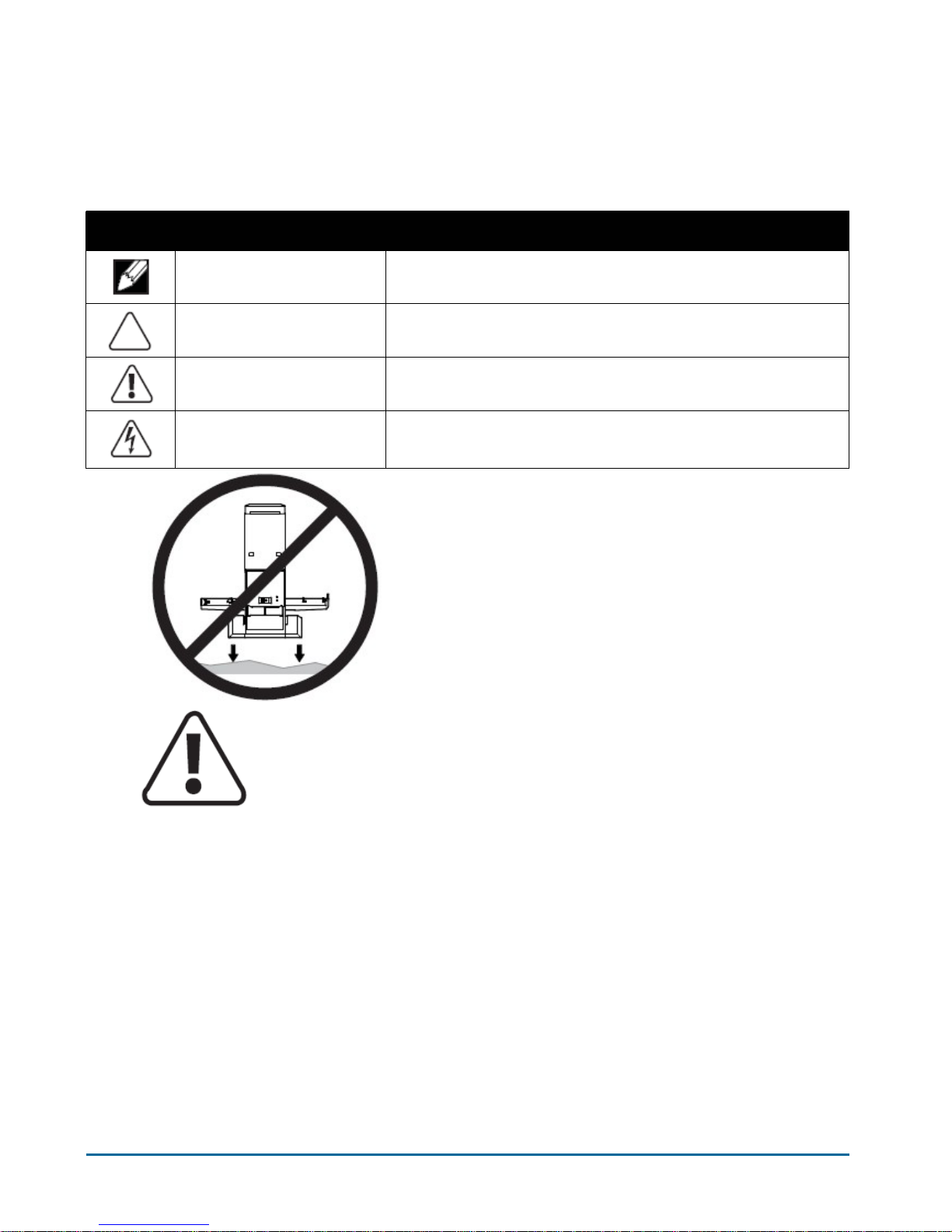

Hazard Symbols Review
These symbols alert the user about a safety condition that demands attention. All users of the
product should be able to recognize and understand the significance of the following safety
hazards if encountered on the product or within product documentation.
NOTE A NOTE indicates important information that helps you make
better use of your Dell AIO Stand.
CAUTION A CAUTION indicates potential damage to hardware or loss of
data and tells you how to avoid the problem.
WARNING A WARNING indicates a potential for property damage, personal
injury, or death.
ELECTRICAL An ELECTRICAL indicates an impending electrical hazard
which, if not avoided, may result in personal injury, fire and/or
death.
____________________________________________________________________________________________________________________________________________________
Information in this document is subject to change without notice.
© 2010 Dell™ Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and OptiPlex are trademarks of Dell Inc.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or
their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
____________________________________________________________________________________________________________________________________________________
Model: DellTM OptiPlexTM SFF 980 All In One Stand
January 2010 Rev. A00
Symbol Signal Word Level of Hazard
WARNING：To reduce risk of injury
and/or equipment damage, theAIO
Stand must be placed on a level,
stable surface.
3/15
Contents
1 About your Dell OptiPlex SFF 980 AIO Stand ………………………………………………….. 4
2 Setting up the Dell OptiPlex SFF 980 AIO Stand ………………………………………………. 6
3 Specifications …………………………………………………………………………................... 15
4 Finding Information ……………………………………………………………………................. 15
4/15
About your Dell OptiPlex SFF 980 AIO Stand

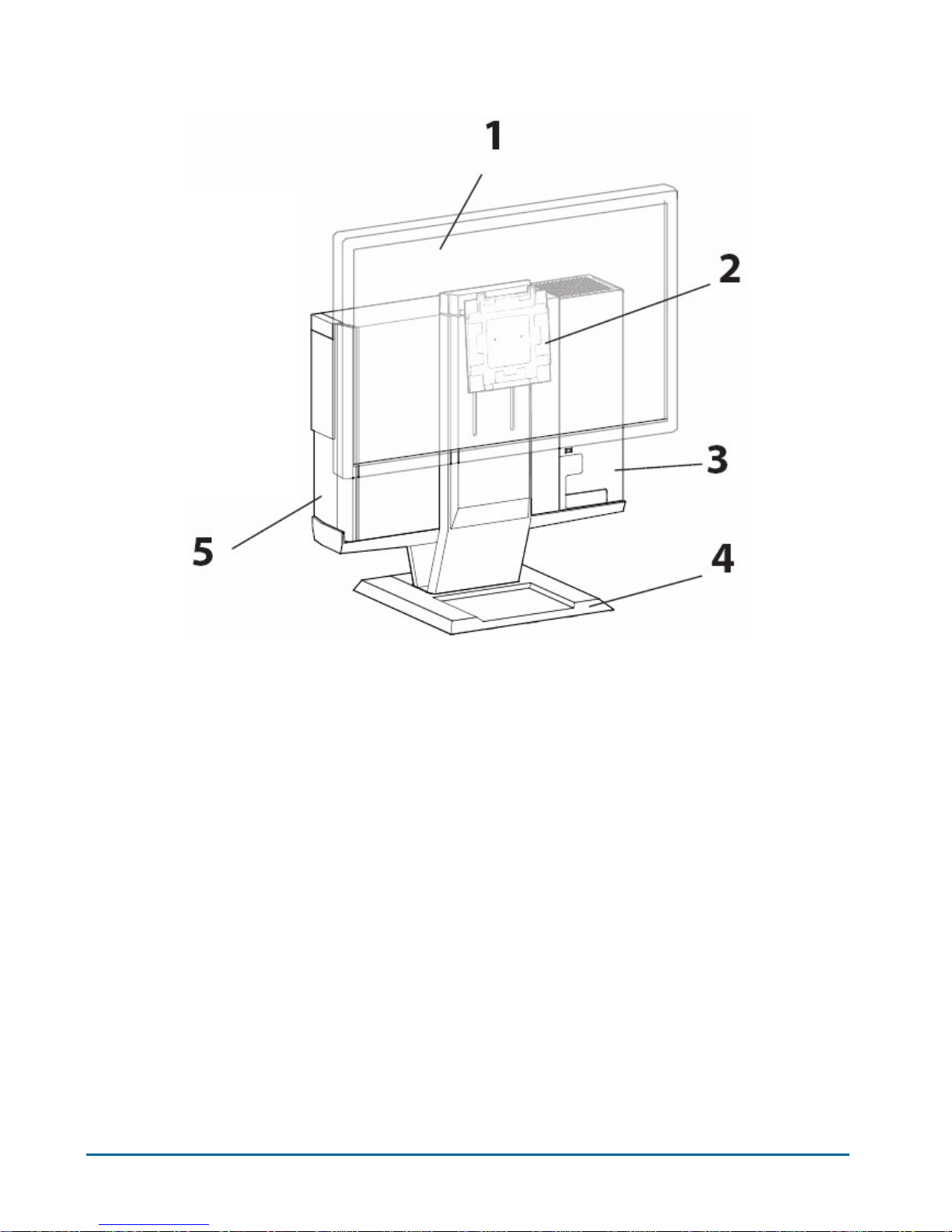

1 DELL Monitor: P190S / 1909W / P2210
2 DELL Quick Release Monitor Mounting Plate
3 Locking Cable Cover
4 Swiveling Base - 360oPan
5 System Chassis: Dell OptiPlex SFF 980
1
5/15

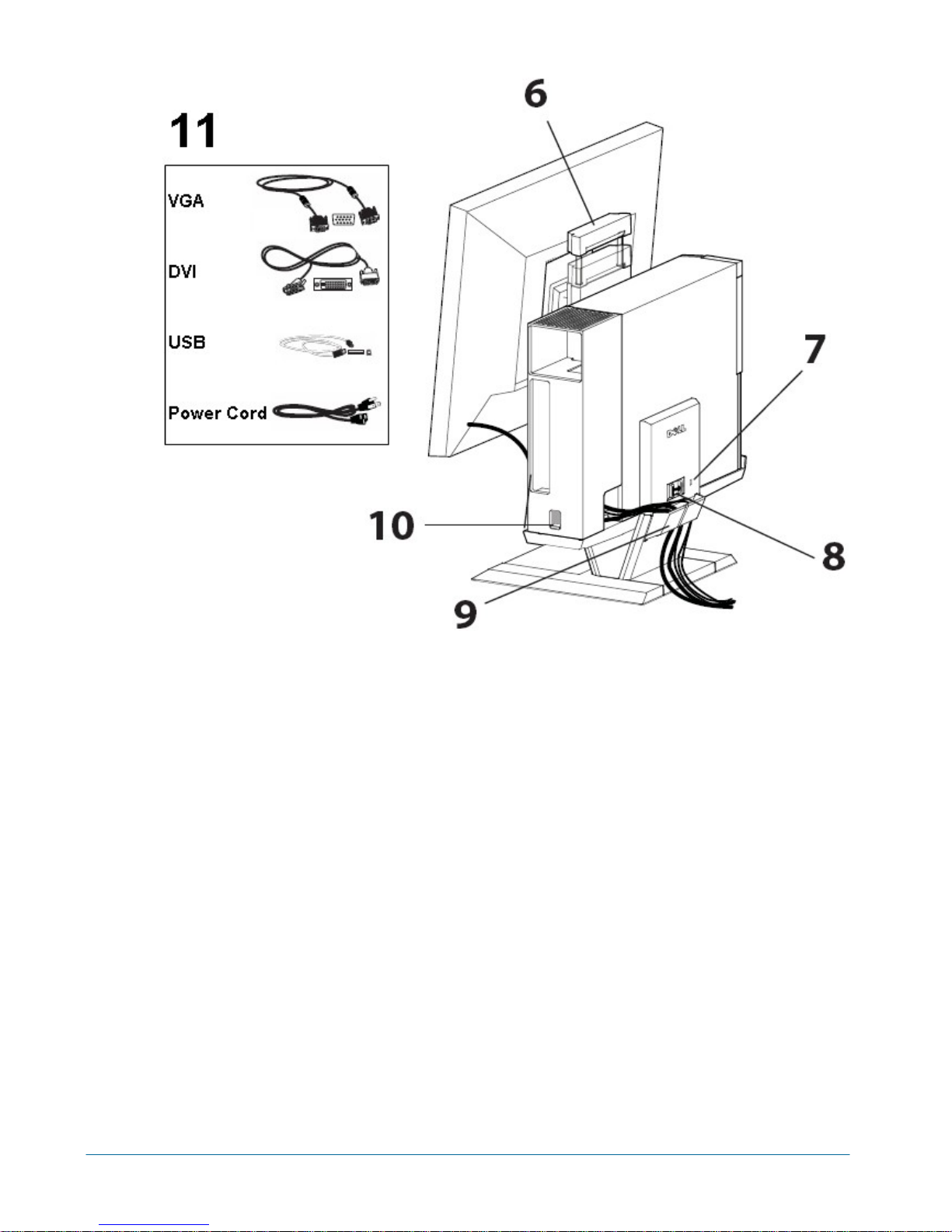

6 Handle
7 Kensington Security Lock Slot
8 Unlock Switch
9 Cable management clip
10 Cable Cover Lock Switch
11 Provided Cables: VGA, DVI, USB and Power Cord
6/15
Setting up the Dell OptiPlex SFF 980 AIO Stand
Components
AIO Stand, Cable Cover, VGA Cable, DVI Cable, USB Cable, Power Cord
NOTE：Refer to the Monitor and System Instruction Guides, packaged separately.
______________________________________________________________________________________
1Place the AIO Stand on a level, stable surface.
2
WARNING：To reduce risk of injury and/or
equipment damage, theAIO Stand must be
placed on a level, stable surface.
7/15

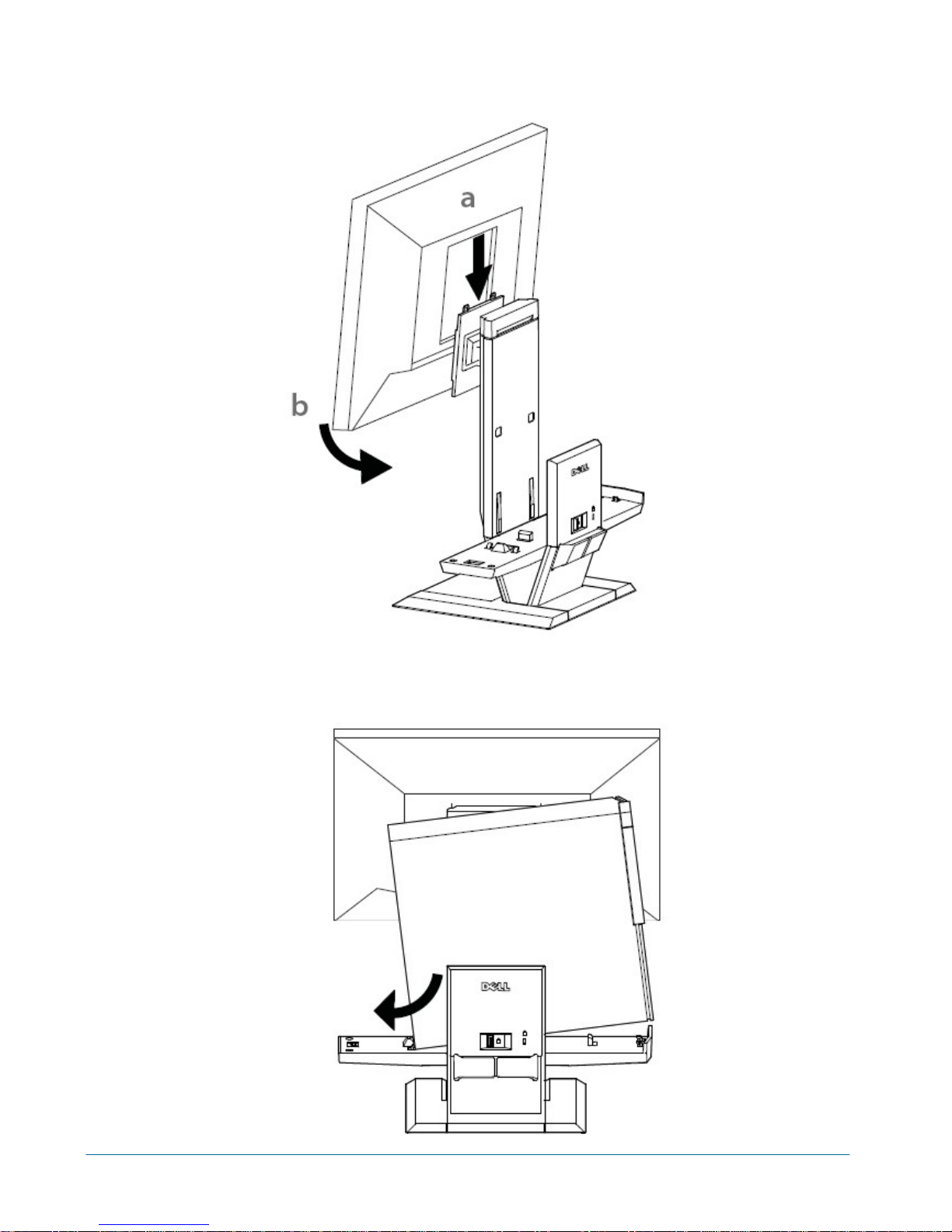

2Attach the monitor to theAIO stand.
3Attach the computer chassis to the AIO stand.
8/15
4Ensure the computer chassis is seated on both ends of the AIO stand.
5Determine which monitor cable will be used (VGA or DVI) and connect it to the monitor
and computer.
9/15
6 aConnect one end of the USB cable to the monitor.
bConnect the other end of the USB cable to the computer.
7 aConnect the monitor power cord to the monitor.
bConnect the monitor power cord to the facility power outlet.
10/15

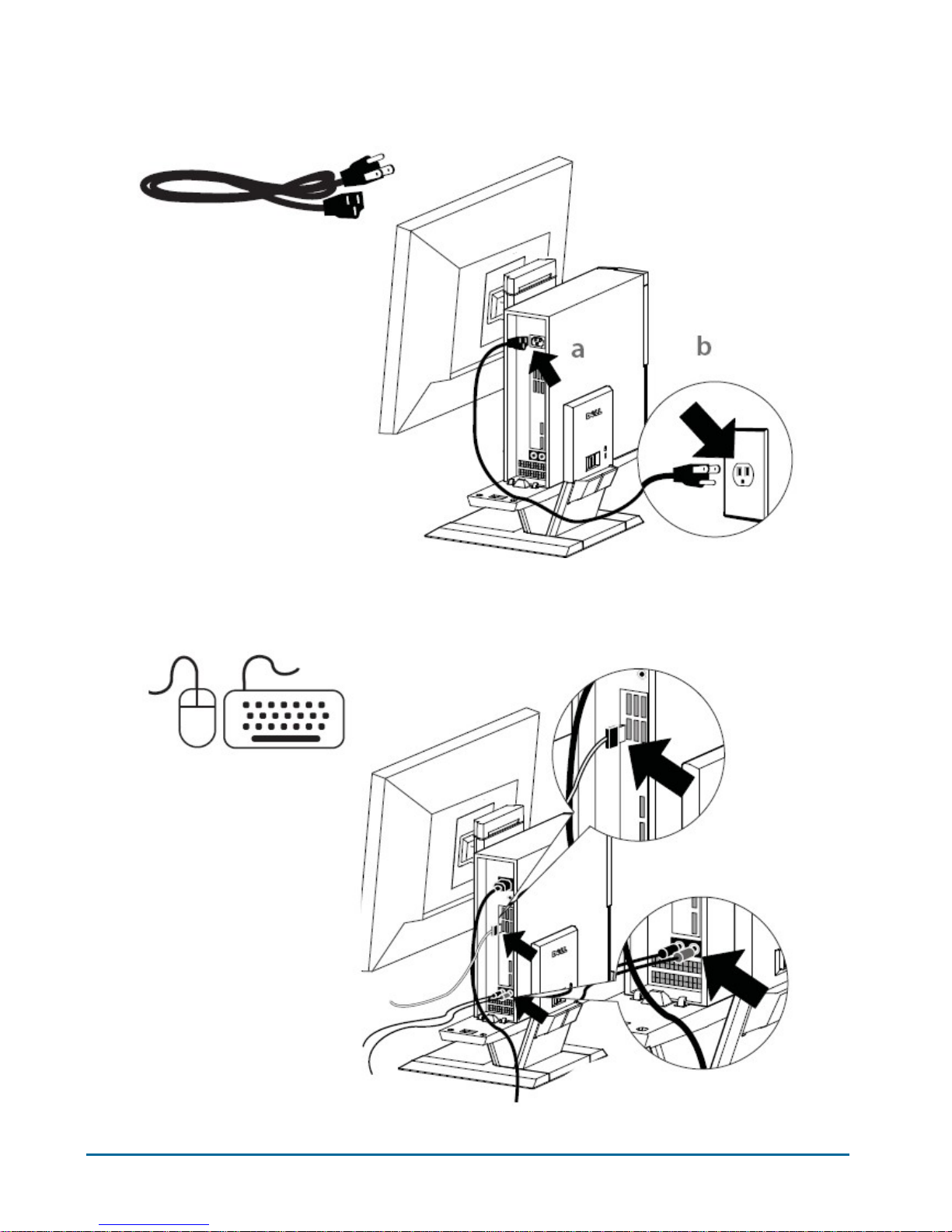

8 aConnect the system power cord to the computer.
bConnect the system power cord to the facility power outlet.
9Connect any accessory cables (keyboard, mouse, speaker, etc.) to the computer.
