Dell™ PowerVault™ 500 Systems

Getting Started

With Your System

Model EMS01

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use

of your system.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data

and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury,

or death.

____________________

Information in this document is subject to change without notice.

Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, and PowerVault are trademarks of Dell Inc.

Intel and Xeon are registered trademarks of Intel Corporation in the U. S. and other countries

Microsoft, Windows, and Windows Server are either trademarks or registered trademarks of

Microsoft Corporation in the United States and/or other countries.

Other trademarks and trade names may be used in this document to refer to either the entities claiming

the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks

and trade names other than its own.

Model EMS01

November 2007 P/N YX152 Rev. A00

Contents 3

Contents

System Features . . . . . . . . . . . . . . . . . . . . . . 5

Supported Operating Systems . . . . . . . . . . . . . . . 7

Other Information You May Need . . . . . . . . . . . . . 7

Obtaining Technical Assistance . . . . . . . . . . . . . 7

Installation and Configuration . . . . . . . . . . . . . . 8

Install the Rails and System in a Rack . . . . . . . . 8

Connect the Keyboard, Mouse, and Monitor . . . . 9

Connect the Power . . . . . . . . . . . . . . . . . 10

Install the Power Cord Retention Bracket . . . . . 11

Turn on the System . . . . . . . . . . . . . . . . . 12

Install the Bezel . . . . . . . . . . . . . . . . . . 12

Complete the 0perating System Setup . . . . . . . . . 13

Technical Specifications . . . . . . . . . . . . . . . . 13

4Contents

Getting Started With Your System 5

System Features

The major hardware and software features of your system include:

• One or two Dual-Core Intel

Xeon

Processors 5000 Sequence.

• Support for symmetric multiprocessing (SMP), which is available on

systems with two Intel Xeon processors. SMP greatly improves overall

system performance by dividing processor operations between

independent processors. To take advantage of this feature, you must use

an operating system that supports multiprocessing.

NOTE: If you decide to upgrade your system by installing a second processor,

you must order the processor upgrade kits from Dell™. Not all versions of

the Intel Xeon processor will work properly as additional processors. The

upgrade kit from Dell contains the correct version of the processor, heat sink,

and fan as well as the instructions for performing the upgrade.

• A minimum of 512 MB of 533- or 667- MHz (when available), Fully

Buffered DIMMs (FBD), upgradable to a maximum of 32 GB by installing

combinations of 256-MB, 512-MB, 1-GB, 2-GB, or 4-GB memory modules

in the eight memory module sockets on the system board.

The system also features redundant memory, which provides memory

sparing or memory mirroring. Either feature is available if eight identical

memory modules are installed.

• Support for up to six 3.5-inch, internal hot-pluggable Serial Attached SCSI

(SAS) or SATA hard drives without optional media bay, or up to four 3.5-inch

internal hot-pluggable SAS or SATA hard drives with optional media bay.

• The optional media bay (available only with the 3.5-inch x4 backplane

configurations) provides support for an optional half-height tape backup

unit (TBU) and an optional single, 1.44-MB, 3.5-inch diskette drive.

• An optional slim-line IDE CD, DVD, or combination CD-RW/DVD drive.

NOTE: DVD devices are data only.

• A chassis intrusion switch that signals the appropriate systems

management software if the top cover is opened.

• Up to two hot-pluggable, 750-W power supplies in an optional 1 + 1

redundant configuration.

• Four hot-pluggable system cooling fans.

6Getting Started With Your System

The system board includes the following features:

• One of the following left riser card options:

– A left riser card that has one full-length PCIe x8 lane slot

and one full-length PCIe x4 lane slot.

– A left riser card that has two full-length PCI-X 3.3-V, 64-bit,133-MHz

slots on separate PCI-X buses (capable of throttling back to support

legacy PCI add-in cards).

• A center riser card that has one half-length PCIe x8 lane slot.

• Dedicated slot for an integrated SAS host bus adapter or an optional RAID

controller card with 256 MB of cache memory and a RAID battery.

The internal channel supports up to six 3.5-inch SATA hard drives.

NOTE: System boot is not supported from an external device attached

to a SAS or SCSI adapter, including SAS 5/E, PERC 5/E, or PERC 4e/DC.

See support.dell.com for the latest support information about booting

from external devices.

• Two integrated Gigabit Ethernet NICs, capable of supporting 10-Mbps,

100-Mbps, and 1000-Mbps data rates.

• Four USB 2.0-compliant connectors (two on the front and two on the back)

capable of supporting a diskette drive, a CD-ROM drive, a keyboard,

a mouse, or a USB flash drive.

• Optional remote access controller (RAC) for remote systems management.

• An integrated VGA-compatible video subsystem with an ATI ES1000, 33-MHz

PCI video controller. This video subsystem contains 16 MB of DDR SDRAM

video memory (nonupgradable). Maximum resolution is 1600 x 1200 with

64 K colors; true-color graphics are supported in the following resolutions:

640 x 480, 800 x 600, 1024 x 768, 1152 x 864, and 1280 x 1024. When

the optional RAC is installed, the video resolution is 1280 X 1024.

• Systems management circuitry that monitors operation of the system fans as

well as critical system voltages and temperatures. The systems management

circuitry works in conjunction with the systems management software.

• Standard baseboard management controller with serial access.

• Back-panel connectors include one serial, one video, two USB,

and two NIC connectors.

Getting Started With Your System 7

• Front-panel connectors include a video and two USB connectors.

• Front-panel 1x5 LCD for system ID and error messaging.

• System ID button on the front and back panels.

For more information about specific features, see "Technical Specifications"

on page 13.

Supported Operating Systems

• Microsoft

Windows

Storage Server 2003 R2 Workgroup, Standard,

and Enterprise x64 Editions with SP2

Other Information You May Need

CAUTION: The Product Information Guide provides important safety and

regulatory information. Warranty information may be included within this

document or as a separate document.

• The

Rack Installation Instructions

Rack Installation Guide

included

with your rack solution describes how to install your system into a rack.

• The

Hardware Owner’s Manual

provides information about system

features and describes how to troubleshoot the system and install or

replace system components. This document may be found on the CDs

that came with your system, or on

support.dell.com

• CDs included with your system provide documentation and tools

for configuring and managing your system.

• Release notes or readme files may be included to provide last-minute

updates to the system or documentation or advanced technical reference

material intended for experienced users or technicians.

Obtaining Technical Assistance

If you do not understand a procedure in this guide or if the system

does not perform as expected, see your Hardware Owner’s Manual.

Dell™ Enterprise Training and Certification is available; see

www.dell.com/training for more information. This service may not be offered

in all locations.

8Getting Started With Your System

Installation and Configuration

CAUTION: Before performing the following procedure, read and follow the safety

instructions and important regulatory information in your Product Information Guide.

This section describes the steps to set up your system for the first time.

Unpack your system and identify each item.

Keep all shipping materials in case you need them later.

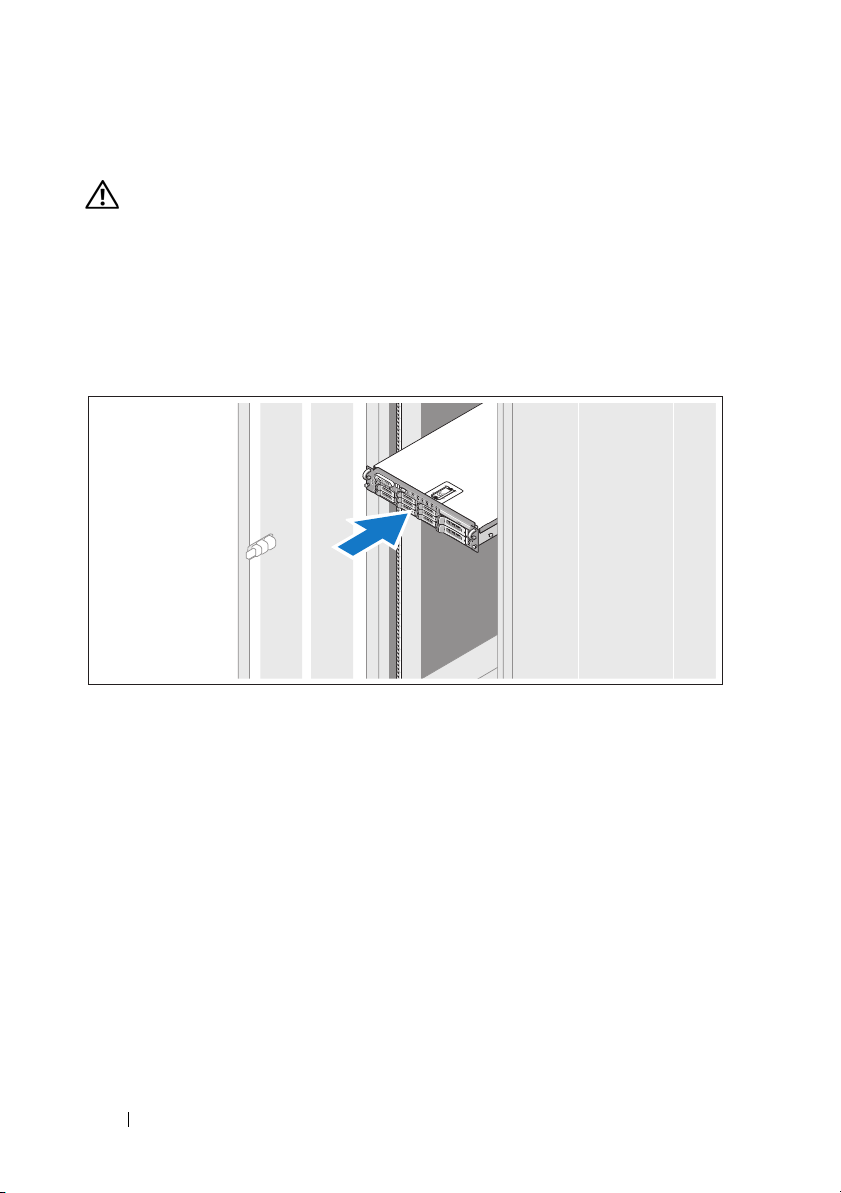

Install the Rails and System in a Rack

Once you have read the "Safety Instructions" located in the rack installation

documentation for your system, install the rails and the system in the rack.

See your rack installation documentation for instructions on installing

your system in a rack.
