Dell PowerVault MD3200i Series Manuale utente

Dell PowerVault MD3200i and

MD3220i Storage Arrays

Getting Started

With Your System

系统使用入门

Memulai Pengaktifan dengan Sistem Anda

はじめに

시스템 시작 안내서

Dell PowerVault MD3200i and

MD3220i Storage Arrays

Getting Started

With Your System

Regulatory Model Series E03J and E04J

Notes, Cautions, and Warnings

NOTE:

A NOTE indicates important information that helps you make better use

of your computer.

CAUTION:

A CAUTION indicates potential damage to hardware or loss of data

if instructions are not followed.

WARNING:

A WARNING indicates a potential for property damage,

personal injury, or death.

____________________

Information in this publication is subject to change without notice.

Reproductionofthesematerialsinanymannerwhatsoever without the written permission of Dell Inc.

is strictly forbidden.

Trademarks used in this text: Dell™, the DELL logo, and PowerVault™ are trademarks of Dell Inc.

Microsoft

and Windows Server

are either trademarks or registered trademarks of Microsoft

Corporation in the United States and/or other countries. Red Hat

and Red Hat Enterprise Linux

are

registered trademarks of Red Hat, Inc. in the United States and other countries. SUSE

is a registered

trademarkof Novell, Inc. in the United Statesandothercountries.VMware

is a registered trademark

of VMware, Inc. in the United States and/or other jurisdictions.

Othertrademarksandtradenamesmaybeusedinthispublicationtorefertoeithertheentitiesclaiming

the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and

trade names other than its own.

Regulatory Model Series E03J and E04J

2011 - 08 P/N 1MN3K Rev. A02

Getting Started With Your System

Before You Begin

NOTE:

Throughout the document, Dell PowerVault MD3200i series storage array

refers to both Dell PowerVault MD3200i and Dell PowerVault MD3220i. Dell

PowerVault MD1200 series expansion enclosure refers to both Dell PowerVault

MD1200 and Dell PowerVault MD1220.

Before setting up your Dell PowerVault MD3200i series storage array,

you must consider certain best practices to ensure that your storage array

operates at maximum efficiency and offers full redundancy (if required).

• It is recommended that you use a dedicated IP SAN for iSCSI data

transmission. Management traffic can be isolated on a separate

management network.

• Complete the iSCSI configuration worksheet before configuring iSCSI.

See "Completing the iSCSI Worksheet" on page 4. This worksheet gathers

physical network information in a single source.

• After completing the iSCSI worksheet, draw the configuration before

setting up the solution.

• Always configure redundant iSCSI data paths to provide alternate paths to

and from the host server should one of the data paths become disabled.

• If multiple NICs are installed on a host, it is recommeded that you use

different subnets for management and iSCSI data links.

• Throughout the network, always use a Category 5e (or higher)

Ethernet cable.

• Before connecting any cables between the host server and storage array,

physically label each port and connector.

• Always follow proper power-up and power-down procedures when cycling

power across the network. You must also ensure that critical network

components are on separate power circuits.

NOTE:

The illustrations in this document show cabling for only one PowerVault

MD3200i series storage array in a SAN environment. The illustrations also show

only the default IP addresses for the PowerVault MD3200i series storage array. To

cable more than one PowerVault MD3200i series storage array in a SAN

environment, see the Deployment Guide.

Getting Started With Your System

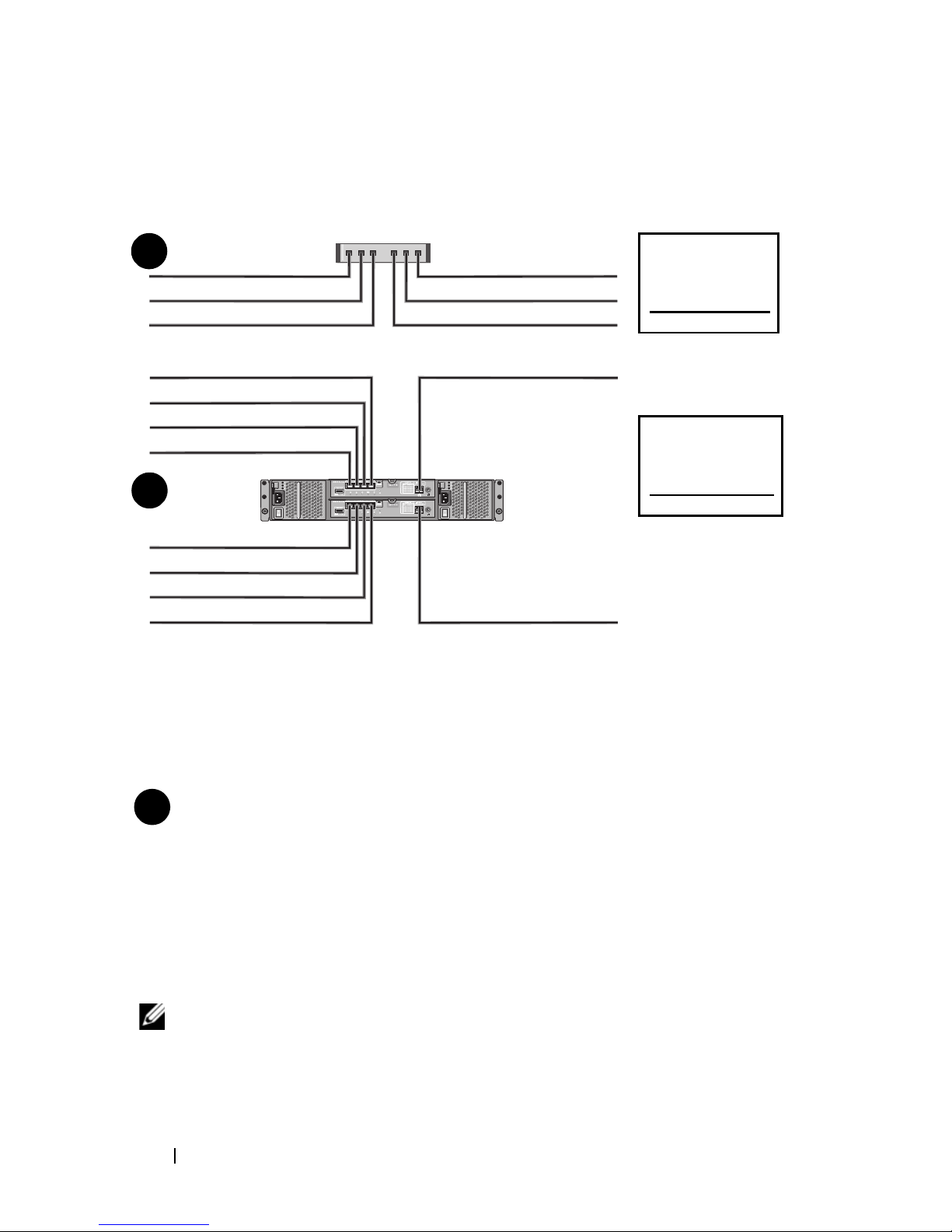

Completing the iSCSI Worksheet

IPv4 Settings

Mutual

CHAP Secret

Target CHAP

Secret

host server

PowerVault

MD3200i series

storage array

192.168.130.101 (In 0 default)

192.168.131.101 (In 1 default)

192.168.132.101 (In 2 default)

192.168.133.101 (In 3 default) 192.168.128.101 (management network port)

192.168.130.102 (In 0 default)

192.168.131.102 (In 1 default)

192.168.132.102 (In 2 default)

192.168.133.102 (In 3 default) 192.168.128.102 (management network port)

If you need additional space for more than one host server, use an additional sheet.

iSCSI port 1

iSCSI port 2

iSCSI port 3

iSCSI port 4

Management port

Static IP address (host server) Subnet mask Default gateway

___ . ___ . ___ . ___

NOTE: The host server can support up to four NICs.

Getting Started With Your System

NOTE:

For information about the IPv6 worksheet, see the Deployment Guide.

Other Documentation and Media You May Need

WARNING:

See the safety and regulatory information that shipped with

your system. Warranty information may be included within this document or

as a separate document.

NOTE:

All PowerVault MD3200i series storage array documents are available at

support.dell.com/manuals.

• The rack documentation included with your rack solution describes how

to install your system into a rack.

• The

Owner’s Manual

provides information about system features and

describes how to troubleshoot the system and install or replace system

components.

• The

Deployment Guide

provides information about installing and

configuring the software and hardware.

• The

CLI Guide

provides information about using the command line

interface (CLI) to configure and manage your storage array.

Static IP address (storage array) Subnet mask Default gateway

___ . ___ . ___ . ___

iSCSI controller 0, In 0

iSCSI controller 0, In 1

iSCSI controller 0, In 2

iSCSI controller 0, In 3

Management port cntrl 0

iSCSI controller 1, In 0

iSCSI controller 1, In 1

iSCSI controller 1, In 2

iSCSI controller 1, In 3

Management port cntrl 1

___ . ___ . ___ . ___

Getting Started With Your System

•The

SMI-S Programmer’s Guide

provides information about using

the SMI-S provider and SMI-S programming.

• Any media that ships with your system that provides documentation and tools

for configuring and managing your system, including those pertaining to the

operating system, system management software, system updates, and system

components that you purchased with your system.

NOTE:

Always check for updates on support.dell.com/manuals and read the

updates first because they often supersede information in other documents.

Preparing the Host Server

Supported Operating Systems

• Microsoft Windows Server

• Red Hat Enterprise Linux

• SUSE Linux Enterprise Server

• VMware

NOTE:

For the latest information on all supported operating system versions,

see the Support Matrix at support.dell.com/manuals.

Additional NICs for iSCSI

When installing additional NICs, it is recommended that:

• You use dedicated redundant storage networks for iSCSI traffic.

If a dedicated network is not feasible, isolate the iSCSI traffic from

general network traffic using virtual local area networks (VLAN).

• You use additional NICs dedicated for iSCSI traffic.

• The NICs must be added in pairs for redundancy (up to four NICs).

NOTE:

A single NIC is also supported.

NIC Configuration

In a SAN environment, depending on the number of switches, it is

recommended that you use two or four unique subnets for iSCSI traffic.

For direct-attached storage environments, each NIC directly connected to

the PowerVault MD3200i series storage array must be on a separate subnet.

Getting Started With Your System

Common Configurations

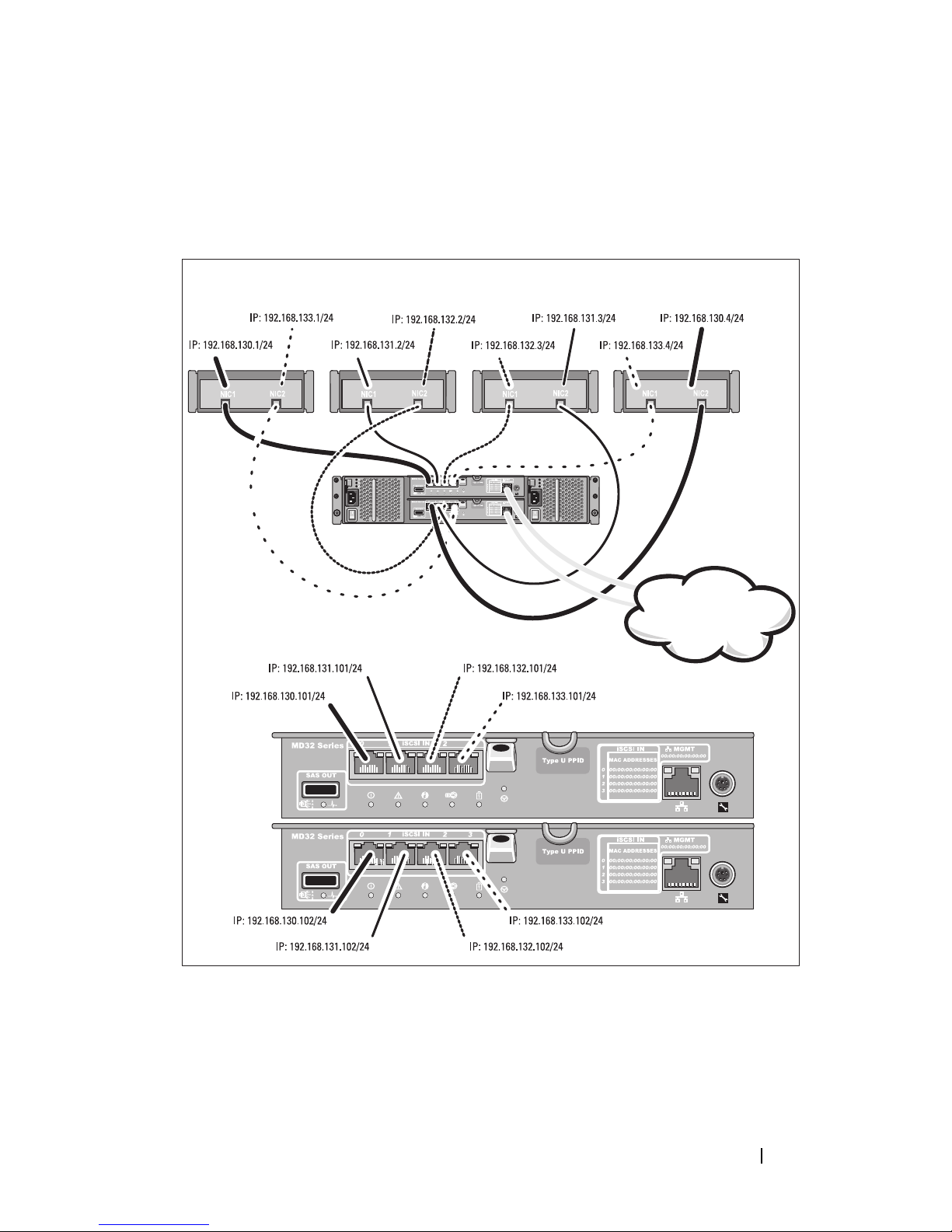

Cabling Your Direct-Attached Hosts

Server 1 Server 2

Storage array

Server 3 Server 4

Corporate, public,

or private network

Getting Started With Your System

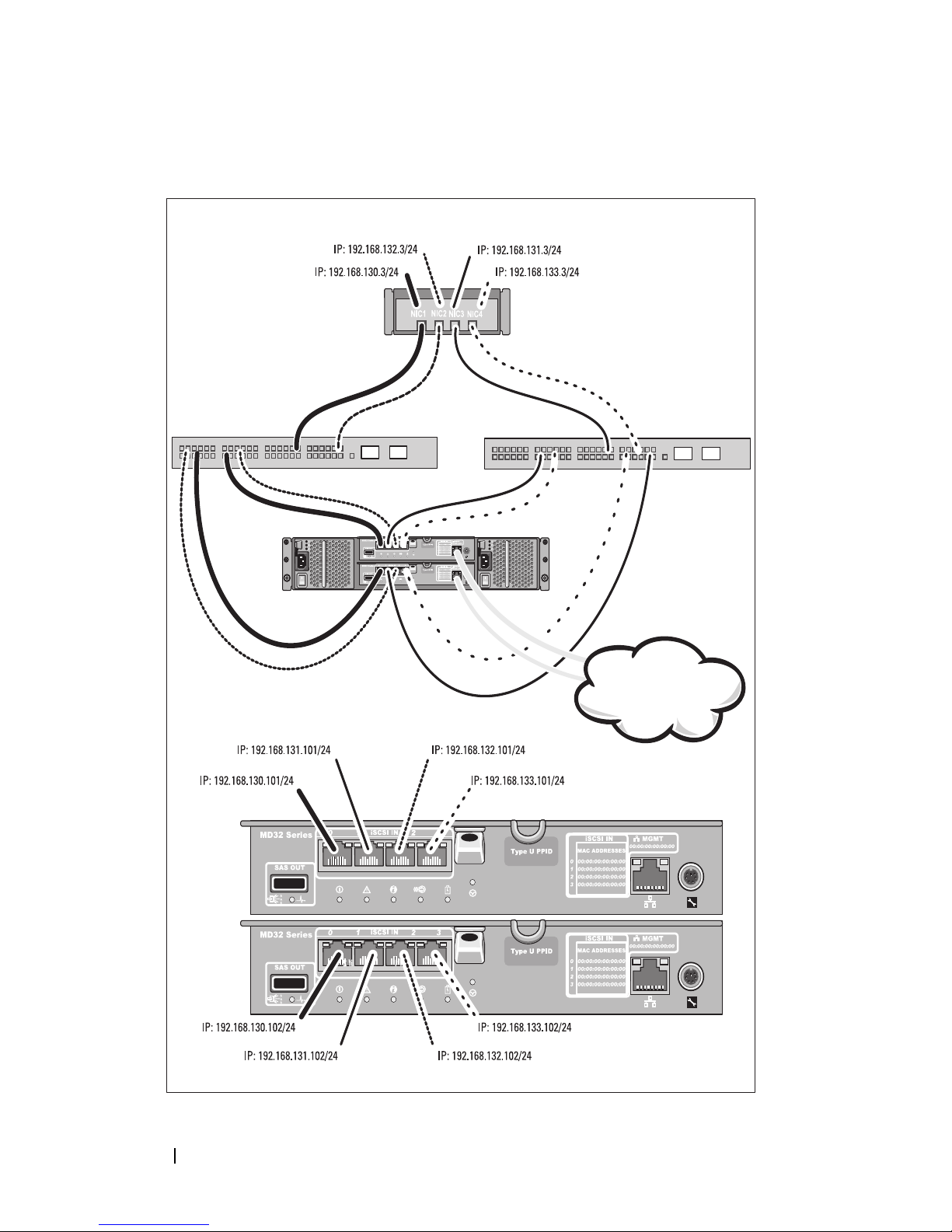

Cabling Your SAN-Attached Hosts

Storage array

Corporate, public,

or private network

Switch 1 Switch 2

Server
