DeLonghi IH Manuale utente

ESTUF

ESTUFA INFRAROJO

A INFRAROJO E

RADIANT HEA

RADIANT HEATER

TER GB

RADIANT HEATER

Technical Data

Maximum Medium Low Gas pressure

Input Input Input

KW g/h KW g/h KW g/h

4.00 314 2.71 213 1.43 112 28÷30 mbar

4.00 305 1.50 109 28÷30 mbar

This appliance is designed to operate with Butane at nominal pressure: 28 ÷ 30 mbar. For

a regular gas combustion the required air quantity is: 8,4 m3/h.

WARNINGS

-ALWAYS use heater in accordance with instructions. Read the instructions book carefully

and keep it in a safe place.

-This appliance requires a rubber tube and a pressure regulator in accordance with the

law in force. If not supplied check with your gas supplier.

-Use ONLY in a well ventilated area.

-This appliance MUST NOT be used in basements, high rise flats, bathrooms or

bedrooms and in rooms having volume less than 15m3(30 m3in living rooms).

-This appliance emits the combustion residues in the room in which is used.

-DO NOT place clothes or other materials on the heater, as apart from the danger of fire

their presence could affect the efficient working of the appliance (fig. 1).

-DO NOT move heater from room to room when it is lit (fig. 2).

-DO NOT position heater alongside a wall or near curtains or arm-chairs etc. (fig. 3 - 4).

-ALWAYS face heater towards centre of room. Special care should be taken if the heater is on

a surface where it can move or twist on its wheels or castors if knocked by a child or dog, etc.

-Minimum Clearance : 200 mm from sides,1500 mm from front.

-The heater you have purchased is fitted with safety devices which come on in the event of malfunctioning

while the appliance is in use. If the pilot light (placed opposite the burner) accidentally goes out, or if the

room is not sufficiently ventilated, the safety device will block the gas flow, causing the heater to go off.

-Do not use the heater at high altitudes.

Gas leakages

If a leak is suspected, turn off gas at the gas bottle, open the window and air the room. DO

NOT disconnect the pressure regulator. Extinguish all naked lights. Slowly turn the gas on

and brush the connections with soapy water or liquid detergent - a gas leak will form bub-

bles. If a leak is found, turn the gas off and inform your Dealer. DO NOT use the heater

again until it has been inspected by your Dealer. NEVER USE MATCHES TO FIND LEAKS.

IH - IHF

IH2 - IHF2

;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

@@@





;;;

QQQ



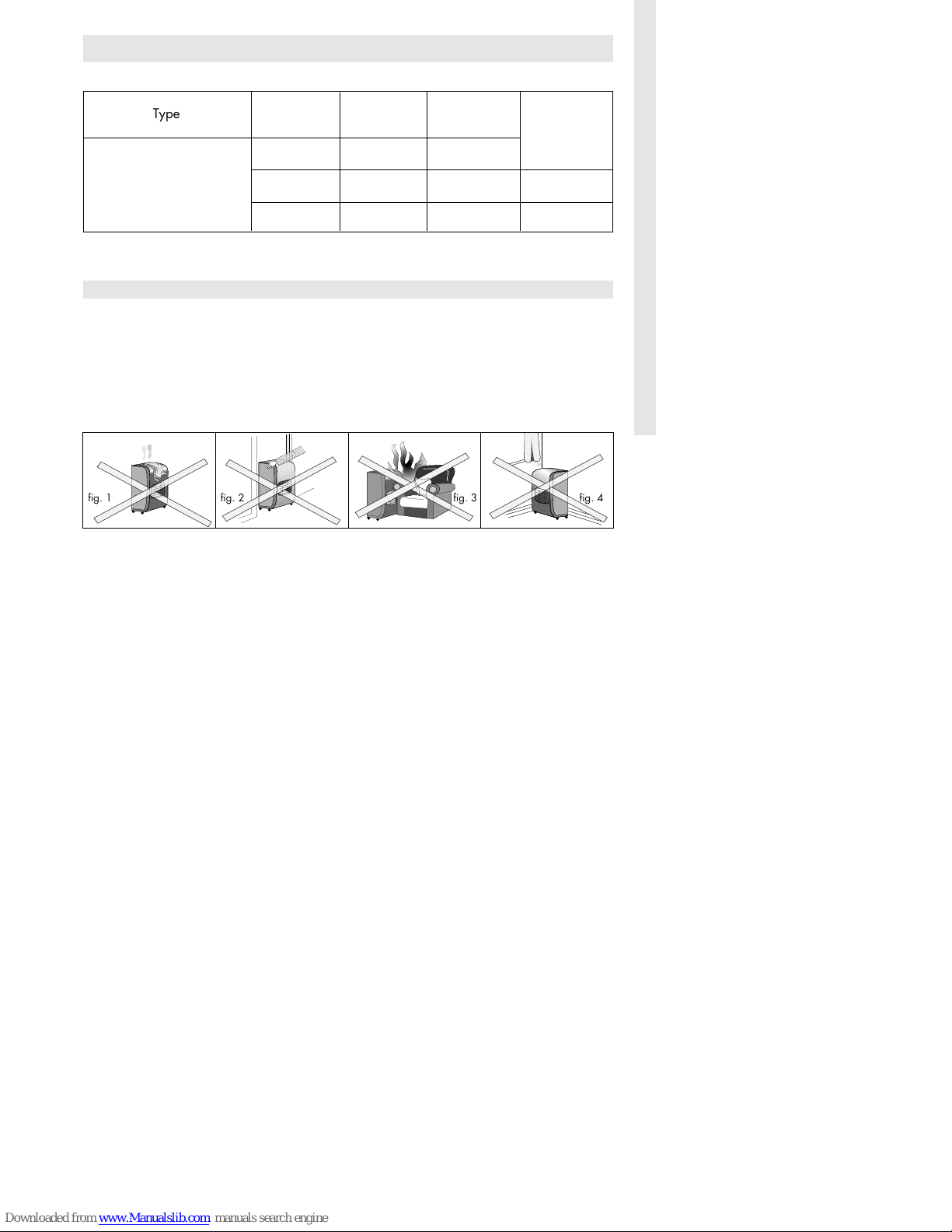

fig. 1 fig. 2 fig. 3 fig. 4

Type

GENERAL SAFETY INSTRUCTIONS

Gas bottle

Gas Bottle with 15 kg of maximum capacity can be installed.

Changing of gas bottle must not be carried out in the presence of a naked flame.

Use the gas bottle always in upright position. If a screw on regulator is used ensure that the

regulator washer is present and in good condition -replace if in any doubt.

To place the bottle in position, remove the rear panel which faces the inside during tran-

sport, by unfastening the screws; than put the bottle in position and replace the panel.

Important

Dear client:

when using the radiant heater as a portable appliance, before filling the gas bottle, remember to

discarge the compressed air that may be contained in it.

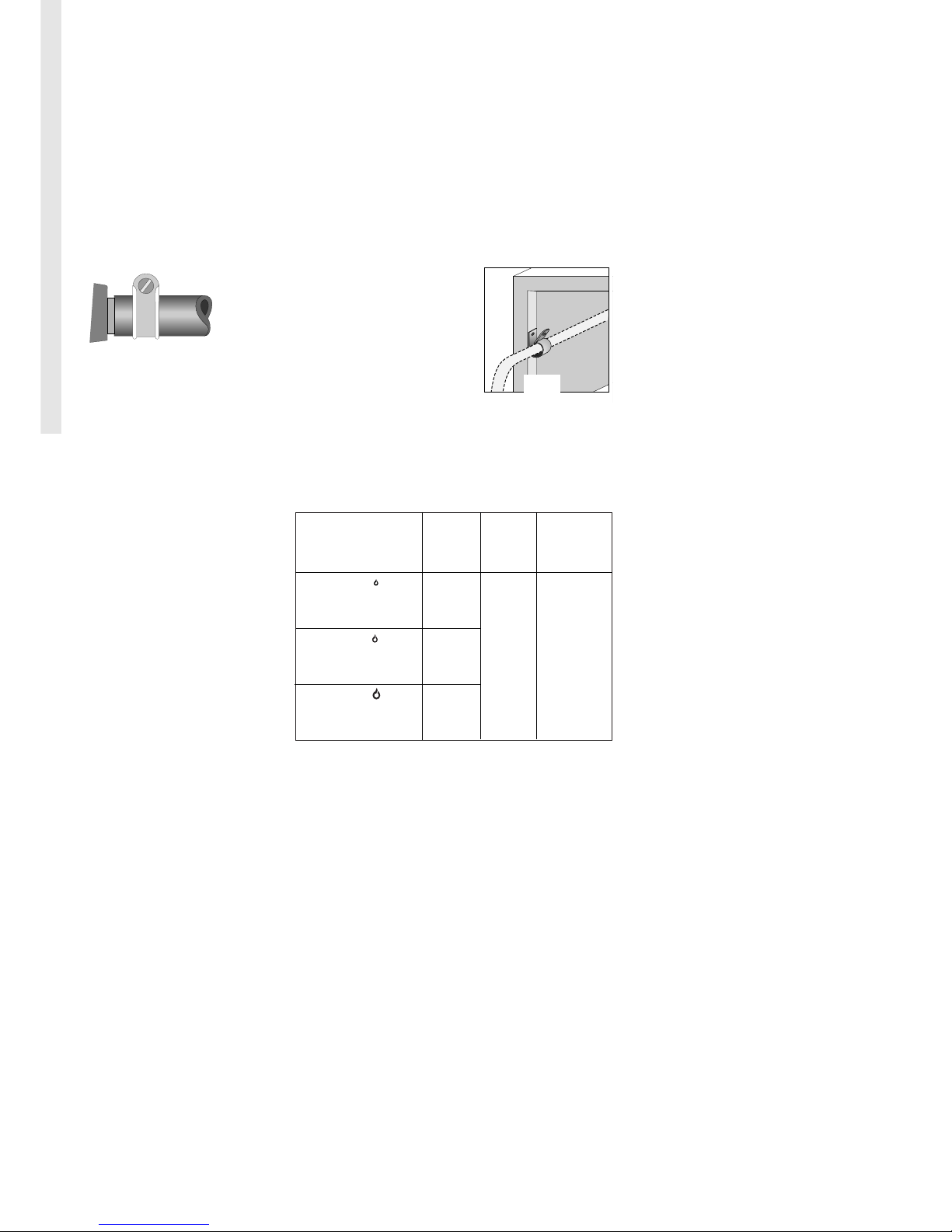

Pressure regulators, rubber tubes and clips

CHECK that tubing is completely over the

nozzles at each end of the tubing and that it

is held firmly in place by tube clips (See

fig.5). Examine flexible tubing regularly and

get your Dealer to fit new tubing 400 mm

long complying to local standard, if peri-

shed, worn or damaged. Ensure that the rub-

ber tube inserted in the plastic support (see fig. 6). When connecting

the pressure regulator to the gas bottle avoid undue twisting of the flexi-

ble tubing. A 28 ÷ 30 mbar (11.2 in w.g.) pressure regulator for

Butane or Propane complying to local standard must be connected to

the appliance with the above tubing, using suitable tube clips.

Room ventilation

USE ONLY IN A WELL VENTI-

LATED ROOM

Adequate ventilation must be provi-

ded in rooms in which the heater is

used. This ensures removal of the

products of combustion and allows

the entry of replacement air.

The following table shows the smal-

lest size of room suitable for each

heat setting and the dimensions of

the aperture which must be provi-

ded equally divided between high

and low level.

SAFETY GUARD

The guard is to prevent risk of fire

and no part of it should be permanently removed. It does not give full protection for

young children or the infirm.

fig. 5

fig. 6

Control knob setting

Room

Size

IH-IHF

Room

Aperture

Position

big flame

(maximum rate)

15 m3

105 cm2

Position

medium flame

(medium rate)

28.5 m3

Position

small flame

(low rate)

42 m3

Room

Size

IH2-IHF2

42 m3

OPERATING INSTRUCTIONS MODEL IH-IHF

Lighting the heater

1. Turn on the gas at the gas bottle tap.

2. FROM « ● » POSITION, fully depress the control knob for 10 seconds and turn to

(Small Flame) position. (If pilot flame does not ignite return to starting position and

repeat). Continue to fully depress the knob for a further 20 seconds to allow the thermo-

couple probe to heat up. Then turn the knob to select the desired setting as follows:

(Small Flame) Low Input (Medium Flame) Medium Input,

(Big Flame) Maximum Input

Auxiliary ignition

Should piezoelectric starter fail to work, repeat operation on control knob and use a match

to light pilot flame and repeat the operations above described.

Turning off the heater

Turn off the gas bottle tap.

The Heater will be totally “OFF” only if the tap at the gas bottle is turned off.

OPERATING INSTRUCTIONS MODEL IH2-IHF2

Lighting the heater

1. Turn on the gas at the gas bottle tap.

2. Depress the button for 10 seconds, consequently depress button two or three times

(If pilot flame does not ignite return to starting position and repeat). Continue to fully

depress button for a further 20 seconds to allow the thermocouple probe to heat

up then release. To light up the 3 burners, turn the thermostat fully counter-clocwise to the

max. (pos .6). When the room temperature has reached the desired level, turn the ther-

mostat clock-wise until the side burners light off. The thermostat will now automatically

maintain the temperature at the desired level changing between max. power (all the

three burners are on) and min. power (only one burner is on).

Auxiliary ignition

Should piezoelectric starter fail to work, repeat operation on control knob and use a match

to light pilot flame and repeat the operations above described.

Turning off the heater

To turn the heater off, turn the thermostat to “●“ position, then turn off the gas bot-

tle tap.

The heater will be totally “OFF” only if the tap at the gas bottle is turned off.

Important

When the operating button” “ is left at the end of the starting time (see also rating plate),

this must move up about 5 mm and return to his starting height. If this does not happen, shut

the gas valve and contact your aftersales service centre. Do not let the appliance work with

the operating knob pressed downwards by force.

VENTILATED RADIANT HEATER

Electrical connection

- Before using the appliance check that your supply voltage is the same as that shown on

the rating label of the unit.

- Connect your heater to earth provided socket only, having a capacity of at least 10/16 A.

- THIS APPLIANCE COMPLIES WITH THE EEC DIRECTIVE 89/336 CONCERNING

ELECTROMAGNETIC COMPATIBILITY.

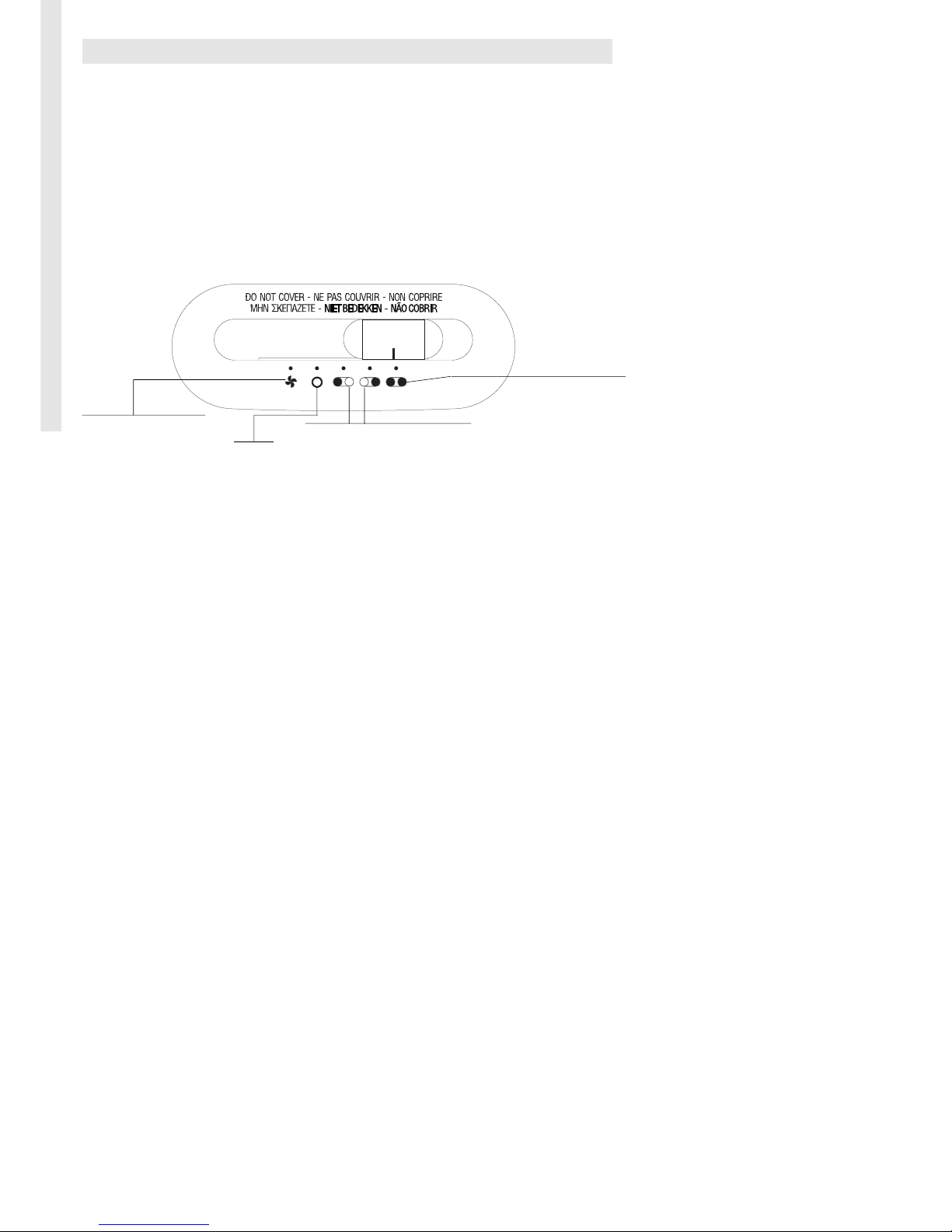

Operation and use

Fully insert plug into socket-outlet and switch on the fan heater following the instructions

of Fig. 7.

Before switching on the gas burner, read carefully the relevant operating instructions.

IMPORTANT

DO NOT cover the appliance when in operation, this could cause a dangerous rise of the

temperature of the fan heater with consequent risk of fire.

Important notes

-Your heater must always be earthed: warranty does not cover damages caused by non-

observance of this warning.

-Do not use your heater close to wash-basin, bath- tub, shower, swimming pool.

- Do not lay the cable on the hot unit.

-Use the appliance only standing on the floor.

- The heater must always operate in upright position.

-Do not cover either the hot air output or input grid on the top of the unit during service.

VENTILATION

ONLY

(It can be used

together with the gas

burners for an ade-

quate heat distribu-

tion).

OFF

VENTILATION + 750 W

HEATING RIGHT OR LEFT

(It can be used together with

the gas burners - 4000 W -

for the fast heating of the

room).

VENTILATION

+ 1500 W

HEATING

(It can be used

together with the

gas burners - 4000

W - for the very fast

heating of the

room).

Fig. 7

MAINTENANCE

Wipe your appliance with a soft damp cloth and only

when it is switched off, cold and unplugged. Do not use

solvents or abrasives detergents.

Check that there is no dust blocking the air inlet or

outlet grids. Clean using a vacuum cleaner. When not

in use remove plug from socket and store cable as

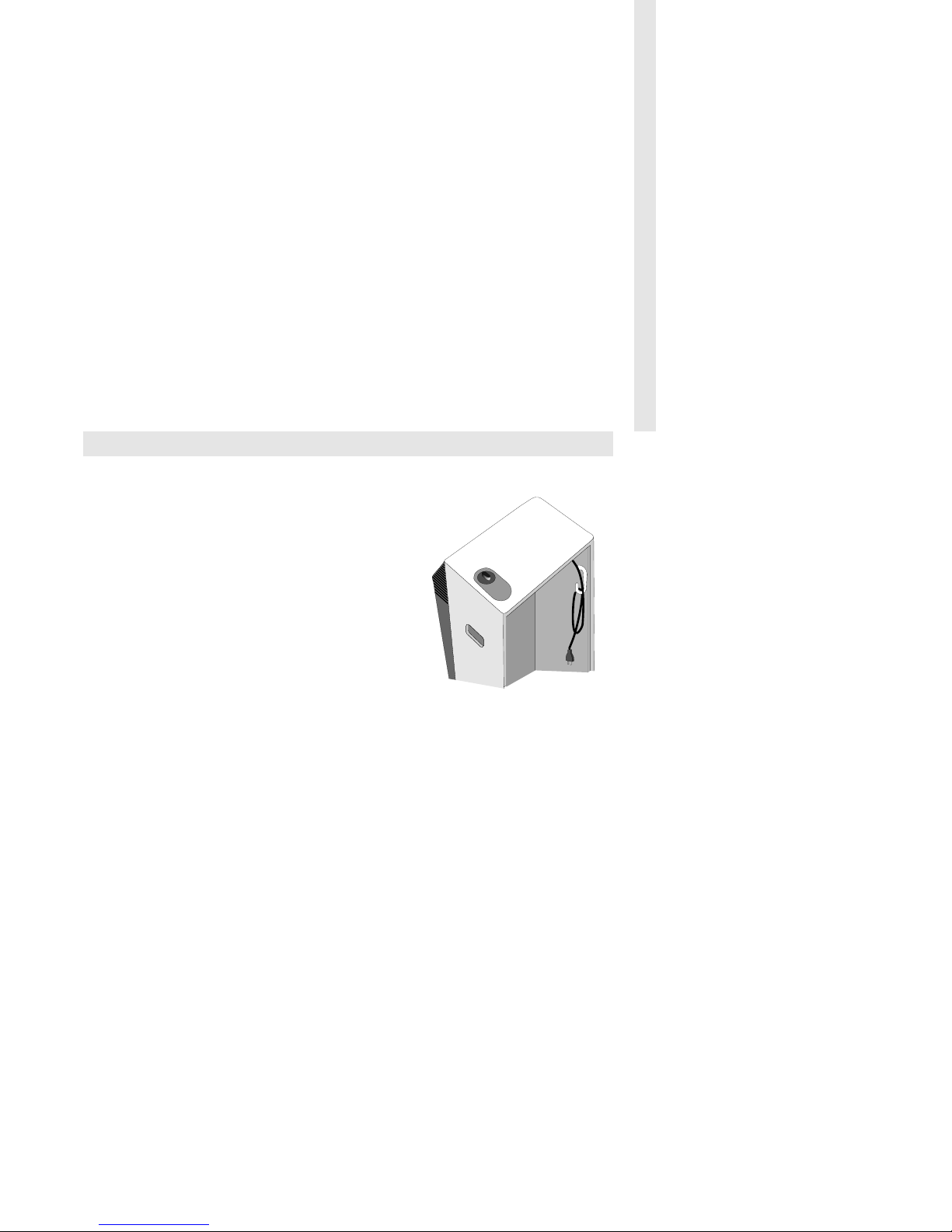

shown in Fig. 8. When not in use the heater should be

covered and stored in a dust-free place. Refer any

major maintenance to your Local Authorised Dealer.

Major servicing should be carried out every 2 - 3 years.

If in doubt refer to your nearest authorised dealer.

Fig. 8

-Replacement of the power cable must be carried out by qualified personnel. Always use

original spare parts supplied by the manufacturer.

-The heater must not be located immediately below a fixed socket outlet.

- A safety device switches the fan heater off if it accidentally overheats.

To reset the unit for normal operation, remove the plug from the mains

socket for a few minutes, eliminate the cause of the overheating (e.g. air

intake or outlet grilles obstructed) and then plug the fan heater back in

again. Contact your nearest Technical Assistance Service if the fan heater

does not start operating normally again.

.- Ñever direct the fan hater’s air flow towards furniture, curtains , spray cans and inflam-

mable material.
