INTRODUCTION

Thank you for choosing a De’Longhi product.

Please take a few moments to read the instructions to avoid risks

or damage to the appliance.

Symbols used in these instructions

Important warnings are identied by the symbols below.

It is important to respect the warnings.

Failure to respect the warnings could lead to electric shock,

serious injury, burns, re or damage to the appliance.

Important!

Failure to observe the warning could result in injury or damage

to the appliance.

Danger of burns!!

Failure to observe the warning could result in burns or scalds.

Please note:

This symbol indicates recommendations and important

information for the user.

IMPORTANT WARNINGS

Safety warnings

Important!

- This appliance can be used by children

aged from 8 years and above and

persons with reduced physical, sensory

or mental capabilities or lack of

experience and knowledge if they have

been given supervision or instruction

concerning use of the appliance in a

safe way and understand the hazards

involved. Children shall not play with

the appliance. Cleaning and user

maintenance shall not be made by

children without supervision.

- Children of less than 3 years should

be kept away unless continuously

supervised.

- Children aged from 3 years and less

than 8 years shall only switch on/

o the appliance provided that it has

been placed or installed in its intended

normal operating position and they have

been given supervision or instruction

concerning use of the appliance in a

safe way and understand the hazards

involved. Children aged from 3 years

and less than 8 years shall not plug in,

regulate and clean the appliance or

perform user maintenance. CAUTION —

Some parts of this product can become

very hot and cause burns. Particular

attention has to be given where children

and vulnerable people are present.

- WARNING: In order to avoid

overheating, never under

any circumstances cover the

appliances during operation, as this

would lead to dangerous overheating.

- The body of this radiator is lled with

a precise quantity of special oil, so that

repairs requiring the opening of the oil

body must only be made by the service

agent. Any oil leakage must be reported

to the Customer Experience, see enclosed

guarantee for details.

- The appliance must not be located

immediately below a xed socket-outlet.

- Do not use the heater in the vicinity of

bathtubs, wash basins, showers, sinks

and swimming pools.

- If the power cable has been damaged, it

must be replaced by the manufacturer

or the technical service centre or by a

qualied person so as to avoid all risks.

- ATTENTION: in order to avoid any danger

caused by an accidental resetting of the

safety system, this appliance must not

be powered through an external timer.

Please note:

- Never use the heater to dry laundry.

- Never place the power cable on top of the heater while it is

hot.

- We recommend that you not place the heater in a draught,

because strong draughts of air may adversely aect the

equipment’s operational eciency.

- Only use the heater in an upright position.

- The heater must be positioned at least 50cm from furniture

or other objects.

- The rst time you use the appliance, operate it of at least 15

minutes with the thermostat at maximum to eliminate the

“new”smell. A little smoke due to the protective substances

applied to the heating element before transport may be

given o.

- Do not obstruct the hot air outlet grilles or the air intake

grille on the bottom of the appliance.

- Position the appliance so that the plug and the outlet can

be easily reached even after installation.

- Do not use the appliance in rooms less than 4 m2in area.

- The appliance is tted with a safety device which will

switch o it in case of accidental overheating. To reset,

please contact Customer Experience, see enclosed

guarantee.

Danger of burns!!

- The use of an extension lead is not recommended, as

overheating of the extension lead may occur during the

operation of the heater.

The appliance complies with the following EC directives:

- Low Voltage Directive 2006/95/EC and subsequent

amendments;

- EEC Directive 2004/108 on electromagnetic compatibility

(EMC) and subsequent amendments;

Disposing of the appliance

In compliance with European directive 2002/96/EC,

the appliance must not be disposed of with household

waste, but taken to an authorised waste separation and

recycling centre.

DESCRIPTION

A Thermostat

B Power selector

C/D/E Power indicator lights (MIN, MED, MAX)

F Cord holder

G Wheel

USE

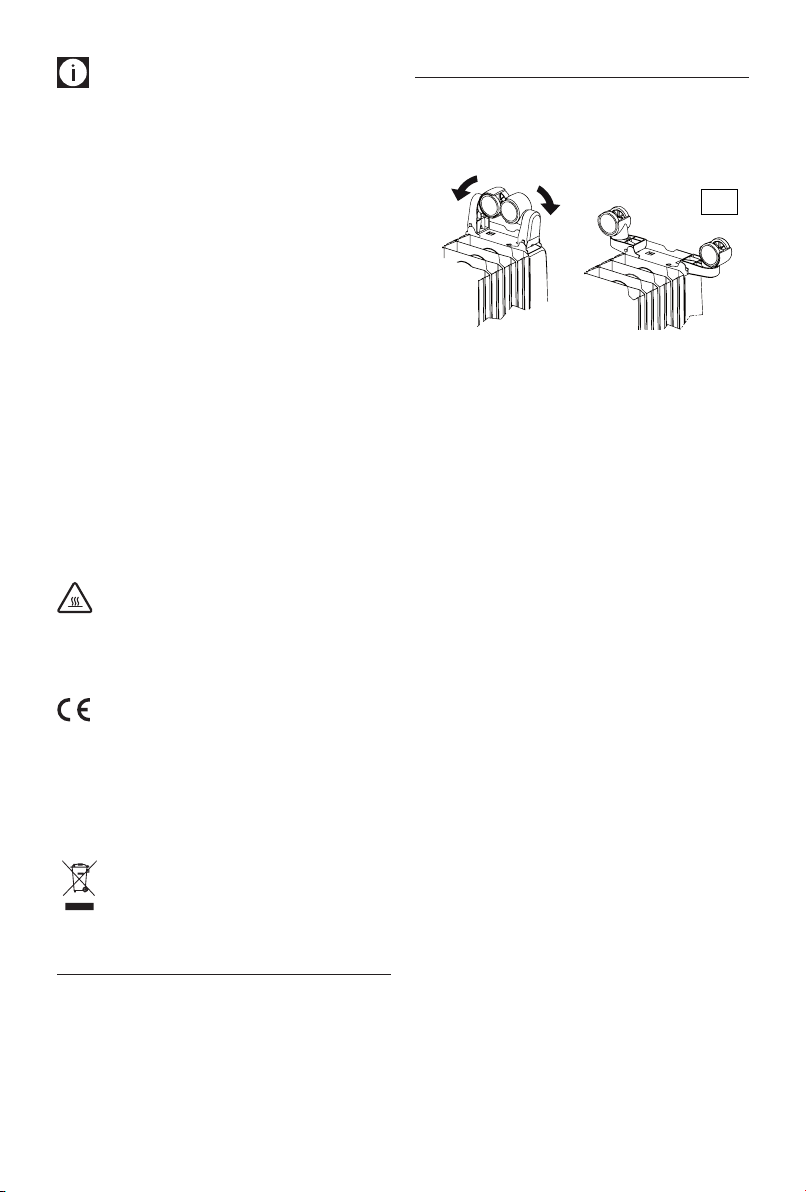

Fitting the wheels

Turn the radiator upside down on a rug or soft surface to prevent

damaging the paint nish. Fully unfold the wheels by turning them

outwards (Fig. 1). Turn the radiator back to its upright position.

Caution

Always operate the heater in upright position only (wheels on

the bottom, controls on top).

Any other position could create a hazardous situation.

Location

The heater should not be placed immediately below a power

outlet. Do not use this radiator in rooms with a oor area of less

than 4 m2(43 sq. ft. ).

Connection

- Before using the appliance check that your supply voltage

is the same of that shown on the rating label of the unit and

that the power socket and power supply line correspond to

the load specied.

- Check also the current capacity of your fuses. CONNECT

YOUR HEATER TO EARTH PROVIDED SOCKET ONLY.

- This appliance complies with directive 2004/108/ec on

electromagnetic compatibility. Keep loose clothing or

bedding, furniture and ammable material away from the

heater's wall outlet.

Turning on

Insert the plug into an electrical outlet, rotate the thermostat

dial to maximum and turn the unit on as follows using the power

selector:

- Turn the power selector to position MIN to select minimum

output (the min light will be on).

- Turn the power selector to position MED to select medium

output (the min/med lights will be on).

- Turn the power selector to position MAX to select maximum

output (the lights will be on).

Adjusting the thermostat

When the room has reached the desired temperature, turn the

thermostat dial slowly in an anti-clockwise direction until you

hear a "click" and not beyond it.The thermostat will then adjust

Fig. 1

the set temperature automatically and keep it constant.

If your unit is a three-output version, in intermediate seasons

or on days when temperatures are not particularly cold, select

minimum output to optimize savings and consumption.

Antifreeze function

Turn the thermostat dial to the position and the power

selector to position MAX.The appliance will maintain a minimum

room temperature of approximately 5°C, thus preventing

freezing while conserving energy. In models that come with a

timer, teeth must be set in the inward position.

Reminder

To completely shut the appliance o, turn the power selector to

the "0" position and then unplug the appliance from the outlet.

UNITS WITH TIMER

How to use the timer

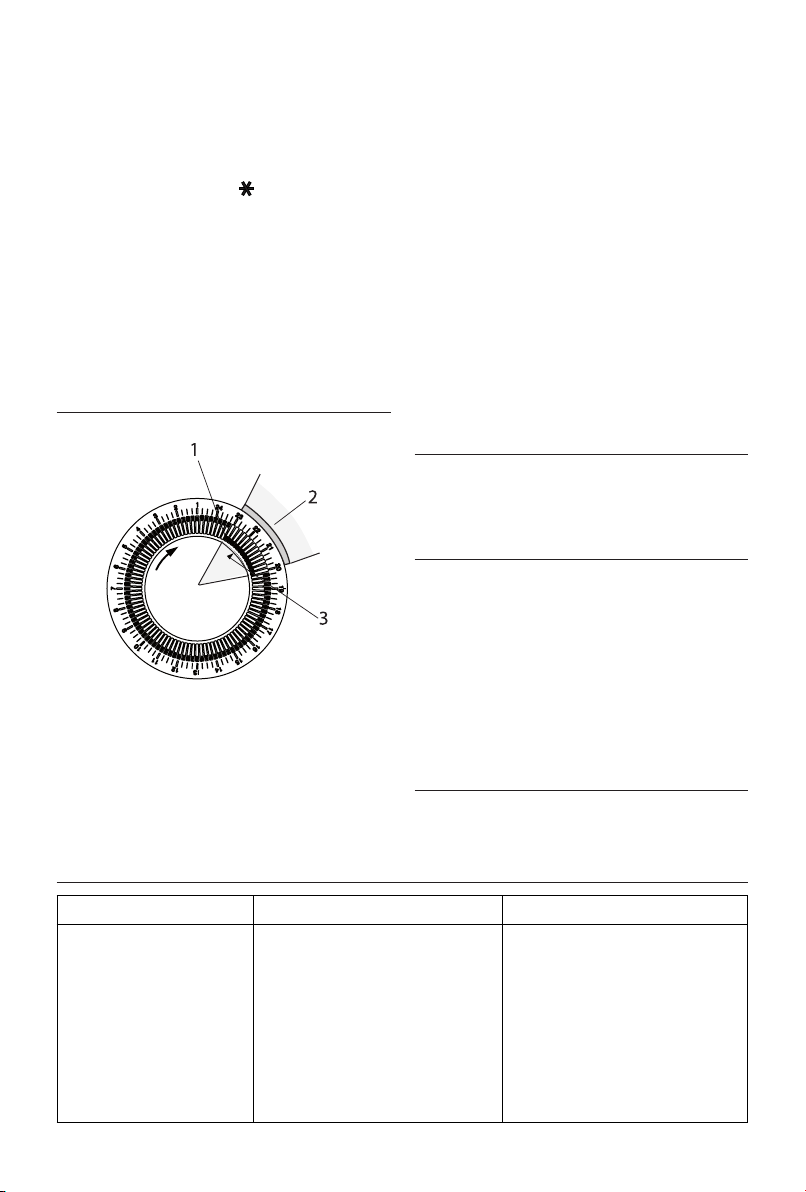

To program heating, proceed as follows:

- Look at the time on your clock or watch. If it is 10 p.m., turn

the numbered timer disk clockwise until the number 22 (10

p.m.) on the disk coincides with the pointer s(3) on the

timer. Set the periods of time when you want the appliance

to work by pushing the teeth (1) inward. Each tooth (1)

corresponds to a period of 15 minutes. This will leave

visible sectors which correspond to the periods of operation

(2). When set, the radiator will operate automatically each

day during the times programmed (important: the radiator

must always be plugged into the socket).

- To change the programming, move the teeth back into the

initial position and set the new periods of operation.

- If you want to make the appliance operate without

programming, push all the teeth inward. In this case, to

turn the appliance o completely, as well as turning the

dial to the o position, you must also unplug it from the

power outlet to avoid continued operation of the timer.

IMPORTANT: DO NOT ROTATE CLOCK DIAL COUNTER-

CLOCKWISE.

The timer is like an electric clock, and will only work when

plugged into a power supply. When unplugged, the timer stops

and must be later re-set.

SAFETY DEVICE

A safety device switches the heater o in the event of

overheating. To restart the heater, call the nearest De'Longhi

Customer Service.

MAINTENANCE AND SERVICE

Always unplug the heater from the power outlet and allow the

radiator to cool. Wipe radiator with a soft damp cloth; do not use

detergents or abrasives. Should the radiator not be in use over a

certain length of time, wind the cord around the holder and store

it in a dry place. This appliance has been built to last for many

years of trouble-free service. In case of malfunction or doubt,

do not try to repair the heater by yourself: this might increase

the risk of re and electric shock. Call your nearest De'Longhi

Customer Service (see attached list of Service Centers).

TECHNICAL CHARACTERISTICS

Power supply See rating plate

Absorbed power “

TROUBLESHOOTING

PROBLEM CAUSE SOLUTION

The appliance doesn't work - Be sure it is plugged in and that the

electrical outlet is working.

- Check for any obstruction.

- The temperature may be set too low.

- Plug into the power outlet.

- Remove the obstruction and let the

appliance cool down. If the appliance

doesn't work please contact the nearest

De'Longhi Customer Service.

- Set the temperature to a higher position.
