DeLonghi DMFPSII Guida rapida

INSTALLATION and SERVICE INSTRUCTIONS

USE and CARE INSTRUCTIONS

distributed by

DèLonghi

Pty Ltd

OVENS

Dear Customer,

Thank you for having purchased and given your

preference to our product.

The safety precautions and recommendations reported

below are for your own safety and that of others. They

will also provide a means by which to make full use of

the features offered by your appliance.

Please keep this booklet in a safe place. It may be

useful in future, either to yourself or to others in the

event that doubts should arise relating to its operation.

This appliance must be used only for the task it has

explicitly been designed for, that is for cooking

foodstuffs. Any other form of usage is to be considered

as inappropriate and therefore dangerous.

The manufacturer declines all responsibility in the

event of damage caused by improper, incorrect or

illogical use of the appliance or be faulty installation.

PRODUCT LABEL

CONTENTS

Precautions and recommendations................................................” 4

Installation......................................................................................” 5

Multifunction oven - Use and care ................................................” 12

Plurifunction oven - Use and care.................................................” 24

Cleaning and maintenance............................................................” 32

USING THE OVEN FOR THE FIRST TIME

You are advised to carry out the following operations:

■Furnish the interior of the oven.

■Switch the empty oven ON at maximum temperature for about two hours to

eliminate traces of grease and smell from the components.

■Clean the interior of the oven with a cloth soaked in water and neutral

detergent and dry thoroughly.

IMPORTANT PRECAUTIONS AND RECOMMENDATIONS FOR

USE OF ELECTRICAL APPLIANCES

Use of any electrical appliance implies the necessity to follow a series of fundamental

rules. In particular:

■Never touch the appliance with wet hands or feet;

■Do not operate the appliance barefooted;

■The appliance is not intended for use by young children or infirm persons

with supervision

■Young children should be supervised to ensure they do not play with the

appliance

The manufacturer cannot be held responsible for any damages caused by improper,

incorrect or illogical use of the appliance.

IMPORTANT PRECAUTIONS AND RECOMMENDATIONS

After having unpacked the appliance, check to ensure that it is not damaged.

In case of doubt, do not use it and consult your supplier or a professionally qualified tech-

nician.

Packing elements (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.) should not

be left around within easy reach of children, as these may cause serious injuries.

■Do not attempt to modify the technical characteristics of the appliance as this

may become dangerous to use.

■Do not carry out cleaning or maintenance operations on the appliance without

having previously disconnected it from the electric power supply.

■After use, ensure that the knobs are in the off position.

■Do not allow children or other incapable people to use the appliance without

supervision.

■During use the appliance becomes hot. Care should be taken to avoid touching

heating elements inside the oven.

■Keep children away from the cooker when it is in use.

■Some appliances are supplied with a protective film on steel and aluminium parts.

This film must be removed before using the appliance.

■Fire risk! Do not store flammable material in the oven.

■Make sure that electrical cables connecting other appliances in the proximity of

the oven become entrapped in the oven door.

■Do not line the oven walls with aluminium foil. Do not place baking trays or the

drip tray on the base of the oven chamber.

■The manufacturer declines all liability for injury to persons or damage to property

caused by incorrect or improper use of the appliance.

■WARNING: Taking care NOT to lift the oven by the door handle.

■IMPORTANT NOTE: This appliance shall not be used as a space

heater, especially if installed in marine craft or caravans.

This oven has been designed and constructed in accordance with the following codes

and specifications:

AS/NZS 3350-1 General Requirements for Domestic electrical appliances

AS/NSZ 3350-2-6 Particular Requirements for Domestic electrical cooking appliances

AS/NSZ 1044 Electromagnetic Compatibility Requirements.

INSTALLATION

CAUTION:

■

This appliance must be installed in accordance with these installation

instructions.

■

This appliance shall only be serviced by authorized personnel.

■

This appliance is to be installed only by an authorised person.

■

Incorrect installation, for which the manufacturer accepts no responsibil-

ity, may cause personal injury of damage.

■

Always disconnect the oven from mains power supply before carrying

out any maintenance operations or repairs.

N.B. • The connection of the appliance to earth is mandatory.

• For connection to the mains, do not use adapters, reducers or

branching devices as they can cause overheating and burning.

If the installation requires alterations to the domestic electrical system call a qualified

electrician. He should also check that the socket cable section is suitable for the power

drawn by the appliance.

ELECTRICAL REQUIREMENTS

■The oven is supplied without a power supply plug and therefore if you are

not connecting directly to the mains, a standardized plug suitable for the

load must be fitted.

■Connection to the mains must be carried out by qualified personnel in

accordance with current regulations.

■The appliance must be connected to the mains checking that the voltage

corresponds to the value given in the rating plate and that the electrical

cable sections can withstand the load specified on the plate.

■The plug must be connected to an earthed socket in compliance with safety

standards.

■The appliance must be connected directly to the mains placing a two pole

switch with minimum opening between the contacts of 3 mm between the

appliance and the mains.

■The power supply cable must not touch the hot parts and must be

positioned so that it does not exceed 75°C at any point.

■Once the appliance has been installed, the switch or socket must always be

accessible.

■

If the supply cord is damaged it must be replaced by the

manufacturer or its Service Agent or a similarly qualified person in

order to avoid a hazard.

REPAIRS

REPLACING THE POWER SUPPLY CABLE

■Unhook the terminal board cover by inserting a screwdriver into the two

hooks “A” (fig. 2).

■Open the cable gland by unscrewing screw “F” (fig. 3), unscrew the

terminal screws and remove the cable.

■The new supply cable, of suitable type and section, is connected to the

terminal board following the diagram fig. 1.

FEEDER CABLE SECTION TYPE HO5RR-F

230 V 3 x 1,5 mm2

230 V

L1(L )2

Figure 2 Figure 3

Figure 1

S1S2

F1 PR

CIR

N/7

L/8

Cod. 1131279

10a

11a

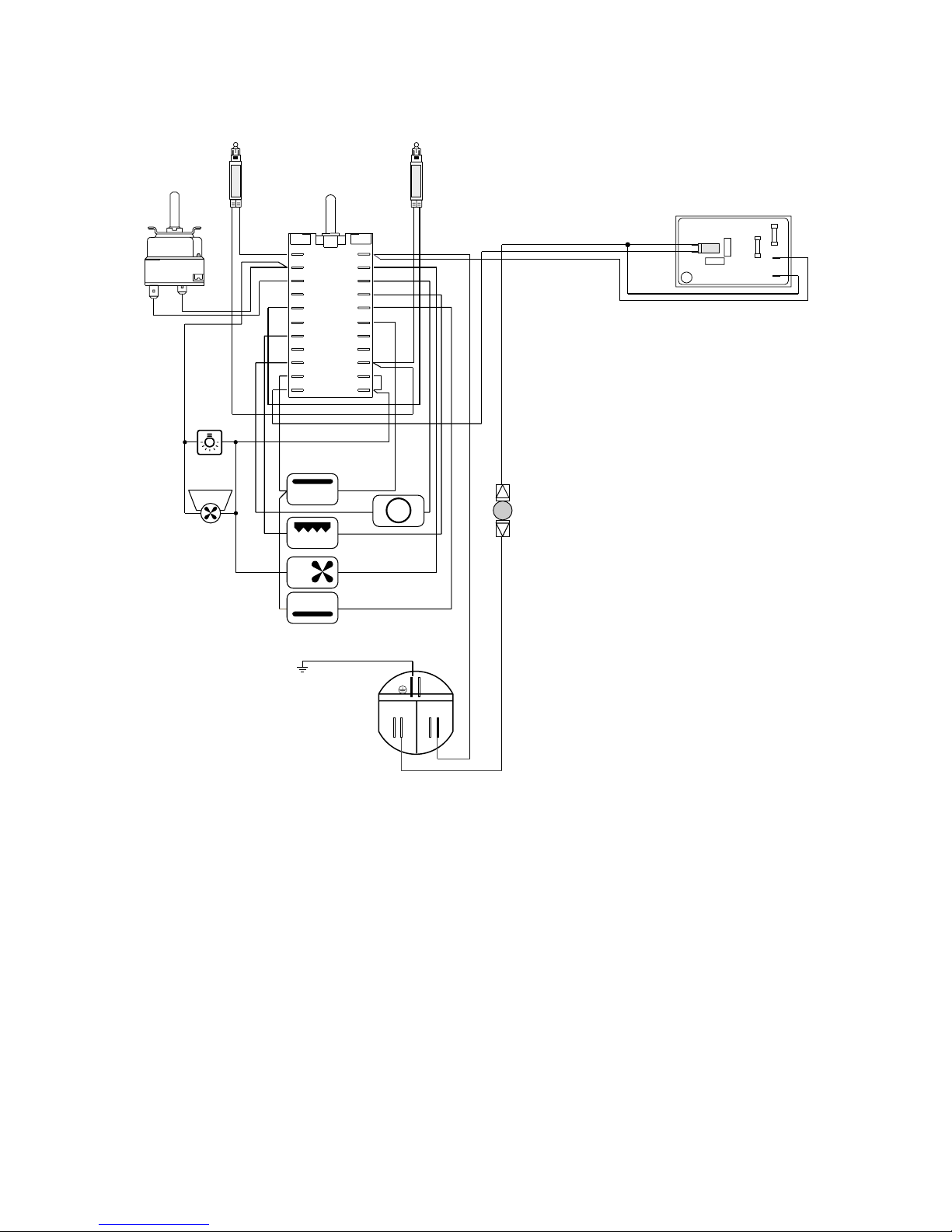

ELECTRIC DIAGRAM - multifunction OVENS Figure 4

F1 Oven switch

TM Oven thermostat

TL Thermal overload

PR Electronic programmer

LF Oven lamp

S1 Thermostat pilot lamp

S2 Line pilot lamp

C Top element

G Grill element

S Bottom element

V Fan

CIR Circular element

CF Cooling fan

M Terminal block

T Earth connection 7

ELECTRIC DIAGRAM - plurifunction OVENS

S1S2

TCF

Cod. 1131332

Figure 5

F1 Oven switch

TE Oven thermostat

LF Oven lamp

CC Oven cut-off

S1 Line pilot lamp

S2 Thermostat pilot lamp

TL Thermal overload

M Terminal block

C Top element

G Grill element

S Bottom element

CF Cooling fan

V Fan

T Earth connection

FITTING THE OVEN INTO A

BASE

The space available should be of the

dimensions shown in the figure 6.

Arrangements should be made for an

adequate supply of the air to the oven

to avoid overheating (fig. 7).

560

550 min

591

594

540

536 min

600

The walls surround-

ing the oven must

be made of heat-

resistant material.

Both the veneered

plastic and the adhe-

sive used must be

resistant to tempera-

tures of 120°C in

order to prevent

unsticking and defor-

mation.

FITTING REQUIREMENTS

WARNING: Taking care NOT to lift the oven by the door handle.

The oven must be built-in in a standard module of furniture of 60 cm width and

depth.

It is to be fit up in a module having the clearance as shown in the pictures.

On the lower side, the oven must lay on supports standing the oven weight.

The ovens are secured by four screws that pass through the surround. They must

locate firmly and squarely in the edges of the cabinet or add panels to achieve a

secure location.

Figure 6

Figure 7

560

585

FITTING THE OVEN INTO A

COLUMN

The cabinet should have the

dimensions as per fig. 8.

Furthermore it is necessary that the

oven is provided with a chimney as per

fig. 9.

If the column unit reaches the ceiling

an outlet must be provided through

which air can flow to the outside

;

50 mm

50 550

Figure 8

Figure 9
