Tybox 117+

Installation and User

Guide

Contents

1. Installing the transmier............................................................................................ 3

1.1 Location...................................................................................................................................3

1.2 Mounting/Connection .......................................................................................................3

2. Time and date seing ................................................................................................. 4

3. Conguring your device (Menu 1) .............................................................................. 5

Menu 1-02 Programme duration..............................................................................................5

Menu 1-03 Pre-heat activation/deactivation...................................................................5

Menu 1-08 Controlling the Comfort temperature ...........................................................5

Menu 1-09 Anti-seize activation/deactivation .................................................................5

4. Conguring your device (Menu 2) ............................................................................. 6

Menu 2-01 Locking or unlocking the seings.....................................................................6

Menu 2-02 Correcting the measured temperature .........................................................6

Menu 2-04 Temperature displayed in AUTO mode (setpoint or room).....................6

Menu 2-05 12h/24h time format..............................................................................................6

Menu 2-06 Automatic summer/winter changeover........................................................6

Menu 2-07 Days until boiler/heat pump service reminder ...........................................7

Menu 2-08 Control time base ..................................................................................................7

Menu 2-11 Hysteresis seing (if 2-08 = tor)...........................................................................7

Menu 2-17 Reseing the boiler/heat pump operating hours meter..........................7

5. Seings reset................................................................................................................ 8

6. Technical characteristics ........................................................................................... 8

Installation

Use

1. Description .................................................................................................................... 9

2. Automatic mode (AUTO)............................................................................................. 9

3. Override ......................................................................................................................... 9

4. Information buon ...................................................................................................... 10

5. Time seing................................................................................................................... 10

6. Adjusting temperature seings ................................................................................ 10

7. Programming................................................................................................................. 11

7.1 Quick programming ............................................................................................................11

7.2 Customising a programme...............................................................................................12

7.3 Programme verication .....................................................................................................13

7.4 Return to initial programme .............................................................................................13

8. Manual mode ................................................................................................................ 14

9. Absence mode .............................................................................................................. 14

10. O mode........................................................................................................................ 14

11. Pre-heat function......................................................................................................... 15

11.1 Changing baeries .............................................................................................................15

11.2 Frequently Asked Questions (FAQ).................................................................................15

~1,50 m

Mini 20 cm

PROG x 1

PROG x 7

NL 123

RCT

123

RCT

Ø max. 1,5 mm²

OFF

1. Installing the transmitter

1.1 Location

The thermostat can be wall-mounted in a room

where the temperature is to be regulated from,

at a recommended height of 1.5m and away from

any heat sources (replace, direct sunlight, etc.)

or draughts (window, door, etc.).

To avoid unwanted air movements that would

distort the sensor measurement, the wire entry

into the ush-mounted box must be plugged

(mastic, glass wool, etc.).

IMPORTANT: Do not install the thermostat on a

wall in contact with the outside or with an

unheated room (e.g. garage, etc.).

1.2 Mounting/Connection

❶Switch o the power to your setup.

❷Separate the box from its base.

❸Connect and secure the base. Your Tybox

must be connected with exible or rigid cables

with a maximum cross-section of 1.5 mm².

❹Insert the baeries

WARNING: make sure you insert the baeries

facing the right way and that they are the right

type (no lithium baeries).

❺Toggle the switch to choose the programme

type: weekly (A) or daily (B).

❻❼ Close and lock the box.

❽Turn on the power to your setup.

Thermostat input control

Circulator control

INSTALLATION

2021...

EXIT

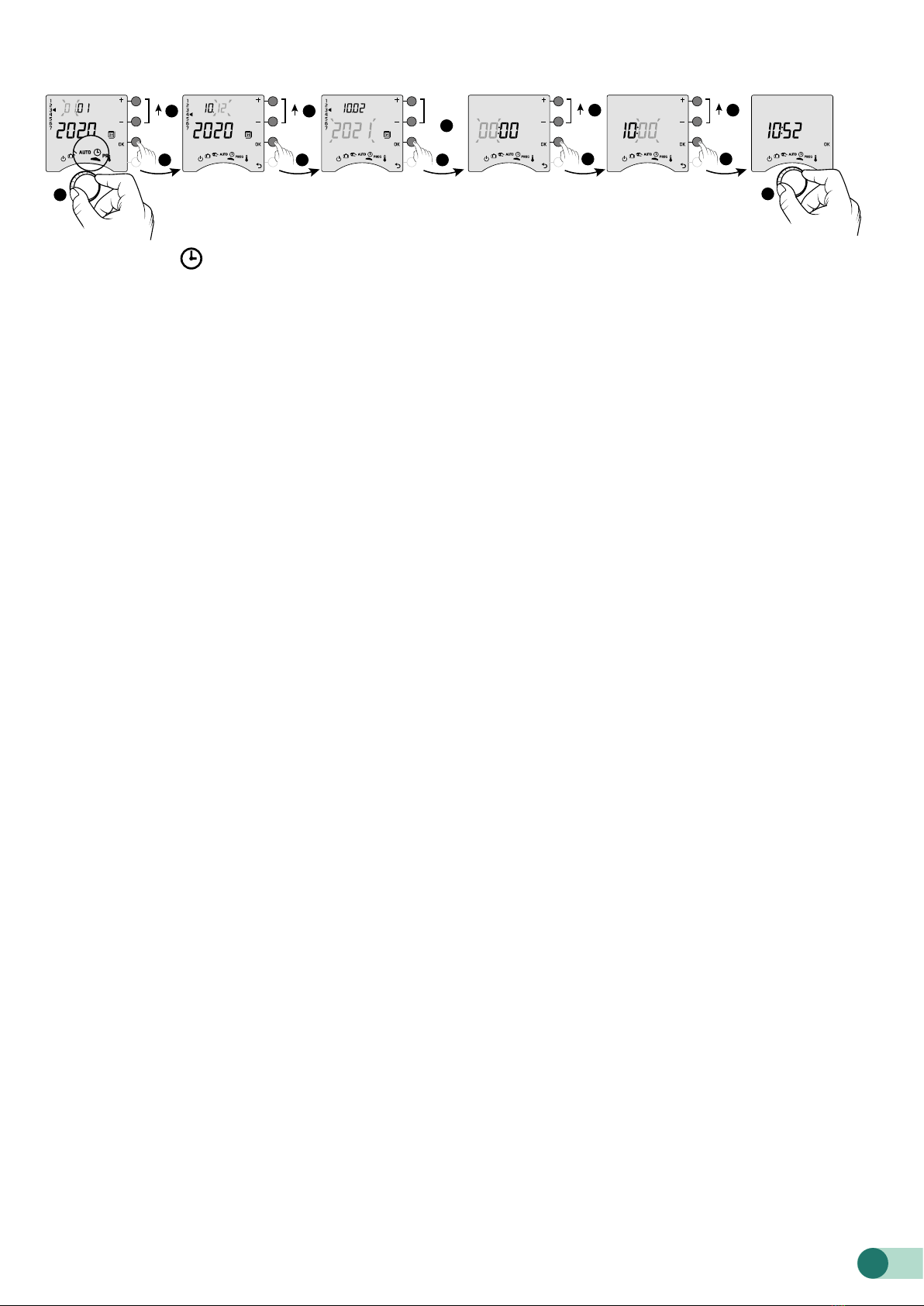

❶Turn the dial to .

❷-> ❻ Set the day, month, year with + or -.

❼Conrm with OK.

❽-> ❿ Set the hour then the minutes with + or -.

⓫Conrm with OK.

⓬ To exit the mode, turn the dial.

2. Time and date setting

3. Configuring your device (Menu 1)

Menu 1-02 Programme duration

You can set programming by the hour, half hour, or quarter of an hour.

Default seing: 1 hour.

60 min.

30 min.

15 min.

Menu 1-03 Pre-heat activation/deactivation

Pre-heat means you can enjoy the Comfort temperature you want at the scheduled hour (see § “Pre-heat

function”).

Default seing: Pre-heat o

Pre-heat o

Pre-heat on

Menu 1-08 Controlling the Comfort temperature

For hot water heaters with thermostatic valves, the Comfort temperature can be provided by adjusting the

thermostat on each radiator.

In AUTO mode, the device will show “Conf” during Comfort periods and will be set to constant heating. Only the

Economy and Frost Protection temperatures are controlled by the Tybox.

Default seing: Comfort temperature is controlled by the Tybox.

Comfort temperature controlled by Tybox

Comfort temperature controlled by each radiator

Menu 1-09 Anti-seize activation/deactivation

Anti-seize can be used outside heating periods to regularly start up the circulator/boiler/heatpump during o

periods (5 minutes/week).

Default seing: Anti-seize o

Anti-seize o

Anti-seize on

>5s

EXIT

❶Turn the dial to , then press the

i buon for 5 seconds (❷).

❸Press the 1 buon.

To change the various seings,

press the + or - buons (❹), then

press OK to conrm the change and

go to the next seing (❺).

❻ To exit the mode, turn the dial.

Menu 1-03 does not appear if the Comfort

temperature is controlled by each radiator

(menu 1-08 = 1).

Menu 1-08 does not appear if pre-heat is

active (1-03 = 1).

Choice 1 turns o pre-heat (1-03 = 0). In this

case, menu 1-03 no longer comes up.

4. Configuring your device (Menu 2)

Menu 2-01 Locking or unlocking the seings

This menu enables you to authorise or lock changes to the seings such as programming or setpoint temperatures.

Locking only applies to seings entered via the Tybox.

Default seing: Changes allowed

Changes allowed

No changes to the programme.

Adjusting setpoint temperature seings.

Menu 2-02 Correcting the measured temperature

This menu is used to correct any dierence you have notcied between the displayed temperature and the

measured temperature.

Example: If the temperature displayed by the device is 19°C and the measured temperature is 20°C, change to +1°C

then conrm using OK.

Default seing: 0°C

Adjusts from -5°C to 5°C,

in increments of 0.1°C.

Menu 2-04 Temperature displayed in AUTO mode (setpoint or room)

Default seing: setpoint temperature displayed.

Displays

setpoint temperature

Displays

room temperature

Menu 2-05 12h/24h time format

Default seing: 24h

24 h

12 h

Menu 2-06 Automatic summer/winter changeover

Default seing: Automatic changeover

No automatic changeover

Automatic changeover

Adjustment in manual and Comfort mode

limited to between 5°C and 22°C.

Economy seing limited to between 5°C

and 19°C.

Frost protection seing limited to between

5 and 11°C.

In order to change this seing, the unit

must have been running for at least 2 hours

beforehand.

In normal use, press the ibuon

to check one or other of the temperatures.

>5s

EXIT

❶Turn the dial to , then press the

ibuon for 5 seconds (❷).

❸Press the 2 buon.

To change the various seings,

press the + or - buons (❹), then

press OK to conrm the change and

go to the next seing (❺).

❻ To exit the mode, turn the dial.

Menu 2-07 Days until boiler/heat pump service reminder

Must be reset aer every service.

Default seing: “---” (function o).

Adjustable "---" (function o) or from 1 to 365 days

Menu 2-08 Control time base

The control quality depends on parameters like the building’s insulation, the number of radiators or the ooring

type. The “Tips” column in the following table will help you select the seing that is appropriate for your setup.

Default seing: 15 minutes.

Choice of

control type

Heater

type

Generator

type Tips

15 minutes (2) Radiator Boiler/Heat pump (1) Increase the time base to extend generator

run times and thus prevent starting up so

oen.

30 minutes (2) Radiator

Underoor heating Boiler/Heat pump (1)

45 minutes (2) Underoor heating Boiler/Heat pump (1)

Reduce the time base if you notice big

dierences in temperature.

60 minutes (2) Underoor heating Heat pump (1)

All or nothing/

On-o

Radiator

Underoor heating Heat pump (1)

Only recommended if the PID control isn't

satisfactory.

Recommended hysteresis value: between

0.4 and 1

Oven range

heating

Hysteresis value: follow the value

recommended by the range's manufacturer

(1) The control is ed with anti-short cycle protection to suppress start or stop requests when they are too short.

The anti-short cycle duration is 10% of the time base selected (e.g.: if the time base is set to 30 minutes, the anti-short

cycle will be 3 minutes, i.e. the thermostat will not accept any start or stop requests that are under 3 minutes).

(2) PID control time base:

Menu 2-11 Hysteresis seing (if 2-08 = tor)

Default seing: 0.4°C.

Adjusts from 0.2°C to 2°C,

in increments of 0.1°C.

Menu 2-17 Reseing the boiler/heat pump operating hours meter

Default seing: O

Yes

If you don't want to use this function, leave

the seing on “---”.

Example:

Setpoint 20°C. Hysteresis 0.4°C.

Heating request if T° measured <19.8°C.

Heating shuts down if T° measured> 20.2°C.

Once the reset is applied, the 2-17 menu

automatically switches back to 0.

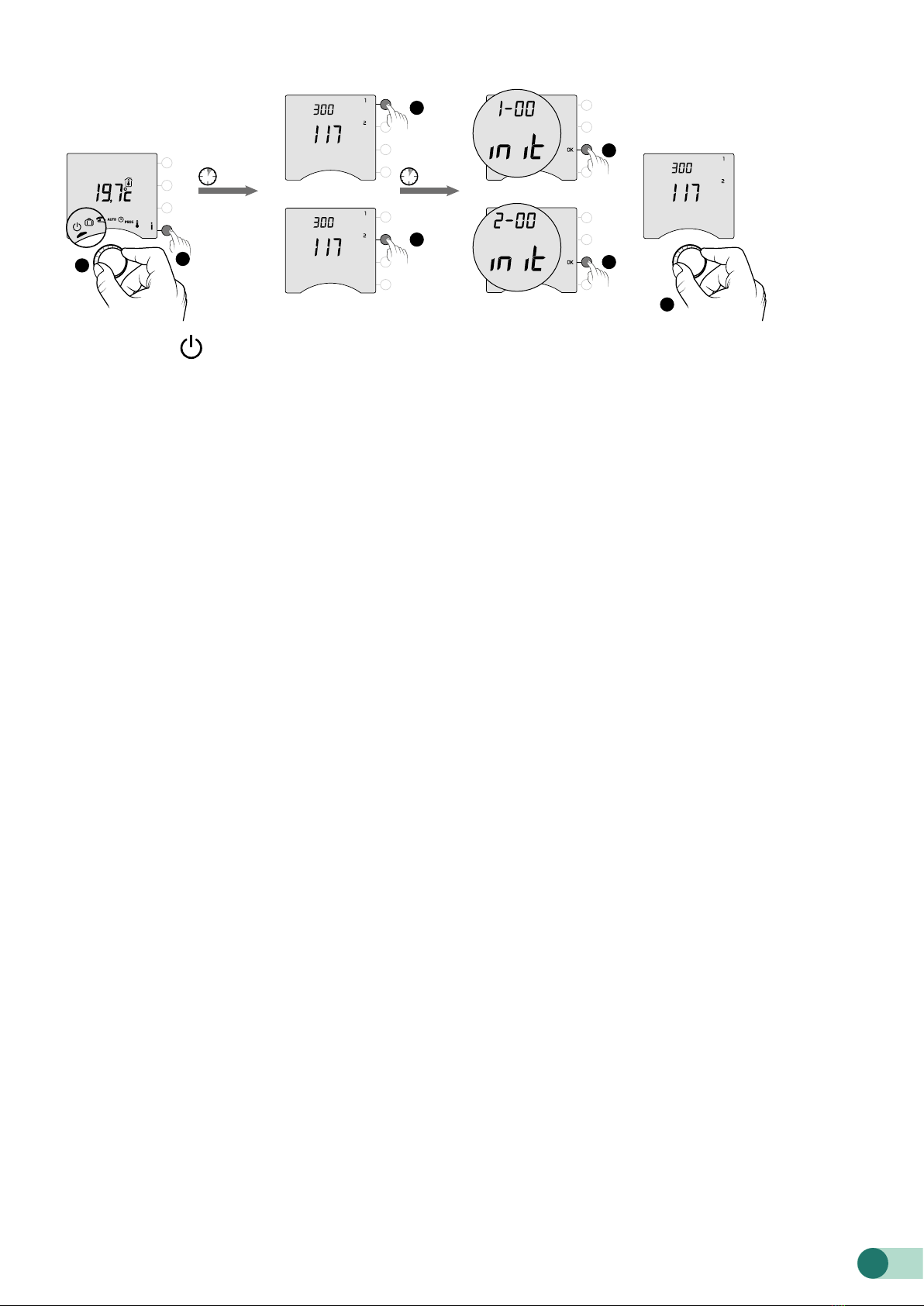

5. Settings reset

The default factory seings may be restored for each of the menus.

6. Technical characteristics

• Power supply using baeries: 2 x 1.5 V Alkaline - Type

LR03-AAA

• Class II insulation

• Change-over contact output 2 A max., 230V ~

• Type 1.C automated action

• Dimensions: 80 x 103 x 25 mm

• Protection rating: IP 30

• Installation in an environment with normal pollution

levels

• Storage temperature: -10°C /+70°C

• Operating temperature from -10°C/+40°C

• Ball test temperature: 75°C (Housing), 100°C (Terminal

block)

• Rated impulse voltage: 2,500V

❶Turn the dial to , then press

the i buon for 5 seconds (❷).

❸Press the buon on the menu

you wish to reset, and hold the

buon for 5 seconds.

❹Then press the OK buon to

conrm the reset.

❺ To exit the mode, turn the dial.

>5s >5s

EXIT

Init

Menu 1

Init

Menu 2

Reset

Menu 1

Reset

Menu 2

1. Description

2. Automatic mode (AUTO)

Turn the selector dial to AUTO.

Your thermostat will function according to the set programme.

Depending on the conguration during installation, your unit will

continuously display the setpoint temperature or the room temperature

(menu 2-04).

If you are in the programmed Economy period, and the symbol

ashes and the Comfort setpoint is displayed, it’s because pre-heating

is in progress (see § Pre-heat function).

3. Override

In AUTO mode, you can use the override to change the setpoint temperature until the next programmed point.

Example: it is 15:30 and you would like to switch to

Comfort mode before the set time (17:00).

To cancel the current override, press the buon once more.

E F

ASelector dial

BProgramme prole

CRoom

Day (1 = Monday)

Time

Current setpoint

Information

Low baeries

O mode

Absence mode

Manual mode

AUTO Follows programming

Date and time seings

PROG Programming

Adjusting

setpoint temperature seings

Comfort

Economy

Frost protection

6h 8h 24h0h 17h 23h

6h 8h 0h0h 17h 23h

15h30

123

❶Press

the buon

❷Override

in progress ❸At 17:00, the programme will

return to its usual schedule.

USE

4. Information button

In AUTO, manual or o mode, successive presses on the ibuon enable you to:

- nd out the room temperature or the setpoint temperature (depending on the conguration

during installation (menu 2-04),

- show the boiler/heat pump operating hours meter, as well as the number of days remaining

before maintenance (if this seing is on, menu 2-07),

- show any faults (see § “Changing baeries”).

5. Time setting

6. Adjusting temperature settings

h(ON)

023

Operating hours meter (boiler/

heat pump).

Measured

temperature

Setpoint

temperature

Time to boiler/heat pump

maintenance

Return to automatic

mode

2021...

EXIT

❶Turn the dial to .

❷-> ❻ Set the day, month, year with + or -.

❼Conrm with OK.

❽->❿Set the hour then the minutes with + or -.

⓫Conrm with OK.

⓬ To exit the mode, turn the dial.

❶Turn the dial to .

The Comfort setpoint

temperature ashes.

❷❸Press + or - to adjust, then

press OK to conrm and go to the

next seing.

❹ -> ❼Repeat the operations

to adjust the Economy and Frost

protection temperatures.

❺ To exit the mode, turn the dial.

5°C

30°C

5°C

30°C

5°C

16°C

8EXIT

Comfort (from 5°C to 30°C)

Economy (from 5°C to 30°C)

Frost protection (5°C to 16°C)

- If the Comfort temperature is controlled by each radiator (menu 1-08 = 1), you can only set Economy and Frost

protection temperatures.

- The temperature seings may be restricted (menu 2-01 = 1).

Indice

Altri manuali DELTA DORE Termostato

DELTA DORE

DELTA DORE 6053038 Manuale utente

DELTA DORE

DELTA DORE TYBOX Manuale utente

DELTA DORE

DELTA DORE D10 W RF Manuale utente

DELTA DORE

DELTA DORE D10 W RF Manuale utente

DELTA DORE

DELTA DORE TYBOX 117 Manuale utente

DELTA DORE

DELTA DORE TYBOX 21 Manuale utente

DELTA DORE

DELTA DORE Micro TYBOX H RADIO X2D Manuale utente

DELTA DORE

DELTA DORE PACK TYBOX 5000 Manuale utente

DELTA DORE

DELTA DORE RADIO DIANA D10 - GUIDE D Manuale utente

DELTA DORE

DELTA DORE PACK TYBOX 5000 Manuale utente

DELTA DORE

DELTA DORE Tybox 137 Manuale utente

DELTA DORE

DELTA DORE Pack TYBOX 137 Manuale utente

DELTA DORE

DELTA DORE Tybox 1117 Manuale utente

DELTA DORE

DELTA DORE TYBOX 117 Manuale utente

DELTA DORE

DELTA DORE DELTA 8000 MASTER Manuale utente

DELTA DORE

DELTA DORE DRIVER 610 Manuale utente

DELTA DORE

DELTA DORE TYBOX 610 Manuale utente

DELTA DORE

DELTA DORE TYBOX B+ Manuale utente

DELTA DORE

DELTA DORE TYBOX 5200 Manuale utente

DELTA DORE

DELTA DORE TYBOX PAC Manuale utente

DELTA DORE

DELTA DORE TYBOX PAC Manuale utente

DELTA DORE

DELTA DORE Tybox 1137 Manuale utente

DELTA DORE

DELTA DORE TYBOX BUS OT Manuale utente

DELTA DORE

DELTA DORE Radio Tybox Manuale utente

Manuali Termostato popolari di altre marche

EWELLY

EWELLY EW-181 Manuale utente

Prolon

Prolon T1100 Istruzioni per l'installazione

Computherm

Computherm Q20 Manuale utente

Heatmiser

Heatmiser neoStat Manuale utente

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuale utente

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuale utente

Saswell

Saswell SAS920XWHB-7-S-RF Guida

Aircalo

Aircalo TFP1-ET85P2 Manuale utente

Honeywell

Honeywell CM721 Manuale utente

Carrier

Carrier DEBONAIR 33CS Manuale utente

Lennox

Lennox iHarmony Zone Thermostat Istruzioni per il montaggio

Gemtech

Gemtech GT7000 Manuale di istruzioni

Rollei

Rollei Smartes 45000 Manuale utente

Sinope

Sinope TH1300RF Manuale utente

Honeywell

Honeywell RLV4305 Manuale utente

Honeywell

Honeywell Prestige 2.0 THX9421 Manuale utente

NuTone

NuTone NTBZ48 Istruzioni operative originali

Stelpro

Stelpro MAESTRO ASMT402AD Manuale utente
