Delta Electronics RTU-EN01 Manuale utente

RTU-EN01

Modbus TCP Remote I/O Communication Module

Operation Manual

DVP-0213920-01

Modbus TCP Remote I/O Communication Module RTU-EN01

DVP-PLC Operation Manual 1

Introduction

3This operation manual only provides introductory information on electrical specification, installation and wiring.

3RTU-EN01 is an OPEN-TYPE device and therefore should be installed in an enclosure free of airborne dust, humidity,

electric shock and vibration. The enclosure should prevent non-maintenance staff from operating the device (e.g. key

or specific tools are required to open the enclosure) in case danger and damage on the device may occur. DO NOT

touch any terminal when the power is switched on.

3Please read this manual carefully and follow the instructions to avoid damage on the product or harm on staff.

Table of Content

1INTRODUCTION....................................................................................................................3

1.1 Features ......................................................................................................................................3

1.2 Specifications ..............................................................................................................................3

2PRODUCT PROFILE & OUTLINE.........................................................................................4

2.1 Dimension ...................................................................................................................................4

2.2 Product Profile.............................................................................................................................5

2.3 LED Indicators.............................................................................................................................5

2.4 RUN/STOP Switch ......................................................................................................................6

2.5 RJ-45 PIN Definition....................................................................................................................6

2.6 RS-232 PIN Definition .................................................................................................................6

2.7 RS-485 PIN Definition .................................................................................................................6

3INSTALLATION & WIRING....................................................................................................6

3.1 Connecting RTU-EN01 to DVP Slim Series Digital Input/Output Module....................................6

3.2 Installing RTU-EN01 and DVP Slim Series Digital Input/Output Module onto DIN Rail ..............7

3.3 How to Connect RTU-EN01 to Network ......................................................................................7

4WORD DEVICES & BIT DEVICES IN RTU-EN01 .................................................................8

4.1 Basic Registers (BR)...................................................................................................................8

4.2 Explanations on BR.....................................................................................................................9

4.3 External Input Contacts (RX).....................................................................................................12

4.4 External Output Contacts (RY)..................................................................................................12

4.5 Control Register for Extension Modules (RCR).........................................................................12

4.6 Word Devices & Bit Devices for Timers (T)...............................................................................13

4.7 Word Devices & Bit Devices for Counters (C)...........................................................................14

4.8 Bit Devices for Real-Time Clock (R)..........................................................................................14

5MODBUS COMMUNICATION .............................................................................................15

5.1 Function Codes Supported .......................................................................................................15

5.2 Exception Codes Supported .....................................................................................................15

5.3 Device Type & Device Address .................................................................................................16

Modbus TCP Remote I/O Communication Module RTU-EN01

DVP-PLC Operation Manual

6SETTING UP SOFTWARE................................................................................................... 16

6.1 Setting up Communications & Searching for Communication Modules in DCISoft .................. 16

6.2 Recording IP Address............................................................................................................... 18

6.3 Basic Settings........................................................................................................................... 19

6.4 Network Settings ...................................................................................................................... 21

6.5 Setting up Time Server ............................................................................................................. 22

6.6 IP Filter ..................................................................................................................................... 23

6.7 Smart PLC Setting: IF-THEN.................................................................................................... 24

6.8 Smart PLC Setting: Timer......................................................................................................... 25

6.9 Smart PLC Setting – Counter ................................................................................................... 25

6.10 Smart PLC Setting – RTC.........................................................................................................26

6.11 Analog Input/Output Modules ................................................................................................... 27

6.12 I/O Monitoring Table.................................................................................................................. 29

6.13 Setting up Gateway .................................................................................................................. 30

6.14 Virtual COM ............................................................................................................................. 33

6.15 Security Setting ........................................................................................................................ 35

6.16 Returning to Default Settings.................................................................................................... 36

6.17 Web Function............................................................................................................................ 36

7APPLICATION EXAMPLES – DCISOFT............................................................................. 42

7.15 Smart PLC: IF-THEN................................................................................................................ 42

7.16 Smart PLC: Timer ..................................................................................................................... 43

7.17 Smart PLC: Counter ................................................................................................................. 44

7.18 Smart PLC: RTC....................................................................................................................... 45

7.19 Virtual COM .............................................................................................................................. 46

Microsoft® and Windows Internet Explorer® are the registered trade mark or trade mark of Microsoft

Corporation in the United States and other countries.

Java® is the registered trade mark or trade mark of Sun Microsystems, Inc. in the United States or other

countries.

The companies and products mentioned in this operation manual can be the trade mark possesd by the

owner of that trade mark right.

Modbus TCP Remote I/O Communication Module RTU-EN01

DVP-PLC Operation Manual 3

1 Introduction

To ensure correct installation and operation of RTU-EN01, please read this manual carefully before using your

RTU-EN01. RTU-EN01is an Ethernet remote I/O module for remote setting through Delta’s DCISoft. RTU-EN01

supports maximum 256 digital input/output points. RTU-EN01 supports Modbus TCP protocol and can be used

for remote monitoring with graphic control software or human machine interface. RTU-EN01 can also be used as

a Modbus TCP gateway, supporting the conversion from Modbus TCP commands to Modbus ASCII/RTU. In

addition, in MDI/MDI-X auto-detect, jump wire is not needed when you choose the network cable.

1.1 Features

zSupporting smart PLC functions, counter, timer and real-time clock. Able to operate independently without

control of PLC main processing unit or programming.

zAble to auto-detect 10/100 Mbps transmission speed; MDI/MDI-X auto-detect.

zSupporting maximum 16 digital input/output modules (Max. 256 I/O points) and 8 analog input/output

modules.

zSupporting maximum 16 sets of Modbus TCP connections.

zSupporting Modbus TCP/Modbus gateway (supporting Master mode, connectable to maximum 32 devices).

zParameters can be set up on webpage.

1.2 Specifications

Ethernet interface

Interface RJ-45 with Auto MDI/MDIX

Transmission method 802.3, 802.3u

Transmission cable Category 5e, 100m (Max)

Transmission speed 10/100 Mbps Auto-Detection

Communication protocol ICMP, IP, TCP, UDP, DHCP, NTP, Modbus TCP, HTTP

Serial communication interface (COM1)

Interface Mini Dim

Transmission method RS-232

Communication speed 19,200 bps

Communication format Stop bit: 1; Parity bit: None; Data bit: 8

Communication protocol Delta Configuration

Transmission cable DVPACAB215 / DVPACAB230 / DVPACAB2A30

Serial communication interface (COM2)

Interface 3 PIN feed-through terminal

Transmission method RS-485

Transmission distance 1,200m

Communication speed 110, 150, 300, 600, 1,200, 2,400, 4,800, 9,600, 19,200, 38,400, 57,600, 115,200

bps

Communication format Stop bit: 1, 2; Parity bit: None, Odd, Even; Data bit: 7, 8

Communication protocol Modbus ASCII、Modbus RTU

Modbus TCP Remote I/O Communication Module RTU-EN01

DVP-PLC Operation Manual

Environment

Noise immunity

ESD (IEC 61131-2, IEC 61000-4-2): 8KV Air Discharge

EFT (IEC 61131-2, IEC 61000-4-4): Power Line:±2KV, Digital Input: ±2KV,

Communication I/O: ±2KV

RS (IEC 61131-2, IEC 61000-4-3): 80MHz ~ 100MHz, 10V/m. 1.4GHz ~ 2.0GHz,

10V/m

Conducted Susceptibility Test (EN61000-4-6, IEC61131-2 9.10): 150kHz ~ 80MHz,

3V/m

Surge Test (Biwave IEC61132-2, IEC61000-4-5): Power line 0.5KV DM, Ethernet

0.5KV CM, RS-485 0.5KV CM

Operation 0ºC ~ 55ºC (temperature), 50 ~ 95% (humidity), pollution degree 2

Storage -25ºC ~ 70ºC (temperature), 5 ~ 95% (humidity)

Shock/vibration

immunity

International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/IEC61131-2 & IEC

68-2-27 (TEST Ea)

Certificates

Electrical specification

Power supply voltage 24VDC (-15% ~ 20%) (with DC input polarity reverse protection)

Power fuse capacity 1.85A/30VDC, Polyswitch

Power consumption 2W

Insulation voltage 500VDC

Weight 116g

2 Product Profile & Outline

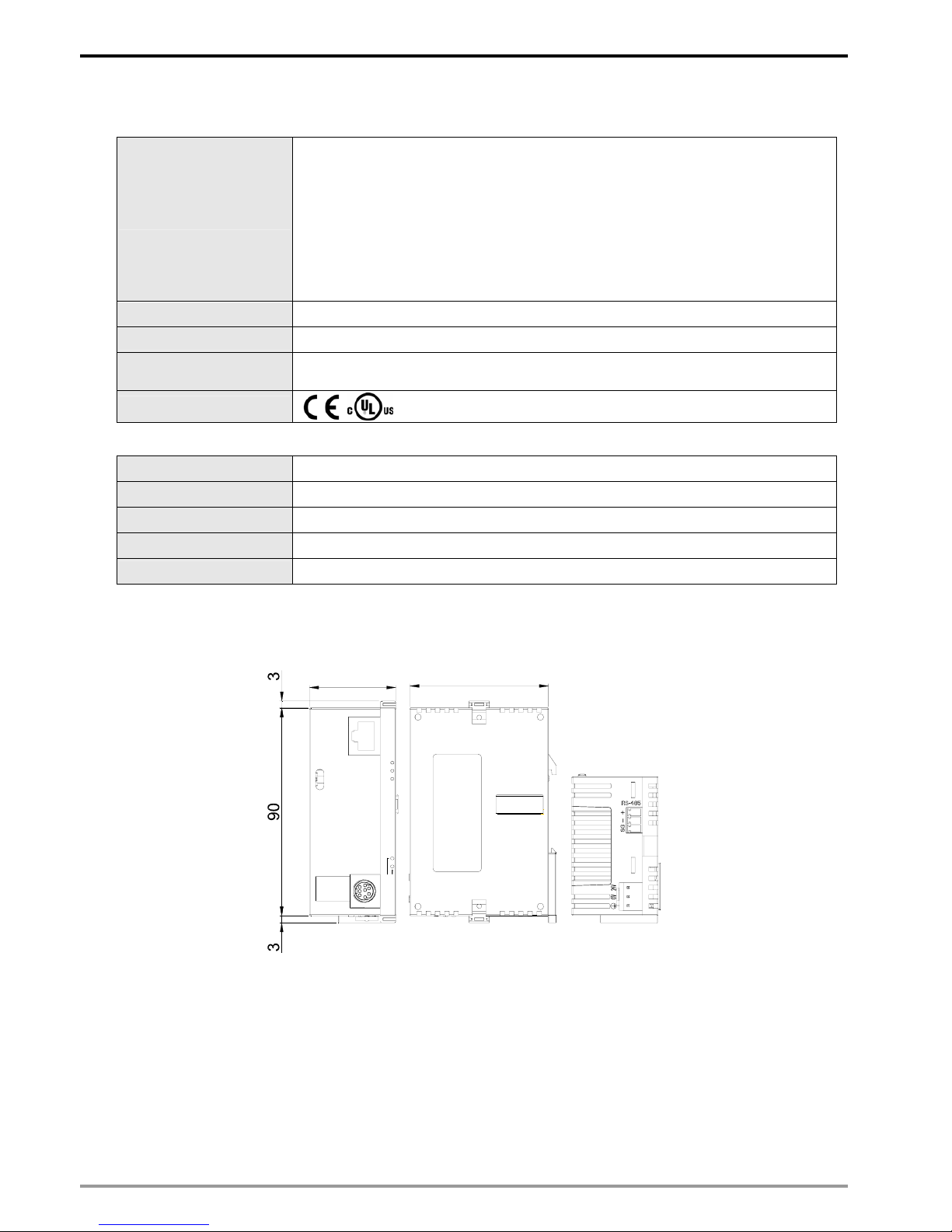

2.1 Dimension

STOP

RS-485

RS-232

RTU-EN01

RUN

BAT.LOW

POWER

RUN

LAN

37.4

Unit: mm

Modbus TCP Remote I/O Communication Module RTU-EN01

DVP-PLC Operation Manual 5

2.2 Product Profile

1. POWER indicator 12. RS-485 communication port

2. RUN indicator 13. Extension module positioning hole

3. BAT.LOW indicator 14. Nameplate

4. RUN/STOP switch 15. Extension port

5. RS-232 indicator 16. DIN rail (35mm)

6. RS-485 indicator 17. Extension module fixing clip

7. LINK/ACK indicator 18. DIN rail clip

8. SPEED indicator 19. Power supply port

9. Digital display 20. 3P terminal block (standard accessory)

10. Ethernet communication port

11. RS-232 communication port

21. Power supply connection cable (standard

accessory)

2.3 LED Indicators

LED Color Function

POWER Green Power supply indication

RUN Green RUN/STOP indication

BAT.LOW Red Battery in low power indication

RS-232 Yellow Displaying communication status of RS-232 port

RS-485 Yellow Displaying communication status of RS-485 port

LINK/ACT Green Displaying the status of network

SPEED Yellow Displaying the speed of network connection

Modbus TCP Remote I/O Communication Module RTU-EN01

DVP-PLC Operation Manual

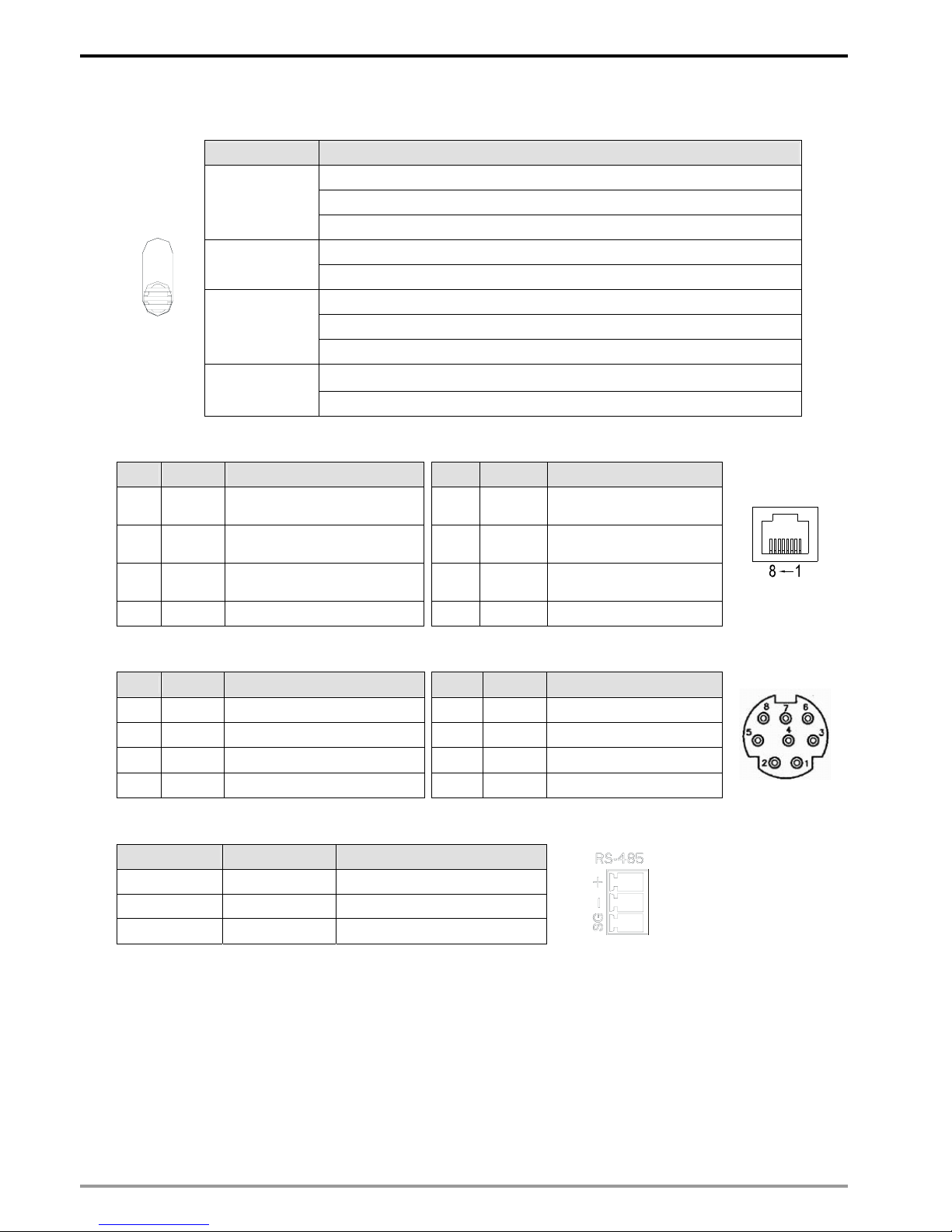

2.4 RUN/STOP Switch

Status Explanation

1. RUN indicator on RTU-EN01 is ON.

2. Analog input/output module is in RUN status.

RUN

3. Smart PLC function is running.

1. Analog input/output module switches from RUN to STOP status.

RUN ÆSTOP 2. Y points on digital input/output module are all OFF.

1. RUN indicator on RTU-EN01 is OFF.

2. Analog input/output module is in STOP status.

STOP

3. Smart PLC function stops.

1. RTU-EN01 re-detects the information on the right-side module.

STOP

RUN

STOP ÆRUN

2. Analog input/output module switches from STOP to RUN status.

2.5 RJ-45 PIN Definition

PIN Signal Definition PIN Signal Definition

1 Tx+ Positive pole for data

transmission 5 -- N/C

2 Tx- Negative pole for data

transmission 6 Rx-

Negative pole for data

receiving

3 Rx+ Positive pole for data

receiving 7 -- N/C

4 -- N/C 8 -- N/C

2.6 RS-232 PIN Definition

PIN Signal Definition PIN Signal Definition

1 -- N/C 5 Tx Transmission data

2 -- N/C 6 -- N/C

3 -- N/C 7 -- N/C

4 Rx Reception data 8 GND Ground

2.7 RS-485 PIN Definition

PIN Signal Definition

1 SG Ground of data

2 D- Negative pole for data

3 D+ Positive pole for data

3 Installation & Wiring

In this section, we will introduce how to connect RTU-EN01 to other devices and the network.

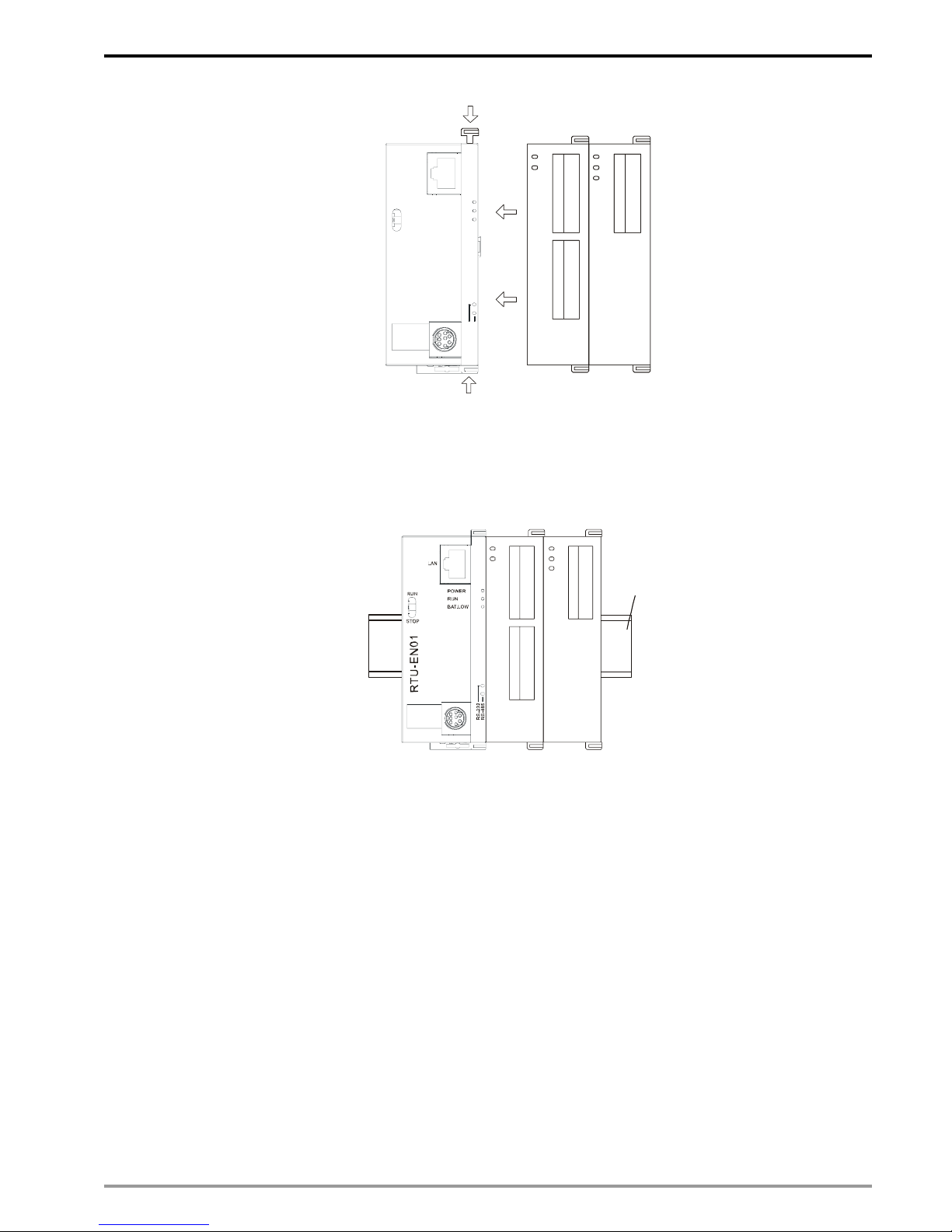

3.1 Connecting RTU-EN01 to DVP Slim Series Digital Input/Output Module

zOpen the fixing clips on the right top and bottom sides on RTU-EN01. Meet the extension port on RTU-EN01

and the digital input/output module.

zPress and fix the clips on the digital input/output module. Make sure the contact between the modules is fine.

Modbus TCP Remote I/O Communication Module RTU-EN01

DVP-PLC Operation Manual 7

DVP-16SP

DVP-02DA

DVP-16SP

DVP-02DA

POWER

RUN

BAT.LOW

RUN

STOP

RTU-EN01

LA N

RS-232

RS-485

3.2 Installing RTU-EN01 and DVP Slim Series Digital Input/Output Module onto DIN Rail

zUse standard 35mm DIN rail.

zOpen the DIN rail clips on RTU-EN01 and the digital input/output module and insert the modules onto the rail.

zPress the clips to fix the modules onto the rail.

DVP-16SP

DVP-02DA

35mm DIN rail

3.3 How to Connect RTU-EN01 to Network

Connect RTU-EN01 to the Ethernet hub by CAT-5e twisted pair. Since RTU-EN01 has Auto MDI/MDIX function,

CAT-5e twisted pair does not need to jump wire. See below for the connection between the PC and RTU-EN01

modules:

Modbus TCP Remote I/O Communication Module RTU-EN01

DVP-PLC Operation Manual

DVP28SV

RUN

STOP

DVP-02DA

DVP-08ST

DVP-16SP

DVP-04AD

DVP-04TC

DVP-04PT

Ethernet

RTU-EN01 DI/D

AI/A

DVP28SV

COM2

DVPEN01-SL

4 Word Devices & Bit Devices in RTU-EN01

4.1 Basic Registers (BR)

BR# Attribute Content Explanation Default Latched

0 R Model name Set up by the system; read only. The model code of

RTU-EN01= H’0600. H’0600 YES

1 R Firmware version

Displaying the current firmware verision in hex, e.g. V1.2 is

indicated as high byte = 0x01 and low byte = 0x20. YES

2 R

Release date of the

version

Displaying the data in decimal form. 10,000s digit and 1,000s

digit are for “month”; 100s digit and 10s digit are for “day”. For

1s digit: 0 = morning; 1 = afternoon.

Example: 12191 indicates the version released in the afternoon

of December 19.

YES

3 R/W

Start/Stop PLC

function NO

4 Reserved . NO

5 R/W

COM2

communication

settings

RS-485 communication settings. Please refer to the table of

baud rate setting and communication format setting. H’0368 YES

6 R/W Address For setting up the station address K’1 YES

7 R Number of DI points Range: 0 ~ 256 NO

8 R Number of DO points Range: 0 ~ 256 NO

9 R Error code Displaying the errors. Please refer to the table of error codes. NO

10 Reserved NO

11 R/W

Communication

time-out

For setting up the communication time-out (ms) in Modbus

TCP mode. K’5000 YES

12 R/W

Communication delay

time

For setting up the minimum interval time between every

communication datum. K’0 YES

13 R/W

TCP connection idle

time For setting up idle time for TCP communication. Unit: second K’30 YES

14 ~ 22 Reserved NO

23 R

Number of analog I/O

modules Max. 8 NO

Indice

Altri manuali Delta Electronics Hardware di rete

Delta Electronics

Delta Electronics Network Device VFD Manuale utente

Delta Electronics

Delta Electronics Network Device IFD9506 Manuale utente

Delta Electronics

Delta Electronics DVPPF02-H2 Manuale utente

Delta Electronics

Delta Electronics Network Device DVPAEXT01-H Manuale utente

Delta Electronics

Delta Electronics Network Device ADP485-01 Manuale utente

Delta Electronics

Delta Electronics Rectifier FR 2000 Manuale utente

Delta Electronics

Delta Electronics Network Device DVPPF01-S Manuale utente

Delta Electronics

Delta Electronics Platinum Temperature Sensors DVP04PT-S Manuale utente

Delta Electronics

Delta Electronics Profibus Communication Module CME-PD01 Manuale utente

Delta Electronics

Delta Electronics GBIC-1250A5FR Manuale utente

Delta Electronics

Delta Electronics Network Device DVP01PU-S Manuale utente

Delta Electronics

Delta Electronics Network Device DVP06AD-S Manuale utente

Delta Electronics

Delta Electronics DTE-20T Manuale utente

Delta Electronics

Delta Electronics PLC DVP Series DVP-SX Manuale utente

Manuali Hardware di rete popolari di altre marche

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuale utente

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuale utente

Yudor

Yudor YDS-16 Manuale utente

D-Link

D-Link ShareCenter DNS-320L Manuale utente

Samsung

Samsung ES1642dc Istruzioni per l’uso

Honeywell Home

Honeywell Home LTEM-PV Istruzioni per il montaggio

evertz

evertz 7700 Series Manuale utente

D-Link

D-Link ShareCenter DNS-343 Manuale utente

Asante

Asante AsanteBridge 1012 Manuale utente

FireBrick

FireBrick FB2700 Manuale utente

Audiovox Electronics

Audiovox Electronics ARWH2T Manuale utente

ADC

ADC DSX-1 Manuale

NetComm

NetComm NF2 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 5620 Manuale utente

Dell EMC

Dell EMC XC6420 Series Manuale utente

Lanner

Lanner NCA-1020A Manuale utente

Allied Telesis

Allied Telesis AT-TN121-A Manuale utente

Arista

Arista CCA-ETM-Q12 Manuale utente
