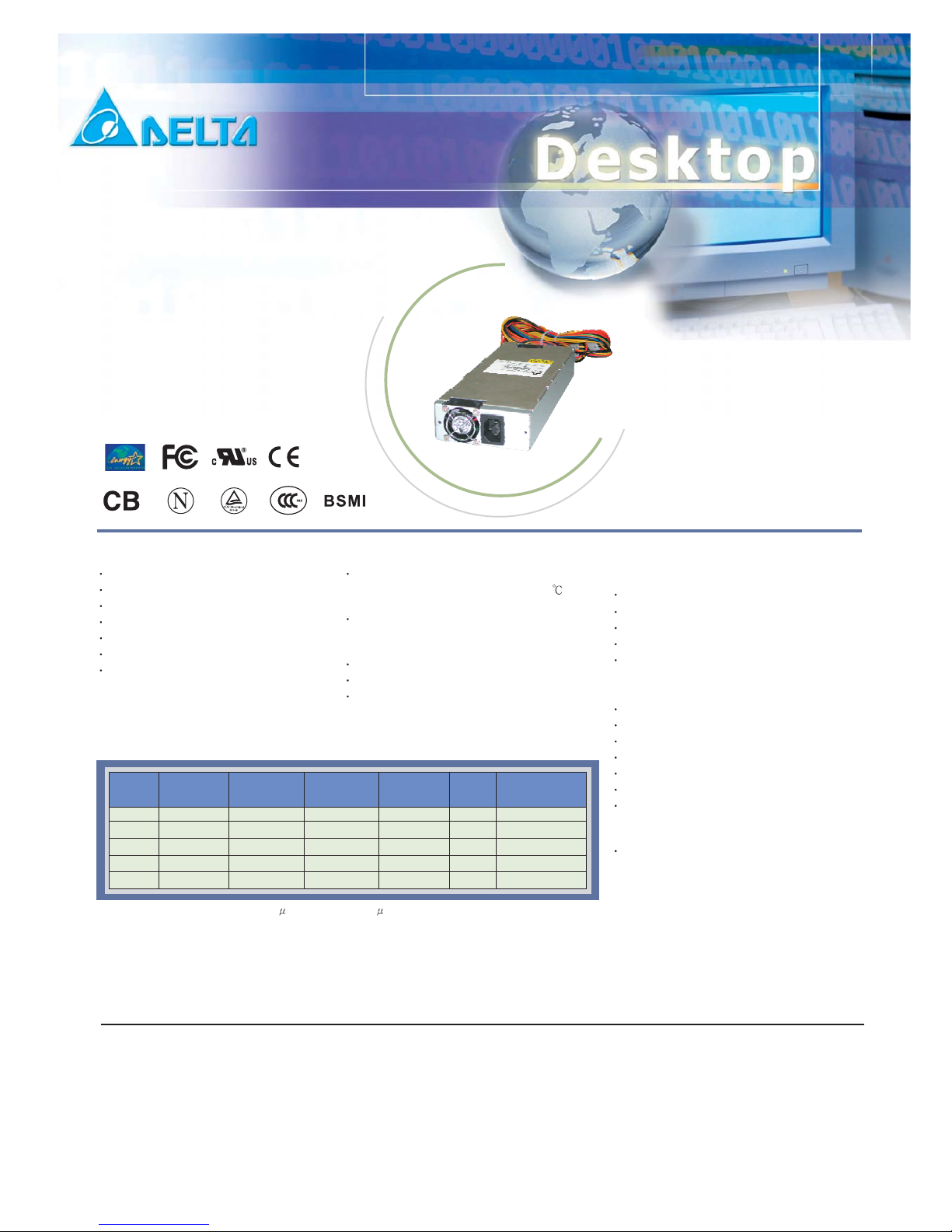

Delta Electronics DPS-350QB Manuale utente

FEATURES

Remote

High Reliability

Built-in EMI Filter

TTL Compatible Power Good Signal

All Outputs SELV (Safety Extra Low Voltage)

With Active PFC Circuit

On/Off

Meets IEC 60950: 1999/UL 60950 3 Edition

ENVIRONMENTAL

MTBF:

>100,000 hours at Max. Load, 115Vac and 25

ambient conditions

Dielectric Withstand:

Input to Output: 1800Vac for 1 sec

Input to Frame Ground: 1800Vac for 1 sec

ESD: IEC 61000-4-2

Surge: IEC 61000-4-5

Harmonic: IEC 61000-3-2 Class D

ELECTRICAL SPECIFICATIONS

Input

Output

Input Range 90-264Vac, Wide-Range

Frequency 47-63Hz

Input Current 6A @ 115Vac; 3A @ 230Vac

Efficiency >70% @ Max. Load, Nominal Line

EMI/RFI FCC Part 15 Class B

CISPR 22 Class B

Maximum Power 350 Watts

Holdup Time >16mS @ Max. Load, Nominal Line

Rise Time <25mS

Leakage Current <3.5mA @ 240Vac

Overvoltage Protection: +3.3V, +5V, +12V, +5Vsb

Overcurrent Protection: For all outputs

Short-Circuit Protection:

Power Good Signal:

Latch off all main outputs reset by cycling On/Off control

or AC power.

TTL/CMOS compatible on delay 100mS to 500mS, off

delay 1mS munimum.

www.deltaww.com

DELTA PRODUCTS CORPORATION

4405 CUSHING PARKWAY

FREMONT, CA 94538, U.S.A.

TEL : 1-510-668-5100

FAX : 1-510-668-0680

DELTA ELECTRONICS, INC.

3, TUNG YUAN ROAD,

CHUNGLI INDUSTRIAL ZONE

TAOYUAN SHIEN, TAIWAN, R.O.C.

TEL : 886-3-4526107

FAX : 886-3-4527314

mail: [email protected]

DELTA ELECTRONICS EUROPE LTD.

2 YOUNG PLACE

KELVIN INDUSTRIAL ESTATE

EAST KILBRIDE, GLASGOW G75 OTD, U.K.

TEL : 44-1355-588888

FAX : 44-1355-588889

DELTA ELECTRONICS (JAPAN) INC.

DELTA SHIBADAIMON BLDG.

2-1-14 SHIBADAIMON, MINATO-KU,

TOKYO, 105-0012, JAPAN

TEL : 81-3-5733-1111

FAX : 81-3-5733-1211

100(W) x 40.5 (H) x 240 (L) mm

V1 +3.3V +/-5% 0.5A 20.0A - 50mV

V2 +5V +/-5% 1.0A 35.0A - 50mV

V3 +12V +/-5% 0.5A 18.0A 22.0A 120mV

V4 -12V +/-10% 0A 0.8A - 200mV

V5 +5Vsb +/-5% 0A 2.0A - 50mV

Output Voltage Regulation Minimum Maximum Peak Ripple

Load Load Load Vp-p

1. Peak-to-peak with 20MHz bandwidth and 47 F in parallel with a 0.1 F capacitor.

2. Total combined power on +3.3V & +5V rails are 225W maximum.

3. Total combined current on +3.3V,+5V & +12V rails are 330W maximum.

All specifications are subject to change without prior notice.

DPS-350QB

Series
