Delta HT Series Manuale utente
HT SERIES DVR USER GUIDE
1
DATE: 2010/03/16 VER 1.1
INDEX
1. Features 4
2. Hardware Overview 6
2-1 Front Panel 7
2-2 Rear Panel 8
2-3. Remote Controller 9
3. System Overview 10
3-1. General Usage Information 10
3-2 LIVE Mode 11
3-2 SETUP Mode 15
3-2-1 DISPLAY 15
3-2-2 Record 16
3-2-3 Device 21
3-2-4. NETWORK 25
3-2-5. SYSTEM 28
3-3 Search mode 32
3-3-1. Search Selection Type 32
3-3-2. Play Mode 34
4. Remote software 35
4-1. Installing Client Program 36
4-2. How to Use remote Program 37
4-3. Site - Connecting the DVR 41
4-4. Favorite – multiple DVR connection 42
4-5 SEARCH – Playback 44
4-6 SETUP – DVR Remote Setup 47
4-7 Web Browser Monitoring and Playback 48
4-8 Mobile Phone Viewing 49
4-9 Network Firmware Upgrade 50
APPENDIX A DDNS SETUP 52
APPENDIX B HDD COMPATIBLE TABLE 58
APPENDIX C TROUBLESHOOTING 60
HT SERIES DVR USER GUIDE
2
Specifications
MODEL NO. HT-04 HT-08 HT-16
Camera input 4 8 16
Output 1 BNC or 1 VGA,
Selectable Both 1 BNC and 1 VGA Both 1 BNC and 1 VGA
Audio input / Output 4 RCA /1 RCA
Sensor In/Alarm out 1(NC, NO selectable)/ 1(Relay Output)
Operating System Embedded Linux OS
Display Speed Real Time
Display Resolution 720 X 480(NTSC), 720 X 576(PAL)
Display Split screen 1,4, Sequence 1,4,6,8,9, Sequence 1,4,6,8,9,13,16,
Sequence
Compression Format H.264 (DSP)
Picture quality 4 LEVEL (Super, High, Medium, Low)
NTSC
120 FPS(CIF)
60 FPS(Half-D1) + 3 FPS(CIF)
30 FPS(D1) + 3 FPS(CIF)
127 FPS(CIF)
60 FPS(Half-D1) + 7 FPS(CIF)
30 FPS(D1) + 7 FPS(CIF)
135 FPS (CIF)
60FPS(Half-D1) + 15 FPS(CIF)
30 FPS(D1) + 15 FPS(CIF)
Recording
Speed
PAL
100 FPS(CIF)
50 FPS(Half-D1) + 3 FPS(CIF)
25 FPS(D1) + 3 FPS(CIF)
107 FPS(CIF)
50 FPS(Half-D1) + 7 FPS(CIF)
25 FPS(D1) + 7 FPS(CIF)
115 FPS(CIF)
50FPS(Half-D1) + 15 FPS(CIF)
25 FPS(D1) + 15 FPS(CIF)
Playback Display 1,4 1,4,8 1,4,8,16
Search mode Calendar, Event
Playback Speed Normal, REW & FF [Recorded Speed x2, x4, x8, x16,x32,x64,x1/2,x1/4],
Frame to Frame, Pause
Network Interface Ethernet, PPPoE
Network Protocol TCP/IP, HTTP, DHCP
Application Windows 2000 / XP / Vista (PC Client system& IE)
Web Browser Internet Explorer
Backup Network, USB 2.0Thumb Drive
HDD Supports 1 SATA HDD Supports 2 SATA HDDs
Power Consumption 12V / 3.3A 12V / 5A
Operating Temperature 5 ~40℃(41~104F)
Relative Humidity Maximum 80% non-condensing
Dimension(mm) 337(W) x 256(D) x 60(H)
Weight(N.W) Approx. 1.8kgs / 4 lbs (W/O HDD)
HT SERIES DVR USER GUIDE
3
Warnings
Installation and servicing should be performed by qualified and experienced personnel only.
DVR should always remain OFF during any installation process
Product Components
The package contains the main unit and its components as specified below. When you purchase the unit,
please check to ensure the components specified below are included:
DVR Set X1
Client Software CD X1
Remote Control X1
Battery1.5V (AAA) X2
User Manual X1
Power Adapter X1
Power Cord X1
HT SERIES DVR USER GUIDE
4
1. Features
Excellent picture quality
Allow recording and reviewing in high quality digital image based on H.264 compression method.
High reliability
With Embedded hardware and software design, this maintains higher product reliability compared to common
PC type products.
Support Non-English Character and Input for Camera Titles
User can define his own language OSD camera title besides English.
Pentaplex System
Pentaplex System allows recording, backup, networking and playback simultaneously.
Selectable recording setup
For recording methods, users can select frame rate, resolution and video quality individually in order to be
appropriate for user's environment.
Remote monitoring
User can search or monitor recorded images remotely by installing exclusive client program on PC via internet
network.
Backup
User can backup the recorded file with USB pen drive.
Audio recording
User can record four audio inputs simultaneously. Moreover, user can also listen to the audio in search, live
monitoring and play mode.
Various recording methods
DVR unit provides multiple recording methods including manual recording, dates & days recording,
hourly schedule recording and sensor & motion detection recording.
Various total monitoring features
DVR unit provides an overall and economical security system through various sensor inputs and contact
output control.
HT SERIES DVR USER GUIDE
5
Display information in easy-to-understand information method
This DVR unit enhanced user friendly display information such as date, time, recording method, recording
frame number, HDD capacity in monitoring, recording and playing mode.
Software Deinterlacing to Enhance Live and Playback Quality
Support 3G Mobile Phone Viewing (iPhone, Blackberry, Android, Windows Mobile, JAVA,
Symbian OS)
HT SERIES DVR USER GUIDE
6
2. Hardware Overview
A. Front Panel
B. Rear Panel
4 Channel rear panel
8 Channel rear panel
16 Channel rear panel
Sensor input / Relay output / RS-485
HT SERIES DVR USER GUIDE
7
C. HDD Installation
Remove top cover of the DVR and install HDD
HDD
X
D. Sensor / Relay/ PTZ connection
Sensor Input Relay Output
PTZ connection
2-1 Front Panel
Z
Y
1. IR Sensor: IR receiver for remote controller
2. USB Connectors: USB ports connection for mouse and USB pen drive.
3. Status Indicator:
BLUE: Indicates power on status
RED: Indicates recording status
GREEN: Indicates network connection status
HT SERIES DVR USER GUIDE
8

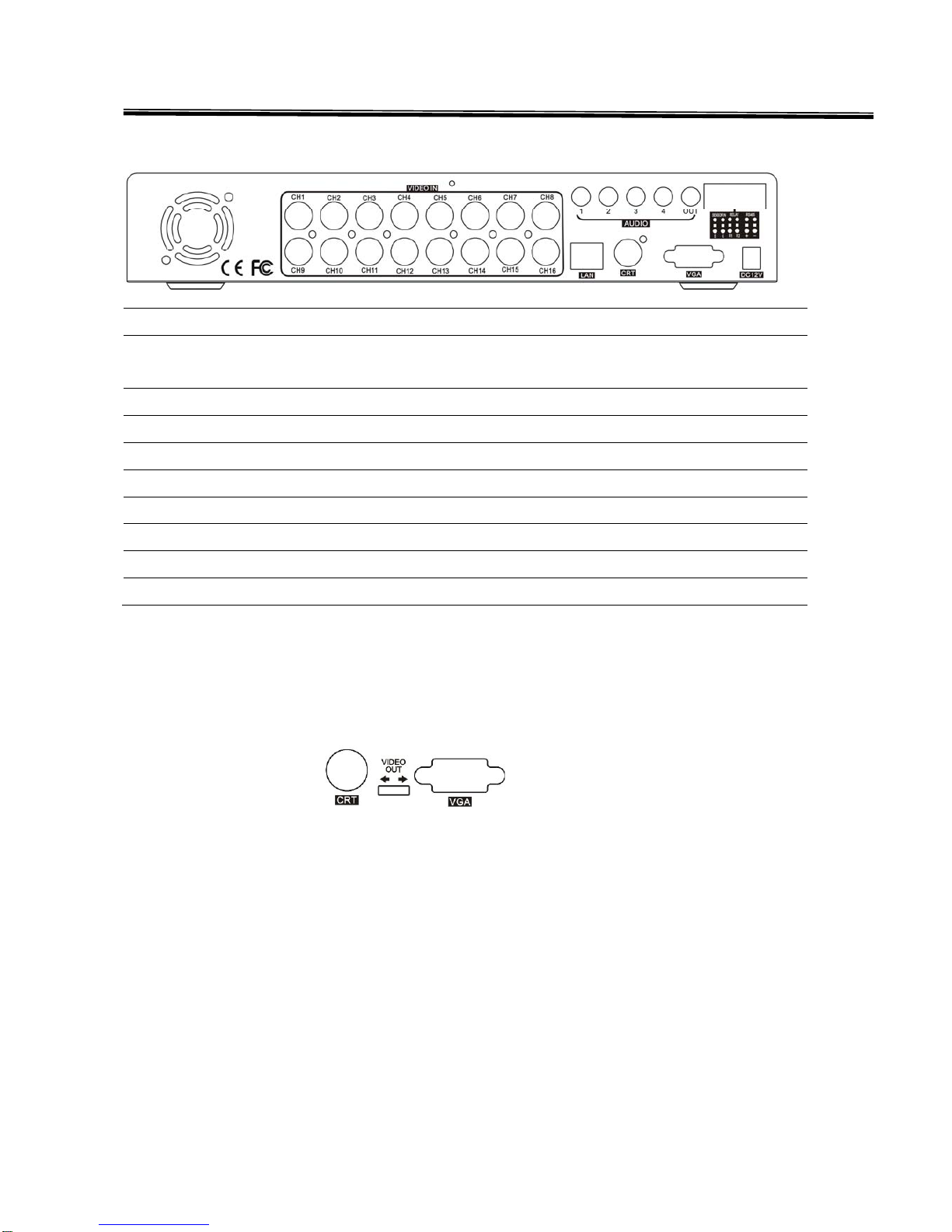

2-2 Rear Panel
Label Operation
VIDEO INPUT 4/ 8 /16 connectors for video input.
Connect camera output to Video-in (NTSC/PAL)
CRT OUTPUT Connector for CRT TV.
VGA OUTPUT Connector for VGAmonitor
AUDIO 4 Audio Inputs and 1 Audio Output
SENSOR IN Connection for sensor device.
ALARM OUT One Alarm device output. On/Off switching by using relay. 1A, 24V or 0.5A,125V
RS-485 Connect to PTZ camera,+ÆPTZ D+ / - ÆPTZ D-
LAN RJ45 connector for LAN connection.
DC 12V Use 12V DC supplied adapter ONLY.
NOTE:
For 4 Channel DVR model, please select either VGA monitor or CRT monitor before power up the
system.
DO NOT CHANGE THIS SETTING WHEN DVR UNIT IS ON.
HT SERIES DVR USER GUIDE
9

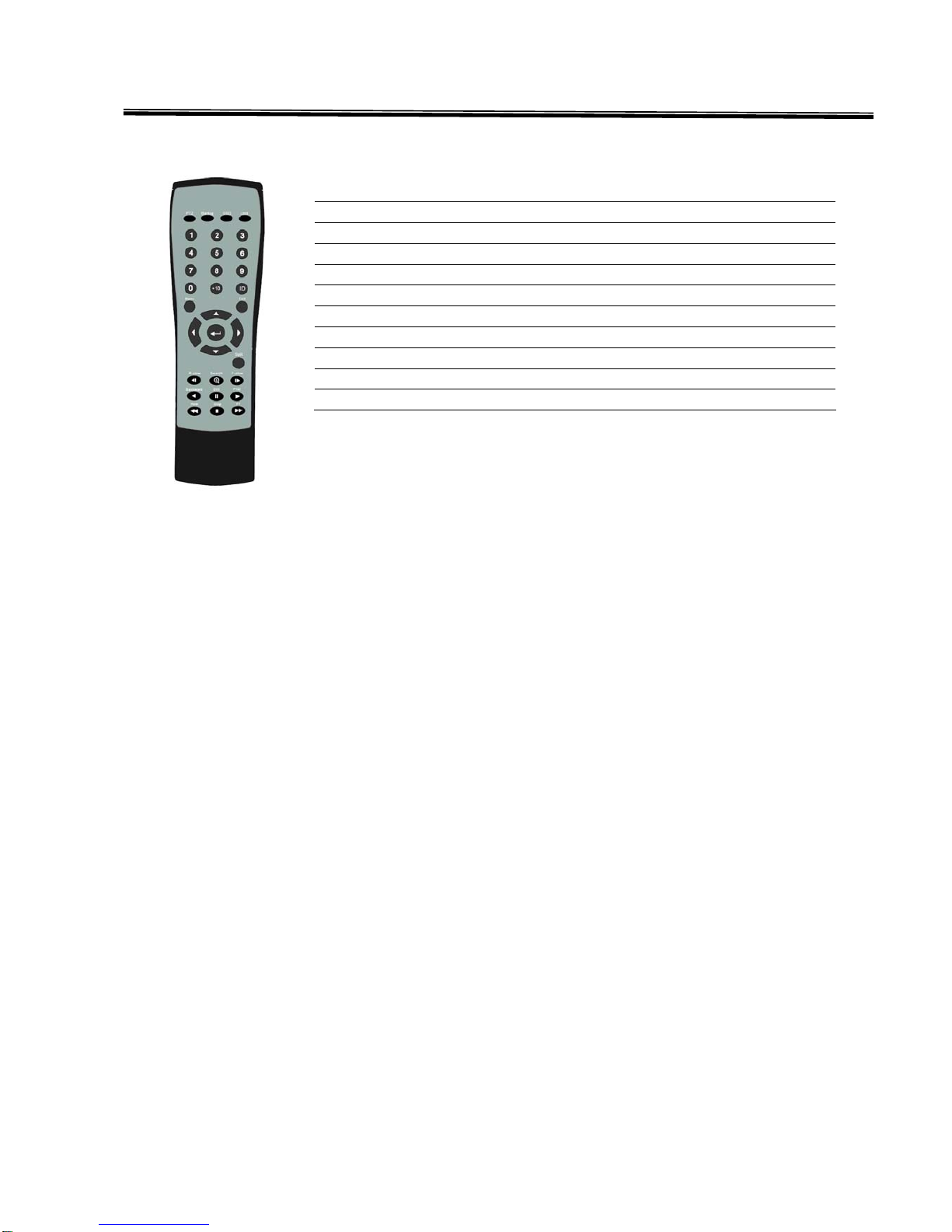

2-3. Remote Controller
PTZ Enter PTZ mode
Backup Enter Backup mode
OSD Display current DVR settings through GUI
Lock Log off current user
Numbers Press number button to select channel
ID Select remote control ID (Click ID button and then number)
Menu Enter Setup menu
Exit Exit
Direction Control direction
Enter
HT SERIES DVR USER GUIDE
10
3. System Overview
3-1. General Usage Information
The STANDARD series DVR can be operated with a mouse or remote controller under the four main modes
listed below:
Live Mode – Allow user to view all live operating cameras and access to Pan/Tilt camera controls. In
addition, system status information will be shown during live mode.
Setup Mode – Allow user to customize settings for Live viewing, Recording, Backup, and Camera related
devices under the Setup Mode.
Search Mode – Allow user to review all recorded footage by using a calendar or event based search.
Backup Mode –Allow user to archive desired data to a preferred supported media. (ex. CD, DVD, USB
Backup, Remote Client Software, etc.)
Password Protection
The DVR unit is protected by user ID and password system in order to prevent unauthorized operation.
(Factory Default settings are blank for these fields).
IDs and Passwords should be managed by a system administrator ONLY. Different users may be assigned
with different levels authorities to the DVR.
