Delta AC01 Manuale utente

Analog/Digital Bi-directional Audio Converter

ITEM NO.: AC01 Analog/Digital Bi-directional Audio Converter

The Bi-directional Digital/Analog Audio Converter allows users to convert digital optical/coaxial and

analog audio signals. The device can convert between analog and digital formats and vice versa

and can output simultaneously to all outputs (depending on the audio format) allowing it to act as

an audio distributor.

Feature:

Support digital audio and analog audio bi-directional conversion.

Support digital coax and optical audio bi-directional conversion.

Select the conversion mode by slide switch.

Analog to digital audio support up to 48 KHz.

Digital to audio support to 96 KHz.

LED indicates the audio lock and the current mode.

Built in automatic digital audio input selection.

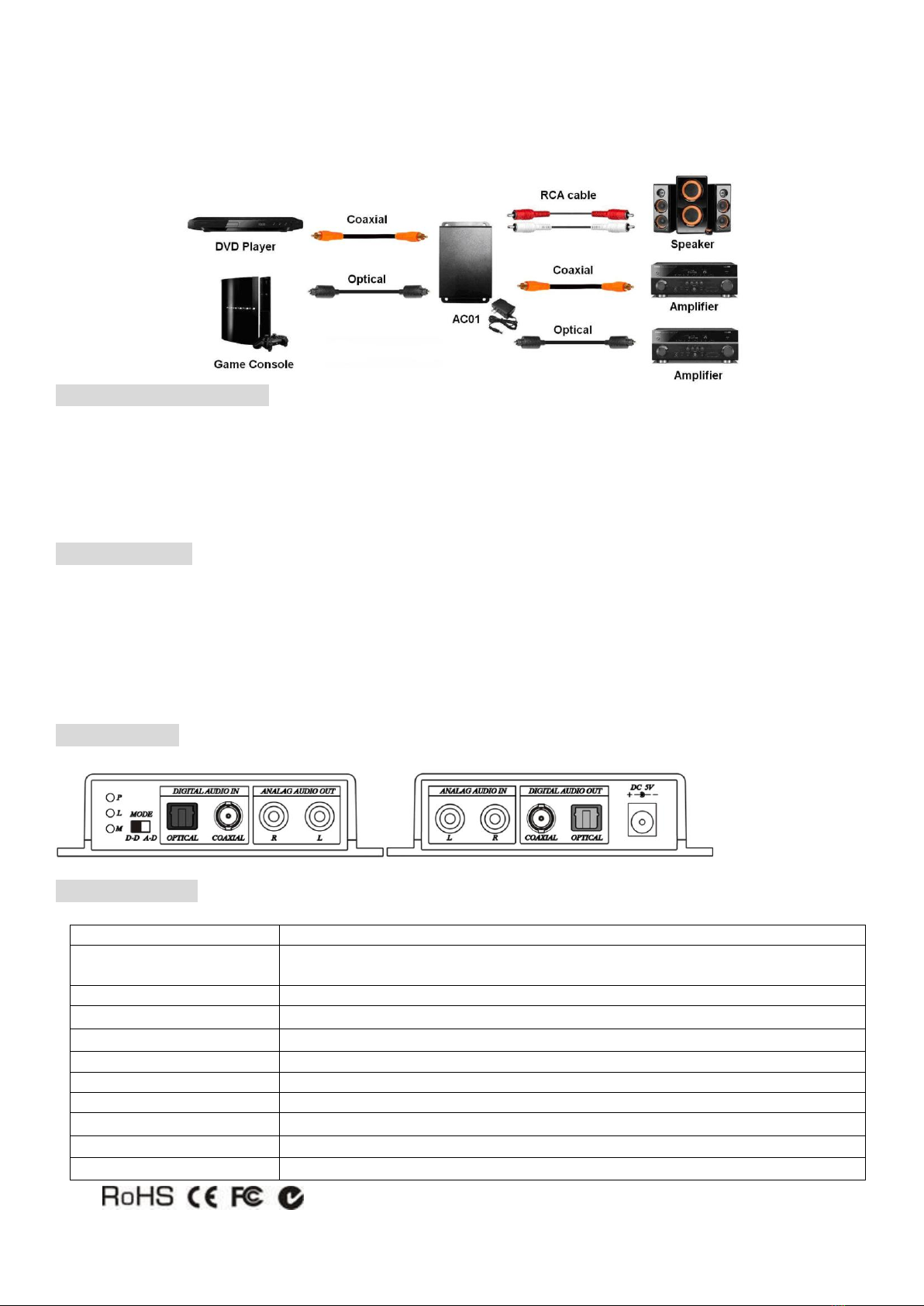

Installation View:

Switch Function:

Slide Switch: A - D / D - D Function selection

Bi-directional Mode:

Slide switch select A -D

a. Analog input convert to Digital output:

Analog input connect to input RCA L / R

Digital could be output Coaxial and TOSLINK simultaneously.

b. Digital input convert toAnalog output:

Coaxial and TOSLINK connect simultaneously; TOSLINK will be priority to output.

c. Above A & B could be operating at same time.

Digital coax to optical / optical to coax mode：

Slide switch select D–D

Coaxial and TOSLINK connect simultaneously; TOSLINK will be priority to output.

L/ R, Coaxial and TOSLINK three audio could be output at simultaneously.

Input/output Connector:

DC 5V DC 5V power connector

Analog Audio In Analog left/right RCA input connector

Digital Audio Out Digital optical/coax output connector

Digital Audio In Digital optical/coax input connector

Analog Audio Out Analog left/right RCA output connector

LED Indication:

Green Power ON/OFF

Blue ON input digital audio lock

OFF no digital audio input

Red ON digital to analog/ analog to digital bi-direction mode

OFF digital coax/optical bi-direction mode

Panel View:

Specification:

ITEM NO.

AC01

Audio support sampling

rate

Analog to Digital audio up to 48KHz

Digital to Analog support 32K~96KHz

LED

LED x 3 (green, blue, red)

Audio output connector

RCA x 3，TOSLINK x 1

Audio input connector

RCA x 3，TOSLINK x 1

Switch

Slide switch x 1

Power Supply

DC5V 1Amp

Power Consumption

80mA (Typical) / 110mA (Max)

Temperature

Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%

DIMENSIONS mm

108 x 76 x 27

Weight g

Rev. A
