x1 — Top Connector

x2 — Top Pole

x2 — Center Pole

x2 — Bottom Pole

x2 — Base Stand (Left + Right)

x1 — Base Bracket

x4 — Long Bolts

x8 — Arms

x6 — Short Bolts

x2 — Extra Long Bolts

x2 — Nuts (10mm)

x2 — Washers

x4 — O Ring

x1 — Basket

Parts

A

B

C

D

E

F

G

H

I

J

K

K

L

M

N

Assembly instructions HDRS6801

WARNING

DO NOT EXCEED MAXIMUM TOTAL WEIGHT LIMIT OF 160 LBS (70 Kgs)

MAX LOAD PER HOOK: 35 LBS (15.9 kgs) / MAX WEIGHT PER BIKE: 40LBS (18.2 kgs)

LOAD HEAVIER BIKES, INCLUDING E-BIKES, ON LOWER TIER.

C

H

D

A

K

F

E

L

I

G

B

Assembly Video

Visit designbydelta.com/downloads

Scan with your smartphone camera to view

C

H

D

A

F

F

M

F

NE

I

I

J

G

Tool(s) Required

Phillips Head

Screwdriver

Adjustable Wrench

(or 10mm)

Free-Standing

4 Bike Rack

with Basket

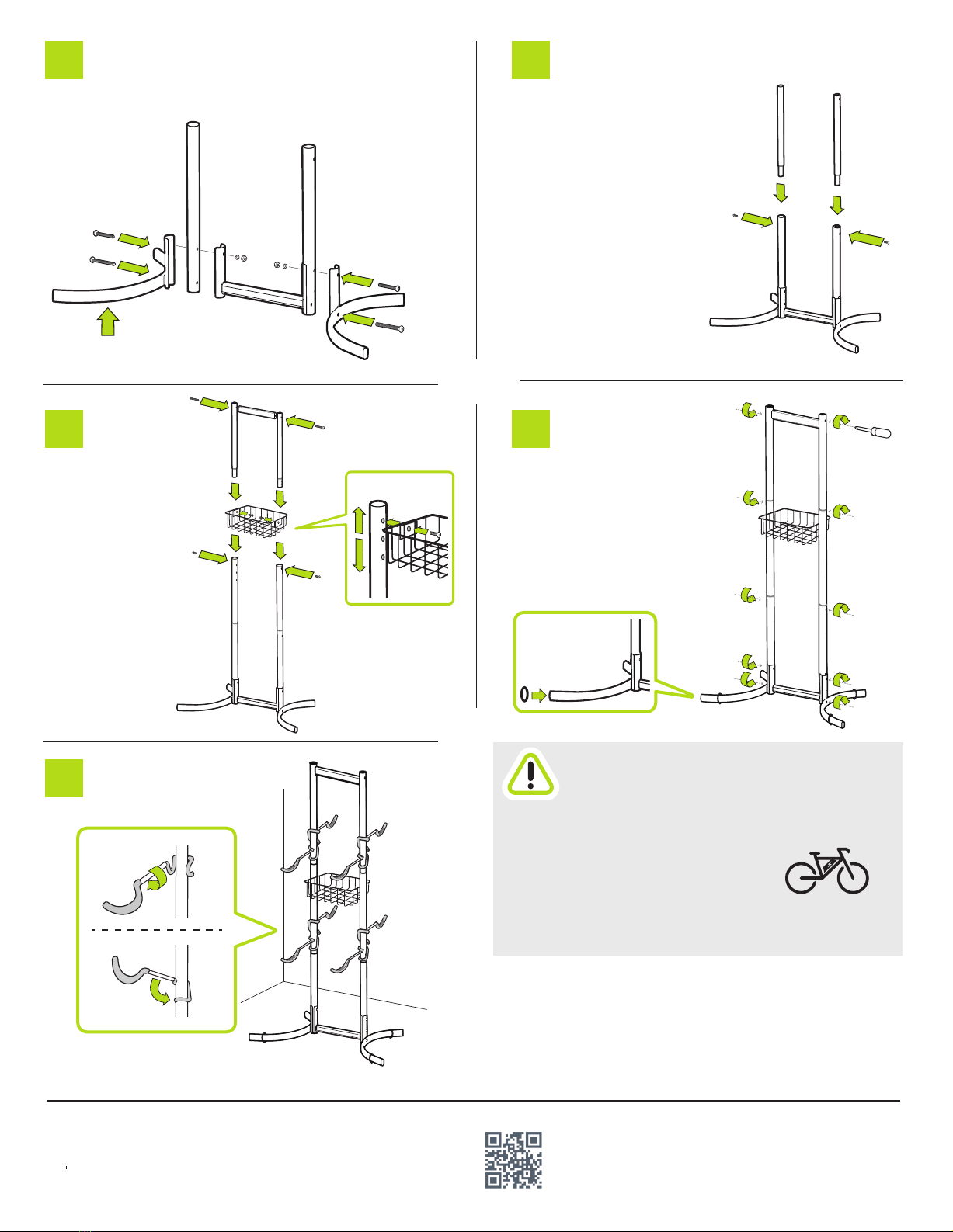

1Connect base bracket (F), bottom poles (D) and base stand (E)

as shown using long bolts (G, J) Nuts (K) and Washers (L).

Do not tighten bolts until rack is fully assembled and tubes are

properly aligned. Fully assemble base before continuing.

3

5

Connect top

poles (B) to center

poles (C), secure

with short bolts (I).

Connect top

connector (A) to top

poles (B) using

long bolts (G).

Use short bolt (I) to

attach basket (N) by

positioning in line with

desired height hole

on the inside of the

center pole (C)

(FIGURE 1)

4

2Connect center poles (C) to bottom poles (D),

secure with short bolts (I).

Adjust position of arms before

placing bike on stand.

Tighten all bolts, using

the wrench to hold nuts

where needed.

O Rings (M) can be used

to slide over base legs

where needed on uneven

oor surfaces

IMPORTANT / SAFETY

Delta Cycle Corporation

36 York Avenue, Randolph, MA 02368 USA

800-474-6615 / www.designbydelta.com

© Copyright 2020

After rack is assembled

Arms should be placed at

desired height - two per

bike (front and rear).

Front side of rack features the

longer section of the base foot

Need help? Please do not return to store.

For immediate response email

service@designbydelta.com

Always load bikes on the arms of the bottom,

front side of the rack rst to maintain stability.

Remove bikes from the top rst.

Store e-bikes and other heavy

bikes on lower arms only.

Do not allow children to play or hang from rack.

FIGURE 2

FIGURE 1
