USER MANUAL
rDrive
31-01-2022
Page 2
TABLE OF CONTENTS
Table of contents
Important safety instructions....................................................................3
BPSA Classication - Class 1 .....................................................................4
Intended purpose..............................................................................................4
Getting started.....................................................................................................6
Stem assembly....................................................................................................7
Handlebar adjustment...................................................................................7
Stem angle adjustment.................................................................................9
Front wheel installation.............................................................................. 10
V-Brake assembly........................................................................................... 11
Pedal installation..............................................................................................12
Saddle and seatpost assembly...........................................................14
Assembly complete.......................................................................................15
Getting started on the electrical system....................................... 16
Display LED ..........................................................................................................17
Assist functions ................................................................................................ 18
Trouble shooting ............................................................................................. 18
Installing and dismounting the battery...........................................19
Battery charger/charging.........................................................................20
Battery information.........................................................................................21
Battery specications .................................................................................. 22
Bike maintenance........................................................................................... 23
Brakes...................................................................................................................... 23
V-Brake maintenance.................................................................................. 24
Gear shifter........................................................................................................... 25
Rear derailleur................................................................................................... 25
Tires, tubes and wheels.............................................................................26
The chain............................................................................................................... 27
Reectors.............................................................................................................. 27
General maintenance ..................................................................................28
General information ......................................................................................29
Wet weather conditions.............................................................................30
Nighttime operation......................................................................................30
Promovec limited warranty......................................................................31
Technical data ................................................................................................... 33
General certicate of conformity........................................................ 33
Register the bike..............................................................................................34
Page 3
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT!
Read the safety instructions in this manual before use. If the precautionary
measures described are NOT followed, the warranty will be void. Failure to
follow this user manual could result in serious injury or even death.
WARNINGS
• To ensure that the charger and battery are handled in a safe way and that users
involved understand the danger of electricity, charging of the battery must only be
handled by persons aged 8 and up.
• Persons with reduced physical, sensory or mental abilities, lack of experience or
knowledge must be supervised or trained in the use of the battery and charger.
• Do NOT let children play with the battery and/or charger. Children must be
supervised if they perform any kind of cleaning and/or maintenance.
• Do NOT use this product or charger if any power cable is frayed, has broken
insulation or any other signs of damage.
• DO NOT attempt to recharge non-rechargeable batteries with the battery charger.
• For safety reasons, if charging the battery indoors the battery should be recharged
in a room with a re alarm installed.
• Only charge the battery with the included charger.
• Do not dismantle or damage the battery.
• Only use the Promovec battery included.
• Do not throw the battery into a re.
• Do not immerse the battery in water or any other liquid.
• Never charge the battery at temperatures below 32ºF (0ºC) or above 113ºF (45ºC).
• Do not heat, short circuit, puncture or otherwise mistreat the battery.
• Remove the battery from the bike when cleaning it.
• Do not change or tamper the electrical system.
• Disposal of batteries (Pg.
• Transportation of the e-bike (Pg.
SAVE THESE INSTRUCTIONS
21).
29).
NOT
Page 4
CONGRATULATIONS ON THE PURCHASE OF YOUR NEW
E-BIKE!
The Delta rDrive is a new generation of e-bike designed and developed based on
many years of experience with our e-bike partner Promovec. Please read this user
manual as it contains important information concerning the safe use and maintenance
of this e-bike.
The Delta rDrive is a modern e-bike that has been manufactured following the latest
production standards and techniques ensuring you have the highest quality bike with
premium performance.
If you have further questions regarding your e-bike operation or assembly, please
reach out to us at 800-474-6615 or www.designbydelta.com for Delta Customer
Service.
INTENDED PURPOSE
The e-bike is intended for use on regular paved surfaces as well as upaved surfaces,
gravel roads and trails with moderate grades.
CAUTION
• Do NOT use the e-bike in combination with a bike trailer.
• Always use original Promovec spare parts when replacing electrical components.
• Do NOT clean the e-bike with a high-pressure cleaner.
• If the electrical system is modied the warranty is null and void.
BPSA CLASSIFICATION - CLASS 1
A “Class 1 electric e-bike” or “Low-speed pedal-assisted e-bike,” is an e-bike equipped
with a motor that provides asssistance only when the rider is pedaling and that ceases
to provide assistance when the e-bike reaches the speed of 15.5 mph
Page 5
WARNINGS:
• Using the e-bike outside the specied terrain may result in injuries and/or damage
to the e-bike.
• Wet weather impairs traction, braking and visibility, both for the bicyclist and for
other vehicles sharing the road. The risk of an accident is dramatically increased in
wet conditions, take proper precautions.
• Under wet conditions, the stopping power of your brakes (as well as the brakes of
other vehicles sharing the road) is dramatically reduced and your tires will not grip
as well. This makes it hard to control the speed of the bike and risk a loss of control.
To make sure that you can slow down and stop safely in wet conditions, ride slowly,
apply your brakes earlier and more gradually than you would under, dry conditions.
Page 6
GETTING STARTED
Assembly of this e-bike is recommended by a certied bicycle mechanic.
If you choose to assemble your e-bike it is recommended that your bicycle be
inspected by a certied bicycle mechanic prior to riding.
It’s important to follow this assembly guide. E-bikes are great fun but improper
assembly can result in serious injury and/or death.
The tools you will need to assemble this bike are as follows:
• 4mm Hex Key (included)
• 5mm Hex Key (included)
• 6mm Hex Key (included)
• Multi-wrench (included)
• 15mm open-ended wrench and/or a dedicated 15mm pedal wrench
(Recommend)
• Snips or cable cutters (not included)
• Torque wrench (not included)
• Pump to inate the tires (not included)
• Grease for the pedal axle threads, stem and seatpost (not incuded)
We recommend using a torque wrench to check all the nuts and bolts that require
assembly to meet the required torque settings.
Once the e-bike has been unpacked, make sure you have removed all the packaging
and dispose of it appropriately – much of the packaging materials can be recycled.
Before disposing of the carton check that there are no remaining parts in the box.
When cutting zip-ties we recommend using snips or cable cutters to cut. Be very
careful not to cut any cables or wires.
We recommend using a bicycle assembly stand to help secure the bike during
assembly.
Check the latest assembly information here.
Page 7

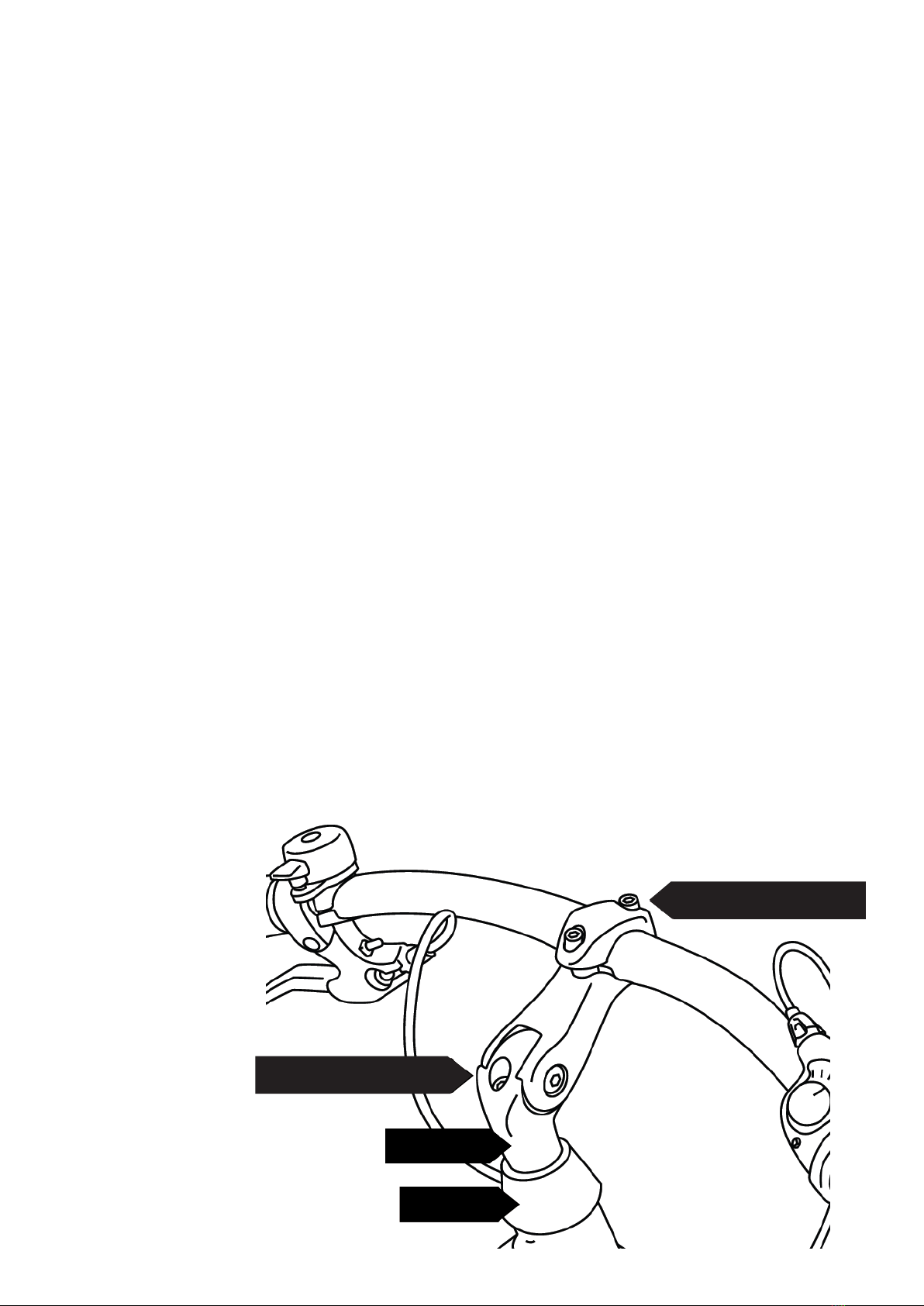

STEM
HEADSET
STEM BOLTS
EXPANSION BOLT
STEM ASSEMBLY
The handlebar comes mounted on the stem with brake levers and gear shifter mounted
to the handlebar. Insert the stem into the headtube and ensure the minimum insertion
mark is fully inserted into the headset.
1. Add grease to the stem, then insert it into the headset, the minimum insertion mark
must be fully inserted into the headtube.
2. Align the handlebars perpendicular with the front wheel.
3. Remove the rubber cover in the top of the stem expansion bolt.
4. Tighten the expansion bolt with 22-23 Nm in the stem ensuring the stem is xed in
position.
5. Place the rubber cover back into place.
6. Test that the stem cannot be removed or turned after installation.
HANDLEBAR ADJUSTMENT
It will be necessary to angle the handlebar to the correct riding position which is the grips
pointing down approximately 3-4 degrees from horizontal.
7. Loosen, but do not remove, both stem bolts.
8. Angle the bars in the correct position by pulling up on the grips.
9. Ensure the handlebar is still centered in the stem.
10. Tighten both stem bolts equally to 8-10 Nm.
11. Test that the bars cannot be moved up or down after installation.
Page 8
WARNINGS!
• The stems minimum insertion mark must not be visible above the top of the
headset. If the stem is extended beyond the minimum insertion mark the stem
may break or damage the fork’s steerer tube which could cause you to lose
control and fall leading to serious injury and/or death.
• An insuciently tightened stem expansion bolt, handlebar clamp bolt or stem
angle adjustment bolts may compromise steering action, which could cause you
to lose control and fall leading to serious injury or death.
• Place the front wheel of the bicycle between your legs and attempt to twist
the handlebar/stem assembly. If you can twist the stem in relation to the front
wheel or turn the handlebars in relation to the stem, the bolts are insuciently
tightened.
Page 9
4°
WEDGE BOLT
SIDE BOLT
STEM ANGLE ADJUSTMENT
The stem can be adjusted to raise the height of the handlebar to suit the desired riding
position.
1. Loosen but do not remove the wedge bolt located on the underside of the stem.
2. If necessary, loosen the bolts on the side of the stem.
3. Adjust the stem to the desired angle.
4. Tighten the bolts on the side of the stem to 8 Nm if they were loosened in step 2.
5. Tighten the wedge bolt on the underside of the stem to 14-15 Nm.
If you choose to change the angle of the stem it is likely you will need to adjust the angle
of the handlebars. Repeat the steps in the section “Handlebar adjustment” above to get
the correct angle for the handlebar if necessary.
WARNINGS
• Insuciently tightened bolts that controls the stem angle may compromise steering
action, which could cause you to lose control and fall leading to serious injury or
death. Ensure there is no movement by pulling up and pushing down on the stem,
properly torque bolts to the specied Nm.
Page 10
AXLE
FRONT WHEEL HUB
DROP OUT
FRONT VIEW OF FRONT WHEEL
FRONT WHEEL INSTALLATION
Bicycle wheels are designed to be removeable for easier transportation and for
repairing punctures. Insert the hub axle on the wheel into the fork dropouts. The
wheels are secured with the supplied axle nuts and washers (where applicable) which
are threaded onto the hub axle.
1. Ensure all the packing material is removed from the fork paying close attention
to the plastic fork protector at the bottom of the fork legs. Note: you may need to
loosen the axle nuts a few turns to get the axle into the fork dropouts.
2. Check that the axle is fully inserted into the fork dropouts and tighten the axle nuts
to 30Nm torque.
3. The wheel should spin freely.
4. At this point it is recommended you check the ination of both the front and rear
tires. Please refer to the Tires, Tubes and Wheels maintenance section.
DROP OUT
HEX NUT HEX NUT
