Delvcam
DELV-FPV-7
User Guide
1
IMPORTANT SAFETY INSTRUCTIONS:
Please read User Guide before using this product.
Please keep User Guide for future reference.
Please read the cautions to prevent possible danger and loss of property.
FEATURES:
High resolution: 800×480;
High brightness: 400cd/㎡;
High contrast: 500:1;
Dual 5.8GHz receivers for optional.
CAUTIONS:
1. Please do not place the display screen towards the ground.
2. Please avoid heavy impact or drop onto the ground.
3. Please do NOT use chemical solutions to clean this product. Please wipe with a clean soft cloth to
maintain the brightness of the surface.
4. Please do not block any vent hole.
5. Please follow the instructions and trouble-shootings to adjust the product. Other improper adjustment
may result in damage. Any further adjustment must be performed or conducted by a qualified
technician.
6. Please unplug the power and remove the battery if long-term no-use, or thunder weather.
1. PRODUCT DESCRIPTION...................................................................................2
2. REMOTE CONTROL ............................................................................................3
3. AERIAL PHOTOGRAPHY SIGNAL RECEIVER..............................................4
4. WIRING INSTRUCTIONS....................................................................................0
5. MENU SETTING.....................................................................................................0
6. VESAINSTALLATION INSTRUCTIONS FIGURE..........................................8
7. ACCESSORIES........................................................................................................8
8. PARAMETERS........................................................................................................9
9. TROUBLE SHOOTING .......................................................................................10
2

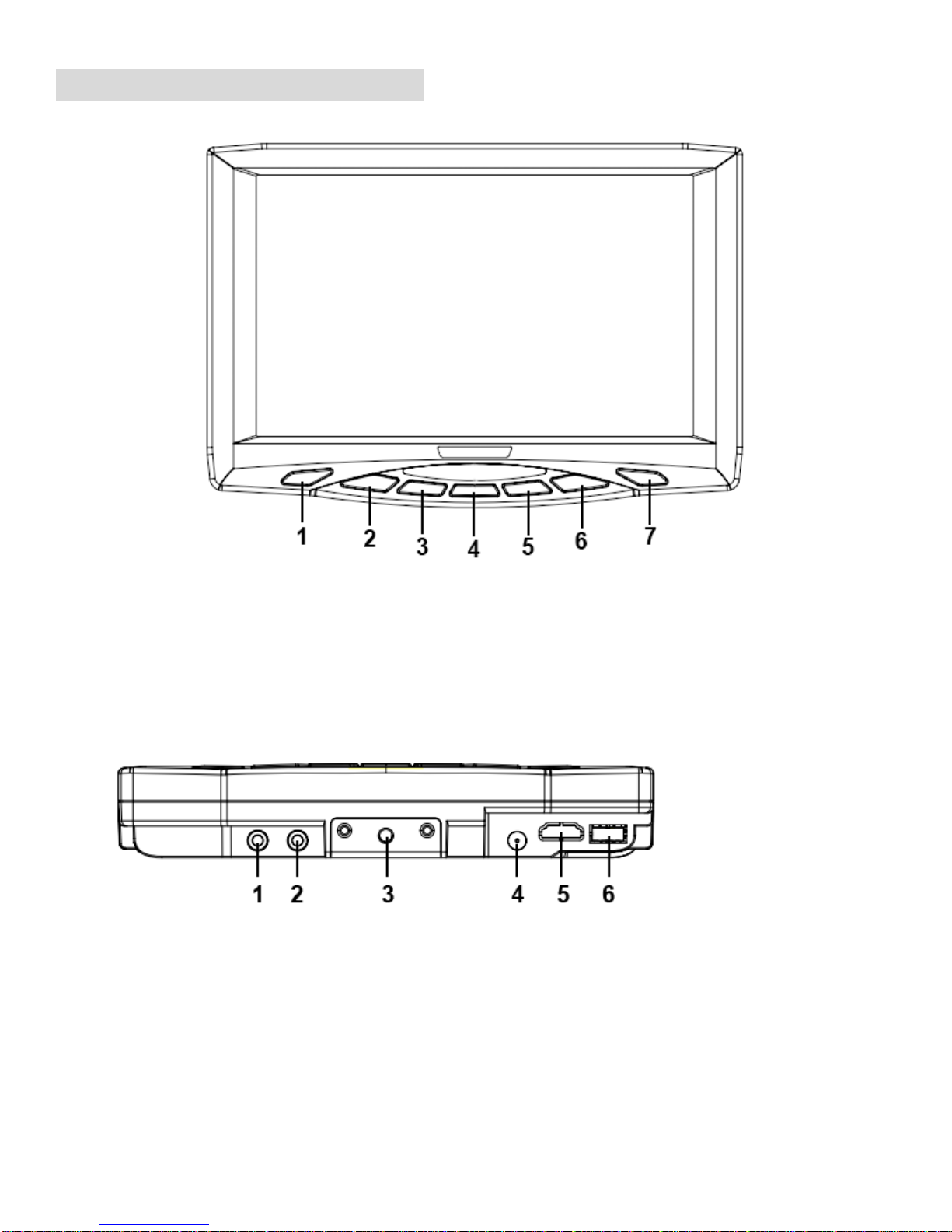

1. PRODUCT DESCRIPTION
1. POWER: ON/OFF (Light turns to green when power on).
2. AV: Video & 5.8G switch.
3. VOL-: Volume down; value of menu option decrease.
4. VOL+: Volume up; value of menu option increase.
5. MENU: To activate OSD menu & main menu.
6. CH-: Item selection on menu.
7. CH+: Item selection on menu.
1. OUT: Video output interface
2. IN: Video input interface
3. Bracket mount
4. DC12V power input
5. NO USE
6. Frequency control (please refer to Part3)
3

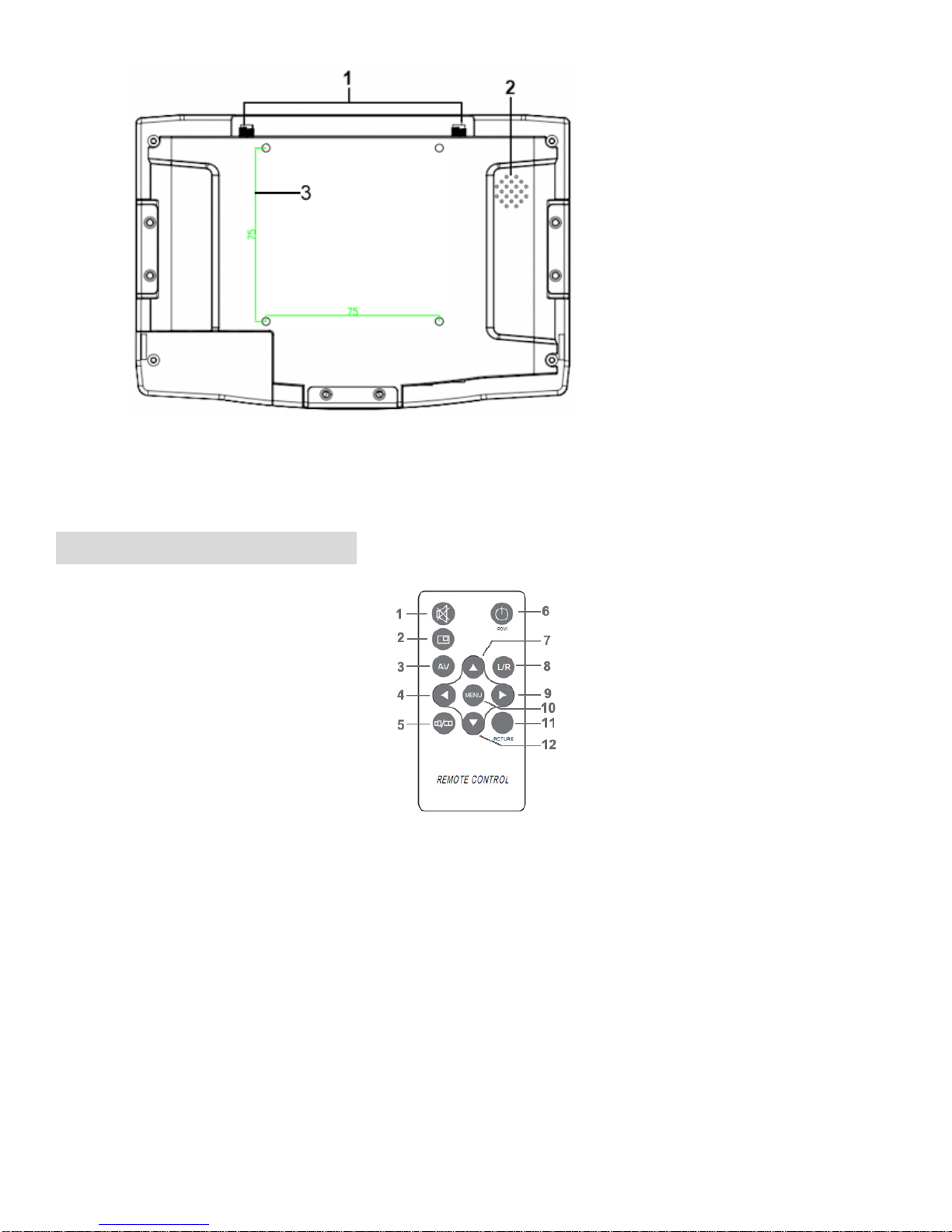

1. Antenna port
2. Speaker
3. VESA Mounting interface
2. REMOTE CONTROL
1. MUTE
2. NO USE
3. Video & 5.8G switch
4. ◄: Volume down or to adjust the value of function
5. To switch display mode
6. Power on / off
7. NO USE
8. NO USE
9. ►: Volume up or to adjust the value of function
10. To activate OSD menu
11. NO USE
12. NO USE
4
3. AERIAL PHOTOGRAPHY SIGNAL RECEIVER
3-1 Frequency Chart
0: ON; 1:OFF
Frequency / L.O. CS1 CS2 CS3 S1 S2
Band 1
B1:5.865GHz/5.385GHz 1 1 1 0 0
B2:5.845GHz/5.365GHz 0 1 1 0 0
B3:5.825GHz/5.345GHz 1 0 1 0 0
B4:5.805GHz/5.325GHz 0 0 1 0 0
B5:5.785GHz/5.305GHz 1 1 0 0 0
B6:5.765GHz/5.285GHz 0 1 0 0 0
B7:5.745GHz/5.265GHz 1 0 0 0 0
B8:5.725GHz/5.245GHz 0 0 0 0 0
Band 2
C1:5.733GHz/5.253GHz 0 0 0 1 0
C2:5.752GHz/5.272GHz 1 0 0 1 0
C3:5.771GHz/5.291GHz 0 1 0 1 0
C4:5.790GHz/5.310GHz 1 1 0 1 0
C5:5.809GHz/5.329GHz 0 0 1 1 0
C6:5.828GHz/5.348GHz 1 0 1 1 0
C7:5.847GHz/5.367GHz 0 1 1 1 0
C8:5.866GHz/5.386GHz 1 1 1 1 0
Band 3
D1:5.705GHz/5.225GHz 0 0 0 0 1
D2:5.685GHz/5.205GHz 1 0 0 0 1
D3:5.665GHz/5.185GHz 0 1 0 0 1
D4:5.645GHz/5.165GHz 1 1 0 0 1
D5:5.885GHz/5.405GHz 0 0 1 0 1
D6:5.905GHz/5.425GHz 1 0 1 0 1
D7:5.925GHz/5.445GHz 0 1 1 0 1
D8:5.945GHz/5.465GHz 1 1 1 0 1
Band 4
A1:5.740GHz/5.260GHz 0 0 0 1 1
A2:5.760GHz/5.280GHz 1 0 0 1 1
A3:5.780GHz/5.300GHz 0 1 0 1 1
A4:5.800GHz/5.320GHz 1 1 0 1 1
A5:5.820GHz/5.340GHz 0 0 1 1 1
A6:5.840GHz/5.360GHz 1 0 1 1 1
A7:5.860GHz/5.380GHz 0 1 1 1 1
* Note: Dual receivers frequency: Band 3&4
5

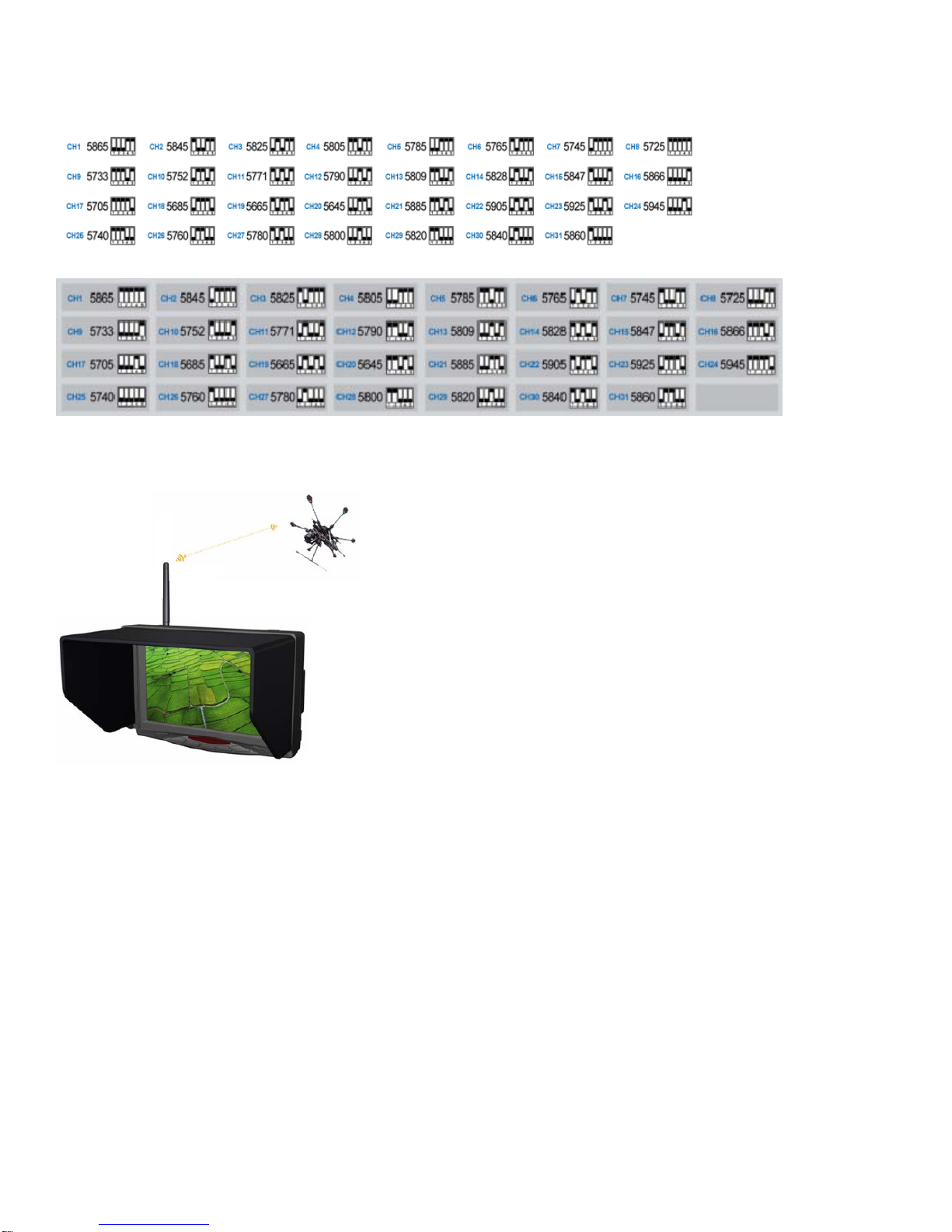

3-2 Frequency Control Demo
GENERAL transmitter setting with DELV-DUALFPV-7ss
DJI Transmitter setting with DELV-DUALFPV-7
3-3 Radio signal receiving antenna
1. Connected to the wireless receiving antenna port.
2. When a product with wireless module connected with antenna, and then connecting
with flying camera system, you can receive the sound and image signals.

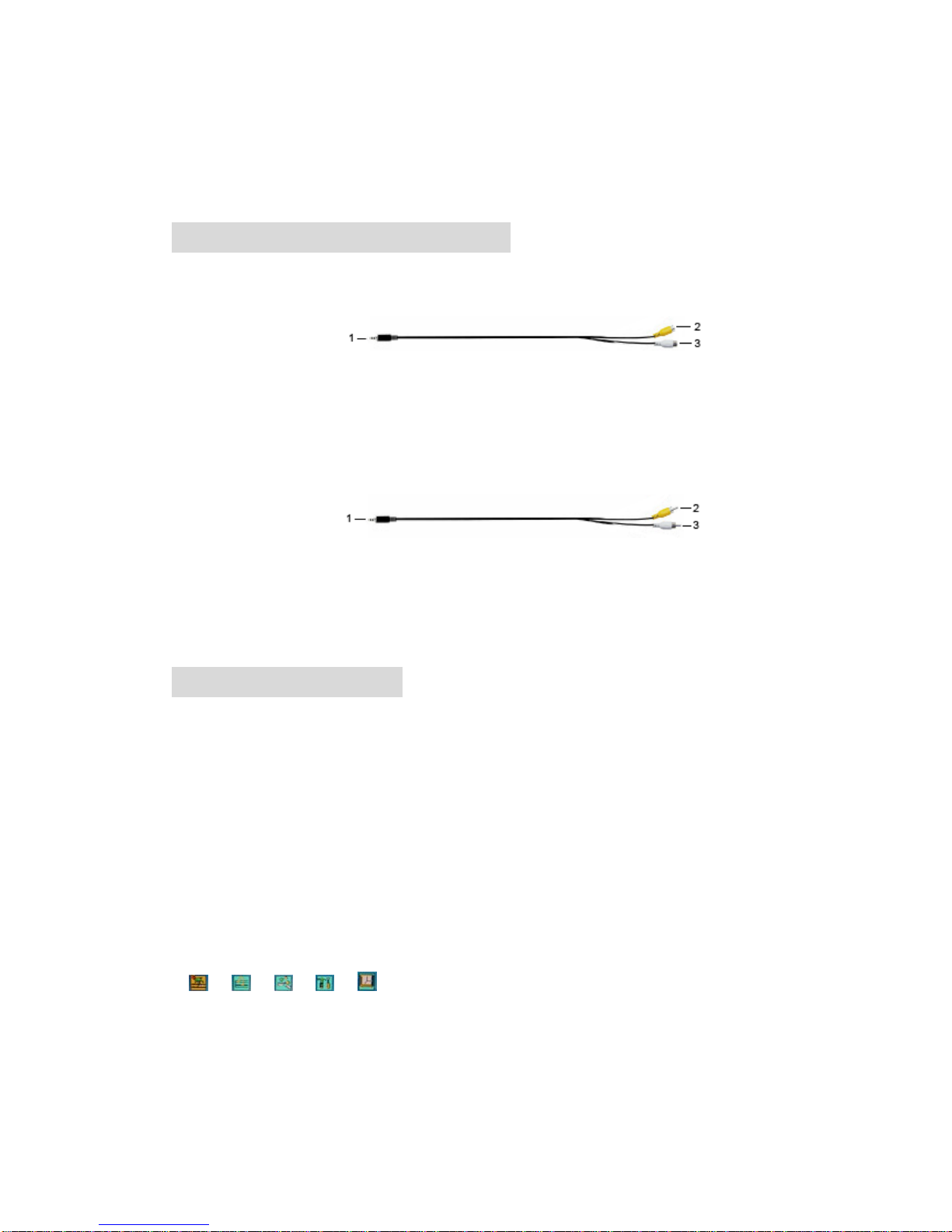

4. WIRING INSTRUCTIONS
4-1 Video output cable
1. Video output interface.
2. Yellow: video 1 output plug.
3. White: video 2 output plug.
4-2 Video input cable
1. Video input interface.
2. Yellow: video 1 input plug.
3. White: video 2 input plug.
5. MENU SETTING
1. VIDEO & 5.8G Switch
Press “AV ”button on device or video switch button on remote control to switch
video mode after power on.
2. Volume
Press “VOL- / VOL+” button on device or “◄/►” button on remote control to
decrease or increase volume after power on.
3. MENU Operation
Press “MENU”button on device or remote control to activate main menu options
（、、、、 ）; And then press to select option needs to adjust, option
will be highlighted as yellow and operation tips displayed below.
Press “CH- / CH+”button on device or “▲/▼”button on remote control to select
menu option, and then press “VOL- / VOL+”button on device or “►/◄”on remote
control to adjust option values.
6
ITEMS OPTIONS
Brightness 0 - 100
Contrast 0 - 100
Color 0 - 100
Language English, Chinese
ITEMS OPTIONS
Volume 0 - 100
ITEMS OPTIONS
U/D Normal, Down
(To reversal image up and down)
L/R Normal, Right
(To reversal image left and right)
ZOOM 16:9、4:3
S AUTO ON, OFF
7
ITEMS OPTIONS
C-SYS AUTO、PA L、NTSC、SECAM
ITEMS OPTIONS
SLEEP 0 - 240
TIME User-definable
OFF-TIME User-definable
ON-TIME User-definable
8

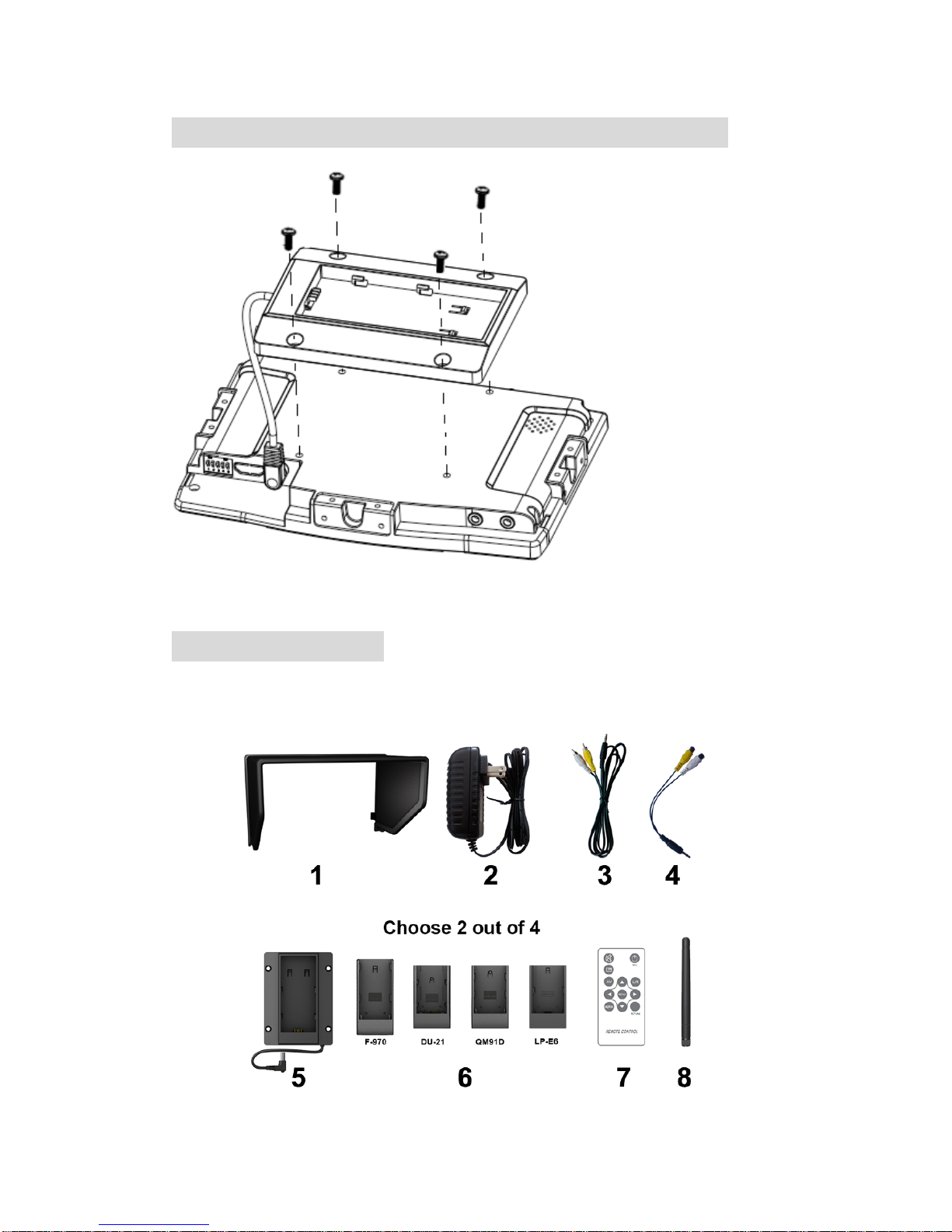

6. VESA INSTALLATION INSTRUCTIONS FIGURE
Screw ( Diameter 4mm×Length 20mm)
7. ACCESSORIES
Standard accessories:
