Delviro energy Zip Cloud Flush Mount Manuale utente

94 Brockport Drive, Toronto, Ontario, M9W 7J8

Tel. 1.877.502.3434 | [email protected]

www.delviro.com

94 Brockport Drive, Toronto, Ontario, M9W 7J8

Tel. 1.877.502.3434 | [email protected]

www.delviro.com

ZIP CLOUD

Installation

ZIP CLOUD

Installation

ZIP CLOUD

Installation

ZIP CLOUD

Installation

ZIP CLOUD

Installation

ZIP CLOUD

Installation

ZIP CLOUD Flush Mount

94 Brockport Drive, Toronto, Ontario, M9W 7J8

Tel. 1.877.502.3434 | [email protected]

www.delviro.com

94 Brockport Drive, Toronto, Ontario, M9W 7J8

Tel. 1.877.502.3434 | [email protected]

www.delviro.com

94 Brockport Drive, Toronto, Ontario, M9W 7J8

Tel. 1.877.502.3434 | [email protected]

www.delviro.com

94 Brockport Drive, Toronto, Ontario, M9W 7J8

Tel. 1.877.502.3434 | [email protected]

www.delviro.com

94 Brockport Drive, Toronto, Ontario, M9W 7J8

Tel. 1.877.502.3434 | [email protected]

www.delviro.com

ZIP CLOUD

Installation

ZIP CLOUD

Installation

ZIP CLOUD

Installation

ZIP CLOUD

Installation

ZIP CLOUD

Installation

ZIP CLOUD

Installation

ZIP CLOUD

Installation

ZIP CLOUD

Installation

Safety

Follow the Electrical Codes of the Country where this ﬁxture will be installed. For Canada follow the Canadian Electrical Code (CE) and for the

United States follow the National Electrical Code (NEC). Failure to follow these instructions could result in electric shock or damage property. All

wiring should also be performed by a qualiﬁed electrician. Check with local electrical authority for installation compliance regulations. Due to

variations in rooﬁng materials use these installation instructions as a guideline only.

NOTE:

Warnings

Risk of Fire or electric shock. This luminaire installation requires knowledge of luminaires electrical systems. If not qualiﬁed, do not attempt

installation. Contact a qualiﬁed electrician.

Risk of Fire or electric shock. Disconnect power at the electrical panel before installing or servicing the luminaire.

Based on maximum voltage restrictions for class 2 recruits in Canadian Electrical Code, the output cannot be accessible. This product has accessible

output terminals. This product complies with the requirements since the installation instruction requires installation in Restricted Access Area.

To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or other sharp objects.

General Instructions

Please read all instructions before installation.•

Always connect the grounding lead to ﬁxture, where applicable.•

Wiring of this product should be performed by a qualiﬁed electrician and must adhere to national and local building and electrical codes.•

Ensure power source conforms with the ﬁxture requirements.•

LED lamp replacement Marking - identifying the replacement LED lamp type/model to be used along with the manufacturer and ordering information.•

This device is not intended for use with emergency exits.•

94 Brockport Drive, Toronto, Ontario, M9W 7J8

Tel. 1.877.502.3434 | [email protected]

www.delviro.com

94 Brockport Drive, Toronto, Ontario, M9W 7J8

Tel. 1.877.502.3434 | [email protected]

www.delviro.com

ZIP CLOUD

Installation

ZIP CLOUD

Installation

ZIP CLOUD

Installation

ZIP CLOUD

Installation

Zip Cloud Flush Mount

Installation Instructions

Steps

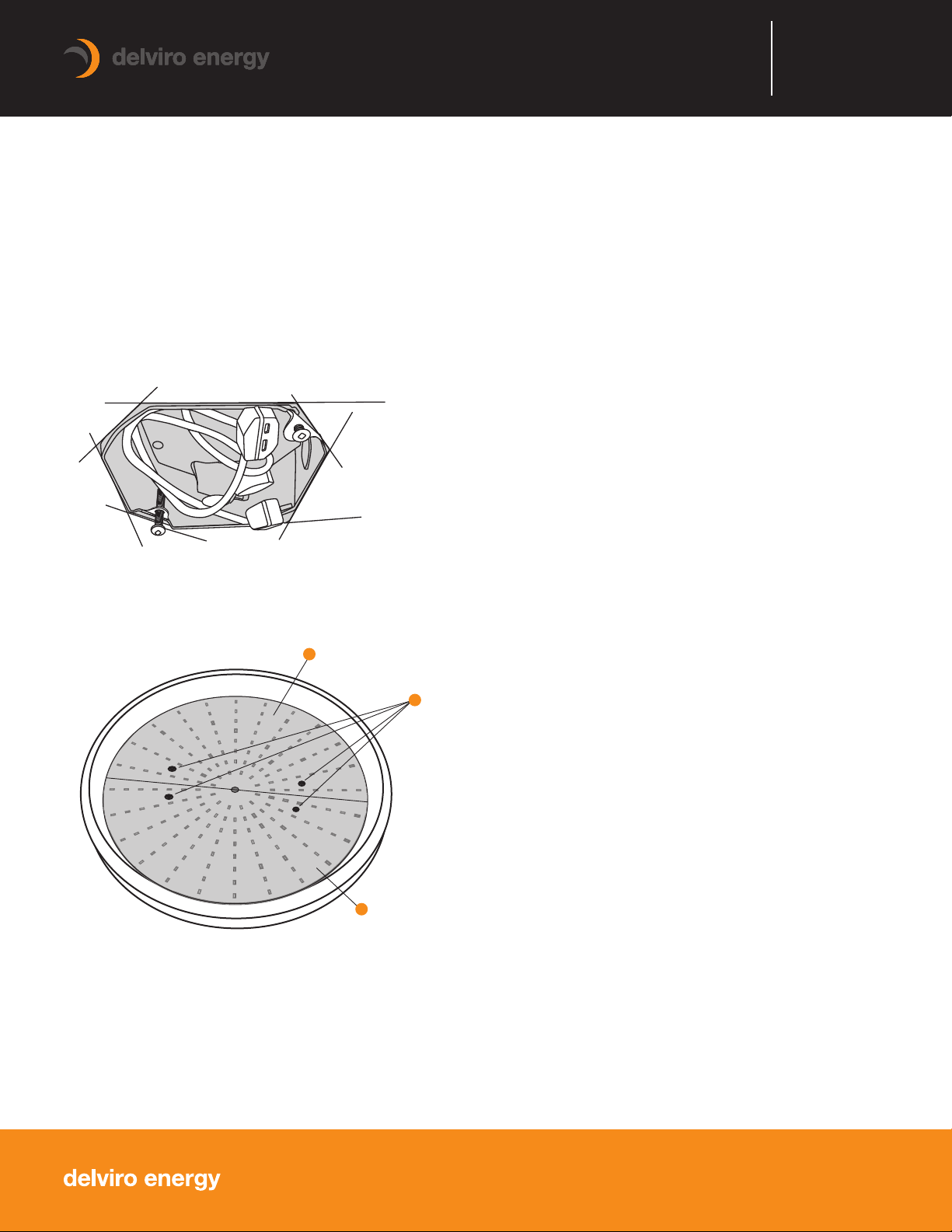

1. Disconnect the electrical power on the electrical panel prior to installing the zip cloud ﬁxture.

2. Remove the existing light ﬁxture (if existing). The only thing left on the ceiling should be the junction box with existing AC wire conductors

and ground wire (Fig. 1).

3. Remove the Zip Cloud from its shipping box and place on ﬂat surface (Fig. 2).

4. The LED panels are supported by aluminum material shaped in half circles. There is an upper part and lower part so when the led panels are

removed then there is no confusion how to put the half circles back into place after mounting the ﬁxture to the ceiling.

Fig. 1

Fig. 2

Middle holes

Upper part

Lower part

94 Brockport Drive, Toronto, Ontario, M9W 7J8

Tel. 1.877.502.3434 | [email protected]

www.delviro.com

94 Brockport Drive, Toronto, Ontario, M9W 7J8

Tel. 1.877.502.3434 | [email protected]

www.delviro.com

ZIP CLOUD

Installation

ZIP CLOUD

Installation

ZIP CLOUD

Installation

ZIP CLOUD

Installation

Fig. 3 & Fig. 4 Fig. 5

Fig. 6

UPPER

LOWER

Fig. 8

LOWER

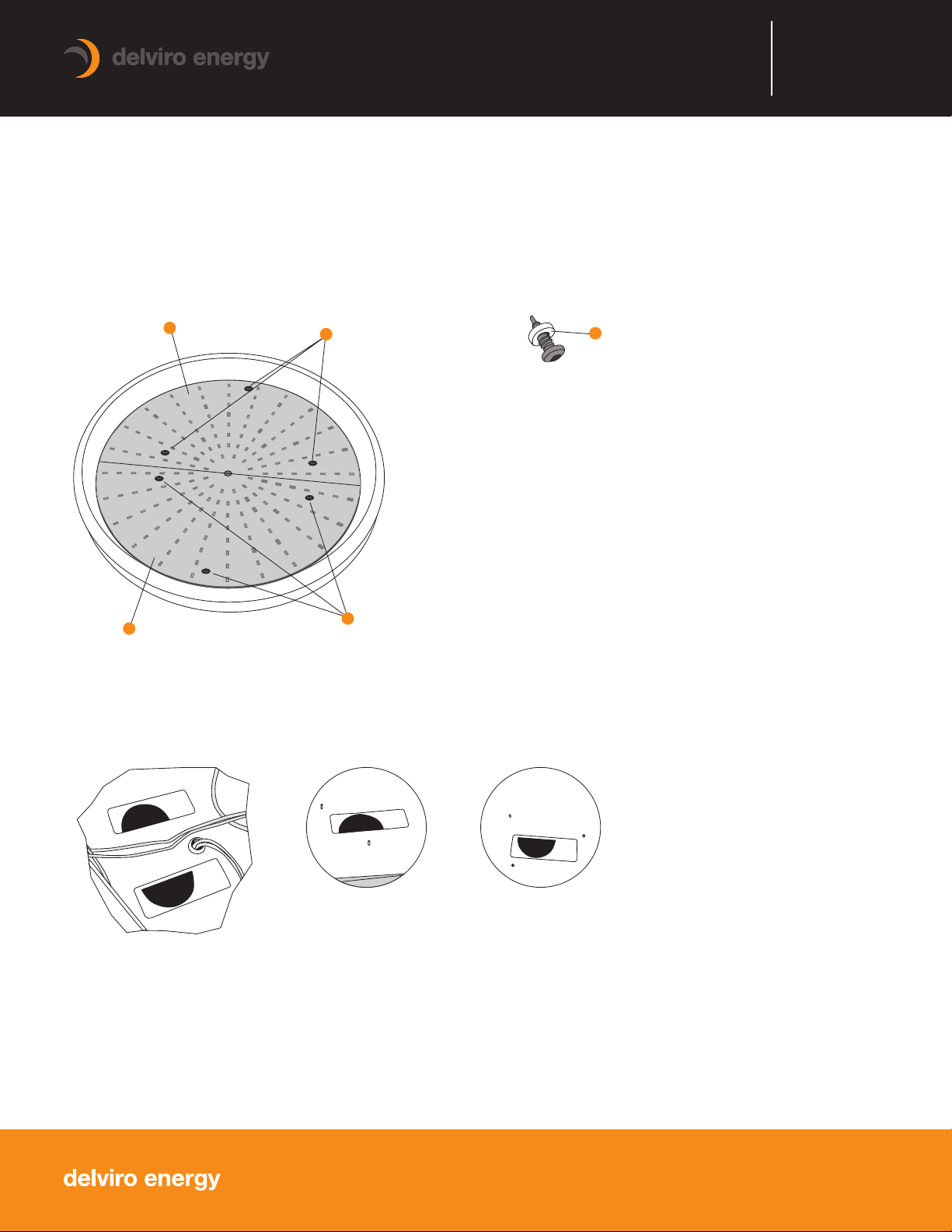

5. Remove the 3 black head screws in the upper part (Fig. 3) and also in the lower part (Fig. 4). There are nylon washers which help to prevent

electrical shorting of the metal screw head with the metal board. Ensure one has removed 6 black head screws and nylon washers in Fig. 5.

6. There is a label on the ﬁxture inside body showing UPPER and LOWER (Fig. 6) and corresponding labels on the back of the LED panels (Fig. 7 and

Fig. 8). The labels are on the ﬁxture and on the back of the panels to ensure no confusion when disassembling and assembling the ﬁxture.

Mounting screws

Upper part (Fig. 3)

Lower part (Fig. 4) Mounting screws

Screws with washers (x 5)

Fig. 7

UPPER

94 Brockport Drive, Toronto, Ontario, M9W 7J8

Tel. 1.877.502.3434 | [email protected]

www.delviro.com

94 Brockport Drive, Toronto, Ontario, M9W 7J8

Tel. 1.877.502.3434 | [email protected]

www.delviro.com

ZIP CLOUD

Installation

ZIP CLOUD

Installation

ZIP CLOUD

Installation

ZIP CLOUD

Installation

7. Find the orange luminaire disconnect (Fig. 9) and remove (disconnect) the male portion. Now set the LED panel upside down on a piece of

cardboard and ensure the board does not get scratched by anything. The female portion should be left in the ﬁxture.

8. Pull the existing 18-3 AWG wire from the top of the Zip Cloud into the junction box. Connect the appropriate wires using wire nuts (Black to Black,

White to White and Green to Ground wire). Ensure the ground wire is also grounded to junction box using a ground screw.

9. There are four holes pre drilled on the Zip Cloud housing for screws to go through for ﬂush mounting to ceiling (Fig. 10).

10. Use a #10 or #12 screw (wood screw for wood, tapcon screw for concrete or self drilling screws for metal, etc.) Ensure the pre drilled holes do

not interfere with anything existing in the ceiling. If that is the case the installer should drill new holes and ensure that no mounting angles gets

damaged. Wipe any debris left from drilling/screw from inside the sides of the ﬁxture and the bottom lip.

Fig. 9

Fig. 10

Orange luminaire disconnect

LOWER

UPPER

Surface mounting screw locations

Surface mounting

screw locations

Mounting angle

94 Brockport Drive, Toronto, Ontario, M9W 7J8

Tel. 1.877.502.3434 | [email protected]

www.delviro.com

94 Brockport Drive, Toronto, Ontario, M9W 7J8

Tel. 1.877.502.3434 | [email protected]

www.delviro.com

ZIP CLOUD

Installation

ZIP CLOUD

Installation

ZIP CLOUD

Installation

ZIP CLOUD

Installation

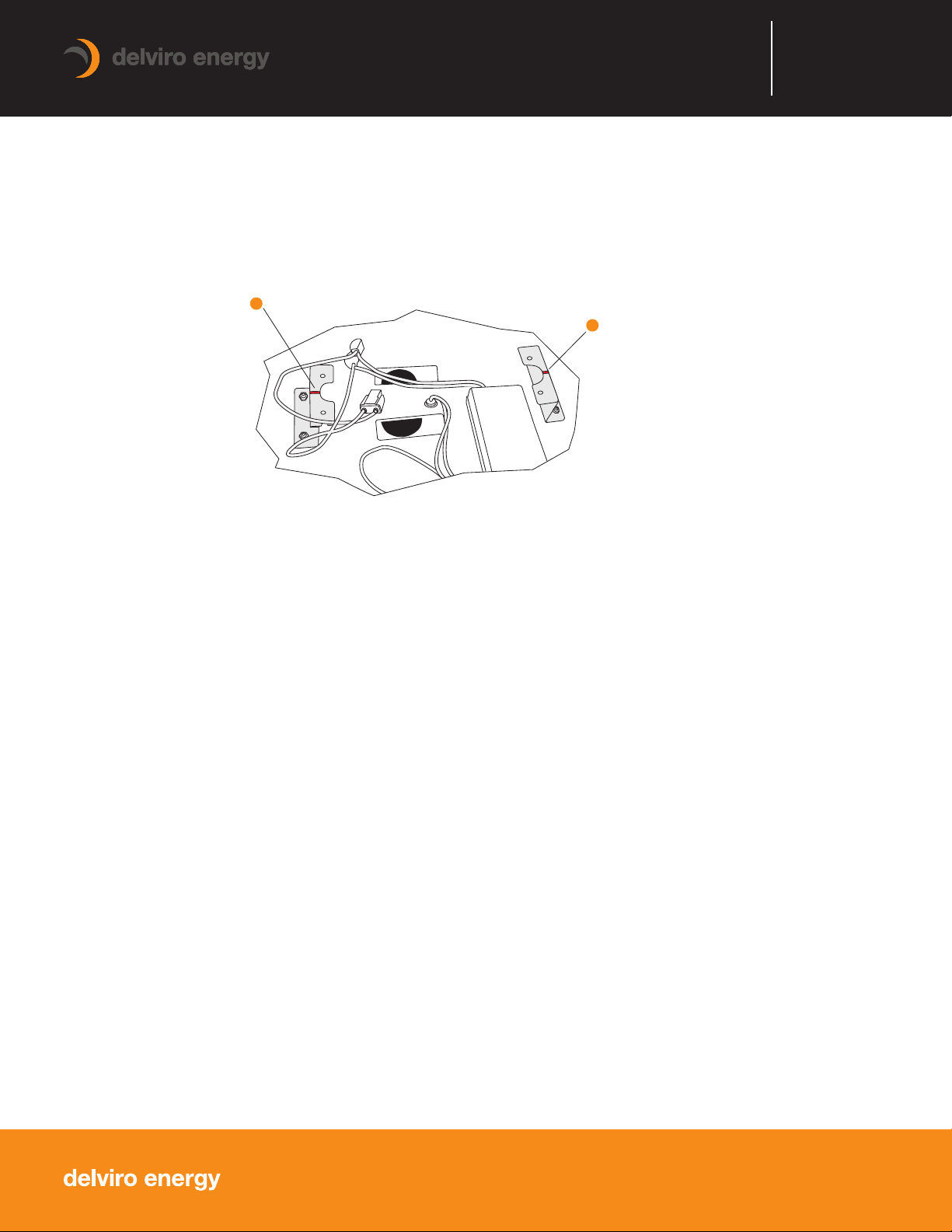

11. Take note of the red lines on the mounting angles (Fig. 11). Use the lines as a guide when placing the LED half moon

plates back into the ﬁxture. First connect the orange luminaire disconnect together - should like (Fig. 9).

12. Orient the LED panels in such a manner that the UPPER LED plate lines up with the UPPER area on the ﬁxture body (Fig. 7). and the LOWER LED

plate lines up with the LOWER area (Fig. 8). One should see that 3 holes will become visible that will be used to fasten the LED plates to the ﬁxture

body on each half. Check by hand and make sure that the plates are snug in place.

13. Use the black head screws with nylon washer and fasten the 6 screws respectively into place (see Fig. 3, 4, and 5).

It might be easier to ﬁrst fasten the 4 middle holes then the 2 remaining further holes after.

14. Check for loose wire or connections and turn on the power to ensure the light functions prior to placing the lens in

the ﬁxture.

15. Turn off the power and slide the provided lens through the front opening. The lens might have to be held in a curved

position to get through the opening. Ensure the plastic removable side stays towards the ﬁxture opening (outside).

16. Once the lens is in place remove the plastic from the front side plastic - the lens should be shiny.

17. Turn on the power to test the light and proceed with the next light installation.

LOWER

UPPER

Red lines to help installer line

up panels for assembly

Red lines to help installer line

up panels for assembly

Fig. 11
