Thank you for choosing DENALI
We know you would rather be riding your bike than wrenching on it, so we go the extra
mile to make sure our instructions are clear and as easy to understand as possible. If
you have any questions, comments, or suggestions don’t hesitate to give our gear
experts a call at 401.360.2550 or visit WWW.DENALIELECTRONICS.COM
Please Read Before Installing
DENALI products should always be installed by a qualified motorcycle technician. If
you are unsure of your ability to properly install a product, please have the product
installed by your local motorcycle dealer. DENALI takes no responsibility for damages
caused by improper installation. Caution: When installing electronics it is extremely
important to pay close attention to how wires are routed, especially when mounting
products to the front fender, front forks, or fairing of your motorcycle. Always be sure
to turn the handlebars fully left, fully right, and fully compress the suspension to
ensure the wires will not bind and have enough slack for your motorcycle to operate
properly.
Installation Tips
We strongly recommend using medium strength liquid thread locker on all screws,
nuts, and bolts. It is also important to ensure that all hardware is tightened to the
proper torque specifications as listed in your owner’s manual. For included accessory
hardware please refer to the default torque specifications provided below. Inspect all
hardware after the first 30 miles to ensure proper torque specifications are
maintained.
Hardware Sizing Guide
Not sure what size bolt you have? Use this ruler to measure screws, bolts, spacers, etc.
Remember, the length of a screw or bolt is measured from the start of the “mounting
surface” to the end of the screw, so only include the screw head when measuring
countersunk screws.
M3 10.0 in-lbs - 1.0 Nm
M4 23.0 in-lbs - 2.5 Nm
M5 44.5 in-lbs 3.5 ft-lbs 5.0 Nm
M6 78.0 in-lbs 6.5 ft-lbs 9.0 Nm
M8 - 13.5 ft-lbs 18.0 Nm
M10 - 30.0 ft-lbs 41.0 Nm
M12 - 52.0 ft-lbs 71.0 Nm
in-lbs
ft-lbs NmBolt Size
0in 1 2 3

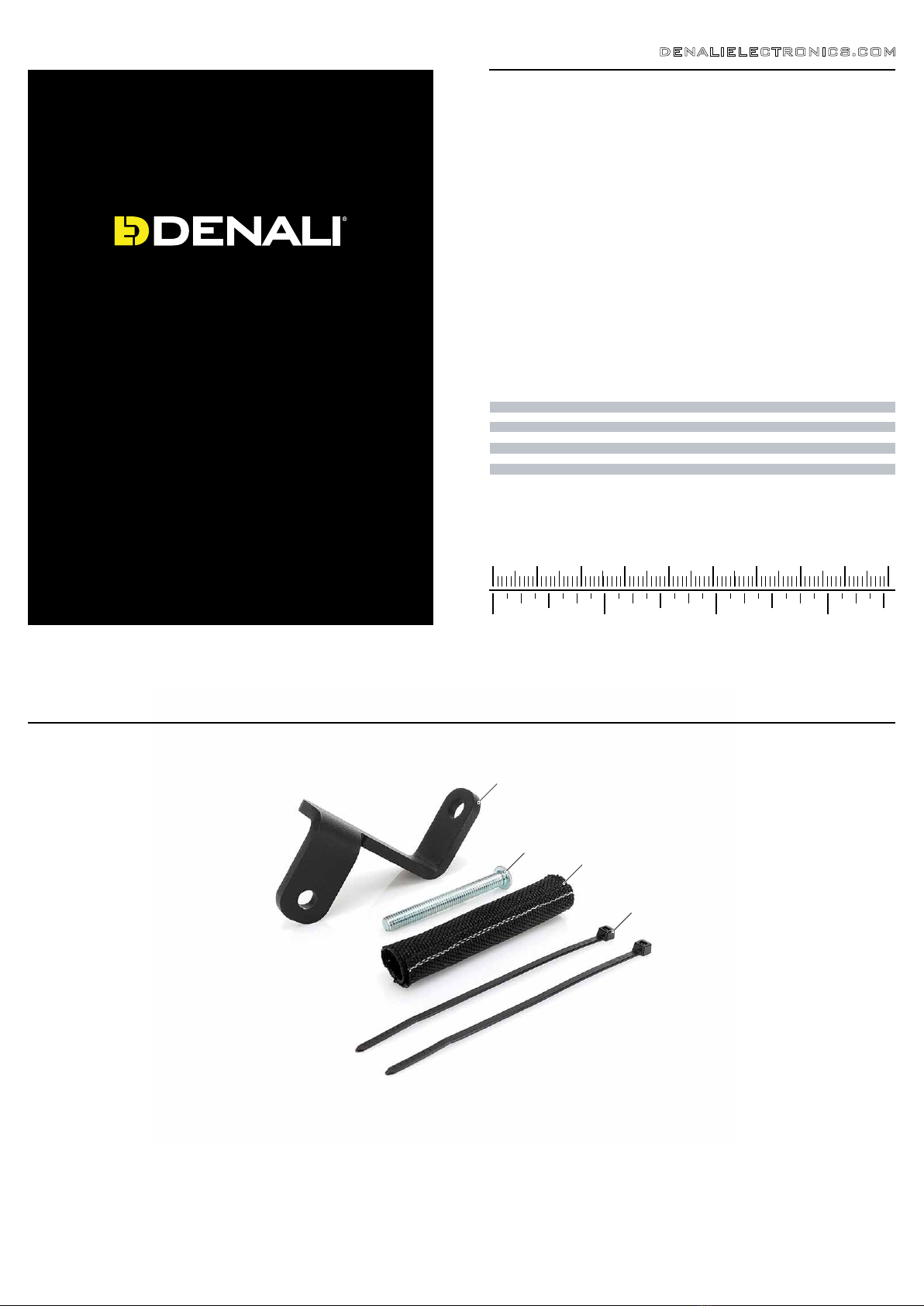

What’s In The Box?
DENALIELECTRONICS.COM
Horn Mounting Bracket
HMT.07.10700
Instruction Manual
(a) Horn Mounting Bracket.........................................................Qty 1
(b) M6x55 ISO 7380.................................................................Qty 1
(c) 1/2” x 3“ Abrasion Resistant Wrap-Around Sleeving..................Qty 1
(d) Zip Tie, 4”...........................................................................Qty 2
Kit Contents
Tools Required: 13mm Wrench, 4mm Allen Key
(a)
(b)
(c)
(d)

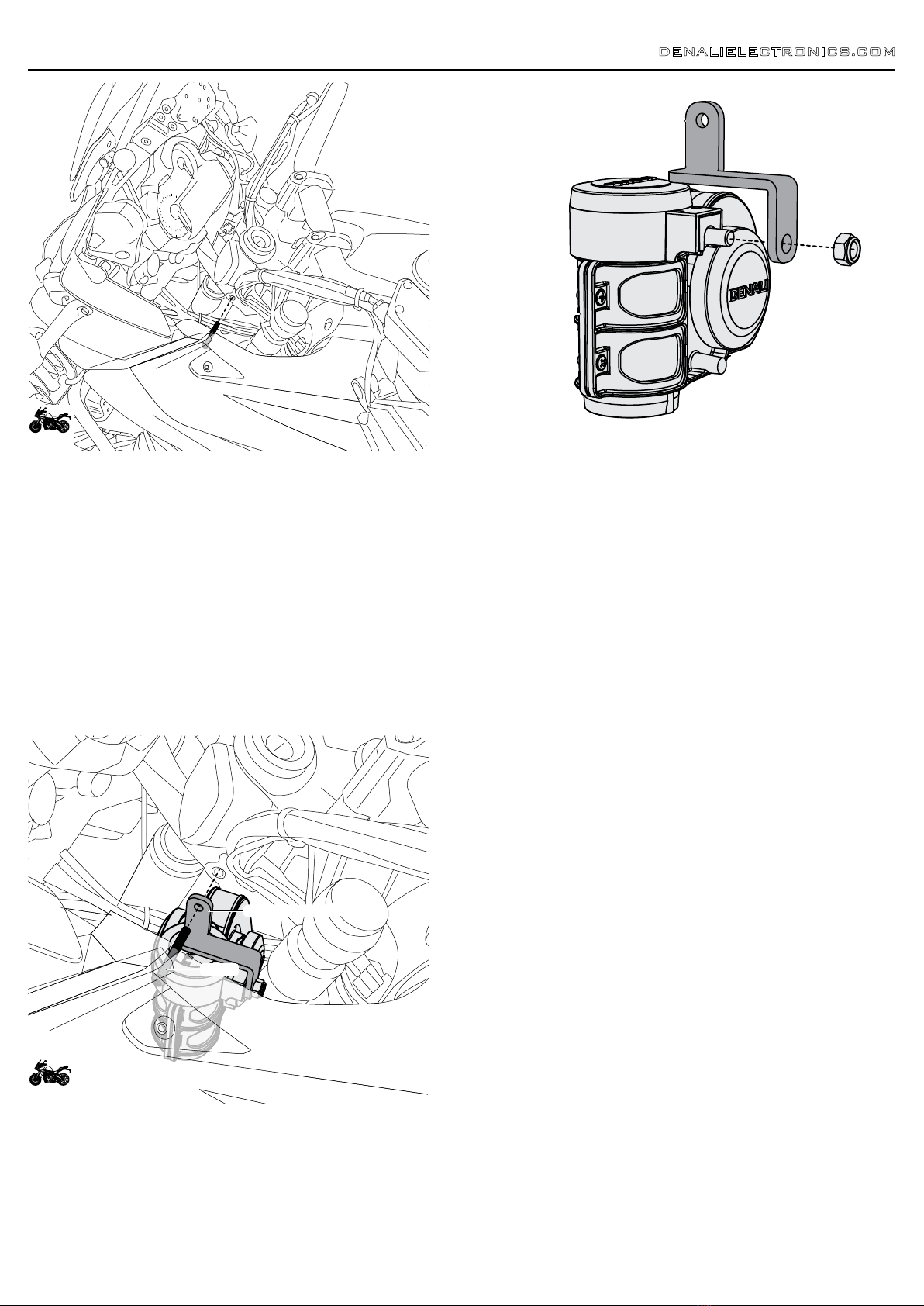

1. Installing The SoundBomb Horn
1.1 - Remove The OEM Bolt
Step One: Start by removing the lower M6 mounting bolt from the left side of the upper
fairing stay.
DENALIELECTRONICS.COM
1.2 - Install The Bracket To The Horn
Step One: Use the hardware supplied with the horn to bolt it to the mounting bracket
(a).
1.3 - Install The Horn To The Bike
Step One: Use the M6x55 bolt (b) to mount the bracket (a) and horn to the upper
fairing stay. Do not fully tighten at this time.
Step Two: Rotate the handle bars fully left and right while rotating the bracket towards
the rear of the bike to a position where the horn has no interference with either of the
fork legs or the shock.
Step Three: Once final adjustments have been made, you may fully tighten the bolt.
OEM Bolt
Mounting Bracket
Horn
Driving
Direction
Driving
Direction
Mounting Bracket
M6x55

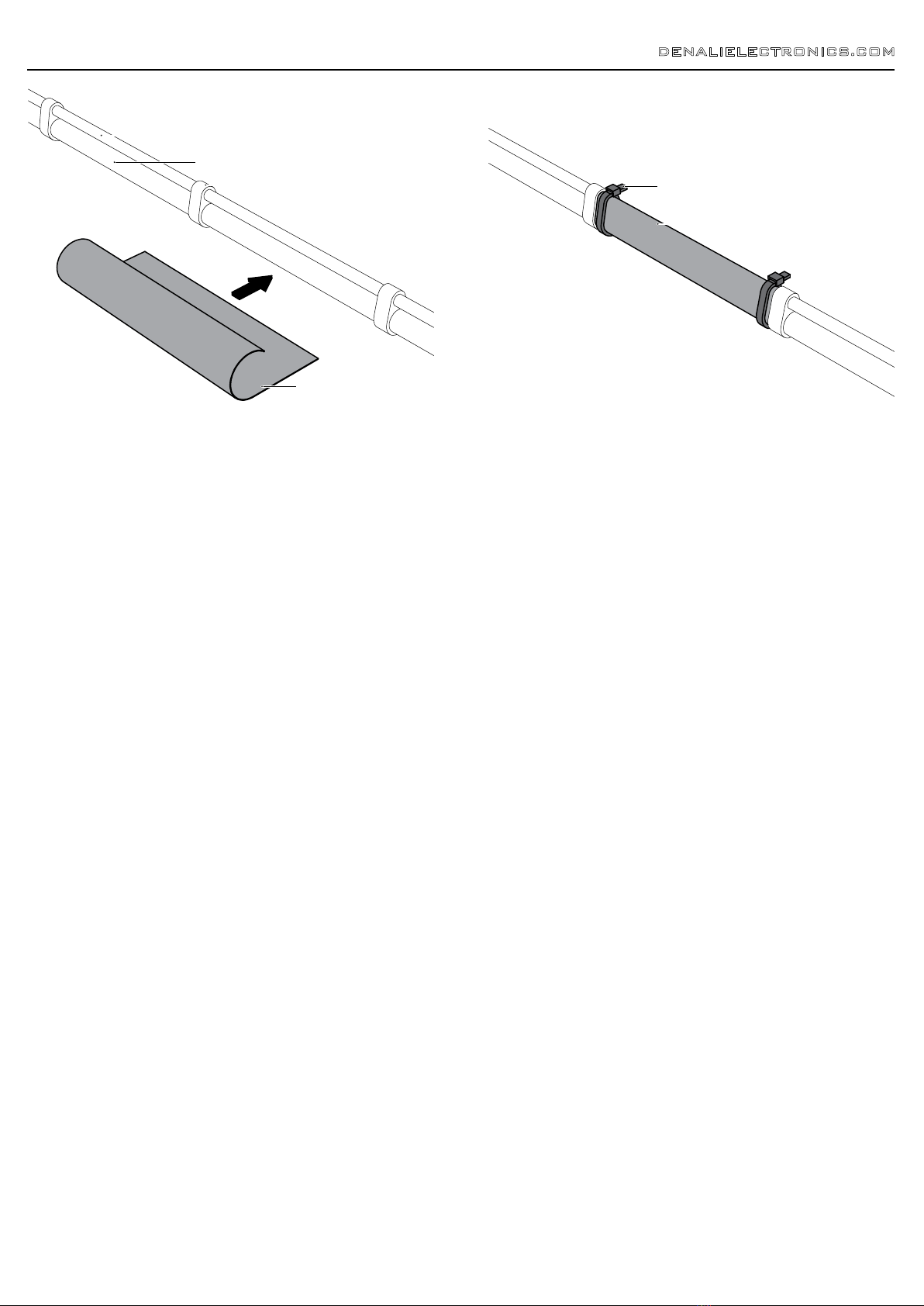

2. Installing The Brake Line Protector
2.1 - Installing the Brake Line Protector
The routing of the front brake line performed at the factory can vary from bike to bike.
This may cause the brake line to come into contact with the SoundBomb horn during
steering movement or suspension travel on some installations. If your brake line is
making contact with the SoundBomb Horn, use the included Abrasion Resistant Brake
Line Protector to prevent wear.
Step One: Locate the point the brake line is making contact with the SoundBomb Horn.
Step Three: Wrap the Abrasion Resistant Wrap (c) around the brake line and ABS wire
at the point it makes contact with the horn.
Note: The factory brake line clips can be slid/adjusted if the location of the point of
contact does not fall between the two clips.
DENALIELECTRONICS.COM
2.2 - Securing The Brake Line Protector
Step One: Use the Zip Ties (d) to secure each end of the Abrasion Resistant Wrap (c).
Abrasion Resistant Wrap
Abrasion Resistant Wrap
Zip Tie
Factory Brake Line Clips
ABS Wire
Front Brake Line
