Denon AVC-S660H Manuale utente

AVC-S660H

INTEGRATED NETWORK AV AMPLIFIER

Owner’s Manual

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Accessories 8

Inserting the batteries 9

Operating range of the remote control unit 9

Features 10

High quality sound 10

High performance 10

Easy operation 14

Part names and functions 15

Front panel 15

Display 18

Rear panel 20

Remote control unit 23

Connections

Speaker installation 27

Connecting speakers 29

Before connecting speakers 29

Standard connection 32

Connecting a TV 33

Connection 1 : TV equipped with an HDMI connector and

compatible with the ARC (Audio Return Channel) / eARC

(Enhanced Audio Return Channel) 34

Connection 2 : TV equipped with an HDMI connector and

incompatible with the ARC (Audio Return Channel) / eARC

(Enhanced Audio Return Channel) 35

Connection 3 : TV equipped without an HDMI connector 36

Connecting a playback device 37

Connecting a set-top box (Satellite tuner/cable TV) 38

Connecting a media player 39

Connecting a Blu-ray Disc player or DVD player 40

Connecting a game console or player device compatible with the

8K 41

Connecting a turntable 42

Connecting a USB memory device to the USB port 43

Connecting to a home network (LAN) 44

Wired LAN 44

Wireless LAN 45

Connecting the power cord 46

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Playback

Basic operation 48

Turning the power on 48

Selecting the input source 48

Adjusting the volume 49

Turning off the sound temporarily (Muting) 49

Playback a Blu-ray Disc player/DVD player 49

Playing a USB memory device 50

Playing files stored on USB memory devices 51

Listening to music on a Bluetooth device 54

Playing music from Bluetooth device 55

Pairing with other Bluetooth devices 56

Reconnecting to this unit from a Bluetooth device 57

Listening to audio on Bluetooth headphones 58

Listening to audio on Bluetooth headphones 59

Reconnecting to a Bluetooth headphones 60

Disconnecting Bluetooth headphones 60

Listening to Internet Radio 61

Listening to Internet Radio 62

Playing back files stored on a PC or NAS 63

Playing back files stored on a PC or NAS 64

Getting the HEOS App 67

HEOS Account 68

Playing from streaming music services 69

Listening to the same music in multiple rooms 72

AirPlay function 76

Playing songs from your iPhone, iPod touch or iPad 77

Playing iTunes music with this unit 77

Play a song from your iPhone, iPod touch or iPad on multiple

synced devices (AirPlay 2) 78

Spotify Connect function 79

Playing Spotify music with this unit 79

Convenience functions 80

Adding to HEOS Favorites 81

Playing back HEOS Favorites 81

Deleting a HEOS Favorites 82

Adjusting the audibility of dialog and vocals (Dialog Enhancer) 82

Adjusting the volume of each channel to match the input source

(Channel Level Adjust) 83

Adjusting the tone (Tone) 84

Adjusting audio delay (Audio Delay) 85

Displaying your desired video during audio playback (Video

Select) 86

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Selecting a sound mode 87

Selecting a sound mode 88

Direct playback 89

Auto surround playback 89

Description of sound mode types 90

Sound mode that can be selected for each input signal 93

HDMI Control function 96

Setting procedure 96

Sleep timer function 97

Using the sleep timer 98

Quick select plus function 99

Calling up the settings 100

Changing the settings 101

Panel lock function 102

Disabling all key button operations 102

Disabling all button operations except VOLUME 102

Canceling the Panel lock function 103

Remote lock function 104

Disabling the sensor function of the remote control unit 104

Enabling the remote sensor function 104

Web control function 105

Controlling the unit from a web control 105

Settings

Menu map 107

Menu operations 111

Audio 112

Subwoofer Level 112

Surr.Parameter 112

Restorer 117

Volume 118

Audyssey®119

Manual EQ 121

Video 124

HDMI Setup 124

HDMI Upscaler 128

On Screen Disp. 129

Screensaver 130

4K/8K Signal Format 130

HDCP Setup 132

TV Format 132

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Inputs 133

Input Assign 133

Source Rename 136

Hide Sources 136

Source Level 136

Speakers 137

Audyssey® Setup 137

Procedure for speaker settings (Audyssey® Setup) 139

Error messages 145

Retrieving Audyssey® Setup settings 146

Manual Setup 147

Speaker Config. 147

Distances 149

Levels 150

Crossovers 151

Bass 152

Network 153

Information 153

Connection 153

Wi-Fi Setup 154

Settings 155

Network Control 157

Friendly Name 157

Diagnostics 158

AirPlay 158

Wi-Fi and Bluetooth 159

HEOS Account 160

You have not signed in 160

You have already signed in 160

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

General 161

Language 161

ECO 161

Bluetooth Transmitter 164

Quick Sel.Names 165

Front Display 165

Firmware 166

Information 169

Usage Data 171

Save & Load 171

Setup Lock 172

Reset 172

Tips

Tips 174

Troubleshooting 176

Power does not turn on / Power is turned off 177

Operations cannot be performed through the remote control unit 178

Display on this unit shows nothing 178

No sound comes out 179

Desired sound does not come out 180

Sound is interrupted or noise occurs 183

No video is shown on the TV 184

The menu screen is not displayed on the TV 185

The color of the menu screen and operations content displayed

on the television is different from normal 185

AirPlay cannot be played back 186

USB memory devices cannot be played back 187

Bluetooth cannot be played back 188

The Internet radio cannot be played back 190

Music files on PC or NAS cannot be played back 191

Various online services cannot be played 192

The HDMI Control function does not work 192

Cannot connect to a wireless LAN network 193

Update/upgrade error messages 194

Resetting factory settings 195

Resetting network settings 196

Restoring the firmware to the factory defaults 197

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Appendix

About HDMI 198

Relationship between video signals and monitor output 202

Playing back a USB memory devices 204

Playing back a Bluetooth device 205

Playing back a file saved on a PC or NAS 206

Playing back Internet Radio 207

Personal memory plus function 207

Last function memory 207

Sound modes and channel output 208

Sound modes and surround parameters 209

Types of input signals, and corresponding sound modes 212

Explanation of terms 215

Trademark information 222

Specifications 224

Index 229

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Thank you for purchasing this Denon product.

To ensure proper operation, please read this owner’s manual carefully before using the product.

After reading this manual, be sure to keep it for future reference.

Accessories

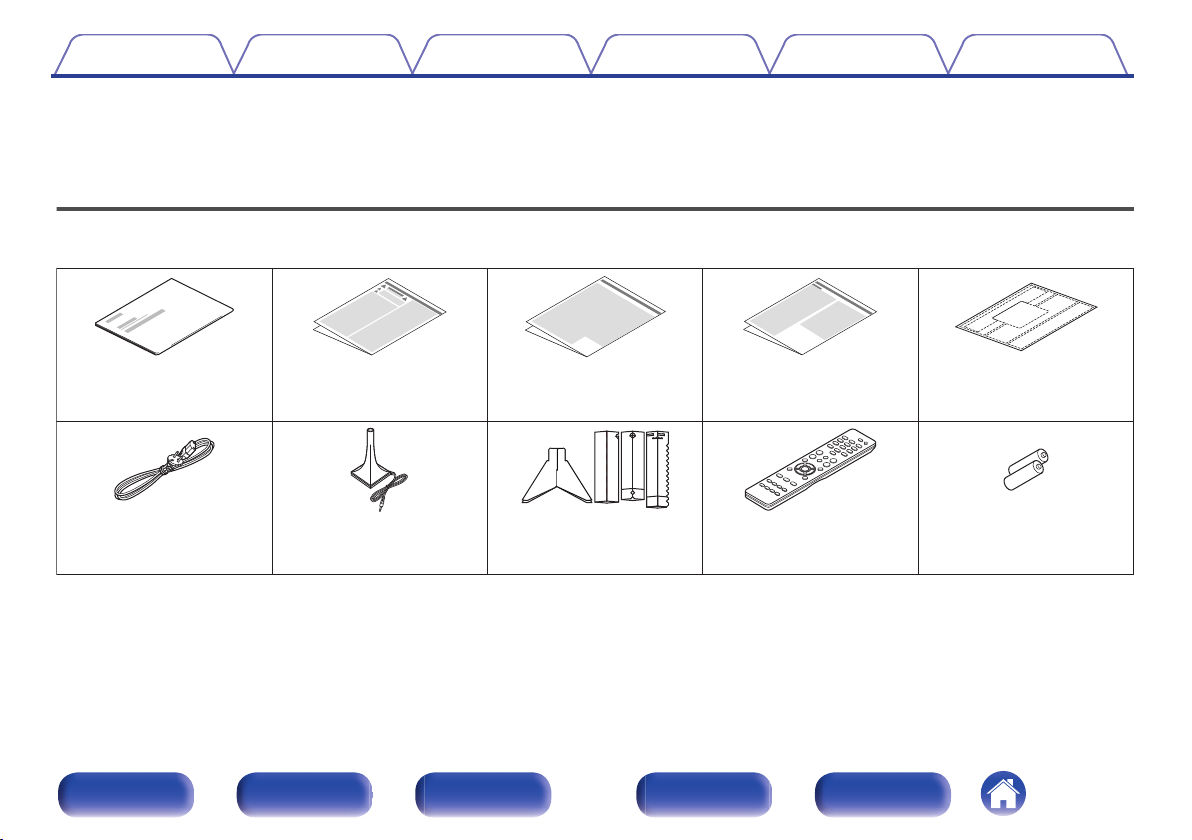

Check that the following parts are supplied with the product.

Quick Start Guide Safety Instructions Cautions on Using Batteries Notes on radio Cable labels

Power cord Sound calibration

microphone

Remote control unit

(RC-1243)

Sound calibration

microphone stand

R03/AAA batteries

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

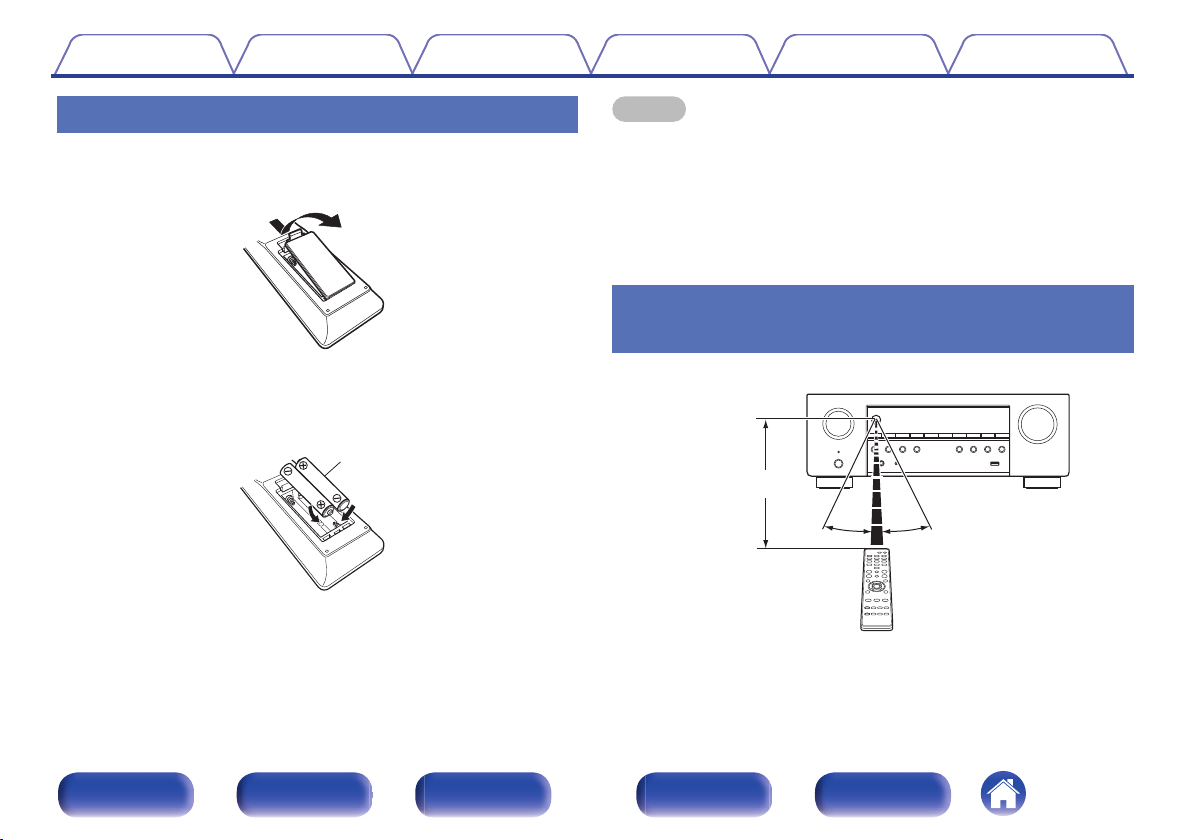

Inserting the batteries

1Remove the rear lid in the direction of the arrow and

remove it.

2Insert two batteries correctly into the battery

compartment as indicated.

Batteries

3Put the rear cover back on.

NOTE

0To prevent damage or leakage of battery fluid:

0Do not use a new battery together with an old one.

0Do not use two different types of batteries.

0Remove the batteries from the remote control unit if it will not be in use for long

periods.

0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery

compartment and insert new batteries.

Operating range of the remote control

unit

Point the remote control unit at the remote sensor when operating it.

30° 30°

Approx. 7 m

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Features

High quality sound

0With discrete circuit technology, the power amplifier provides

identical quality for all 5-channels (100 Watts x 5-channels)

For optimum realism and stunning dynamic range, the power amplifier

section features discrete power devices (not integrated circuitry).

By using high current, high power discrete power devices, the amplifier

is able to easily drive high quality speakers.

High performance

08K 60Hz input/output supported

8K,

4K 120Hz

8K,

4K 120Hz

When 8K Ultra HD (High Definition) is used, an input/output speed of 60

frames per second (60p) is achieved for video signals. When connected

to 8K Ultra HD and 60p video signal input compatible TV, you can enjoy

the sense of realism only available from high-definition images, even

when viewing fast-moving video.

This unit supports a wide range of HDR content, delivering even higher

definition video.

0HDCP 2.3

This unit is compatible with HDCP 2.3 copyright protection standard.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index
