Denon AVR-S710W Manuale utente

Model Information

INTEGRATED NETWORK AV RECEIVER

I/R Codes

Product Specifications

Upgrades/Updates

FAQ’s

Accessories

Reset Procedure

Warranty

Remote Control

Rear Panel

Front Panel

MODEL: AVR-S710W

MI070115E3-1

NOTE:

This edition is missing the FAQ’s content (pages 15 and 16) ………………………………………………………..7/1/2015

This edition is missing the link to the IR Codes………………………………………………………………………....7/1/2015

Model Information

Index

MASTER VOLUME knob

This adjusts the volume level.

ZONE2 ON/OFF button

This turns the power of ZONE2 (separate room) on/off.

ZONE2 SOURCE button

This selects the input source for ZONE2.

Tuner preset channel buttons

(TUNER PRESET CH +, –)

These select preset broadcast stations.

 Tuning up / Tuning down buttons (TUNE +, –)

Select either FM broadcast or AM broadcast.

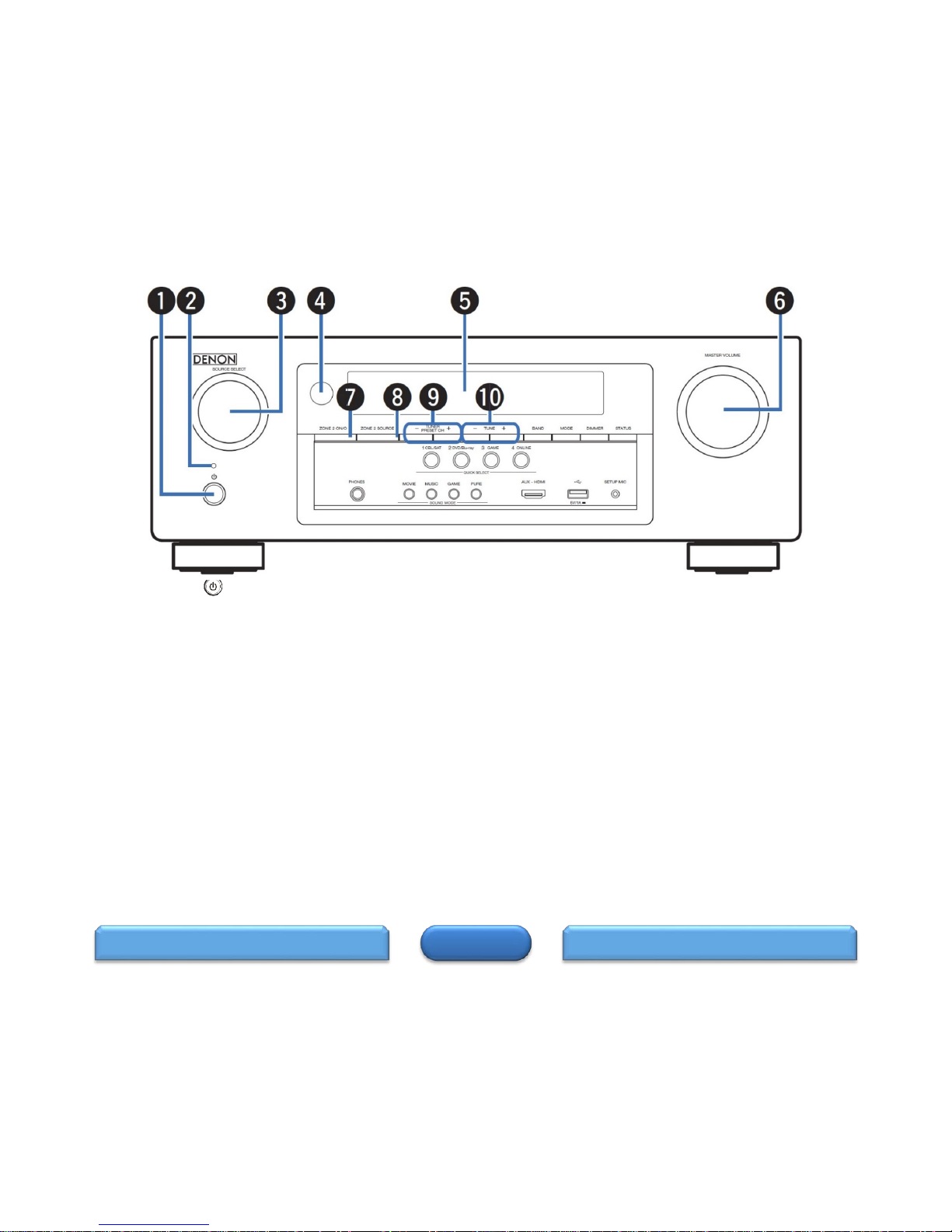

Front Panel (1 of 2)

HOME FRONT PANEL 2DISPLAY 1

Power operation button ( )

Used to turn the power of the MAIN ZONE (room where this unit is located)

on/off (standby).

Power indicator

This is lit as follows according to the power status:

Green: Power on

Off: Normal standby

Red:

oWhen “HDMI Control” is set to “On”

oWhen “HDMI Pass Through” is set to “On”

oWhen “Network Control” is set to “Always On”

SOURCE SELECT knob

This selects the input source.

Remote control sensor

This receives signals from the remote control unit.

Display

This displays various pieces of information.

SOUND MODE buttons

These select the sound mode.

QUICK SELECT buttons

With a single press of any of these buttons, you can call up various

settings you’ve registered to each button such as the input source,

volume level and sound mode settings.

AUX-HDMI connector

This is used to connect HDMI output compatible devices such as video

camcorders and game consoles.

USB port

This is used to connect USB storages (such as USB memory devices)

and the USB cable supplied with iPod.

 SETUP MIC jack

This is used to connect the supplied Sound calibration microphone.

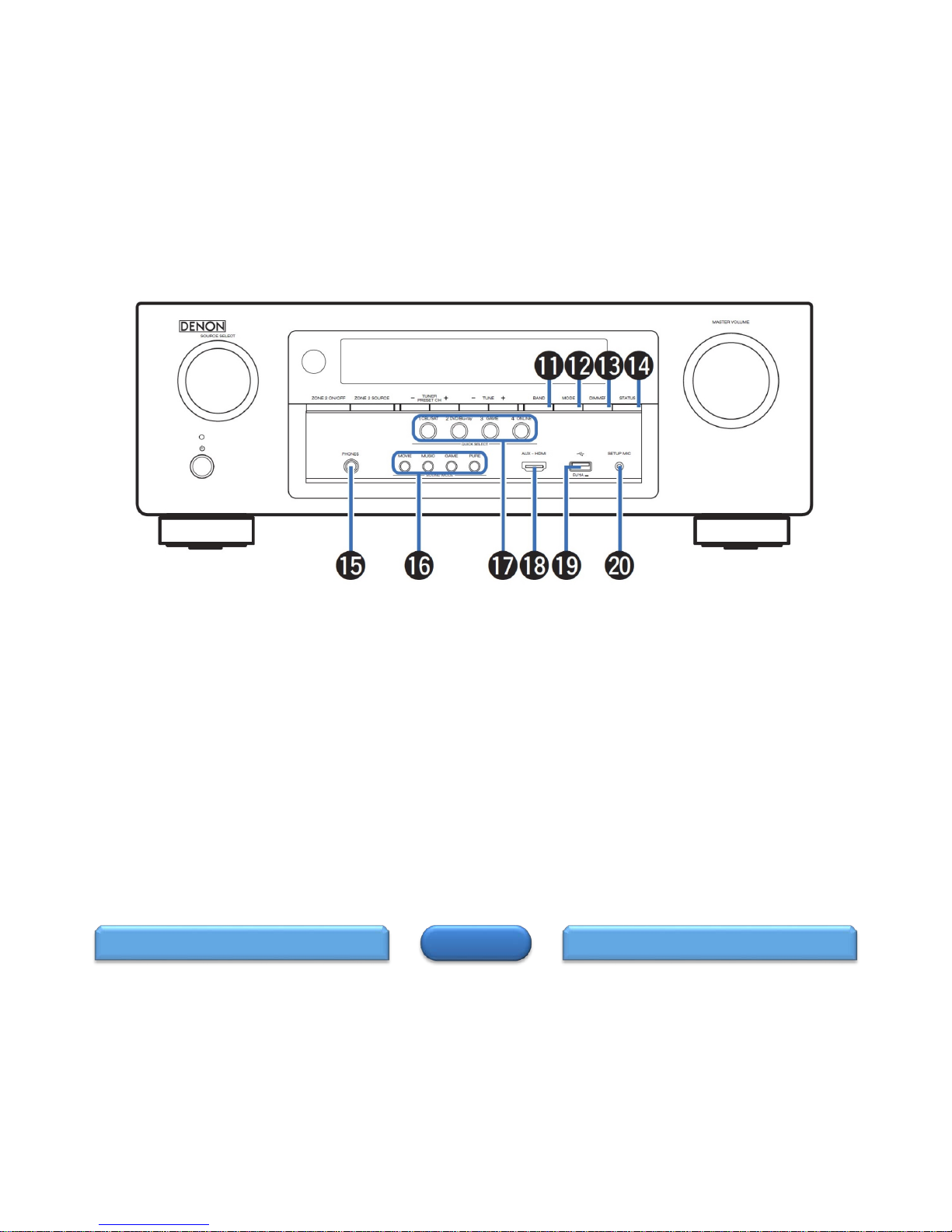

Front Panel (2 of 2)

HOME DISPLAY 1FRONT PANEL 1

Reception band select button (BAND)

This switches the reception band.

Tune mode select button (MODE)

This switches the tuning mode.

DIMMER button

Each press of this switches the brightness of the display.

STATUS button

Each press of this switches the status information that is shown on the

display.

Headphones jack (PHONES)

This is used to connect headphones.

When the headphones are plugged into this jack, audio will no longer be

output from the connected speakers or from the SUBWOOFER

connectors.

NOTE:

To prevent hearing loss, do not raise the volume level excessively when using

headphones.

Input mode indicators

These light according to the audio input mode settings of each input

source.

Surround back indicator

This lights when audio signals are being output from the surround back

speakers.

Decoder indicators

These light when Dolby or DTS signals are input or when the Dolby or

DTS decoder is running.

Audyssey® indicator

This lights when “MultEQ® XT”, “Dynamic EQ” or “Dynamic Volume”

has been set up.

Tuner reception mode indicators

These light up according to the reception conditions when the input

source is set to “Tuner”.

TUNED: Lights up when the broadcast is properly tuned in.

STEREO: Lights up when receiving FM stereo broadcasts.

Sleep timer indicator

This lights when the sleep mode is selected.

Circle indicator

This is displayed when the input source is “Online Music” or “iPod/USB”

when you are playing back music.

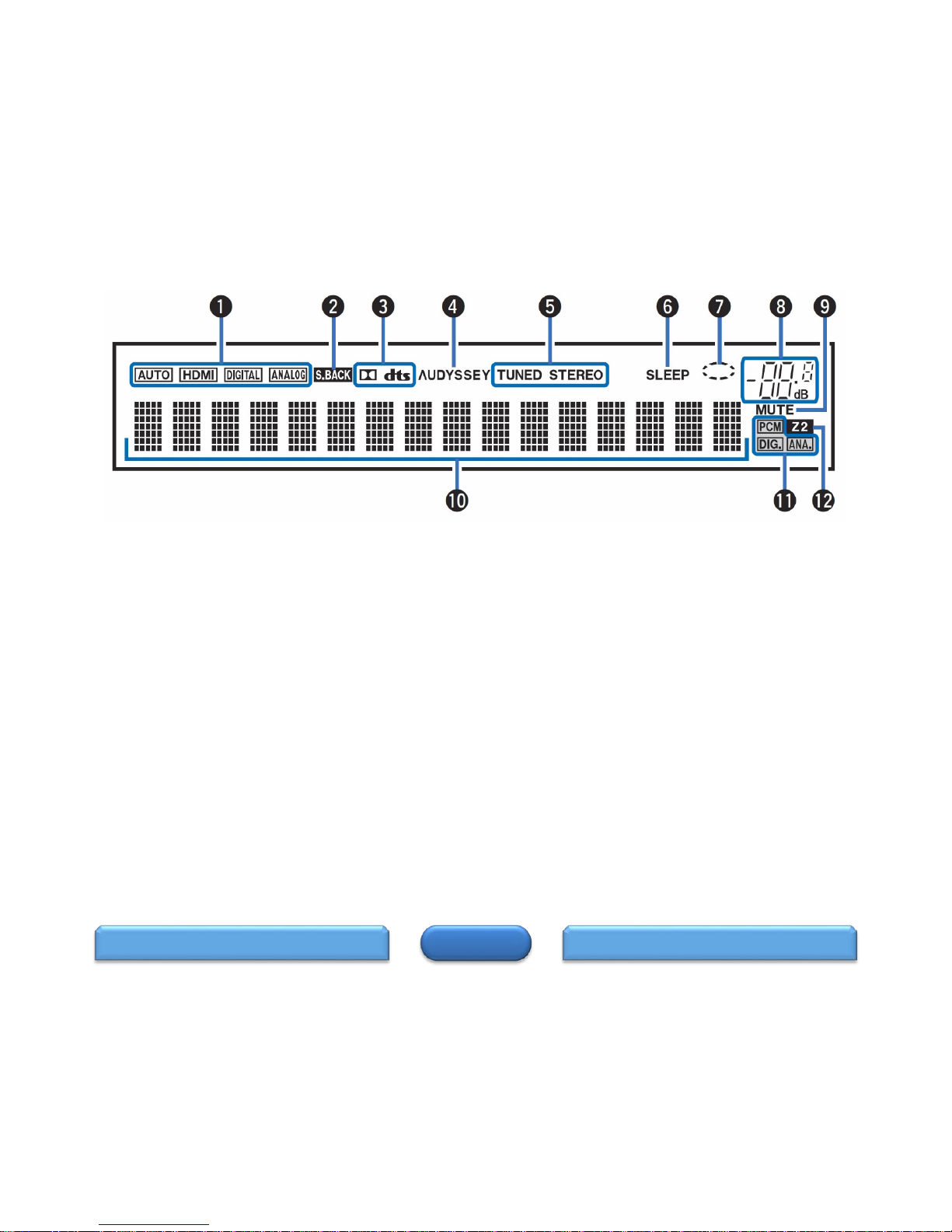

Display (1 of 2)

HOME DISPLAY 2FRONT PANEL 2 4

HOME REAR PANEL 1DISPLAY 1

Display (2 of 2)

Volume indicator

MUTE indicator

This blinks while the sound is muted.

Information display

The input source name, sound mode, setting values and other

information are displayed here.

Input signal indicators

The respective indicator will light corresponding to the input signal.

ZONE2 indicator

This lights up when ZONE2 (separate room) power is turned on.

Rod antennas for Bluetooth/wireless LAN

Stand this antenna upright when connecting to a network via wireless

LAN, or when connecting to a handheld device via Bluetooth.Analog audio connectors (AUDIO)

Used to connect devices equipped with analog audio connectors.

PRE OUT connectors

Used to connect a subwoofer with built-in amplifier.

 Digital audio connectors (DIGITAL AUDIO)

Used to connect devices equipped with digital audio connectors.

•“Connection 2 : TV equipped with an HDMI connector and incompatible

with the ARC (Audio Return Channel)”

•“Connection 3 : TV equipped without an HDMI connector”

•“Connecting a set-top box (Satellite tuner/cable TV)”

NETWORK connector

Used to connect to a LAN cable when connecting to a wired LAN network.

HOME

DISPLAY 2 REAR PANEL 2

The antenna clip can be removed from the rear panel.

A Rotate the antenna clip 90 degrees to the left.

B Pull the antenna clip out towards yourself.

•The antenna clip is needed when transporting this unit.

Keep it in a safe place.

•Attach the antenna clip by following the steps for

removing it in reverse.

Rear Panel (1 of 2)

HOME Remote Control 1REAR PANEL 1

Rear Panel (2 of 2)

HDMI connectors

Used to connect devices equipped with HDMI connectors.

•“Connection 1 : TV equipped with an HDMI connector and compatible

with the ARC (Audio Return Channel)”

•“Connection 2 : TV equipped with an HDMI connector and

incompatible with the ARC (Audio Return Channel)”

•“Connecting a set-top box (Satellite tuner/cable TV)”

•“Connecting a DVD player or Blu-ray Disc player”

Video connectors (VIDEO)

Used to connect devices equipped with video connectors.

Power cord

Used to connect the power cord.

FM/AM antenna terminals (ANTENNA)

Used to connect FM antennas and AM loop antennas.

Speaker terminals (SPEAKERS)

Used to connect speakers.

NOTE

Do not touch the inner pins of the connectors on the rear panel. Electrostatic

discharge may cause permanent damage to the unit.

ZONE2 ON/OFF button (ZONE2 )

This turns the power of ZONE2 (separate room) on/off.

ZONE2 VOLUME buttons ()

This setting adjusts the volume level for ZONE2.

ZONE2 SOURCE button

This selects the input source for ZONE2.

Input source select buttons

These selects the input source.

SOUND MODE buttons

These select the sound mode.

Information button (INFO)

This displays the status information on the TV screen.

Cursor buttons ()

These select items.

ENTER button

This determines the selection.

HOME REMOTE CONTROL 2REAR PANEL 2

Remote Control (1 of 3)

BACK button

This returns to the previous screen.

System buttons

These perform playback related operations.

Tuning up / Tuning down buttons (TUNE +, –)

These select either FM broadcast or AM broadcast.

QUICK SELECT buttons (1 –4)

These call up settings registered to each button, such as input source,

volume level and sound mode settings.

Remote control signal transmitter

This transmits signals from the remote control unit.

ECO Mode button

This switches to ECO Mode.

POWER button ( )

This turns the power on/off.

SLEEP button

This sets the sleep timer.

HOME REMOTE CONTROL 3REMOTE CONTROL 1

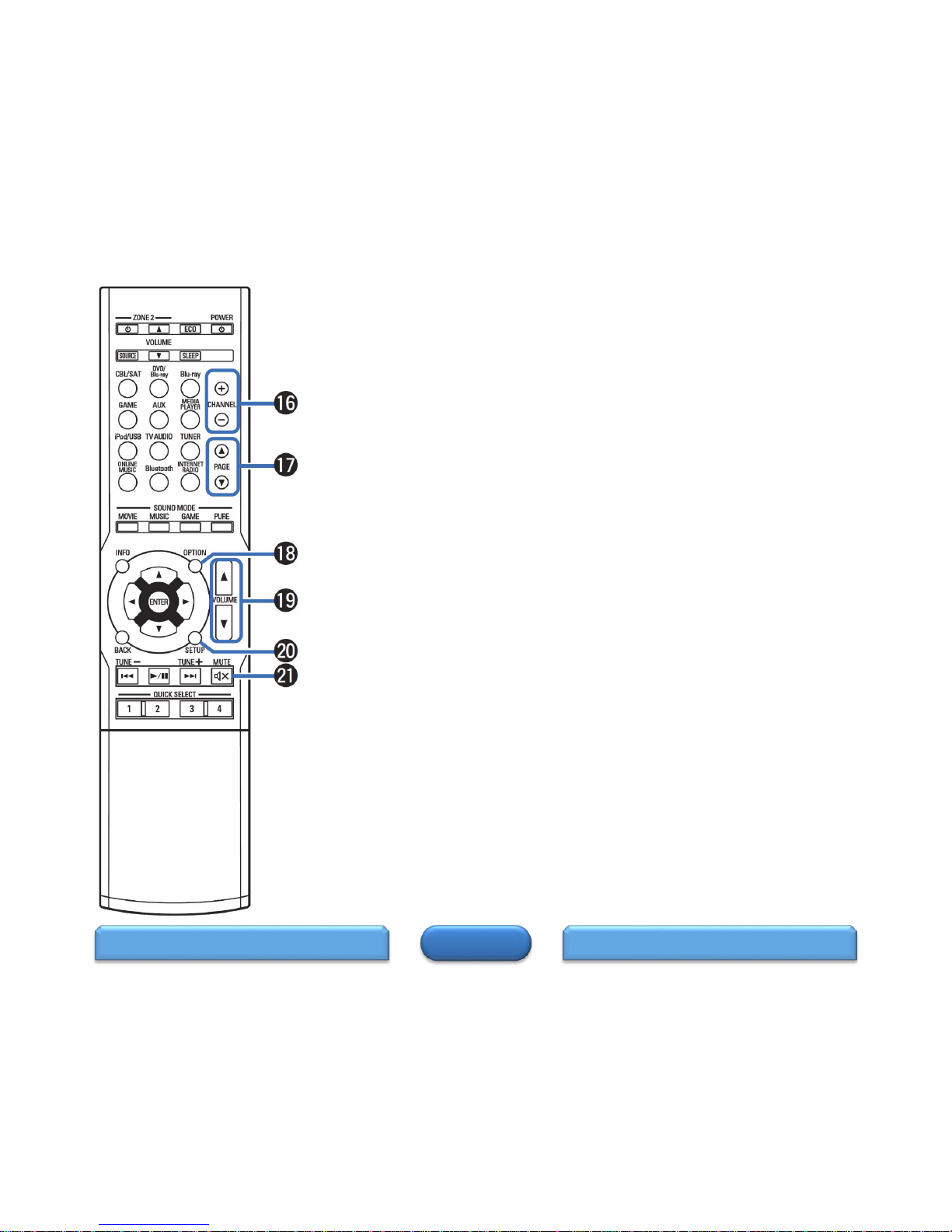

Remote Control (2 of 3)

Channel select buttons (CHANNEL +, –)

These select preset broadcast stations.

Page search buttons (PAGE )

These switch pages.

OPTION button

This displays the option menu on the TV screen.

VOLUME buttons ()

These adjusts the volume level.

 SETUP button

This displays the menu on the TV screen.

 MUTE button ()

This mutes the output audio.

HOME WARRANTY 1REMOTE CONTROL 2

Remote Control (3 of 3)
