AVR-X4100W
INTEGRATED NETWORK AV RECEIVER
Quick Start Guide
Read Me First....
Kurzanleitung / Guide de démarrage rapide / Guida di Avvio Rapido /
Guía de inicio rápido / Snelhandleiding / Snabbstartsguide /
Краткое руководство пользователя / Skrócona instrukcja obsługi
English
DEutsch
Français
italiano
EsPaÑol
nEDErlanDs
sVEnsKa
РУССКИЙ
PolsKi
1
Thank you for choosing a Denon AV
receiver. This guide provides step-by-
step instructions for setting up your AV
receiver.
Please do not return this unit to the
store – call for assistance.
If you need help… :
If you need additional help in solving
problems, contact Denon customer
service in your area.
www.denon.com
Welcome Before You Begin

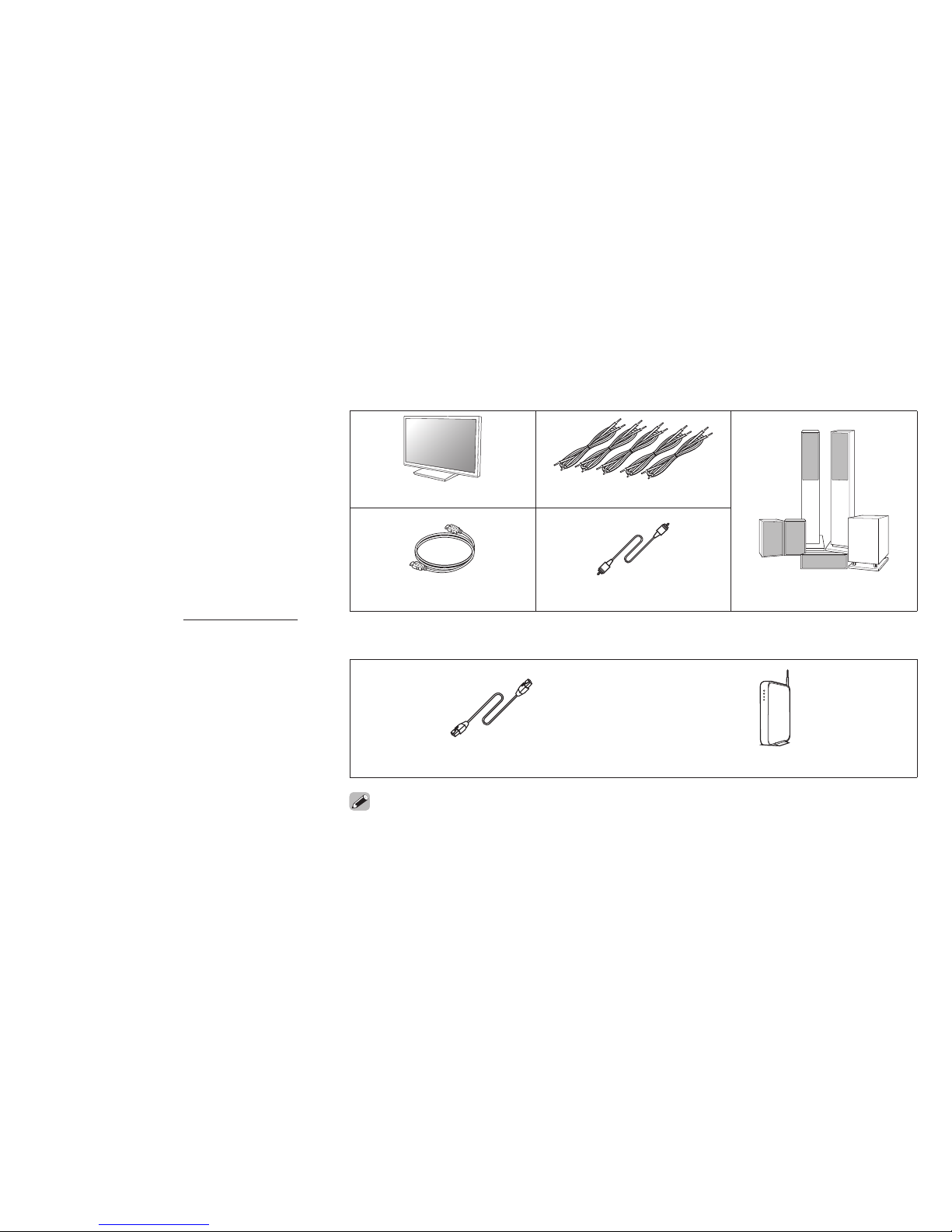

Required for Setup
TV Speaker cables
HDMI cable Subwoofer cable Speaker systems
Optional
LAN cable Wi-Fi router
• When connecting this unit to a device that is compatible with the Deep Color, 4K and ARC
functions, use a “High Speed HDMI cable with Ethernet” that displays the HDMI logo.
• These drawings are for illustrative purposes only and may not represent the actual product(s).
or
2

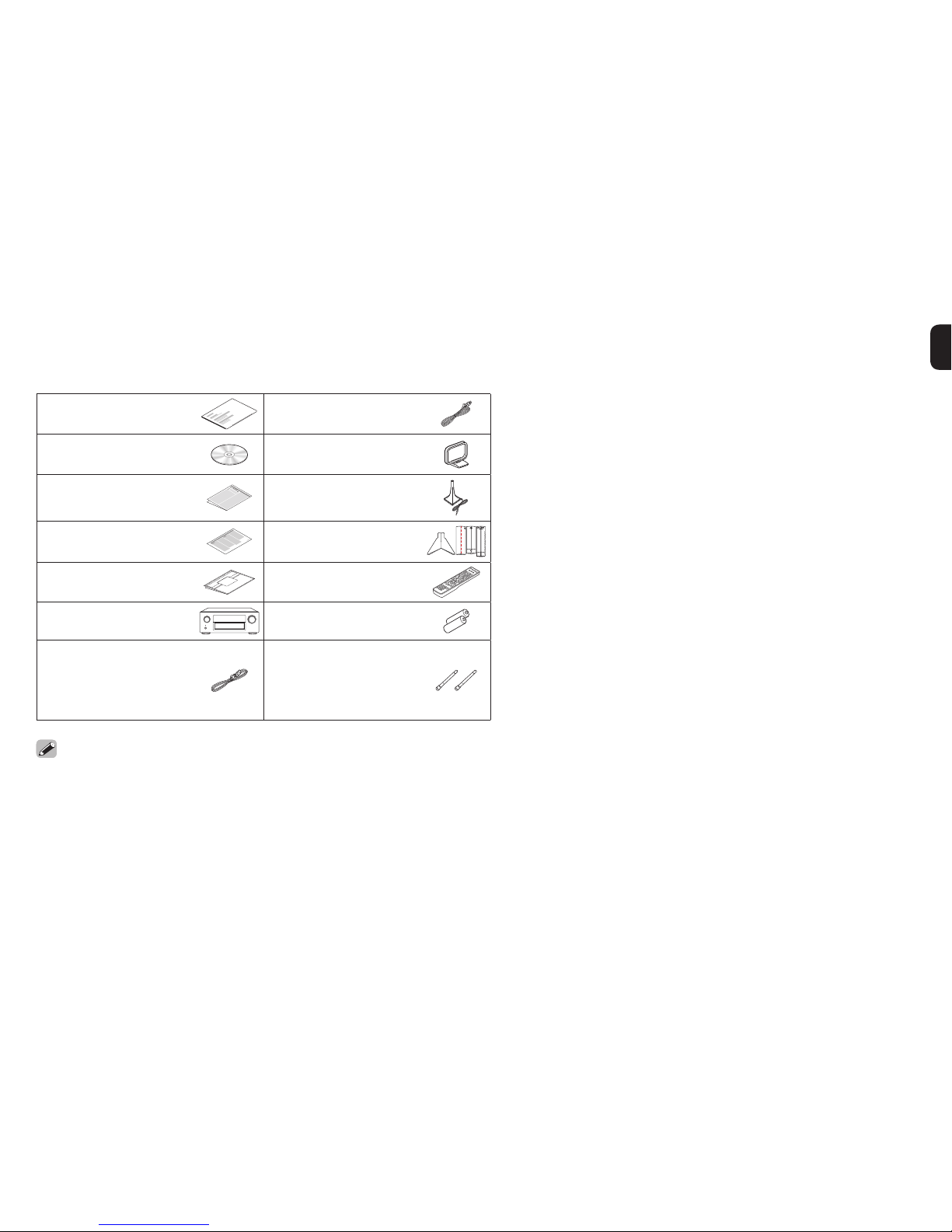

What’s In the Box
Quick Start Guide
FM indoor antenna
Owner’s Manual AM loop antenna
Safety Instructions Sound calibration
microphone
Notes on radio Sound calibration
microphone stand
Cable labels Remote control unit
Receiver R6P/AA batteries
Power cord External antennas
for Bluetooth/
Wireless
connectivity
The supplied Sound calibration microphone stand is convenient for use when
performing Speaker Calibration. Using your own tripod or the supplied Sound
calibration microphone stand enables settings to be automatically configured to
the optimum listening environment, providing exceptionally high performance.
3
Important: External Antennas
The removable external antennas are required for both
Bluetooth and Wireless network connectivity. Please make
sure to connect the antennas before attempting to use the
Bluetooth or Wi-Fi features of the AVR-X4100W.

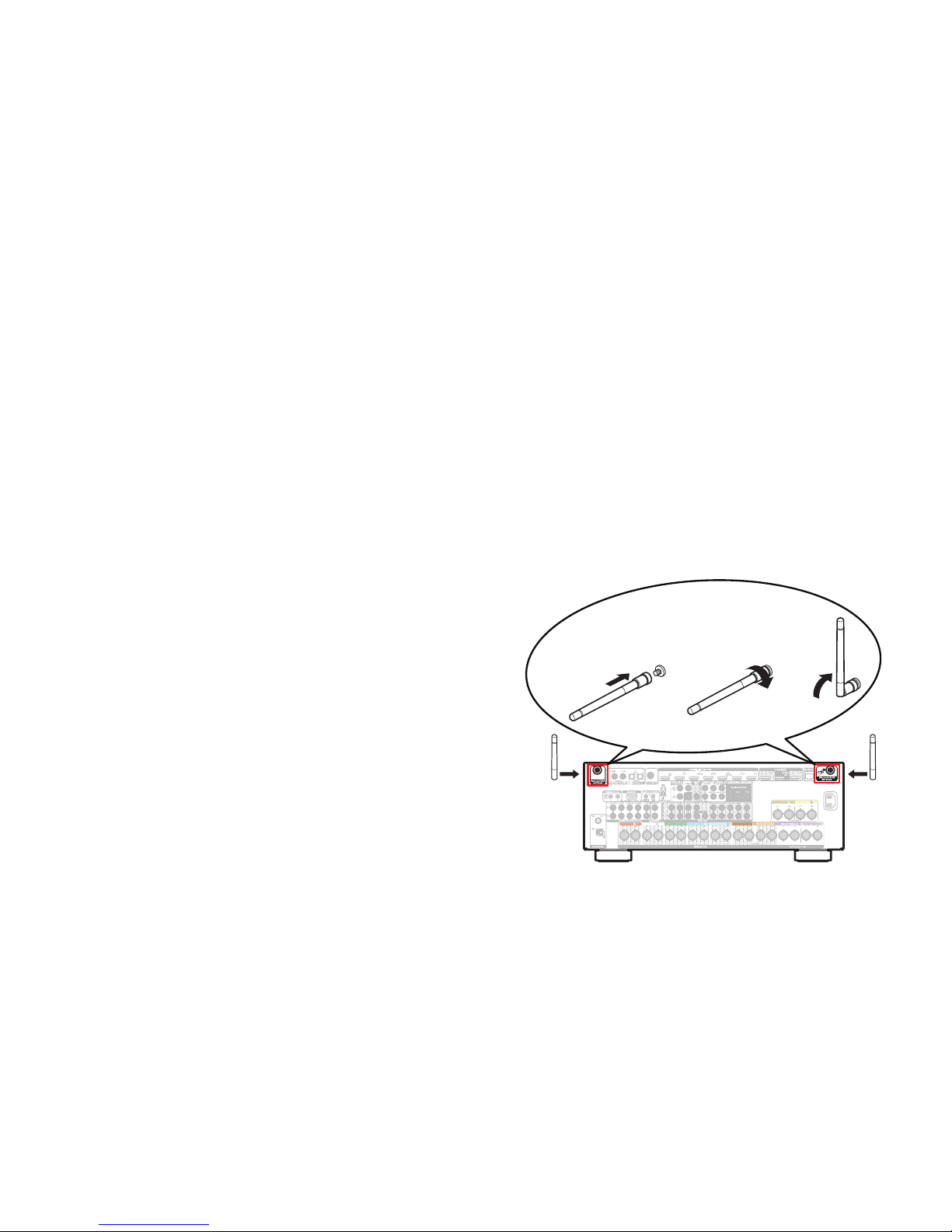

nConnecting the external antennas for
Bluetooth/Wireless connectivity
For each of the two antennas:
1)
Place the antenna evenly over the antenna terminal
located at the upper left or right corner of the rear panel.
2)
Turn the antenna clockwise until it is fully connected. Do
not over tighten.
3)
Rotate the antenna upwards for the best possible
reception.
CENTER SURROUND
SURROUND BACK
SURROUNDFRONT
SURROUND BACK
FRONT
HEIGHT1HEIGHT1
qwe
4

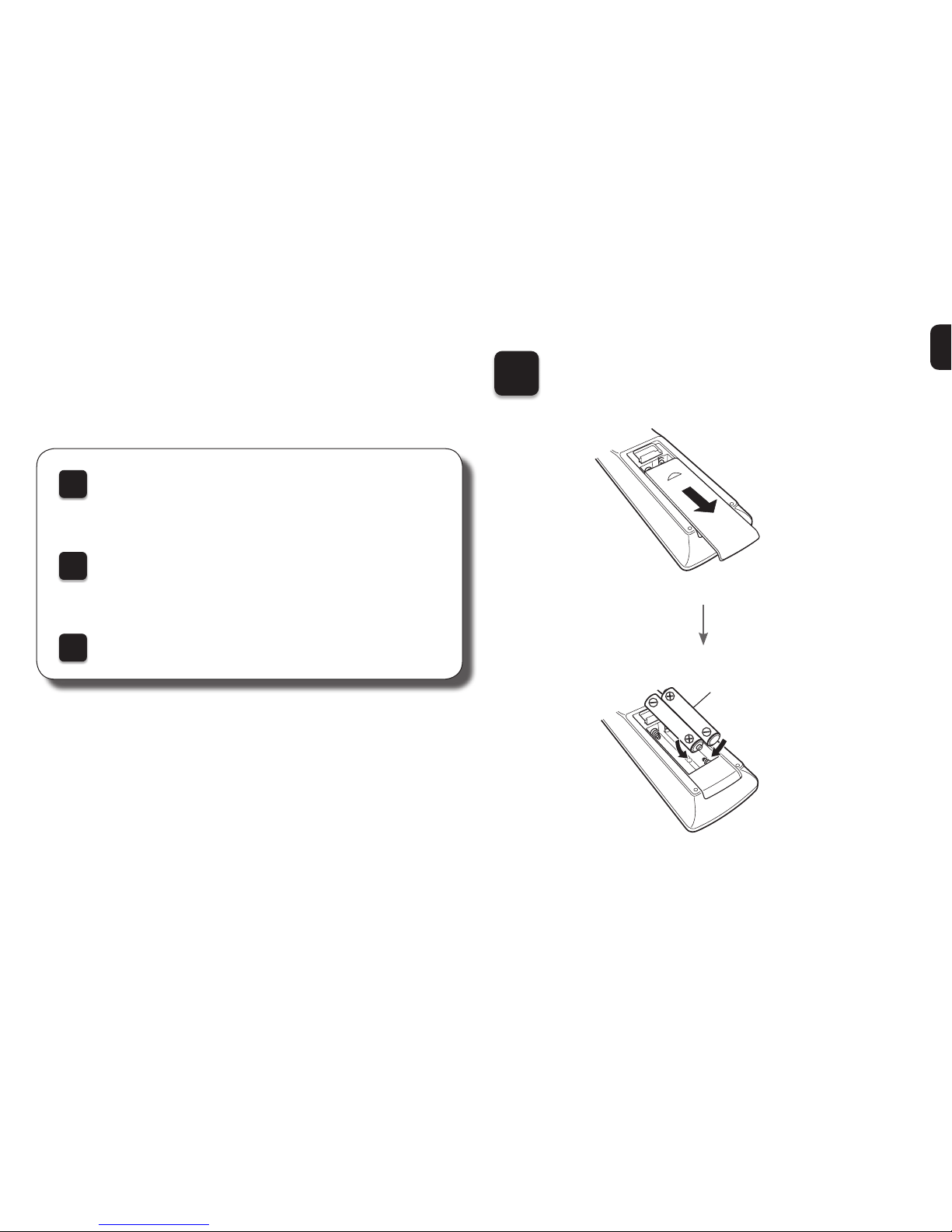

1Installing batteries in the
remote control unit
R6P/AA batteries
There are three steps to the setup
process.
1Installing batteries in the remote control unit
2Connecting the receiver
3Following the On-Screen Setup Assistant
Setup
5
2Connecting the receiver

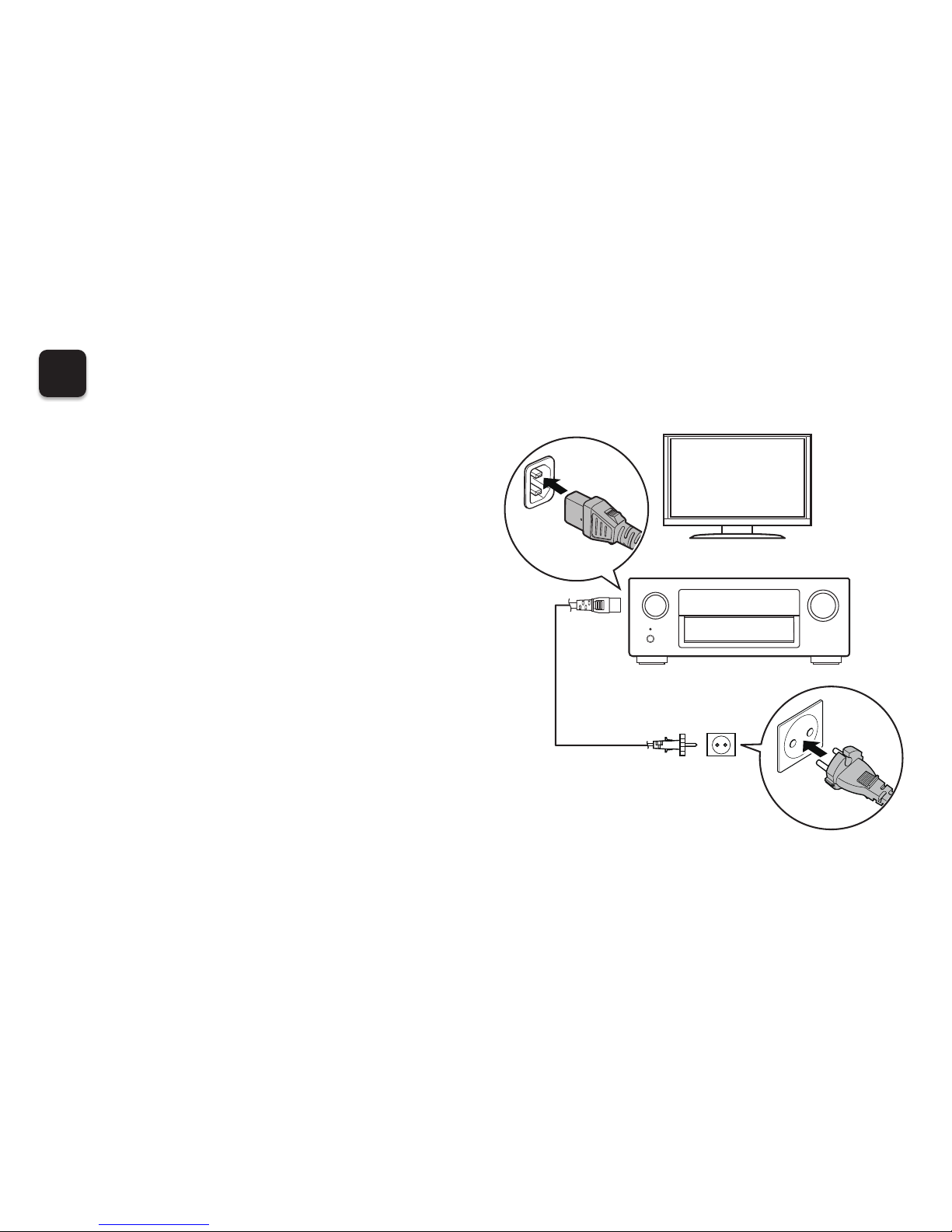

2.1) Place the receiver near your TV and
connect the power cord.
TV
Receiver
Power cord
(supplied)
Connect to household
power outlet
(AC 230 V, 50/60 Hz)
6

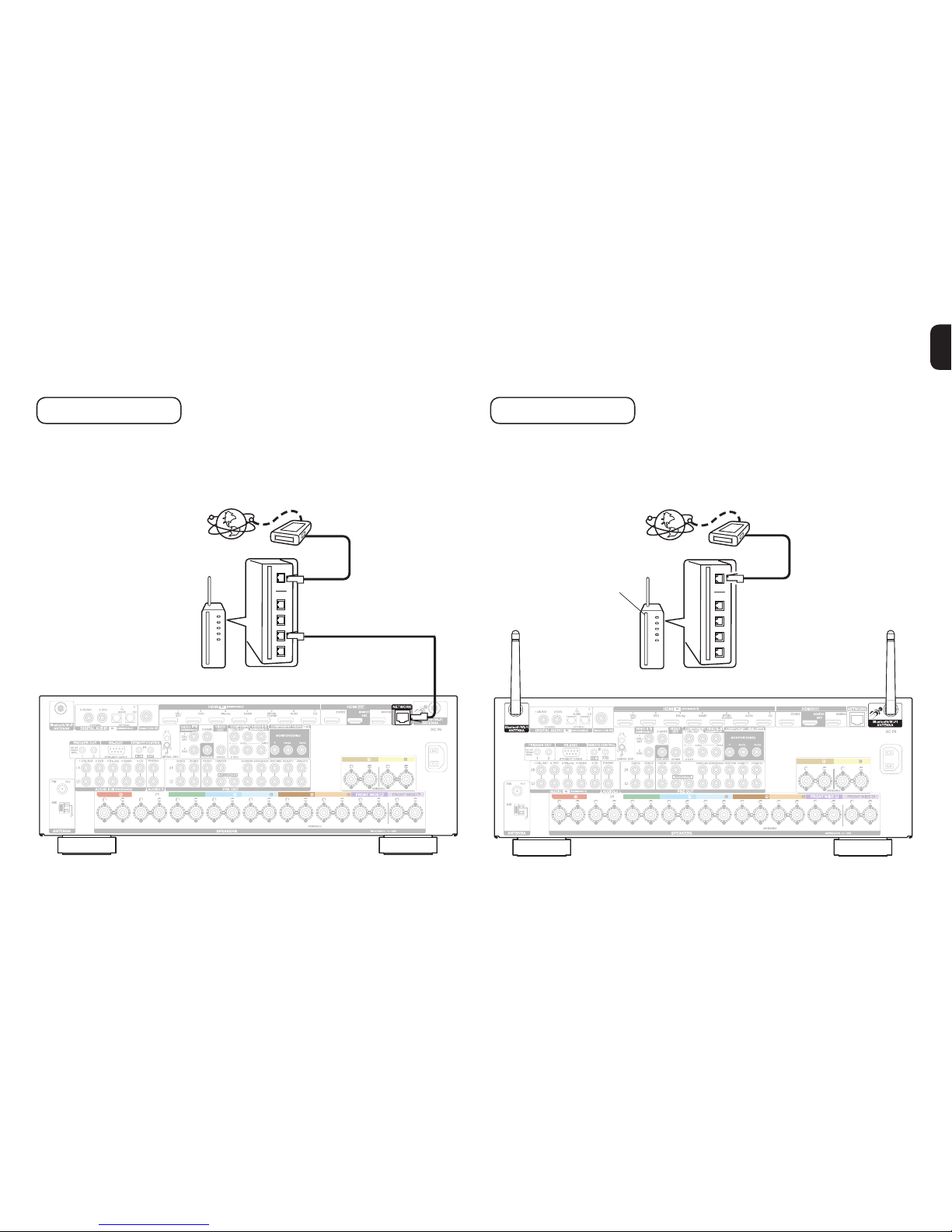

2.2) Connect to the network.
Wired LAN
When connecting cables (wired connection), connect a LAN
cable between your receiver and your network router.
CENTER SURROUND
SURROUND BACK
SURROUNDFRONT
SURROUND BACK
FRONT
HEIGHT1HEIGHT1
Internet Modem
Router
To WAN side
To LAN port
Wireless LAN
When connecting to wireless LAN (Wi-Fi), follow the
instructions in “Connecting the external antennas for
Bluetooth/Wireless connectivity” and connect the antennas.
CENTER SURROUND
SURROUND BACK
SURROUNDFRONT
SURROUND BACK
FRONT
HEIGHT1HEIGHT1
Router with
access point To WAN side
Internet Modem
7

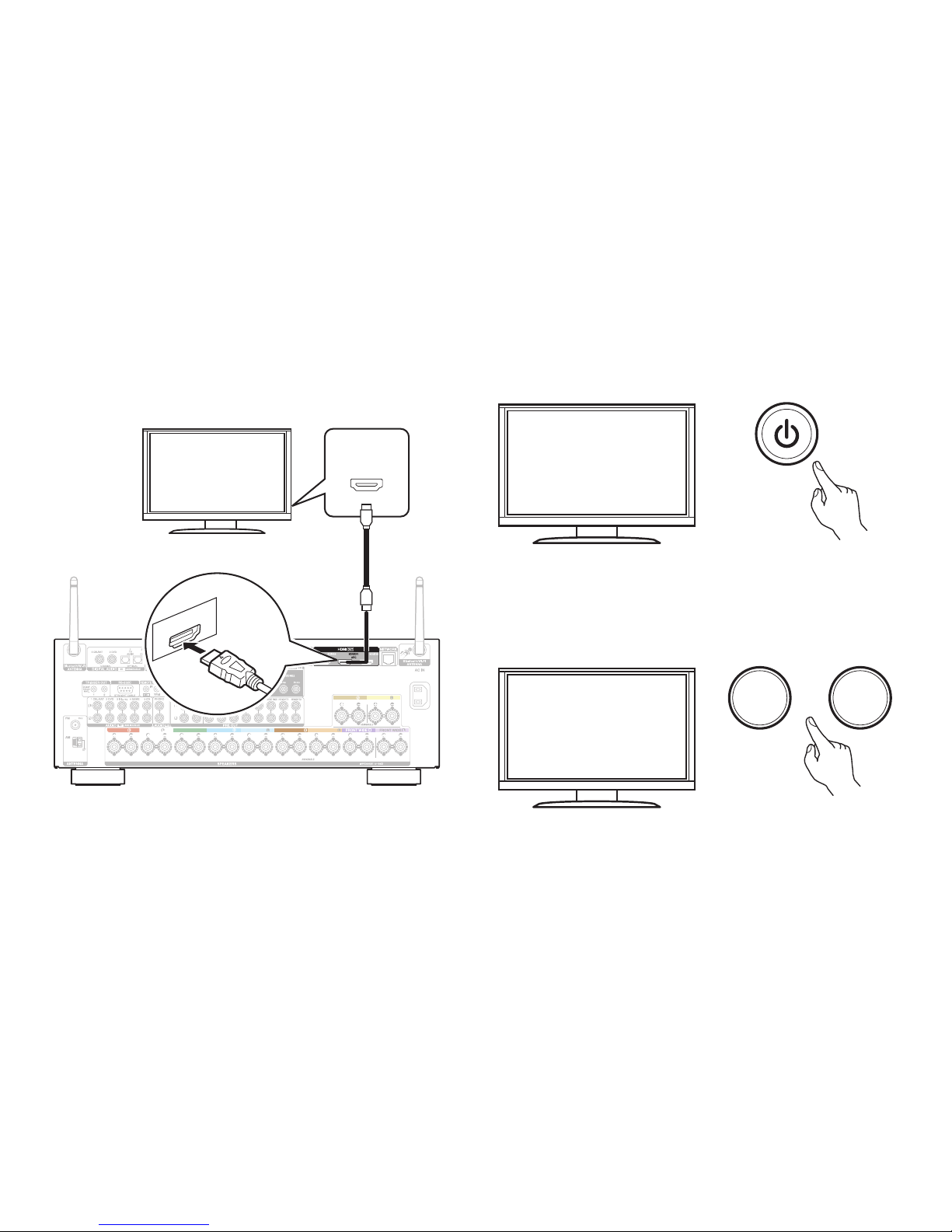

2.4) Turn on the TV.
TV remote control unit
2.5) Select the appropriate HDMI input
on your TV.
HDMI TV/
VIDEO
INPUT or
TV remote control unit
2.3) Connect the receiver to your TV
with an HDMI cable.
CENTER SURROUND
SURROUND BACK
SURROUNDFRONT
SURROUND BACK
FRONT
HEIGHT1HEIGHT1
$5&
HDMI IN
MONITOR1
HDMI OUT
MONITOR
$5&
ARC
HDMI cable
Receiver (Rear panel)
8

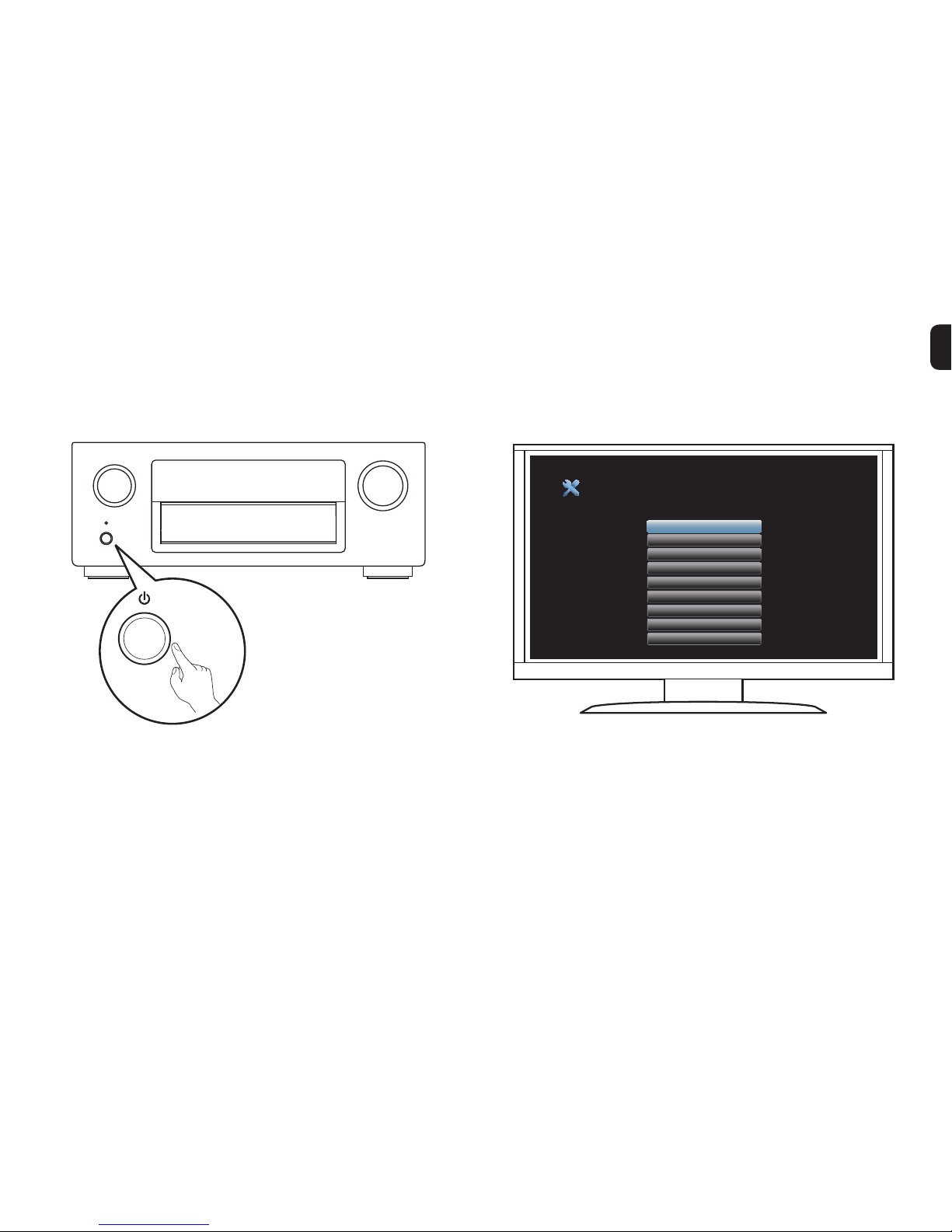

2.6) Turn on the receiver.
•Press Xto turn on the receiver.
2.7) Verify the connection.
•Verify that you can see this screen on your TV.
AV Reciever Setup Assistant
Please select a language...
Deutsch
Français
English
Italiano
Español
Nederlands
Svenska
Pусский
Polski
If this screen is not displayed, please go back and
retry the steps again in the recommended sequence.
9

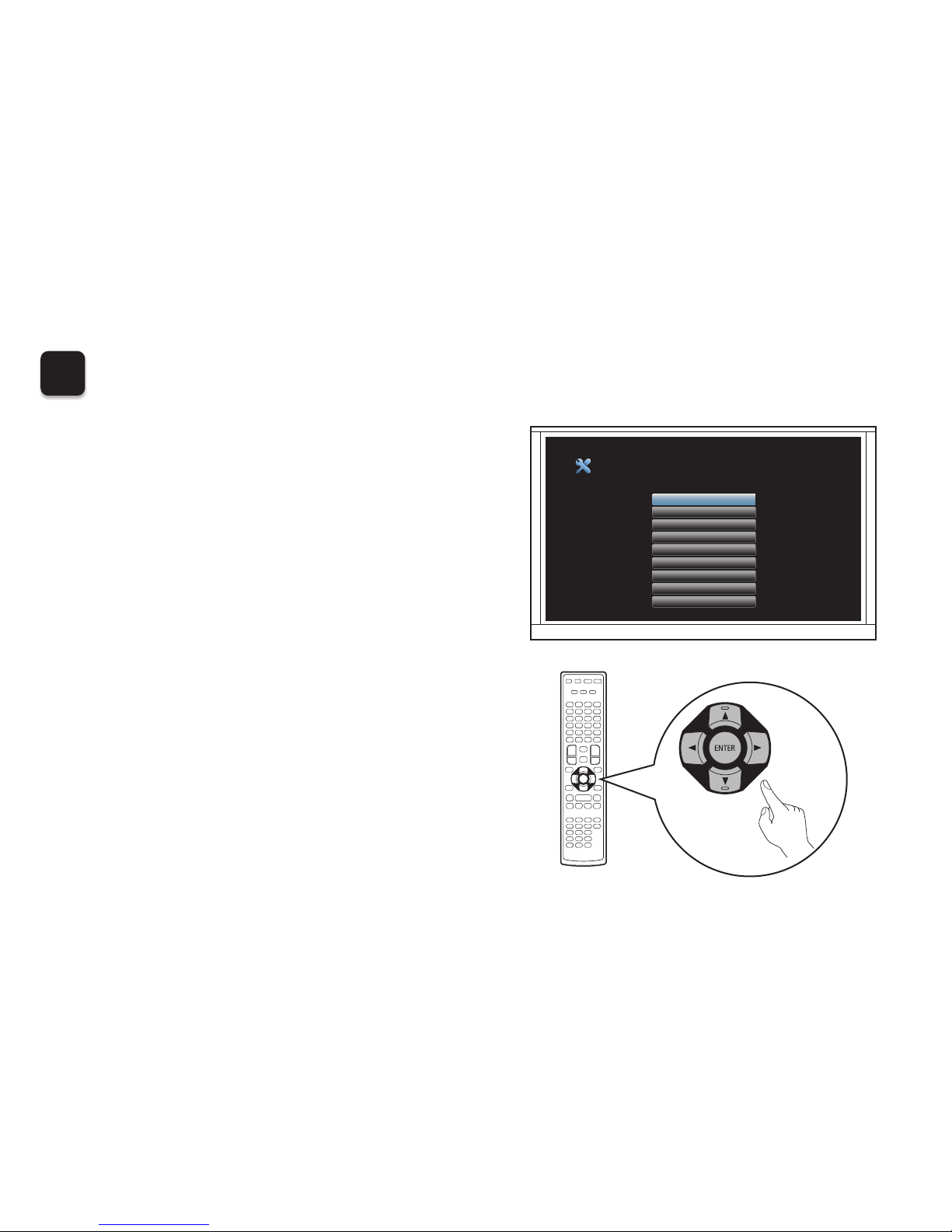

3Following the On-Screen Setup Assistant
The Setup Assistant will walk you through connecting and
configuring your speakers and components to your Denon
receiver. Please use the remote control and follow the
on-screen instructions.
AV Reciever Setup Assistant
Please select a language...
Deutsch
Français
English
Italiano
Español
Nederlands
Polski
Pусский
Svenska
