DENON

PERSONAL

COMPONENT

SYSTEM

UNIT

No.

UDRA-70

(MW

LW

FM

Stereo

Receiver)

UNIT

No.

UDR-70

(Cassette

Tape

Deck)

UNIT

No.

UCD-70

(Compact

Disc

Player)

OPERATING

INSTRUCTIONS

BEDIENUNGSANLEITUNG

MODE

D’EMPLOI

ISTRUZIONI

PER

L’USO

INSTRUCCIONES

DE

OPERACION

.

os

:

Be

sure

to

read

this

manual

carefully

before

operating

the

UNIT

in

order

to

ensure

long

life

and

full

use

of

all

the

features

this

system

has

to

offer.

Retain

this

manual

for

future

reference

should

any

questions

arise.

FOR

ENGLISH

READERS

PAGE

3~12,70~82

PER

IL

LETTORE

ITALIANO

PAGINA

42

~

55,

70

~

82

FUR

DEUTSCHE

LESER

SEITE

13~27,.70~82

PARA

LECTORES

DE

ESPANOL

PAGINA

56

~

69,

70

~

82

POUR

LES

LECTEURS

FRANCAIS

PAGE

28~41,70~82

“SERIAL

NO.

PLEASE

RECORD

UNIT

SERIAL

NUMBER

ATTACHED

TO

THE

REAR

OF

THE

CABINET

FOR

FUTURE

REFERENCE”

Avoid

high

temperatures

Allow

for

sufficient

heat

dispersion

when

installed

on

a

rack.

Vermeiden

Sie

hohe

Temperaturen

Beachten

Sie,

daf&

eine

zureichende

Luftzirkulation

gewahrleistet

wird,

wenn

das

Gerat

auf

ein

Regal

gestellt

wird.

Eviter

des

températures

élevées

Tenir

compte

d’une

dispersion

de

chaleur

suffisante

lors

de

I’installation

sur

une

étagére.

Evitate

di

esporre

l’unita

a

temperature

alte.

Assicuratevi

che

ci

sia

un’adeguata

dis-

persione

del

calore

quando

installate

Vunita

in

un

mobile

per

componenti

audio.

Evite

altas

temperaturas

Permite

la

suficiente

dispersién

del

calor

cuando

esta

instalado

en

la

con-

sola.

Vermijd

hoge

temperaturen.

Zorg

voor

een

degelijk

hitteafvoer

in-

dien

het

apparaat

op

een

rek

wordt

geplaatst.

Undvik

héga

temperaturer.

Se

till

att

det

finns

mdjlighet

till

god

varmeaviedning

vid

montering

i

ett

Handle

the

power

cord

carefully.

Hold

the

plug

when

unplugging

the

cord.

Gehen

Sie

vorsichtig

mit

dem

Netzkabel

um.

Halten

Sie

das

Kabel

am

Stecker,

wenn

Sie

den

Stecker

herausziehen.

Manipuler

le

cordon

d’alimentation

avec

précaution.

Tenir

la

prise

lors

du

débranchement

du

cordon.

Manneggiate

il

filo

di

alimentazione

con

cura.

Agite

per‘la

spina

quando

scollegate

il

cavo

dalla

presa.

Maneje

el

cordén

de

energia

con

cuidado.

Sostenga

el

enchufe

cuando

desconecte

el

cordén

de

energia.

Hanteer

het

netsnoer

voorzichtig.

Houd

het

snoer

bij

de

stekker

vast

wanneer

deze

moet

worden

aan-

of

losgekoppeld.

Hantera

natkabeln

varsamt.

Hall

i

kabeln

nar

den

kopplas

fran

el-

uttaget.

Keep

the

set

free

from

moisture,

water,

and

dust.

Halten

Sie

das

Gerat

von

Feuchtigkeit,

Wasser

und

Staub

fern.

Protéger

l’appareil

contre

|'humidité,

"eau

et

la

poussiére.

Tenete

l’unita

lontana

dall’umidita,

dal-

'acqua

e

dalla

polvere.

Mantenga

el

equipo

libre

de

humedad,

agua

y

polvo.

Laat

geen

vochtigheid,

water

of

stof

in

het

apparaat

binnendringen.

Utsatt

inte

apparaten

fér

fukt,

vatten

och

damm.

Unplug

the

power

cord

when

not

using

the

set

for

long

periods

of

time.

Wenn

das

Gerat

eine

langere

Zeit

nicht

verwendet

werden

soll,

trennen

Sie

das

Netzkabel

vom

Netzstecker.

Débrancher

le

cordon

d’alimentation

lorsque

l'appareil

n’est

pas

utilisé

pen-

dant

de

longues

périodes.

Disinnestate

il

filo

di

alimentazione

quando

avete

I’intenzione

di

non

usare

il

filo

di

alimentazione

per

un

lungo

periodo

di

tempo.

Desconecte

el

cordén

de

energia

cuan-

do

no

utilice

el

equipo

por

mucho

tiempo.

Neem

altijd

het

netsnoer

uit

het

stop-

kontakt

wanneer

het

apparaat

gedurende

een

lange

periode

niet

wordt

gebruikt.

Koppla

ur

natkabeln

om

apparaten

inte

kommer

att

anvandas

i

lang

tid.

*(For

sets

with

ventilation

holes)

Do

not

obstruct

the

ventilation

holes.

Die

Beltiftungséffnungen

durfen

nicht

verdeckt

werden.

Ne

pas

obstruer

les

trous

d’aération.

Non

coprite

i

fori

di

ventilazione.

No

obstruya

los

orificios

de

ventilacién.

De

ventilatieopeningen

mogen

niet

wor-

den

beblokkeerd.

Tapp

inte

till

ventilations6ppningarna.

NOTE

ON

USE/HINWEISE

ZUM

GEBRAUCH/

OBSERVATIONS

RELATIVES

A

L’UTILISATION

NOTE

SULL’'USO/NOTAS

SOBRE

EL

USO/ALVORENS

TE

GEBRUIKEN/OBSERVERA

Do

not

let

foreign

objects

in

the

set.

Keine

fremden

Gegensténde

in

das

Geraét

kommen

lassen.

Ne

pas

laisser

des

objets

étrangers

dans

l'appareil.

E’

importante

che

nessun

oggetto

é

inserito

all’interno

dell’unita.

No

deje

objetos

extrahos

dentro

del

equipo.

Laat

geen

vreemde

voorwerpen

in

dit

apparaat

vailen.

Se

till

att

frammande

foremal

inte

tran-

ger

in

i

apparaten.

Do

not

let

insecticides,

benzene,

and

thinner

come

in

contact

with

the

set.

Lassen

Sie

das

Gerat

nicht

mit

Insekti-

ziden,

Benzin

oder

Verdinnungsmittein

in

Berihrung

kommen.

Ne

pas

mettre

en

contact

des

insecti-

cides,

du

benzéne

et

un

diluant

avec

Yppareil.

Assicuratewvi

che

I‘unita

non

venga

in

contatto

con

insetticidi,

benzolo

o

sol-

venti.

No

permita

el

contacto

de

insecticidas,

gasolina

y

diluyentes

con

el

equipo.

Laat

geen

insektenverdelgende

mid-

delen,

benzine

of

verfverdunner

met

dit

apparaat

in

kontakt

komen.

Se

till

att

inte

insektsmedel

pa

sprayb-

ruk,

bensen

och

thinner

kommer

i

kon-

takt

med

apparatens

hdlje.

Never

disassemble

or

modify

the

set

in

any

way.

Versuchen

Sie

niemals

das

Gerat

au-

seinander

zu

nehmen

oder

auf

jegliche

Art

zu

verandern.

Ne

jamais

démonter

ou

modifier

|’ap-

pareil

d’une

maniére

ou

d’une

autre.

Non

smontate

mai,

né

modificate

l’unita

in

nessun

modo.

Nunca

desarme

o

modifique

el

equipo

de

ninguna

manera.

Nooit

dit

apparaat

demonteren

of

op

andere

wijze

modifiéren.

Ta

inte isér

apparaten

och

férsdk

inte

bygga

om

den.

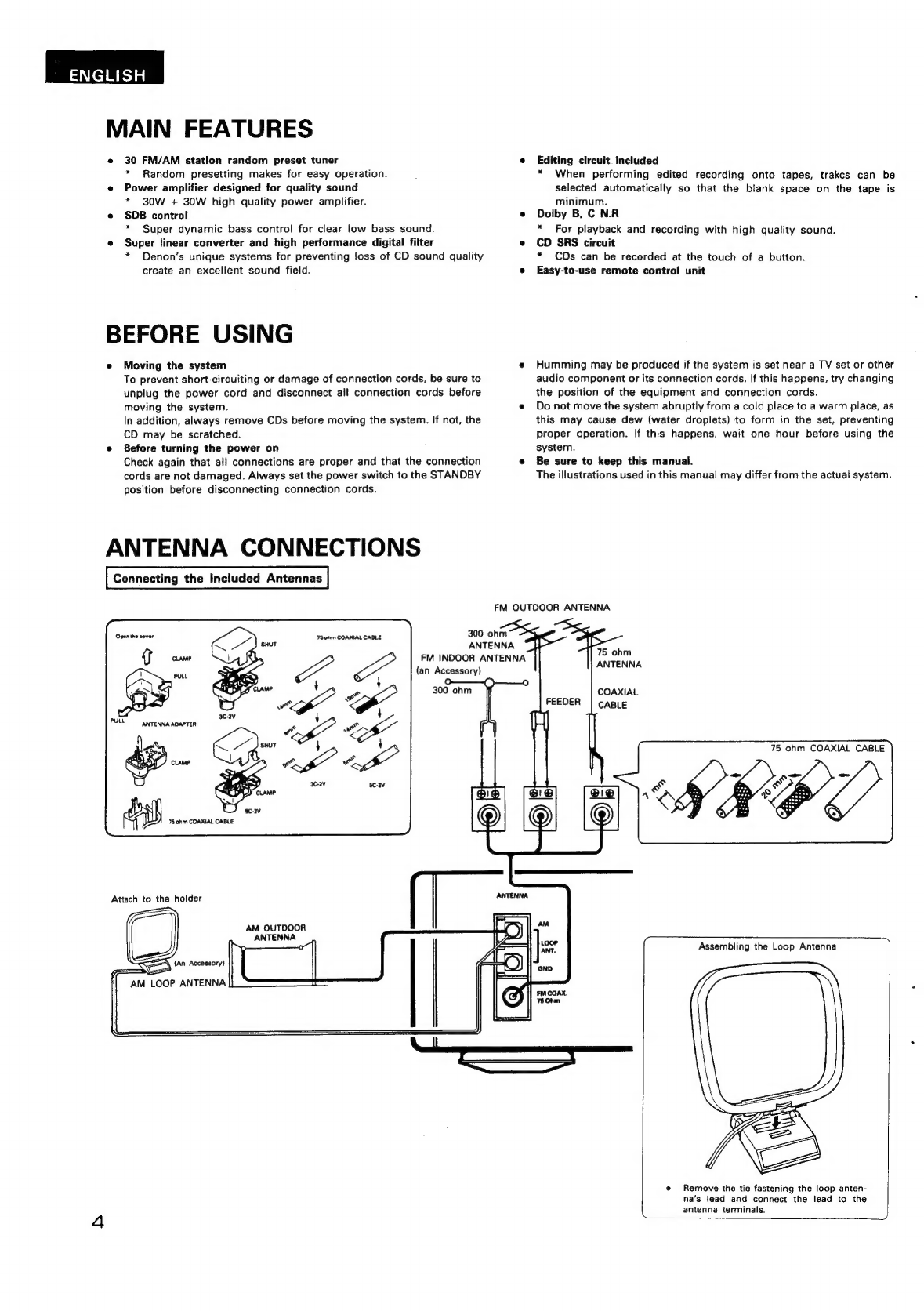

ENGLISH

CONTENTS

Main

Features

...

Before

Using

Antenna

Connections

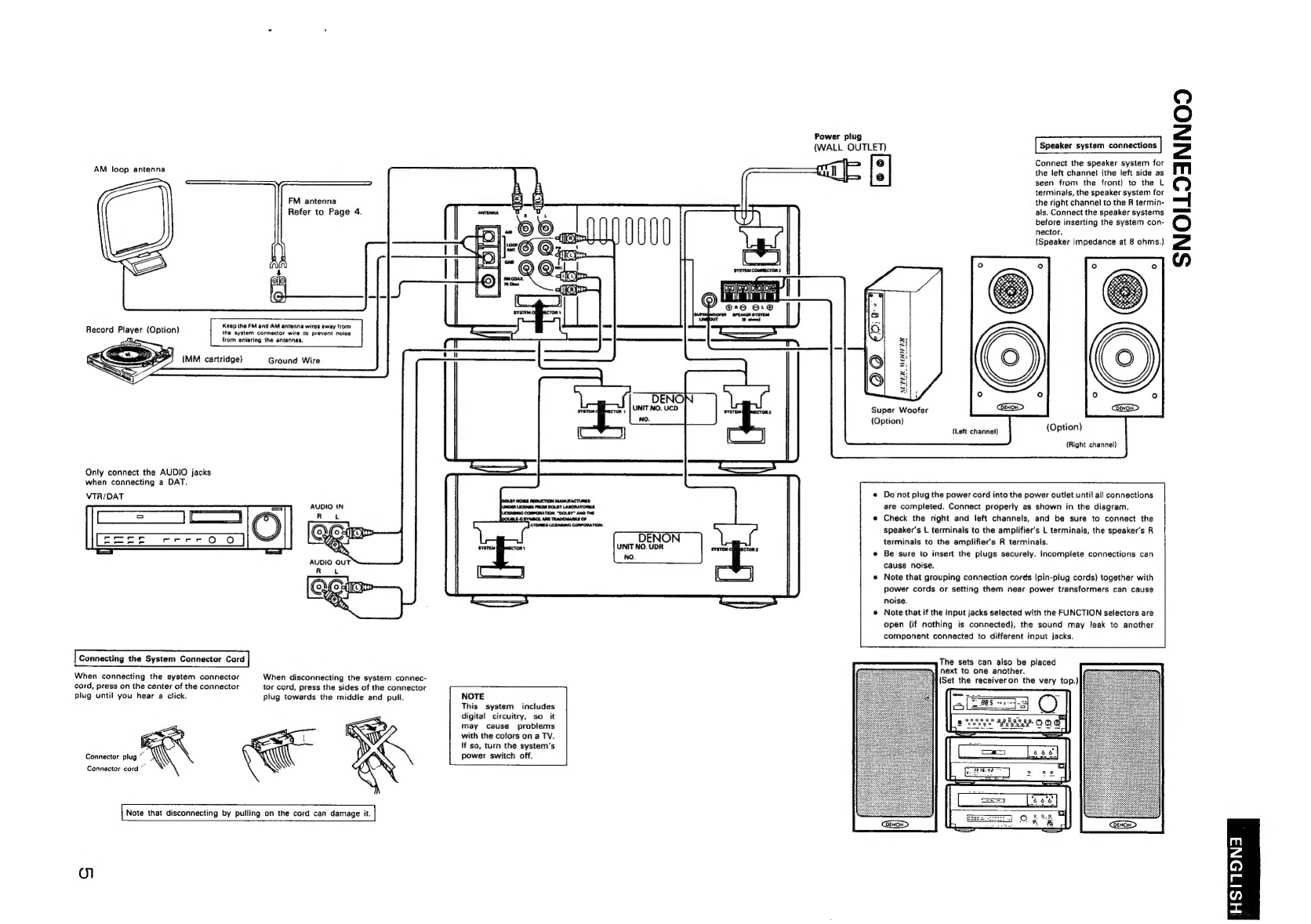

Connections

Part

Names

and

Functions

Listening

to

Radio

Broadcasts

Using

the

Timers

Playing

Cassette

Tapes

e

Using

the

MS

(Music

Search)

function

Recording

Cassette

Tapes

wae

70,71

ww

72~75

Remote

Control

Unit

Cassette

Deck

e

Before

recording

and

playback

...

Troubleshooting

...

Specifications

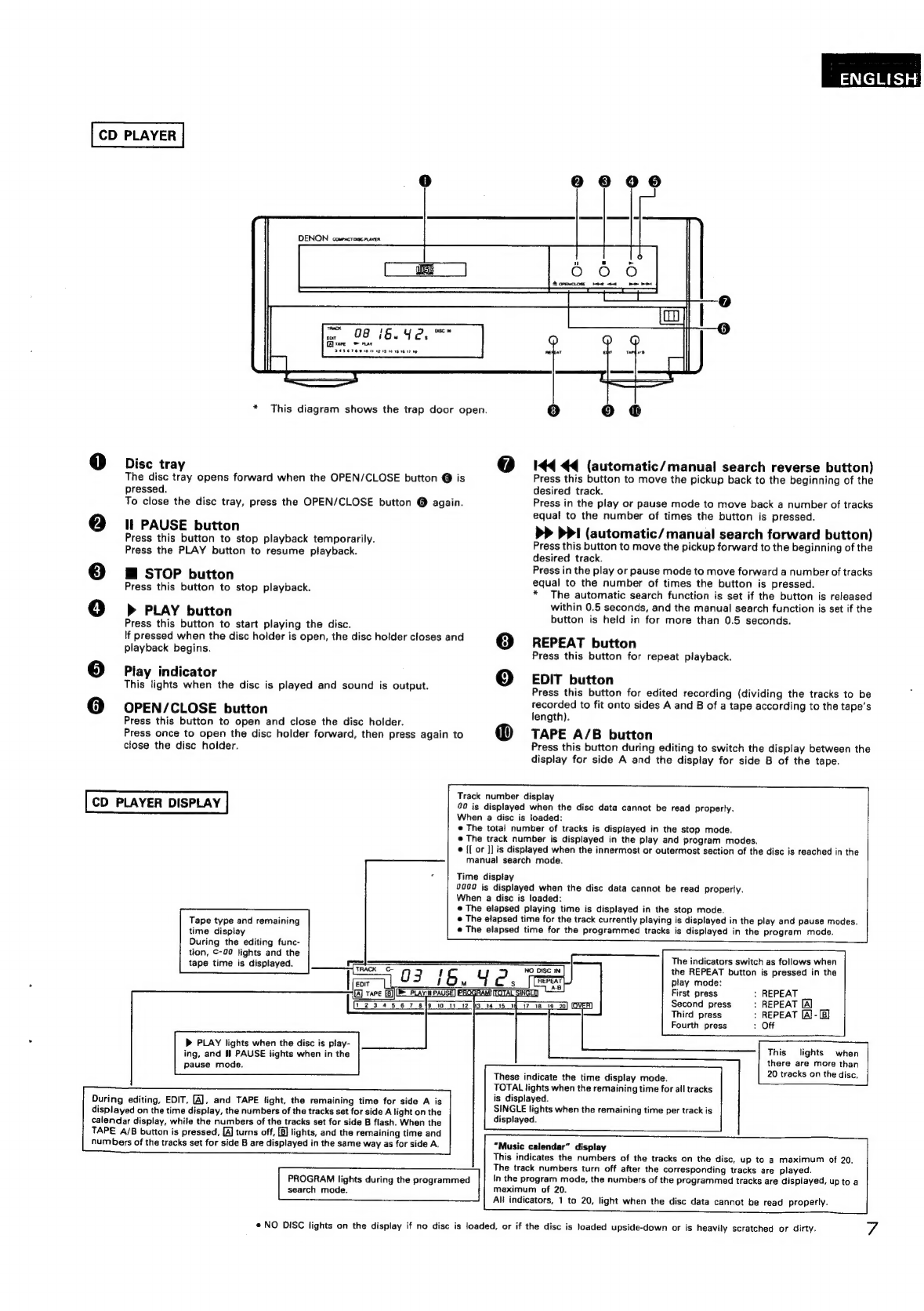

Playing

CDs

e

Basic

playback

e

Special

playback

functions

e

Edited

recording

onto

sides

A

and

B

of

a

tape

List

of

DENON

Service

Network

Check

that

the

following

parts

are

included

in

the

package

aside

from

the

main

unit:

@

Operating

Instructions

....ccccecscsssssessecsesesseccsseescssecsssueessseccesesessscess

1

@

FM

Antenna

@

AM

Loop

Antenna

@

Remote

Controller

®

R6P/AA

batteries

....

©

System

Connector

@

FM

Antenna

adapter

(UDRA-70

only)

SAFETY

IMPORTANT

WARNING:

TO

PREVENT

FIRE

OR

SHOCK

HAZARD,

DO

NOT

EXPOSE

THIS

APPLIANCE

TO

RAIN

OR

MOISTURE.

IMPORTANT

(BRITISH

MODEL

ONLY)

The

wires

in

this

mains

lead

are

coloured

in

accordance

with

the

following

code:

Blue:

Neutral

Brown:

Live

The

colours

of

the

wires

in

the

mains

lead

of

this

apparatus

may

not

correspond

with

the

coloured

markings

identifying

the

terminals

in

your

plug

proceed

as

follows.

The

wire

which

is

coloured

blue

must

be

connected

to

the

terminal

which

is

marked

with

the

letter

N

or

coloured

black.

The

wire

which

is

coloured

brown

must

be

connected

to

the

terminal

which

is

marked

with

the

letter

L

or

coloured

red.

CLASS

1

LASER

PRODUCT

LUOKAN

1

LASERLAITE

KLASS

1

LASERAPPARAT

“CLASS

1

.

”

ADVARSEL:

USYNLIG

LASERSTRALING

VED

ABNING

LASER

PRODUCT

UNDGA

UDSAETTELSE

FOR

STRALING.

VAROITUS:

LAITTEEN

KAYTTAMINEN

MUULLA

KUIN

TASSA

KAYTTOOHJEESA

MAINITULLA

TAVALLA

SAATTAA

ALTISTAA

KAYTTAJAN

TURVALLISUUSLUOKAN

1

YLITTAVALLE

NAKYMATTOMALLE

LASERSATEILYLLE.

VARNING:

OM

APPARATEN

ANVANDS

PA

ANNAT

SATT

AN

I

DENNA

BRUKSANVISNING

SPECIFICERATS,

KAN

ANVANDAREN

UTSATTAS

FOR

OSYNLIG

LASERSTRALNING,

SOM

OVERSKRIDER

GRANSEN

FOR

LASERKLASS

1.

COMPACT

e

This

compact

disc

player

is

capable

of

playing

discs

which

have

the

mark

at

right.

DIGITAL

AUDIO

ENGLISH

MAIN

FEATURES

@

30

FM/AM

station

random

preset

tuner

.

*

Random

presetting

makes

for

easy

operation.

e

Power

amplifier

designed

for

quality

sound

*

30W

+

30W

high

quality

power

amplifier.

e

SDB

control

°

*

Super

dynamic

bass

control

for

clear

low

bass

sound.

e

Super

linear

converter

and

high

performance

digital

filter

°

*

Denon’s

unique

systems

for

preventing

loss

of

CD

sound

quality

create

an

excellent

sound

field.

°

BEFORE

USING

e

Moving

the

system

e

To

prevent

short-circuiting

or

damage

of

connection

cords,

be

sure

to

unplug

the

power

cord

and

disconnect

all

connection

cords

before

moving

the

system.

e

In

addition,

always

remove

CDs

before

moving

the

system.

If

not,

the

CD

may

be

scratched.

e

Before

turning

the

power

on

Check

again

that

all

connections

are

proper

and

that

the

connection

e

cords

are

not

damaged.

Always

set

the

power

switch

to

the

STANDBY

position

before

disconnecting

connection

cords.

ANTENNA

CONNECTIONS

Editing

circuit.

included

*

When

performing

edited

recording

onto

tapes,

trakcs

can

be

selected

automatically

so

that

the

blank

space

on

the

tape

is

minimum.

Dolby

B,

C

N.R

*

For

playback

and

recording

with

high

quality

sound.

CD

SRS

circuit

*

CDs

can

be

recorded

at

the

touch

of

a

button.

Easy-to-use

remote

control

unit

Humming

may

be

produced

if

the

system

is

set

near

a

TV

set

or

other

audio

component

or

its

connection

cords.

If

this

happens,

try

changing

the

position

of

the

equipment

and

connection

cords.

Do

not

move

the

system

abruptly

from

a

cold

place

to

a

warm

place,

as

this

may

cause

dew

(water

droplets)

to

form

in

the

set,

preventing

proper

operation.

If

this

happens,

wait

one

hour

before

using

the

system.

Be

sure

to

keep

this

manual.

The

illustrations

used

in

this

manual

may

differ

from

the

actual

system.

FM

OUTDOOR

ANTENNA

Open

the

cover

7Sonm

COAXIAL

CABLE

300

ohm

ANTENNA

FM

INDOOR

ANTENNA

(an

Accessory)

300

ohm

75

ohm

COAXIAL

CABLE

Attach

to

the

holder

AM

OUTDOOR

ANTENNA

75

ohm

ANTENNA

COAXIAL

CABLE

75

ohm

COAXIAL

CABLE

Assembling

the

Loop

Antenna

e@

Remove

the

tie

fastening

the

loop

anten-

na’s

lead

and

connect

the

lead

to

the

antenna

terminals.

Power

plug

Connect

the

speaker

system

for

e

AM

loop

antenna

the

left

channet

(the

left

side

as

seen

from

the

front)

to

the

L

terminals,

the

speaker

system

for

the

right

channel

to

the

R

termin-

ais.

Connect

the

speaker

systems

before

inserting

the

system

con-

nector.

{Speaker

impedance

at

8

ohms.)

FM

antenna

Refer

to

Page

4.

SNOILOANNOD

Record

Player

(Option)

the

system

connector

wire

to

prevent

noise

from

entering

the

antennas.

Keep

the

FM

and

AM

antenna

wires

away

from

|

(MM

cartridge}

Ground

Wire

Super

Woofer

(Option)

(Option)

(Left

channel)

(Right

channel)

Only

connect

the

AUDIO

jacks

when

connecting

a

DAT.

VTR/DAT

Do

not

plug

the

power

cord

into

the

power

outlet

until

all

connections

are

completed.

Connect

properly

as

shown

in

the

diagram.

Check

the

right

and

left

channels,

and

be

sure

to

connect

the

speaker's

L

terminals

to

the

amplifier's

L

terminals,

the

speaker's

R

terminals

to

the

amplifier's

R

terminals.

@

Be

sure

to

insert

the

plugs

securely.

Incomplete

connections

can

cause

noise.

Note

that

grouping

connection

cords

(pin-plug

cords)

together

with

power

cords

or

setting

them

near

power

transformers

can

cause

noise.

Note

that

if

the

input

jacks

selected

with

the

FUNCTION

selectors

are

open

{if

nothing

is

connected),

the

sound

may

leak

to

another

component

connected

to

different

input

jacks.

R

Connecting

the

System

Connector

Cord

The

sets

can

also

be

placed

:

; ;

next

to

one

another.

When

connecting

the

system

connector

When

disconnecting

the

system

connec-

(Set

the

receiveron

the

very

top.)

cord,

press

on

the

center

of

the

connector

tor

cord,

press

the

sides

of

the

connector

plug

until

you

hear

a

ctick.

plug

towards

the

middle

and

pull.

NOTE

This

system

includes

digital

circuitry,

so

it

may

cause

problems

with

the

colors

on

a

TV.

If

so,

turn

the

system‘s

power

switch

off.

Aide

OO

2

Connector

plug

€

Connector

cord

~

|

Note

that

disconnecting

by

pulling

on

the

cord

can

damage

it.

|

m

2

GQ)

a

2)

=.

ENGLISH

PART

NAMES

AND

Cone

DENON

seru

steno

acenen

we

|

[nF

O,

G0

me

a

mmo)

mie

o

yaaa

steno

NO

This

diagram

shows

the

trap

door

open.

—]

POWER

switch

Press

this

switch

once

to

turn

on

the

power

and

the

display.

The

displays

on

the

CD

player

and

cassette

deck

also

light.

The

CD

player’s

play

indicator

does

not

light.

The

cassette

deck’s

direction

of

play

indicator

lights.

SDB

(Super

Dynamic

Bass)

indicator

This

lights

when

the

SDB

function

is

turned

on

with

the

SDB

button.

REMOTE

SENSOR

VOLUME

control

Use

this

control

to

adjust

the

volume.

Turn

clockwise

(

)

to

increase

the

volume,

counterclockwise

(©

)

to

decrease

it.

PHONES

jack

When

using

headphones,

plug

them

in

here.

The

sound

from

the

speakers

is

cut

when

headphones

are

plugged

These

are

used

to

preset

and

recall

AM

and

FM

broadcasts,

to

set

the

time

and

timer,

etc.

MEMORY

button

This

button

is

used

when

presetting

AM

and

FM

stations.

idpeab

ieee

(FM

stereo

mute/mono)

selector

utton

(For

FM

reception)

STEREO

mute:

Use

this

mode

to

receive

FM

broadcasts

in

stereo.

(“AUTO”

appears

on

the

display.)

The

muting

circuit

is

activated

to

cut

noise

between

stations.

In

this

mode,

FM

broadcasts

are

received

in

monaural,

regardless

of

whether

they

are

broad-

cast

in

monaural

or

stereo.

Set

to

the

mono

mode

if

there

is

much

noise

in

the

stereo

mute

mode

(with

“AUTO”

displayed)

or

if

the

signals

are

weak.

This

button

will

not

function

when

receiving

MW

and

LW

broadcasts.

RECEIVER

DISPLAY

oo

6

©

609

MONO:

The

reception

These

indicate

the

band

being

received.

This

lights

when

signals

are

received

from

the

re-

mote

contro!

unit.

EMORY

button

is

pressed

during

presetting.

This

lights

when

the

sta-

tion

is

tuned

in

Foor

©6866

@€@e@ee6@

©8026

6

frequency,

function,

time,

and

timer

set-

tings

are

displayed

here.

BAND

(FM/MW/LW)

selector

button

The

band

switches

between

FM

and

MW,

LW

each

time

this

button

is

pressed.

AUTO

TUNING

UP

and

DOWN

buttons

These

are

used

to

tune

in

MW,

LW

and

FM

stations,

and

for

corrections

when

setting

the

time

and

timer.

SDB

(Super

Dynamic

Bass)

button

Press

this

button

for

more

powerful

bass

sound.

Press

again

to

turn

the

SDB

function

off.

FUNCTION

selectors

Use

these

to

select

the

program

source.

TIME

SET

button

This

is

used

when

setting

the

timer

and

the

current

time,

and

when

checking

the

timer

settings,

etc.

CLEAR

button

in.

rosa!

F :

:

N

f

M

This

is

used

to

change

the

current

time

and

the

timer

settings.

epee

buttons

for

FM/AM

presetting,

time

set-

TIMER

button

’

This

is

used

to

set

the

timer.

Timer

START

MODE

button

Use

this

button

to

select

the

function

when

setting

the

timer.

Timer

STANDBY

button

Press

this

button

so

that

the

timer

will

operate

at

the

set

times.

DISPLAY

TIME/FUNCTION

button

Press

this

button

to

switch

the

display

between

the

function

and

the

time.

BASS

control

Use

this

to

adjust

the

bass.

TREBLE

control

Use

this

to

adjust

the

treble.

BALANCE

control

Use

this

to

adjust

the

balance

between

the

volume

of

the

left

and

right

channels.

The

volume

is

the

same

for

the

left

and

right

channels

when

the

control

is

at

the

center.

ON:

Lights

when

the

timer

on

time

is

set.

OFF:

Lights

when

the

timer

off

time

is

set.

This

indicates

the

preset

number.

02.50

=F3

This

flashes

for

about

10

seconds

when

the

lie)

-

STEREO

AUTO

MONO

hd

:

é ;

a

This

lights

to

in-

dicate

that

the

timer

is

set.

ON

TIMER

7

OFF

SLEEP

This

|

This

fights

when

the

sleep

timeris

set.

|

when

the

sleep

timer

is

set.

NOTE:

@

The

timer

standby

mark

*

not

set.

@

”

will

not

light

if

the

current

time

is

These

indicate

the

FM

reception

mode.

STEREO:

Lights

when

receiving

stereo

broadcasts.

AUTO:

Lights

when

the

auto

mode

is

set

with

the

FM

mode

button.

Lights

when

the

monaural

mode

is

set

with

the

FM

mode

button.

MONO:

CD

PLAYER

DENON

comacrosc

maven

*

Disc

tray

The

disc

tray

opens

forward

when

the

OPEN/CLOSE

button

@

is

pressed.

To

close

the

disc

tray,

press

the

OPEN/CLOSE

button

@

again.

It

PAUSE

button

Press

this

button

to

stop

playback

temporarily.

Press

the

PLAY

button

to

resume

playback.

HH

STOP

button

Press

this

button

to

stop

playback.

>

PLAY

button

Press

this

button

to

start

playing

the

disc.

If

pressed

when

the

disc

holder

is

open,

the

disc

holder

closes

and

playback

begins.

o 8

©

Play

indicator

This

lights

when

the

disc

is

played

and

sound

is

output.

OPEN/CLOSE

button

Press

this

button

to

open

and

close

the

disc

holder.

Press

once

to

open

the

disc

holder

forward,

then

press

again

to

close

the

disc

holder.

1)

Track

CD

PLAYER

DISPLAY

Tape

type

and

remaining

time

display

During

the

editing

func-

tion,

C-20

lights

and

the

rc

This

diagram

shows

the

trap

door

open.

80

is

displayed

when

the

disc

data

cannot

be

read

properly.

When

a

disc

is

loaded:

e

The

total

number

of

tracks

is

displayed

in

the

stop

mode.

e

The

track

number

is

displayed

in

the

play

and

program

modes.

¢

{[

or

]]

is

displayed

when

the

innermost

or

outermost

section

of

the

disc

is

reached

in

the

manual

search

mode.

Time

dispiay

0000

js

displayed

when

the

disc

data

cannot

be

read

properly.

When

a

disc

is

loaded:

e

The

elapsed

playing

time

is

displayed

in

the

stop

mode.

©

The

elapsed

time

for

the

track

currently

playing

is

displayed

in

the

play

and

pause

modes.

e

The

elapsed

time

for

the

programmed

tracks

is

displayed

in

the

program

mode.

ENGLISH

144

44

(automatic/

manual

search

reverse

button)

Press

this

button

to

move

the

pickup

back

to

the

beginning

of

the

desired

track.

Press

in

the

play

or

pause

mode

to

move

back

a

number

of

tracks

equal

to

the

number

of

times

the

button

is

pressed.

>>

PPI

(automatic/

manual

search

forward

button)

Press

this

button

to

move

the

pickup

forward

to

the

beginning

of

the

desired

track.

Press

in

the

play

or

pause

mode

to

move

forward

a

number

of

tracks

equal

to

the

number

of

times

the

button

is

pressed.

*

The

automatic

search

function

is

set

if

the

button

is

released

within

0.5

seconds,

and

the

manual

search

function

is

set

if

the

button

is

held

in

for

more

than

0.5

seconds.

REPEAT

button

Press

this

button

for

repeat

playback.

EDIT

button

Press

this

button

for

edited

recording

(dividing

the

tracks

to

be

recorded

to

fit

onto

sides

A

and

B

of

a

tape

according

to

the

tape’s

length).

TAPE

A/B

button

Press

this

button

during

editing

to

switch

the

display

between

the

display

for

side

A

and

the

display

for

side

B

of

the

tape.

number

display

The

indicators

switch

as

follows

when

tape

time

is

displayed.

TRACK

“03

/

EDIT

U

(

PLay:n PAUSE]

ie

oe

[A]

tare

[5]

[wrsssrapw

ae

3

t4

15

0

»

PLAY

lights

when

the

disc

is

play-

ing,

and

tl

PAUSE

lights

when

in

the

pause

mode.

During

editing,

EDIT,

(J,

and

TAPE

tight,

the

remaining

time

for

side

A

is

displayed

on

the

time

display,

the

numbers

of

the

tracks

set

for

side

A

light

on

the

calendar

display,

while

the

numbers

of

the

tracks

set

for

side

B

flash.

When

the

TAPE

A/B

button

is

pressed,

[A]

turns

off,

[B]

lights,

and

the

remaining

time

and

numbers

of

the

tracks

set

for

side

B

are

displayed

in

the

same

way

as

for

side

A.

PROGRAM

lights

during

the

programmed

search

mode.

eNO

DISC

lights

on

the

display

if

no

disc

is

loaded,

or

if

the

disc

is

loaded

upside-down

or

is

heavily

scratched

or

dirty.

NO

DISC

IN

the

REPEAT

button

is

pressed

in

the

play

mode:

First

press

:

REPEAT

wl

1718

1920)

(OVER)

Second

press

:

REPEAT

Third

press

;

REPEAT

[A]-

BI

Fourth

press

:

Off

This

lights

when

there

are

more

than

20

tracks

on

the

disc,

These

indicate

the

time

display

mode.

TOTAL

lights

when

the

remaining

time

for

ail

tracks

is

displayed.

SINGLE

lights

when

the

remaining

time

per

track

is

displayed.

“Music

calendar”

display

This

indicates

the

numbers

of

the

tracks

on

the

disc,

up

to

a

maximum

of

20,

The

track

numbers

turn

off

after

the

corresponding

tracks

are

played.

In

the

program

mode,

the

numbers

of

the

programmed

tracks

are

displayed,

up

toa

maximum

of

20.

All

indicators,

1

to

20,

light

when

the

disc

data

cannot

be

read

properly.

ENGLISH

©

eo

660

DENON

stercocasserre

rare

occx

MITO

REVERSE

AUTO

TAPE

SELECTOR

MOPAZONTAL

LOADING

SYSTEM:

2

MOTOR

MECHANSA

Cassette

tray

The

cassette

tray

opens

out

when

the

OPEN/CLOSE

button

@

is

pressed.

Insert

the

cassette

tape

with

the

side

on

which

the

tape

is

exposed

facing

away

from

you.

To

close

the

cassette

tray,

press

the

OPEN/CLOSE

button

@

again.

>

(forward

playback

button):

Press

this

button

to

record

or

play

the

tape

in

the

forward

direction.

4

(reverse

playback

button):

Press

this

button

to

record

or

play

the

tape

in

the

reverse

direction.

i

(stop

button):

Press

this

button

while

the

tape

is

moving

to

stop

the

tape.

Playback

direction

indicators

This

flashes

during

playback.

Recording

indicator

This

lights

when

the

recording

or

recording

standby

mode

is

set

using

the

REC/REC

MUTE

button

@,

and

flashes

during

the

recording

mute

mode.

#

OPEN/CLOSE

button

Press

this

button

to

open

and

close

the

cassette

tray.

44

(rewind

button):

Press

this

button

to

rewind

the

tape.

When

pressed,

the

playback

direction

indicators

@

flash.

Also,

if

pressed

during

playback

in

the

}»

(forward)

direction,

the

tape

is

rewound

to

the

beginning

of

the

current

selection.

if

pressed

during

playback

in

the

q

(reverse)

direction,

the

tape

is

forwarded

to

the

beginning

of

the

next

selection.

(fast-forward

button):

Press

this

button

to

fast-forward

the

tape.

When

pressed,

the

playback

direction

indicators

@

flash.

Also,

if

pressed

during

playback

in

the

>»

(forward)

direction,

the

tape

is

forwarded

to

the

beginning

of

the

next

selection.

If

pressed

during

playback

in

the

q

(reverse)

direction,

the

tape

is

rewound

to

the

beginning

of

the

current

selection.

CASSETTE

DECK

DISPLAY

dB-10

-5

[nvm

one

000

|

Ltt

|

0

+3

+5

COUNTER

RESET

button

Press

this

button

to

reset

the

tape

counter

to

“0000”,

CD

SRS

(CD

synchronized

recording

button)

Use

this

button

for

CD

synchronized

recording.

Refer

to

Page

77.

REC/REC

MUTE

(recording/

recording

mute)

button

To

record,

press

the

REC/REC

MUTE

button

and

the

>

PLAY

button.

If

only

the

REC/REC

MUTE

button

is

pressed,

the

deck

is

set

to

the

recording

pause

mode.

If

pressed

during

recording,

the

deck

is

set

to

the

recording

mute

mode

for

approximately

5

seconds,

after

which

it

is

set

to

the

recording

pause

mode.

INPUT

LEVEL

control

Use

this

control

to

set

the

recording

level.

DOLBY

NR

selector

switch

Use

this

switch

to

select

the

Dolby

NR

mode,

OFF,

B

or

C.

During

playback,

set

this

switch

to

the

same

mode

in

which

the

tape

was

recorded.

REV.

MODE

switch

Use

this

to

set

the

reverse

mode

to

one

of

the

following

modes:

+—

(one

side

mode),

[>

(reverse

mode),

C2?

(continuous

mode).

In

the

continuous

mode,

the

tape

stops

automatically

after

both

sides

are

played

five

times.

Refer

to

Page

11.

This

is

displayed

when

no

tape

is

loaded.

-3

Roe

ee

=

Refer

to

next

page.

[|

-

END

@©:

The

recording

level

is

displayed

here

dur-

ing

recording,

the

playback

level

during

playback.

Dolby

noise

reduction

manufactured

under

license

from

Dolby

Laboratories

Licensing

Corporation.

“DOLBY”

and

the

double-D

symbol

[0

are

trademarks

of

Dolby

Laboratories

Licensing

Corporation.

ENGLIS

Remaining

Tape

Indicators

-

END,

®

and

©

These

indicators

notify

that

the

tape

is

reaching

the

end

during

recording

and

playback.

The

indicators

differ

according

to

the

diameter

of

the

tape

hub.

END

:

This

starts

flashing

when

the

tape

is

nearing

the

end

during

recording

or

playback,

then

stops

flashing

and

remains

lit

once

the

end

of

the

tape

is

reached.

After

this,

the

indicator

turns

off

as

soon

as

another

mode

is

set.

@

:

Fornormai

hubs,

®

and

END

tight

when

the

tape

is

nearing

the

end.

Use

these

two

indicators

to

determine

the

amount

of

tape

remaining.

The

indicator

lights

when

the

tape

is

nearing

the

end,

then

turns

off

when

the

tape

stops.

@

:

When

recording

or

playing

tapes

with

large

hubs,

@

and

END

light

when

the

tape

is

nearing

the

end.

Use

these

two

indicators

to

determine

the

amount

of

tape

remaining.

The

indicator

lights

when

the

tape

is

nearing

the

end,

then

turns

off

when

the

tape

stops.

Example

1:

About

5

minutes

from

the

end

of

the

tape

e@

Large

hubs

are

hubs

with

a

diameter

of

about

27mm.

during

playback

in

the

forward

direction

on

a

Note

that

if

the

hub

is

larger

than

this,

there

may

be

a

major

error

in

indicating

the

remaining

time.

60-minute

tape

with

normal

hubs:

NUGCe

>

END.

®

JUAN

Example

2:

About

8

minutes

from

the

end

of

the

tape

during

playback

in

the

forward

direction

on

a

60-minute

tape

with

large

hubs:

re

43

-END:

@O

FAVS

Example

3:

About

5

minutes

from

the

end

of

the

tape

during

playback

in

the

reverse

direction

on

a

Normal

hub

Large

hub

60-minute

tape

with

normal

hubs:

Sere

of

iA

~

END:@©

®

Use

the

following

table

to

determine

the

approximate

time

to

the

end

of

the

tape

when

the

END,

@

and

etauy’®

indi

fl

i

ini

it:

my

©

indicators

start

flashing

or

stop

flashing,

remaining

lit:

Normal.

hub

Large

hub

Playback

in

Playback

in

Playback

in

Playback

in

forward

direction

reverse

direction

forward

direction

|

reverse

direction

Approx.

1

minute

|

Approx.

5

minutes

|

Approx.

7

minutes

|

Approx.

5

minutes

Approx.

5

minutes}

Approx.

5

minutes

|

Approx.

8

minutes

|

Approx.

5

minutes

*

There

are

no

C-90

tapes

with

large

hubs.

Example

4:

About

5

minutes

from

the

end

of

the

tape

during

playback

in

the

reverse

direction

on

a

60-minute

tape

with

large

hubs:

Hub

diameter

Me

hey

5

END:

“en

NO;

©

Tape

fength

NOTE:

The

remaining

tape

times

shown

on

the

table

are

only

rough

indicators

of

the

actual

remaining

time.

The

“END”,

“@”

and

“©”

indicators

may

not

light

when

using

cassettes

with

thin

tape

or

a

small

hub

diameter.

9

ENGLISH

REMOTE

CONTROL

UNIT

@

Open

the

battery

case

lid

on

the

back

Remote

contro!

sensor

of

the

remote

contro!

unit.

e

The

remote

control

unit

can

be

used

a

straight

distance

of

approximately

7

meters

from

the

remote

control

sensor,

but

this

distance

will

be

30°

shorter

if

there

are

obstacles

in

the

way

or

if

the

remote

control

unit

is

SS

operated

from

an

angle.

Remote

control

transmitter

@®

Insert

the

two

batteries

(R6P,

AA)

in

the

proper

direction.

“Hi”

appears

at

the

upper

left

corner

of

the

tuner’s

display

when

signals

are

re-

ceived.

®

Set

the

battery

case

lid

back

in

place.

@

Be

careful

that

the

remote

contro!

sensor

is

not

exposed

to

direct

sunlight

or

strong

light

from

lighting

fixtures.

If

it

is,

the

remote

control

unit

may

not

work.

e@

When

adjusting

the

volume

from

the

remote

controi

unit,

the

volume

will

stop

changing

if

the

remote

control

transmitter

is

moved

away

from

the

remote

control

sensor.

Press

the

button

again

to

continue

changing

the

volume.

Button

Names

and

Functions

Stop

button

{(

HI)

Play

button

(

P»

)

Press

this

to

stop

CD

playback.

Press

this

to

start

playback

of

the

CD.

POWER

button

SLEEP

button

Press

this

to

turn

on

the

power

for

the

entire

Press

this

to

set

the

sleep

timer.

Pause

button

(II)

Press

this

to

temporarily

stop

playback.

Press

the

play

button

(P)

to

resume

playback.

Auto

search

button

(144)

Press

this

button

during

playback

to

return

to

the

beginning

of

the

currently

playing

track.

Press

again

within

0.5

seconds

to

move

to

the

beginning

of

the

previous

track.

Search

button

(44)

Auto

search

button

(>P#)

Press

this

to

move

backward.

Press

this

button

during

playback

to

advance

DIRECT

button

to

the

beginning

of

the

next

track.

Press

again

within

0.5

seconds

to

move

to

the

beginning

of

the

following

track.

Press

this

for

direct

search

on

the

CD

player.

PROG

button

Press

this

for

programmed

search

on

the

CD

player.

Number

buttons

TIME

button

Press

this

button

repeatedly

to

switch

the

CD

player

time

display

between

the

remaining

time

per

track,

the

total

remaining

time,

and

the

elapsed

time

per

track.

tecall

preset

stations.

CANCEL

button

When

playing

a

CD,

press

these

after

pressing

: ;

tet

the

DIRECT

or

PROG

button

to

specify

track

fas

once:

ale

mae

to

cancel

the

numbers.

program

rack,

Deck

operation

buttons

FUNCTION

button

Use

these

buttons

to

operate

the

cassette

deck.

Orr

cn

od

TUNER,

To

record,

press

the

REC/REC

MUTE

button

7

GD,

an

-

then

one

of

the

PLAY

buttons

(¢

or

DP).

Press

the

REC/REC

MUTE

button

twice

to

create

a

VOLUME

buttons

Cee

ee

5-second

blank

space

on

the

tape.

The

recording

pause

mode

is

set

when

the

REC

Use

these

to

adjust

the

volume.

PAUSE

button

is

pressed

during

recording.

Press

>

to

decrease

the

volume,

<

to

increase

[

it

Press

these

after

pressing

the

TUNER

button

to

SDB

(Super

Dynamic

Bass)

button

Press

this

for

a

sound

with

more

powerful

bass,

Press

again

to

return

to

the

normal

sound.
