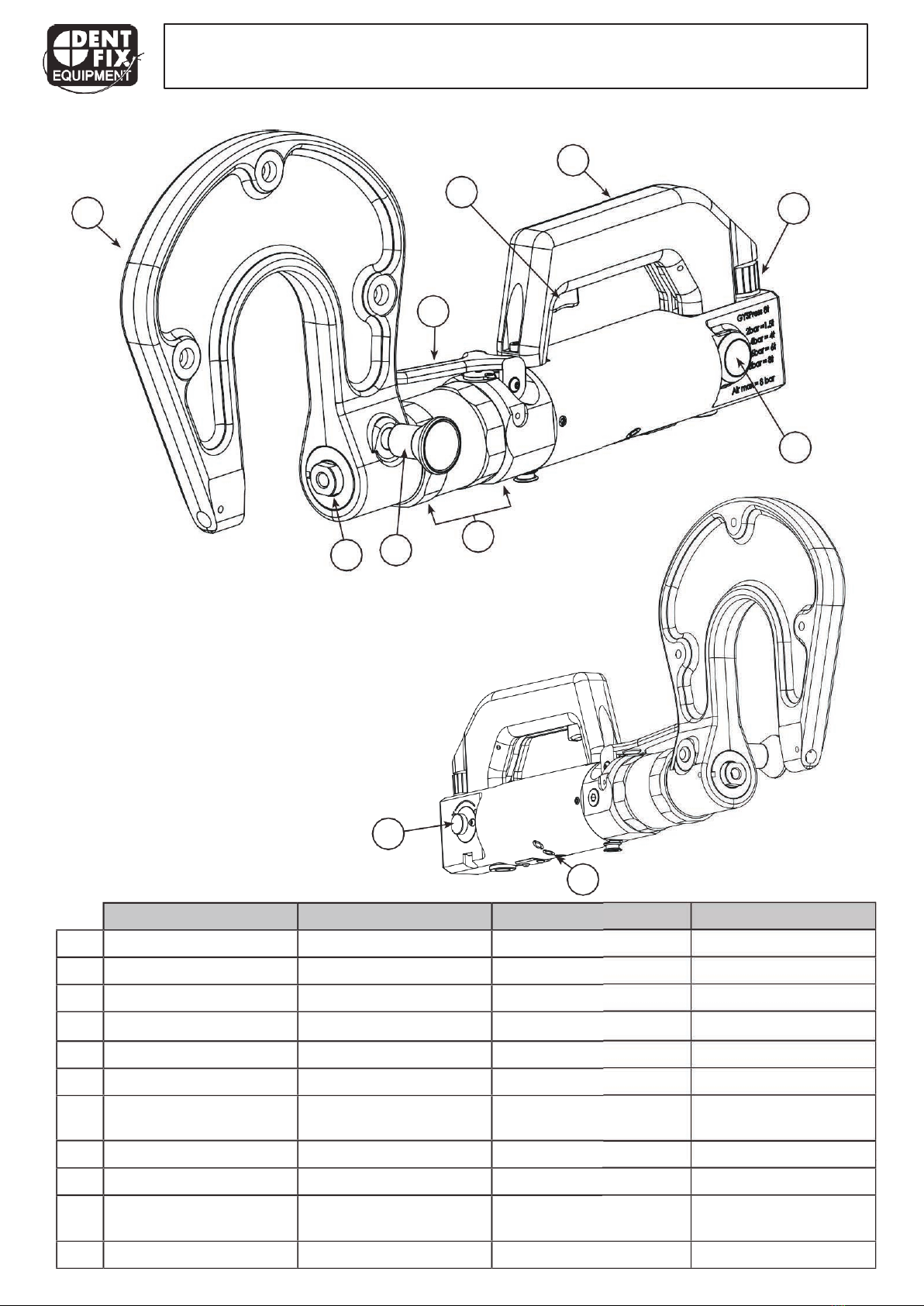

Before using the riveting machine and to facilitate the
extraction of self-piercing rivets, it is possible to make
a mark on the rivet with the center punch tool (ref :
048379) to locate the extraction tool in the mark.
If during the extraction, the rivet stay in the matrix
hole, breathe out to get it out before making another
extraction.
CONTROLS AND MAINTENANCE
The DF-SPR67 does not require any special maintenance. A simple periodic visual control is recommended in order to
prevent any breakdown or failure during use.
Clean the DF-SPR67 at least once a week in order to eliminate dust and dirt which could alter the function of the pro-
duct in the long term. Use auto cleaning cloths. Do not use water nor flammable or corrosive liquids.
During maintenance, the compressed air supply must be disconnected.
TROUBLESHOOTING
The chart below indicates the issues that can be observed during the use of the product. If the problem observed
does not appear in the table below, stop using the product and call immediately your distributor to seek support.
The riveting machine does not work.
Air is not connected. Connect the air pressure.
Air pressure too low. Check air pressure supply.
The air pressure is not adjusted
correctly.
Adjust air pressure between 2 and 8
bar.
The potentiometer is set at the mini-
mum speed.
Adjust the speed laying.
The rivet is not in place.
Mandrel or matrix faulty Replace the mandrel or the matrix.
Presence of glue on the mandrel or
inside the matrix. Clean the glue
The pressure is not enough. Air pressure is too low or not well-
ajdusted.
Rivet length incorrect. Follow manufacturer instructions.
The piston does not go out or goes
out too slowly. The discharge lever is still blocked. Unblock the discharge lever.
Air, leak.
Faulty pipe. Change the pipe.
Faulty coupling. Change the coupling.
Faulty seals. Repair by the manufacturer.
