DENVER DPF-557 User Manual

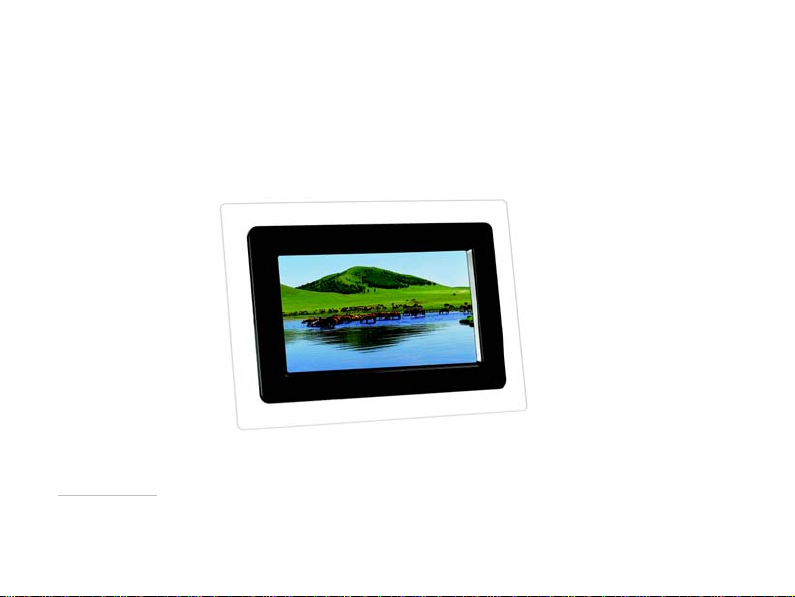

Digital Photo Frame
WARNING
The power adapter cable/disconnect device shall remain easy to operate/disconnect.
1
Introduction
Congratulations on your purchase of Digital Photo Frame.
Before operating the unit, please read this manual thoroughly and keep it for future
reference. This manual will help you use many of the exciting features to make your
Digital Photo Frame view more enjoyable.
The Digital Photo Frame enables you to view digital pictures directly from your
camera’s memory card. You can also create a slide show with multiple transition
effects. No computer, digital camera, or internet connection is required.
●Play back of photo files stored in data stored devices through USB 2.0 port or
various card-reader port, or internal memory.
●Supports SD,MMC, MS card.
●Compatible with most digital cameras stored JPEG images files.
2
●Automatic slide show with multiple transition effects and adjustable display time.
●Insert the memory card with slots facing you. Do not force the memory card in the
slot.
●If you are not able to easily insert the memory card completely, you may have
inserted it in a wrong way.
Note: DPF = Digital Photo Frame.
Precautions and Maintenance
●For indoor use only
●To avoid risks of file or electric shock; do not expose this appliance to moisture.
●To avoid overheating; do not block the ventilation holes on the back of the DPF at
any time.
●Keep your Digital Photo Frame out of sunlight. Direct sunlight may cause damage.
●Do not dismantle the DPF. There is a risk of electric shock, and there are no user
serviceable parts inside. Dismantling your Digital Photo Frame will void your
3
warranty.
●Do not use the Digital Photo Frame if conditions could allow condensation to
occur, or damage may result.
●Bracket installed, the use of the process, the prohibition of anti-clockwise 360-
degree rotation, so as not to loose.
DPF Side view
●DC: Input the DC power adapter to the DPF player.
●SD/MMC/ MS card: The socket for DPF player to
connect the SD/MMC/MS card .
●USB Host: The socket for DPF player to the USB
memory.
4
DC
SD/MMC/MS Card
USB Host
Player Overview
Key control and Key function:
1. ENTER Button: Confirms your selection, and pause or play.
2. LEFT SHIFT Button ( ): Left cursor select function and to view the next
photo.
3. RIGHT SHIFT Button ( ): Right cursor select function and to view the
previous photo.
5
4. MENU Button: Displays the photo frames menu options.
5. UP Button ( ▲): Up cursor select function or rotate photo clockwise.
6. DOWN Button ( ▼): Down cursor select function or rotate photo clockwise.
7. STANDBY Button: Press this button two seconds to ON and OFF, Press one
time to come back to the previous menu.
8. Bracket jack.
Assemble the Digital Photo Frame bracket to prop the unit up. Insert adapter DC
plug into the DPF player first, then plug the power cord to a standard wall outlet.
If you insert your memory card or USB flash drive into the frame, the images stored
on the memory card or USB flash drive will begin to appear automatically on your
screen.
6
DPF
Functions
●SELECT CARD
7
DPF

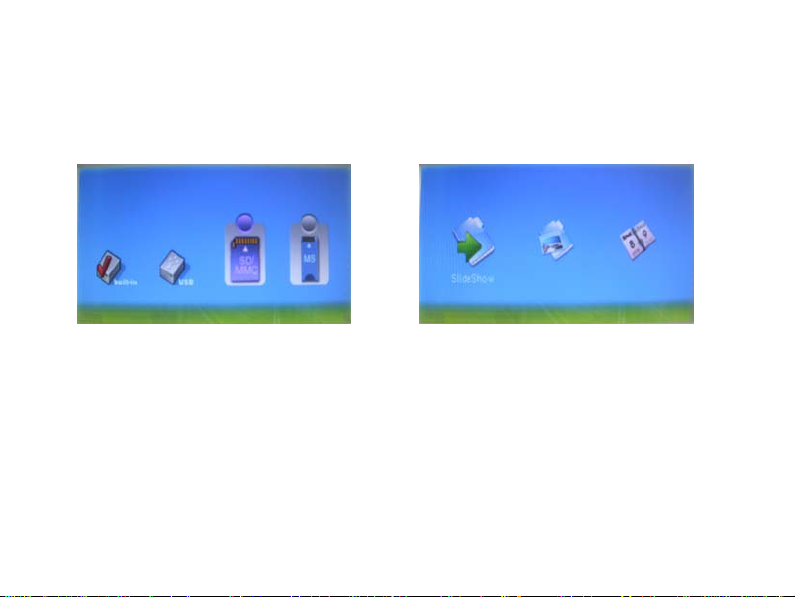

In the slide show model, Press Standby button three times to show device select
menu. Press arrow buttons to select Card, U Disc or inside memory, Press Enter
button confirm (Fig1).
●MAIN FUNCTIONS
After selected device, you can press arrow buttons to select the main functions, such
as Slide Show, Photo and Calendar (Fig2), Press Enter button into the selected
8
Fig1 Fig2
function mode.
1. Slide Show: This function menu allows you press Enter button to enter slide
show mode, the player will auto show photo.
2. Photo: This function allows you to preview photos in single window or six
windows.
3. Calendar: This function shows calendar and clock to user.

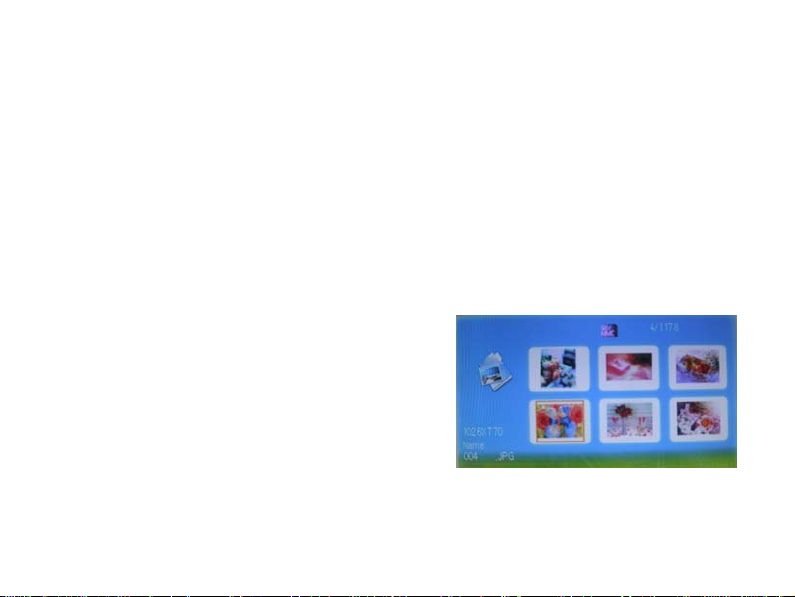

●PHOTO FUNCTION
In this function mode (Fig 3).
1. Press arrow buttons to select photos preview
in six windows.
2. Press Enter button to display pictures.
3. Press Menu button to show Setup menu in
the pause situation of slide show.
4. Press Standby button to exit to the main function mode.
9
Fig3

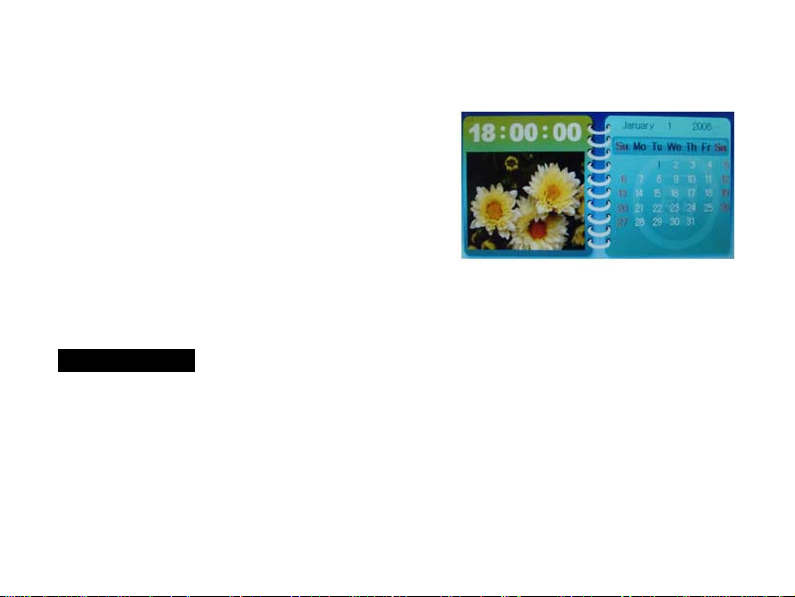

●CALENDAR FUNCTION
In this function mode, the player shows
calendar and clock to user (Fig 4).
1. Use the arrow buttons; you can look up the
calendar show on the left of DPF.
2. You can also slide show photo in a small
window if the selected card has jpg files.
3. Use Standby button to exit calendar show.
Setup your DPF
Press Menu button to enter into setup menu. In the Setup menu, you can use the
arrow buttons to select one item to setup or operate. When the item is show in gray
color, you cannot deal with it at that moment (Fig 5).
10
Fig4
