Denver LDD-1953 Manuale utente

Instruction Manual

Model NO.: LDD-1953

19”LED TV WITH DVD PLAYER

1

1

2

4

5

6-7

8

9-14

9

10

11

12

14

15-21

22

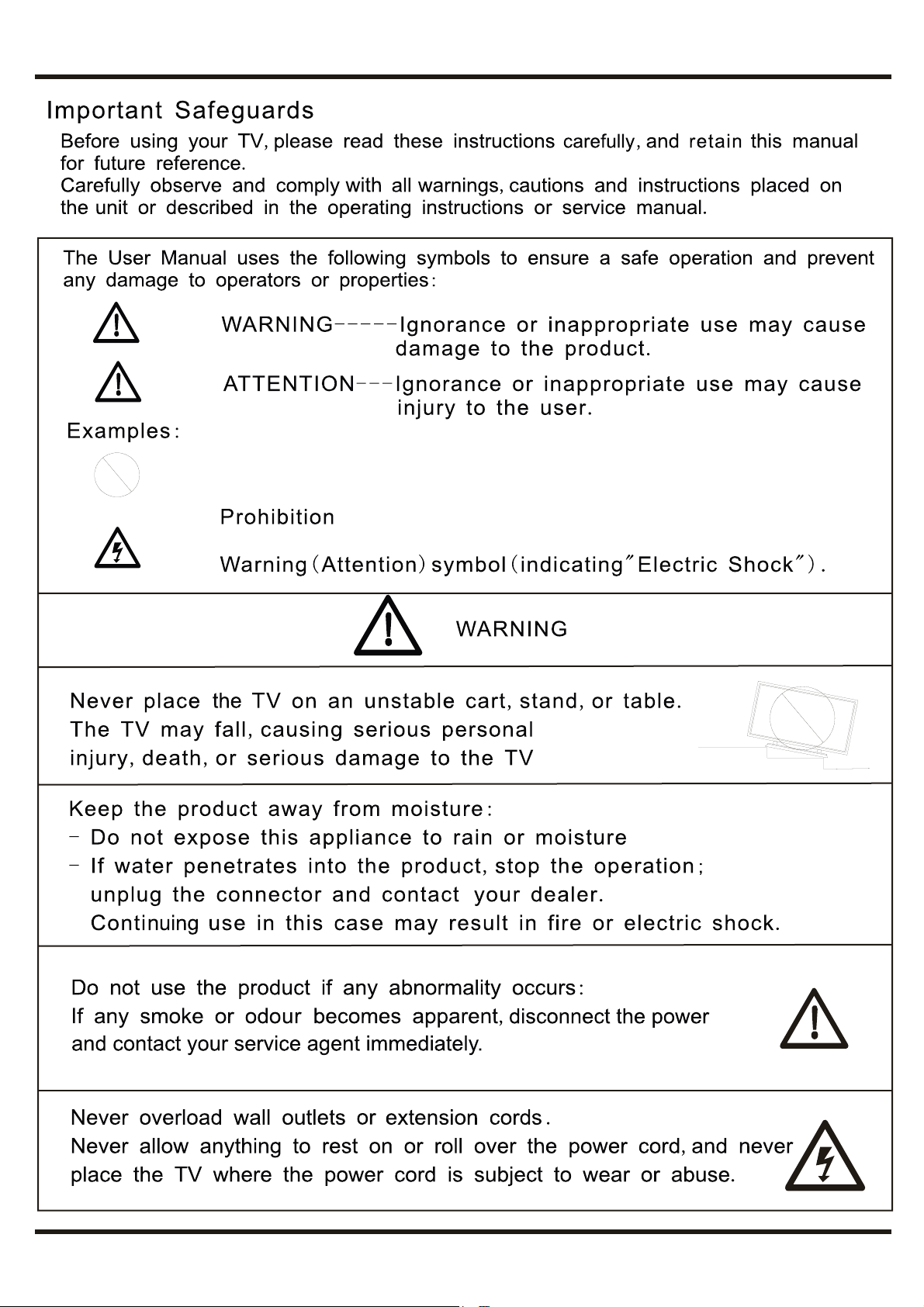

2

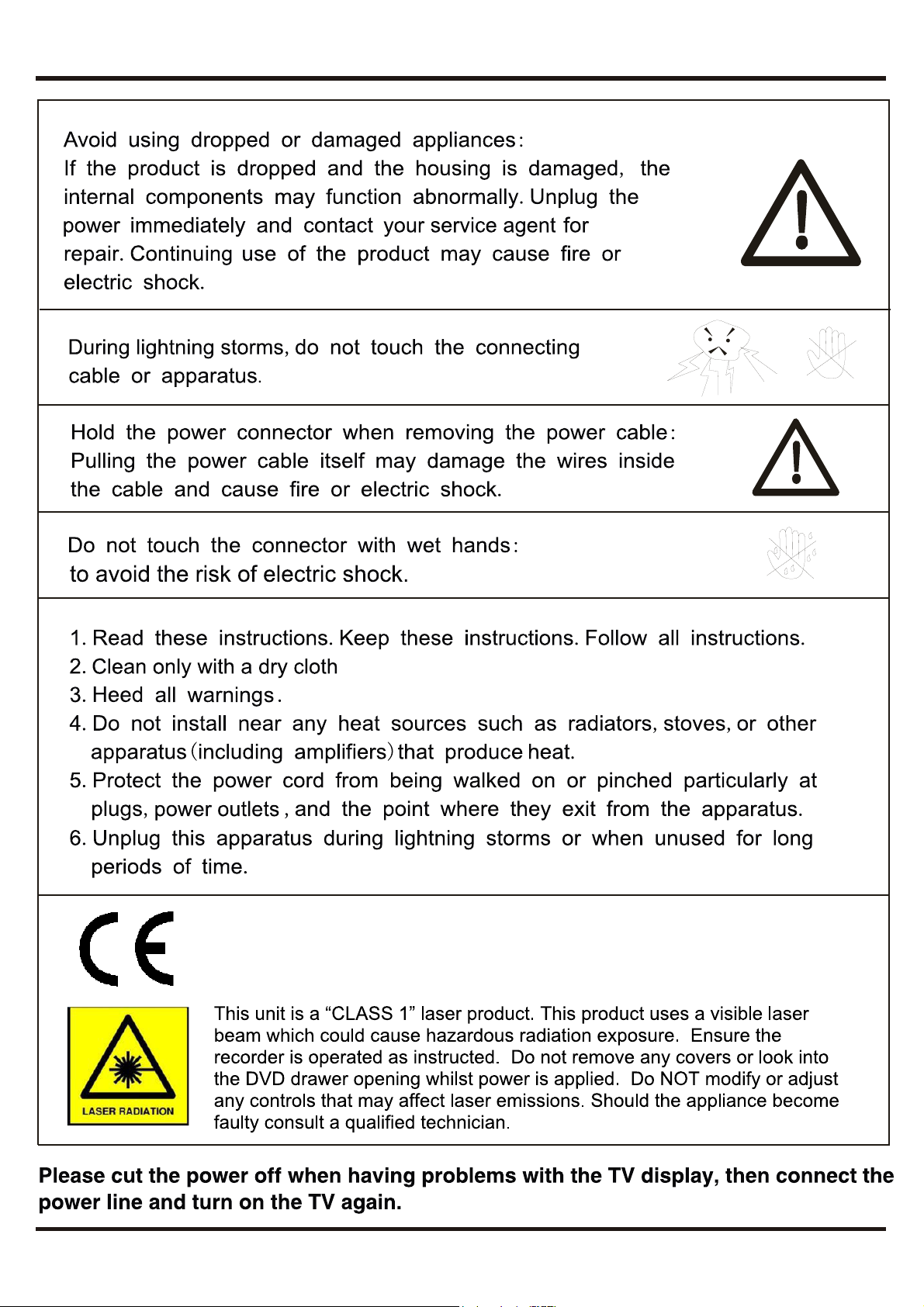

This unit complies with European safety and electrical interference

directives.

3

POWER to turn on and off.

INPUT:

MENU:

CH+/-: Press to scan through channels.

VOL+/-:

POWER:

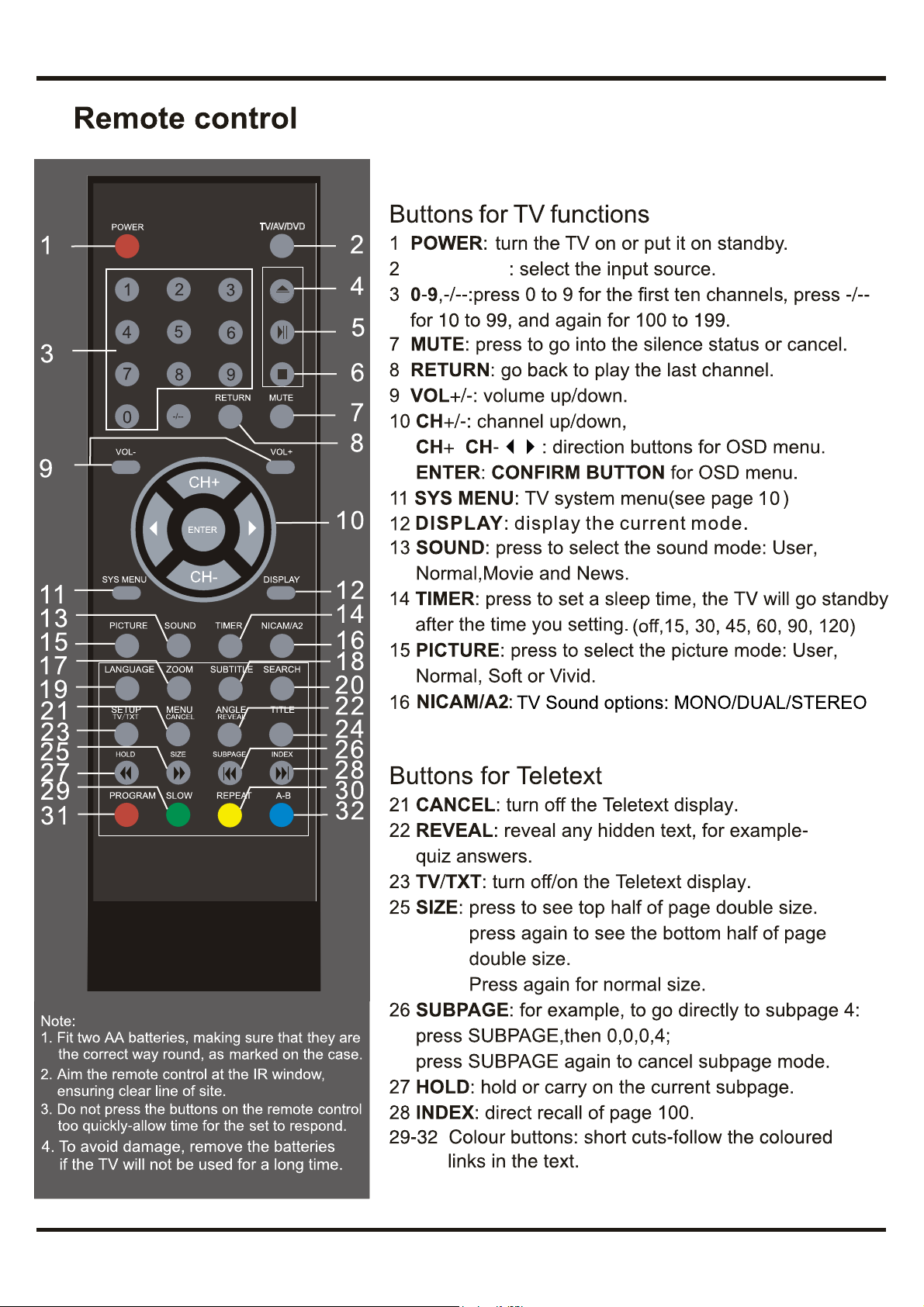

The effective receiving range for the signal is 5-8 metres from the front of the remote

control window, and 300to the left or right side and 200above or below the remote control

window.

Null

Insert a 12cm disc according

to the silk.

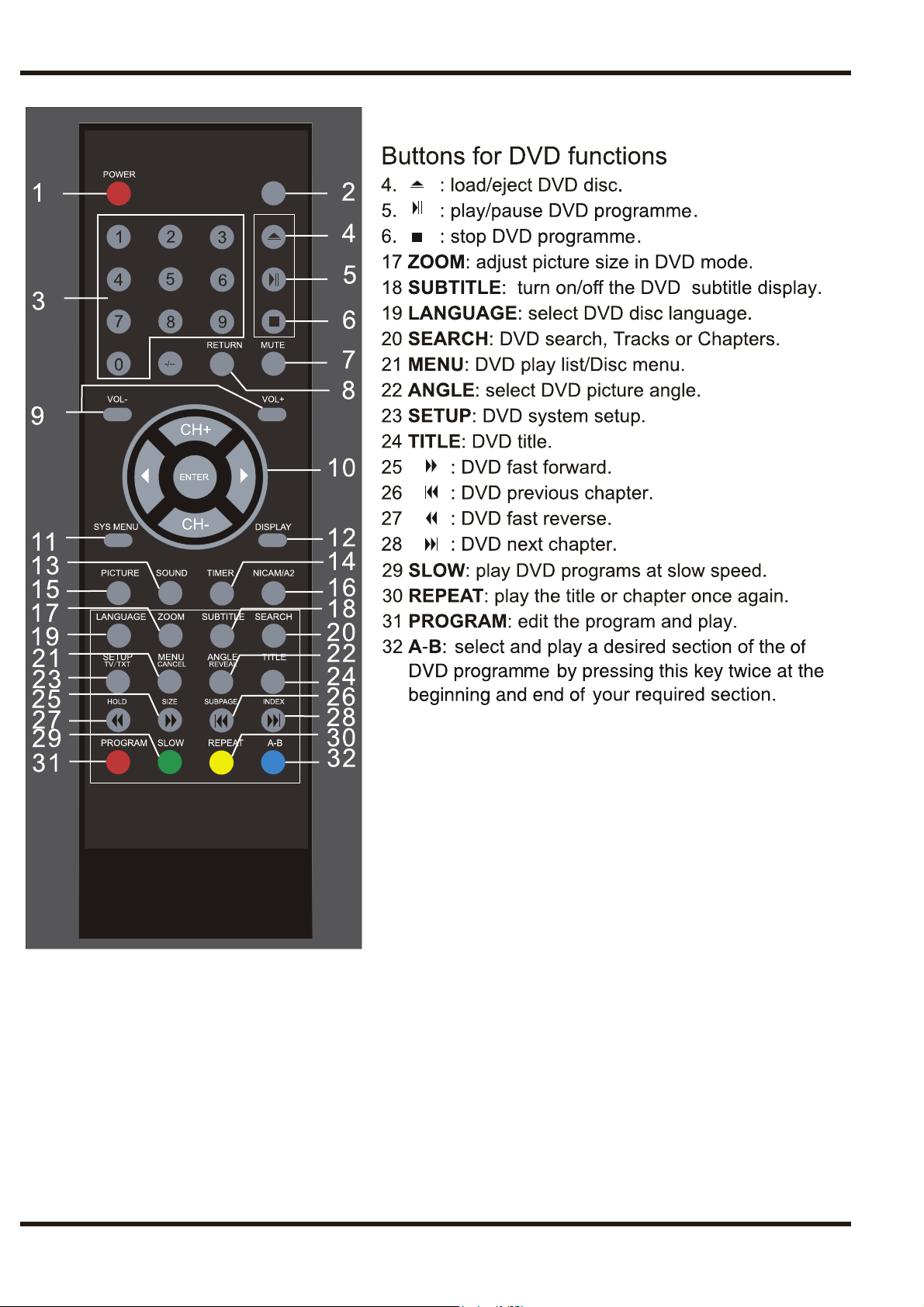

PLAY: Play/Pause DVD program.

EJECT: Load/eject DVD disc.

Remote Control window

4

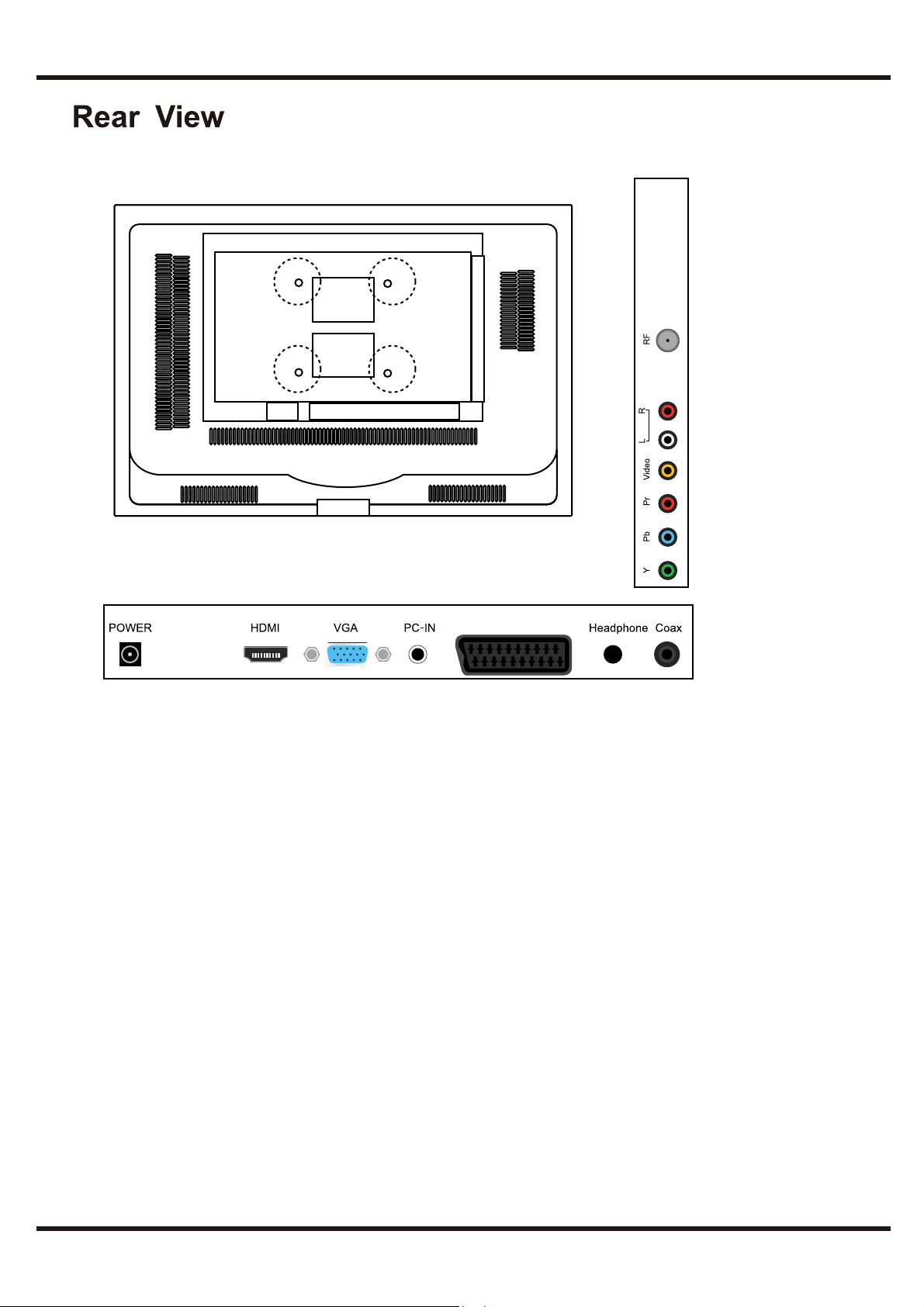

RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.

Audio R/L in: Connect them to the audio output terminal of DVD.(shared with YPbPr)

VIDEO: Connect it to video output terminal of DVD.

YPbPr: Connect them to the YPbPr video output terminal of DVD.(used in

component source)

SCART

POWER: Connect to the mains adaptor.

HDMI: Connect it to the HDMI of DVD or other equipment.

VGA: For PC display.Connect it to the D-Sub 15 pins analog output connector of the PC.

PC-IN: Connect it to the audio output terminal of PC.

SCART: Connect them to the SCART video output terminal of DVD.(used in component source)

Headphone: Connect it to your headphone or other audio equipment.

Coax: Digital coaxial output.

Audio

5

TV/AV/DVD

TV/AV/DVD

OPEN

PLAY

/ PAUSE

STOP

6

TV/AV/DVD

OPEN

STOP

PLAY

/PAUSE

7

INPUT(TV/AV/DVD)

INPUT(TV/AV/DVD)

POWER

INPUT TV/AV/DVD

8

9
