Denver SEL-10860DONARPRO Istruzioni operative

Original manual

SEL-10860DONARPRO

facebook.com/denver.eu

March/2023 - Version 1.0

IMPORTANT! Read carefully and keep for future reference.

Before operating this vehicle, read all the instructions for safe assembly and

operations. User’s manual can guide you through the functions and usage of Electric

scooter. Before using this Electric scooter, familiarize yourself with how to operate, so

that you can keep the Electric scooter in the best condition possible.

This appliance can be used by children aged from 14 years and above and persons

with reduced physical, sensory, or mental capabilities or lack of experience and

knowledge if they have been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

The appliance is only to be used with the power supply unit provided with the

appliance. This appliance contains batteries that are not replaceable.

Table of Contents

1. Important information before use ........................................................................................................ 3

2. Product overview ....................................................................................................................................... 5

3. Unfolding and folding the scooter ............................................................................................................. 7

4. Assembling the device ............................................................................................................................. 10

5. Charging the scooter ................................................................................................................................ 12

6. Intended Use ............................................................................................................................................ 13

7. Safety Instruction ..................................................................................................................................... 13

8. Maintenance ............................................................................................................................................ 14

9. Operational control ............................................................................................................................. 19

10. Specification ........................................................................................................................................... 22

11. Warnings ................................................................................................................................................ 23

12. Electric scooter safe parking .................................................................................................................. 23

13. Safe transportation ................................................................................................................................ 23

14. Other warnings………………………………………………………………………………………………………………………………..27

1. Important information before use

We urge owners of this Scooter to charged and store it in a safe way.

For safety reason and protect battery life, never charge the electric scooter in

temperatures below 5 °C or above 45 °C. Equally, always disconnect the electric scooter

with the power cable once fully charged. Always use the supplied power adaptor to

charge the electric scooter.

Make sure that all screws are properly tightened to avoid unsafe situations.

In case you ride in rain or wet conditions then make sure to dry the pedal board with a

cloth top and bottom when done riding.

WARNING

● Please make sure to check that the steering system is correctly adjusted

and that all connection components are firmly secured and not broken

before riding, refer to handlebar assembly and safety instruction.

● Please read operation guide and warnings of correct techniques for use

and braking

● Always wear shoes.

● Self-locking nuts and other self- locking fixings may lose their

effectiveness over time. Check these with regular intervals.

● All parts and materials of electric scooter must not be changed.

Modifications are not allowed.

1.1 Technical modifications

Avoid removal of components or any kind of technical modification to the scooter in

order to preserve the vehicle in approved condition. Specifically avoid modification of the

following technical systems of the scooter:

 Powertrain system

 Battery system

 Braking system

 Steering system

 Lightning system

 Electrical system

 Wheel equipment

 Tyre equipment

 Anti-slip equipment

 Frame structure

Always make sure that required maintenance is conducted professionally by certified

agents.

1.2 Traffic rules

- Do not ride the scooter if you are below 14 years of age.

- Do not ride the scooter with more than 1 person at a time.

- Do not ride the scooter faster than 20 km/h.

- Do not ride the scooter without valid liability insurance.

- Do not ride the scooter under influence of drugs, alcohol, medicine, or the likes.

- Do not ride the scooter when your physical or mental condition is inadequate.

- Always adhere to the applicable traffic rules.

- Always keep yourself informed about changes in traffic rules.

- Always be considerate of weaker road users.

- Always adapt driving speed to traffic conditions. (If necessary, adjust the speed to

pedestrian traffic)

- Always adapt driving speed to road conditions.

- Never obstruct or endanger pedestrians.

- Do not ride the scooter on routes reserved exclusively for pedestrians or restricted

for bicycles.

- Do not ride the scooter on routes reserved exclusively for

cars/vans/trucks/motorcycles/etc. or restricted for bicycles.

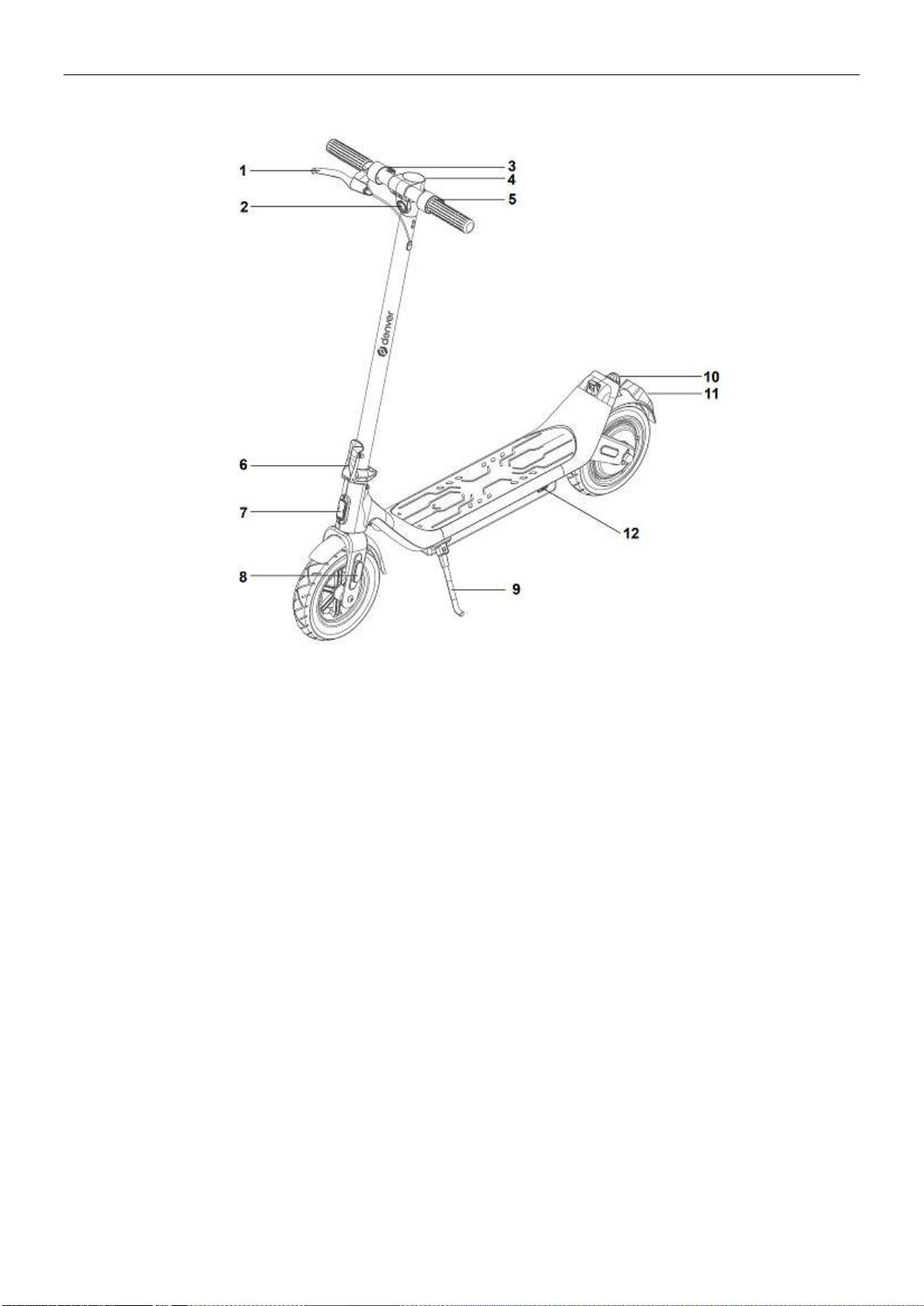

2. Product overview

1. Brake lever for drum

brake

2. Front light

3. Throttle

4. Display

5. Electric brake

6. Folding mechanism

7. Front reflector

8. Side reflector

9. Foldable stand

10. Rear light/reflector

11. License plate area

12. Charging port

Accessories:

1. Power charger: FY1375462000B

2. T-shaped Allen key for mounting the screws.

3. Screws for mounting front steer (6 pcs).

3. Unfolding and folding the scooter

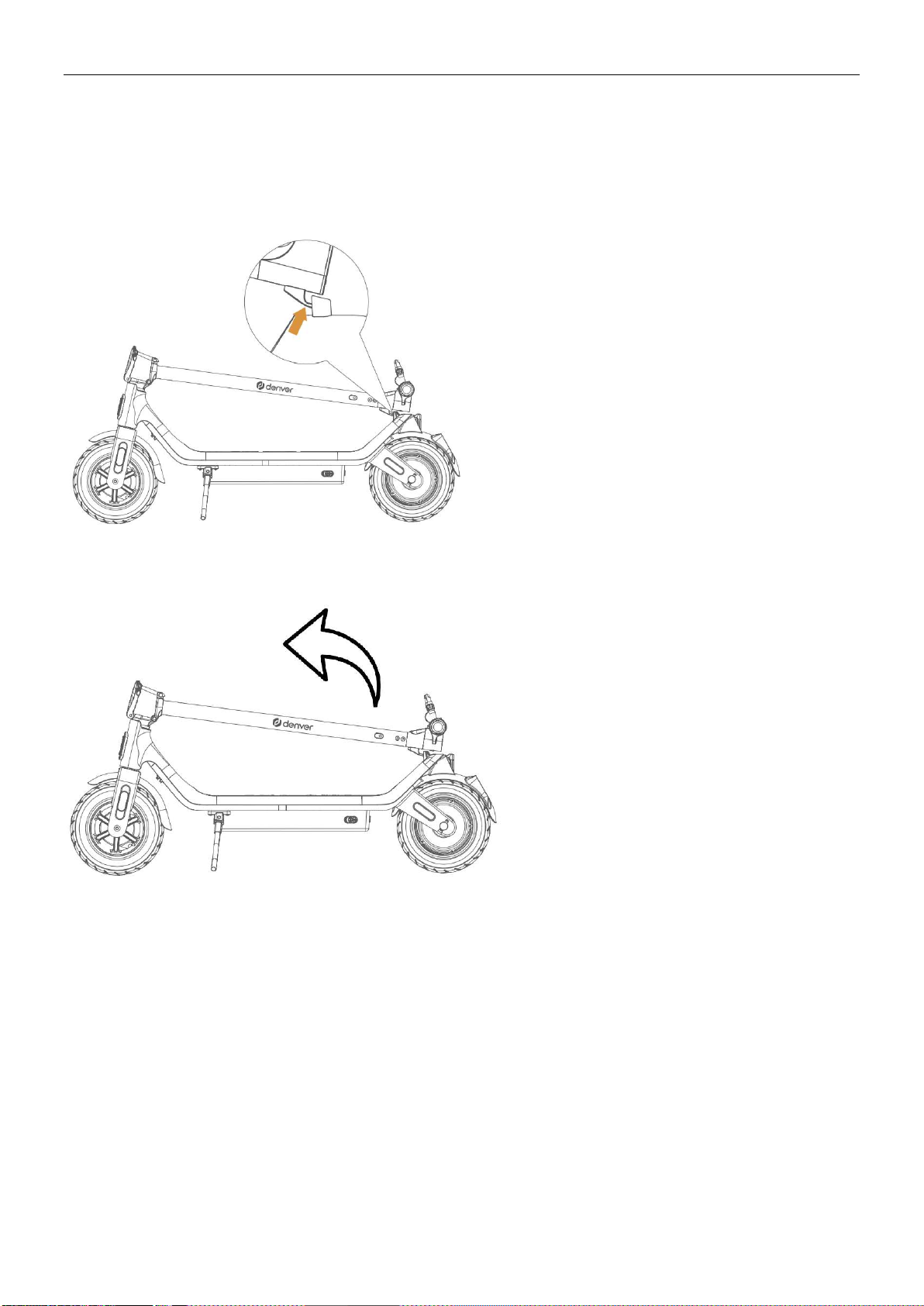

Unfolding

1. Release the front pole from the hook.

2. Raise the handle slowly.

3. Lock the folding mechanism.

Presse the folding handle onto the front pole until it is locked. Pull the folding handle to confirm that

it is locked.

Folding

Press the small ball shaped button as shown below to release the lock.

Pull out the folding handle and now you can lower the front pole.

4. Assembling the device

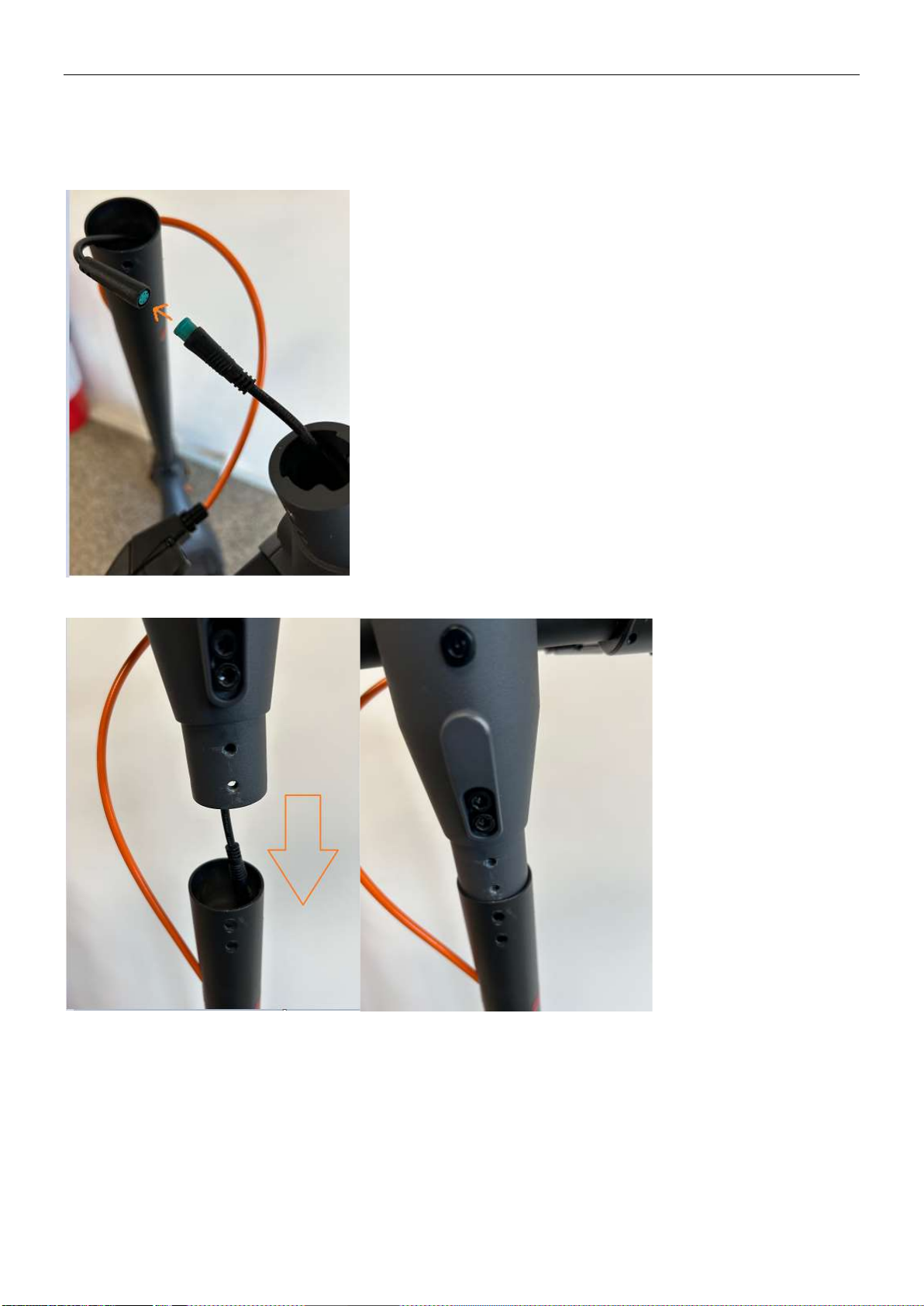

Mounting the front steer.

1. Connect below cable tightly

2. Lower the cable inside the tube and carefully lower the steer without getting the cable stuck.
