Denver DVBT-42 Manuale utente
2
DVBT-42
2
INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
PRIRUČNIK S UPUTAMA ZA RAD
1
Important safety instructions to be kept with the product
Please read attentively
To prevent fire and electric shock, do not expose this
receiver to rain or moisture. In order to avoid any possible
risk of electric shock, never attempt to open the unit. In case
of breakdown, reparation should be made by qualified
technicians. No part of this unit should be repaired by users.
WARNING!
Presence of dangerous tension inside apparatus! Do not open. Risk of
electric shock! No part should be repaired by users. The maintenance of the
receiver should be carried out exclusively by qualified persons.
If the power cord is damaged, it must be replaced or repaired by the manufacturer,
its after-sales service, qualified electrician or persons of similar qualification in
order to avoid possible danger.
The product must be installed in accordance with national regulations.
The used batteries must be disposed of safely. Throw them in collection bins
provided is prohibited (inquire after your retailer for more details) in order to
protect the environment.
Proper Installation
- Place the receiver on a flat, firm and stable surface. Do not put it on a carpet or
rug.
- Do not place the receiver on top of another device, such as an amplifier. This
may lead to overheating.
- Do not put anything above the unit (for example, CDs or magazines).
Sufficient Ventilation
- Place the receiver in a well-ventilated location to prevent accumulation of
internal heat. Allow a gap of at least 10cm to the rear and the top of the unit, as
well as a space of 5cm to both sides to avoid overheating.
- Do not obstruct any ventilation openings with items such as newspapers,
tablecloths, curtains, etc.
Protecting the Receiver from High Temperatures, Humidity, Water and Dust
- The receiver should not be exposed to dripping water or splashing.
- No objects filled with liquids, such as vases, shall be placed on the unit.
- Do not place any objects that might damage your unit near it (e.g. liquid filled
objects or candles).
2
- Do not place any source of flames such as lit candles on the receiver.
- This receiver is to be used in a temperate climate and should not be used in a
tropical climate.
Electricity Supply
- Please unplug the receiver in case of prolonged non-use.
- If the power cord is damaged, it must be replaced or repaired by the
manufacturer, its after-sales service, qualified electrician or similar qualifications
to those to avoid possible danger.
- This device must be connected to a 240V ~ 50Hz electrical network.
- The plug must remain readily accessible after the installation of the product.
Welcome Section Main Features:
Congratulations on choosing to buy a DENVER product. By doing so you now
have the assurance and peace of mind that comes with purchasing a product
made by one of the leading manufactory. All products brought to you by DENVER
are manufactured to the highest standards of performance and safety, and, as
part of our philosophy of customer service and satisfaction, are backed by our
comprehensive 1 Years Warranty.
Main Features:
Slim size (130mm)
MPEG-2 decoding
USB2.0 for software update , music ,image and recording
LCN(Logical Channel Number) supported;
Parental control
Favorite lists
Timer
EPG/TEXT/SUBTITLE supported
Digital sound through COAXIAL output (S/PDIF)
PVR ready supported
3
CONTENTS
1 Installation of STB…………………………………………………...........................4
1.1 Front Panel…………………………...............................................................4
1.2 Rear Panel………………………………………………………………………...4
1.3 Connection………………………………………………………………………..5
1.4 Remote…………………………………………………………………………….6
2 Welcome Page………………………………………………………………………...7
3 Main Menu……………………………………………………………………………..8
4 Channel…………………………………………………………………………….......8
4.1 TV Channel List………………………………………………………………......9
4.2 Radio Channel List……………………………………………………………. 10
4.3 Delete All Favorites………………….. ………………….. …………………. ..10
4.4 Delete All………………….. ………………….. …………………. …….. .. . .10
5. Installation…………………………………………………………………………...11
5.1 Auto Scan………………………………………………………………………..11
5.2 Channel Scan………………………………………………………….. ………12
5.3 Tuner Setting…………………………………………………….. …………….12
6 System Setup…………………………………………………….. ………………....12
6.1 OSD Language…………………………………………………….. …………..13
6.2 TV System…………………………………………………….. ………………..13
6.3 Region and Time…………………………………………………….. ………...14
6.4 Timer Setting…………………………………………………….. ……………..14
6.5 OSD Setting…………………………………………………….. ……………...16
6.6 Parental Lock…………………………………………………….. …………….16
7 Tools…………………………………………………….. ……………….................17
7.1 Information…………………………………………………….. ……………….17
7.2 Game…………………………………………………….. ……………….........17
7.3 Load Factory Default………………………………….. ………………...........18
7.4 Software Upgrade……………………………….. ………………...................18
8 Media+……………………………….. ………………..........................................20
8.1 Media player……………………………….. ………………...........................20
8.2 Record Manage……………………………….. ………………......................25
8.3 Removalbe Disk Information……………………………….. ………………...26
8.4 DVR Configuration……………………………….. ………………..................27
8.5 Safely Remove Storage Device..................................................................28
9 DVR……………………………….. ………………...............................................28
9.1 EC(Record) ……………………………….. ………………............................28
9.2 imeshift……………………………….. ………………....................................29
10 Technical Specification………………………………………………………….....30
11Troubleshooting…………………………………………………………………......31
4
1.Installation of STB
1.1 Front Panel
（1）Power: Switch between Standby mode and active mode.
（2）on/off: Power lamp, red color in Standby mode, green color in active mode
（3）IR sensor:Receives the remote control signal.
（4）USB
1.2 Rear Panel
1. ANT IN：Connect antenna here.
2. LOOP OUT：To connect to TV.
3. S/PDIF：Digital audio signal output
4.TV SCART Connector：
Use this connector to connect your receiver to your video recorder using a
SCART cable. Your video signal will now be looped through your receiver to
your TV set.
5.Power Cord
5
1.3 Connection
Note: Before connect this STB to other devices, please close all devices’
power.
1.3.1 Connecting to Terrestrial Antenna
To receive the broadcast signal, the terrestrial antenna cable should be
connected to the ANT IN connector at the back of the receiver.
1.3.2 Connecting to TV
Connect the Audio Left ,Right and VIDEO RCA connectors at the back of the
receiver to the Audio Left, Right IN and VIDEO connectors on your TV set.
Connect the HDMI connector at the back of the receiver to the HDMI connector on
your TV set.
1.3.3 Connecting to Digital Audio Amplifier
Connect OPTICAL connector at the back of your receiver to appropriated input of
your Digital Audio
6
1.4 Remote
: Switch between peration and standby
modes.
: Press to temporarily cut off the sound.
0-9: nter number or elect a channel number to watch.
FAV: Press to display the TV favorite list.
RECALL: Go back to the previously viewed channel.
AUDIO: isplay the Audio Select window.
SUBTITLE: Show the list of subtitled languages the
current. channel supports.
INFO: Shows information of the current channel.
MENU: Displays the main menu.
EPG: Shows the PG(Electronic Program Guide) only
when menu is off.
EXIT: Return to the previous menu or escape from
the item
: Move cursor left/right or Volume +/-.
: Move up/down or CH+/CH-
OK: Confirm.
TEXT: Shows current service’s Teletext on OSD.
REC LIST:Show the menu of media that have been
recorded.
PAUSE‖:Freeze/Resume picture.
TV/RADIO: Switch between TV and Radio mode.
STOP: Stop playing Media.or stop recording.
REV FED :Slow/Fast playing media or To
navigate in the menu environment.
RECORD●:Records a live program.
RED/GREEN/YELLOW /BLUE: Use to navigate between pages in teletext mode.
7
2 Welcome Page
1 When first time power on, it will show welcome page
2 Press [Up/Down] key to move highlight.
3 Press [Left/Right] key to select region and OSD language.
4 Move highlight to [OK] button and press [ENTER] Key to begin to auto scan.
5 Press [Exit] key to exit menu.
8
3 Main Menu
press [Menu] key, you can enter main menu.
1 Press [left/right] key to select menu pages
2 Press [OK] key to enter the selected item
4 Channel
1 Press [Up/Down] key to select items
2 Press [OK] to enter the selected item.
9

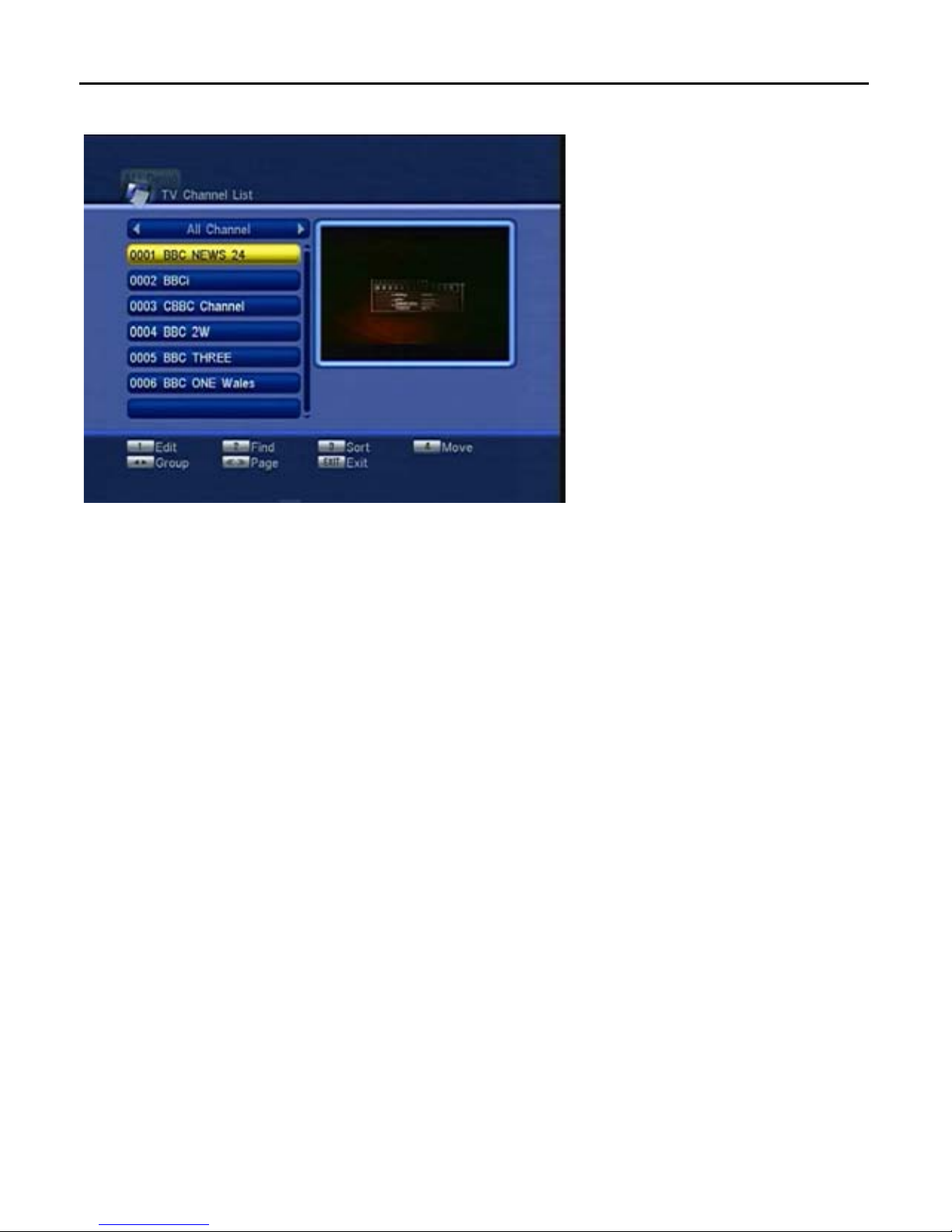

4.1 TV Channel List
1 press [Up/Down] key to preview the current highlighted program in the right side
preview window.
2 press [REV/FWD] key to implement the Page Up/Page Down function.
3 press [OK] keys to enter full screen playing mode.
4 press [Menu] or [Exit] keys to go back to menu.
5 Press the number key [1] ~ [4] can implement the corresponding function in
“Channel List”.
4.1.1 Edit
1 press number [1] Edi to enter edit channel list.
2 Press [OK] and number key [1] ~ [5] to implement the corresponding function.
3 Press [Left] or [Right] key to change group
4Press [REV]or [FWD] to page
5 Press [Menu] or [Exit] to exit.
Select
1 Press [OK] key to select the highlighted channel.
Press [OK] again to cancel the selection.
Select All
1 Press number [0] key to select all channel.
Press number [0] again to cancel all selection.
Favorite
1 Press number [1] key to set the favorite channel.
2 press [Left] or [Right] key to switch to favorite group and
press number key [4] to delete the channel in favorite group.
Lock
1 Press number [2] key to lock the channel
