Detecto 7550 Manuale utente

0065-0647-0M Rev A 7550 FOLD-UP STATIONARY SCALE 1

7550 Fold-up Stationary

Wheelchair Scale

Installation and Operation Manual

CARDINAL SCALE MFG. CO.

PO Box 151 Webb Cit



, MO 64870

0065-0647-0M Rev A Ph: 417-673-4631



Fax: 417-673-5001 Printed in USA

11/13 www.detectoscale.com

Technical Support: Ph: 866-254-8261 [email protected]Technical Support: Ph: 866-254-8261 [email protected]

0065-0647-0M Rev A 7550 FOLD-UP STATIONARY SCALE

INTRODUCTION

Thank you for purchasing our DETECTO™ 7550 Fold-up Stationary Wheelchair Scale. It has

been manufactured with quality and reliability at our factory in Webb City, MO USA. This scale

has been assembled and tested before leaving our factory to insure accuracy and

dependability for years to come.

This manual is provided to guide you through the assembly of your scale. Please read it

thoroughly before attempting to assemble your scale and keep it handy for future reference.

pictorial content, in any manner, is prohibited. No patent liability is assumed with respect to

the use of the information contained herein.

DISCLAIMER

While every precaution has been taken in the preparation of this manual, the Seller assumes

no responsibility for errors or omissions. Neither is any liability assumed for damages resulting

from use of the information contained herein. All instructions and diagrams have been

checked for accuracy and ease of application; however, success and safety in working with

tools depend to a great extent upon the individual accuracy, skill and caution. For this reason

the Seller is not able to guarantee the result of any procedure contained herein. Nor can they

assume responsibility for any damage to property or injury to persons occasioned from the

procedures. Persons engaging the procedures do so entirely at their own risk.

PRECAUTIONS

Before beginning assembly of this scale, read this manual and

pay special attention to all "NOTIFICATION" symbols:

IMPORTANT:

0065-0647-0M Rev A 7550 FOLD-UP STATIONARY SCALE 1

SPECIFICATIONS

Capacity: 1,000 lb x 0.2 lb / 450 kg x 0.1 kg

Platform Size (Flat Portion): 32.3 in W x 33 in D / 81.9 cm W x 83.9 cm D

Overall Dimensions

Width:

Depth:

Height:

50.3 in / 127.6 cm

39.3 in / 99.7 cm (with platform extended)

7.3 in / 18.4 cm (without platform extended)

44.5 in / 113 cm (with indicator)

41.1 in / 104.4 cm (without indicator)

Power: 6 “C” cell Alkaline, Ni-Cad or NiMH batteries (not included) OR

an optional 12 VDC 1.25A wall plug-in AC power adapter

(Detecto part number MV1PWR)

Display: 5-digit, 7-segment, 7/8 inch (22.23 mm) high LCD weight digits

Keypad: 19 key, color-coded, sealed membrane

Connectivity: RS232 serial, USB and optional wired and Wi-Fi Ethernet

Weight: 180 lb

FEATURES

Slim, 7.3-inch Proﬁle

2-Way Easy Access Ramps

Compact Vertical Fold-Up Platform Conserves Space

Gas Spring Lifting Mechanism

Platform Lip to Hold Wheelchairs in Place on Scale

Optional Wi-Fi Connectivity for EMR/HER

USA-Made Quality - ISO 9001:2008

Sturdy Steel Construction for Durability

RS232 Serial and USB Ports Standard

350-Degree Tilt-and-Swivel Rotating Indicator

Body Mass Index Calculation

Optional Printer Available to Record Patient Weights

0065-0647-0M Rev A 7550 FOLD-UP STATIONARY SCALE

0065-0647-0M Rev A 7550 FOLD-UP STATIONARY SCALE 3

INSTALLATION

Location

The scale should be installed in a location with a flat, level floor. Note that the weighing

platform will not sit completely against the floor. This will not affect the accuracy of the scale

as the weighing platform will settle to the floor when the patient is placed on the scale.

The front load cells of the weighing platform will be off the floor. The back

load cells must

Back Load Cell

Front Load Cell

1/8” – 1/4” Clearance

be sitting completely on the floor.

There should be 1/8” to 1/4” clearance between

the sides of the scale frame and the floor. This

clearance is required for the lift mechanism to

imperfections with the floor or wall mount

installation that sits the wall mount too low and

prevents the scale from closing completely. If

the wall mount is too high the back load cells

will not touch the floor when the weighing

platform is lowered. If the wall mount is too

high, the wall mount must be moved lower on

the wall or the scale will not function correctly.

NOTE: It may be necessary to remove any base molding/chair rail/wall guard or to remove a

section of the base molding/chair rail/wall guard to provide space to mount the scale in a true

vertical position. An alternative method would be to shim the wall mount away from the wall to

accommodate any base molding/chair rail/wall guard.

close completely. The included shims can be

used to raise the scale if there are slight

0065-0647-0M Rev A 7550 FOLD-UP STATIONARY SCALE

This page intentionally left blank.

0065-0647-0M Rev A 7550 FOLD-UP STATIONARY SCALE 5

Step 1 – Unpack the Scale

IMPORTANT: UNPACKING AND INSTALLATION OF THIS PRODUCT

SHOULD BE PERFORMED BY TWO PEOPLE. PLEASE READ THROUGH THE

INSTRUCTIONS CAREFULLY BEFORE STARTING TO INSTALL THE SCALE.

NOTE: Make certain the scale has been received in good condition. Check for any damage

incurred in shipping. If scale has been damaged, place a claim with the carrier. It is the

responsibility of the purchaser to file all claims for any damages or loss incurred during transit.

Keep the carton and packing material for return shipment if it should become necessary.

1. Cut the shipping straps and remove the shipping carton top to unpack the scale.

2. Remove the boxes containing the Wall Mount and Weight Indicator from the shipping carton.

DO NOT lift scale by this strap!

4. Cut the tape securing the flaps on one end

of the carton and with an assistant, slide

the scale out of the carton.

NOTE: When the scale is out of the

carton, DO NOT lift the scale by the

strap securing the weighing platform

to the scale frame to raise the scale

to the upright position.

NOTE: Leave the strap securing

the Weighing Platform to the

Scale Frame until instructed to

remove it in “Step 4 – Install the

Scale on the Wall Mount”.

Wall

Mount

Weight

Indicator

Leave this strap until

instructed to remove! Cut

Tape

3. Remove all packing material.

0065-0647-0M Rev A 7550 FOLD-UP STATIONARY SCALE

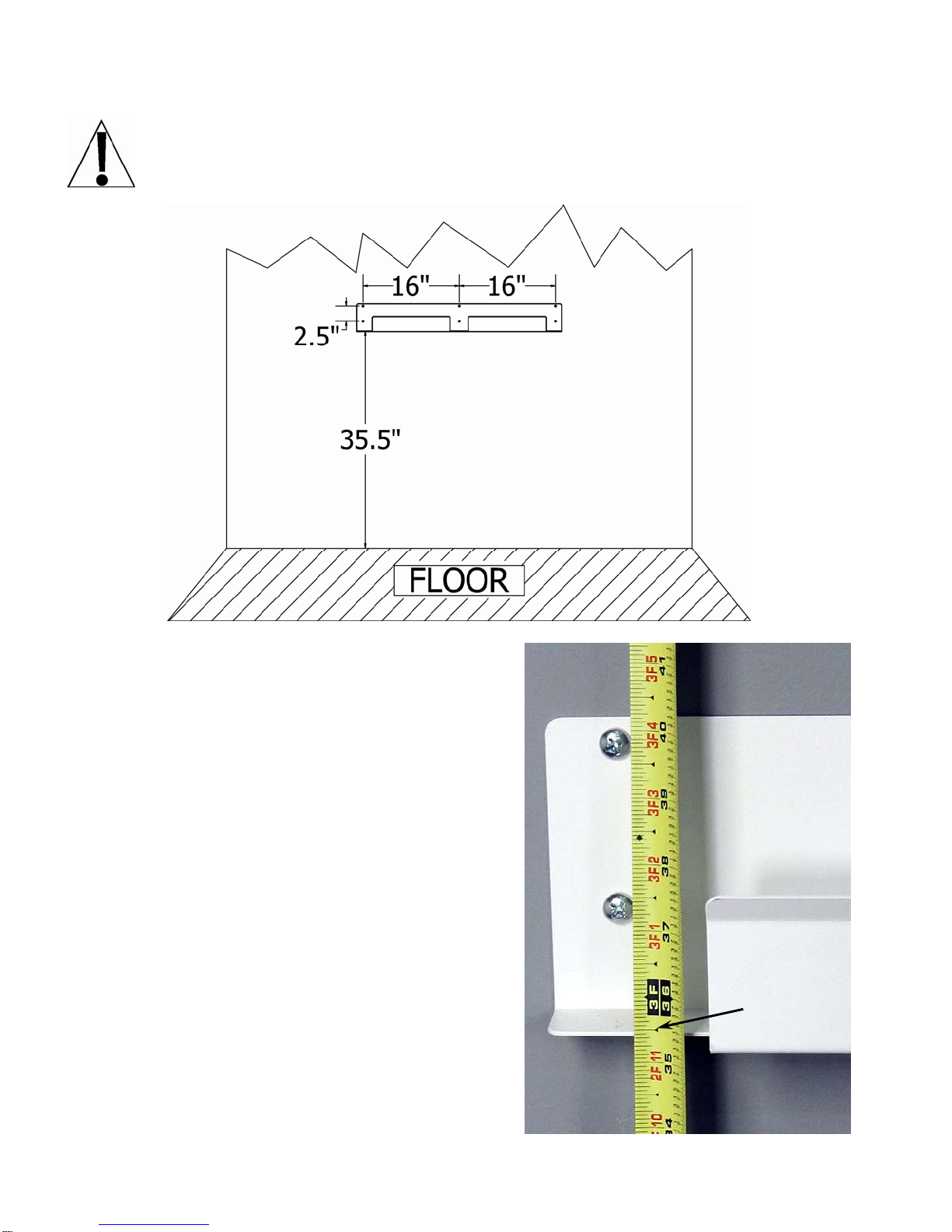

Step 2 – Install the Wall Mount

NOTE: Due to the various types of wall construction, no mounting hardware is

furnished with the scale. Appropriate mounting hardware suitable to the wall’s

construction will need to be obtained to secure the wall mount to the wall.

The wall mount allows the scale to be adjusted up or

down and left or right to accommodate floors that

may not be perfectly flat. This insures the accuracy

of the weighing platform and prevents undue stress

to the scale.

The wall mount should be secured to the wall using

mounting hardware suitable to the wall’s construction.

The six (6) holes (in groups of two, sixteen (16) inchs

apart) in the wall mount allow for 1/4" hardware to be

used to secure the wall mount to the wall.

1. Determine the desired location where the scale is

to be mounted.

2. With an assistant, place the wall mount against

the wall. Insure it’s level and 35 1/2” from the top

edge of the wall mount to the floor.

3. Mark the holes to mount the wall mount.

4. Remove the wall mount and drill the required

diameter holes for the mounting hardware used.

5. Fasten the wall mount to the wall.

35 1/2”

Top Edge

to Floor

0065-0647-0M Rev A 7550 FOLD-UP STATIONARY SCALE 7

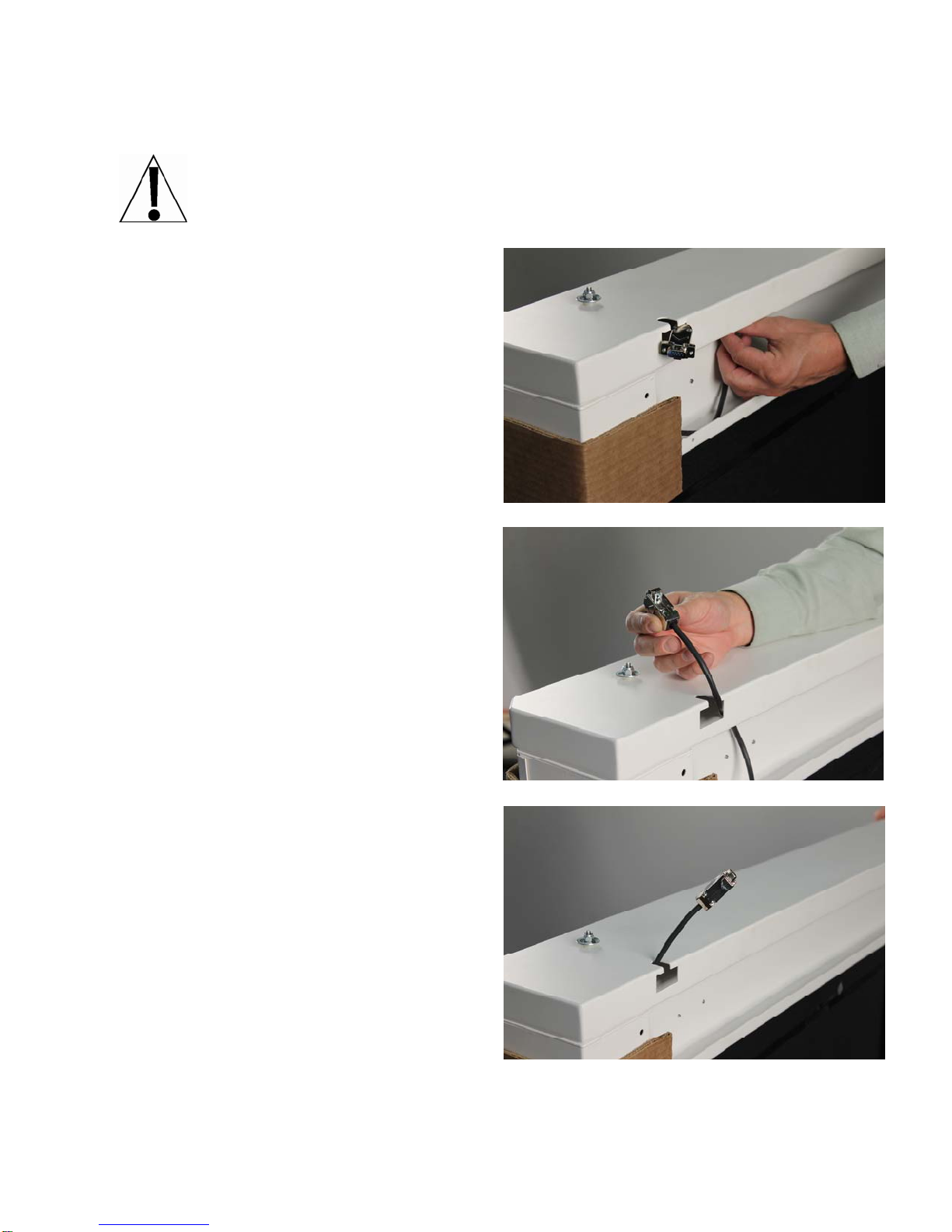

Step 3 – Routing the Load Cell Cable

1. With the help of an assistant, raise the scale to the upright position.

NOTE: DO NOT lift the scale by the shipping strap to raise to the updright

position. Refer to the note and picture in “Step 1 – Unpack the Scale”.

2. On the back of the scale, locate the load

cell cable and the large cut-out in the scale

frame.

3. Feed the load cell cable through the large

cut-out in the back of the scale frame.

4. Continue feeding the load cell cable

through the scale frame and up through the

notch in the top of the scale frame.

0065-0647-0M Rev A 7550 FOLD-UP STATIONARY SCALE

Step 4 – Install the Scale on the Wall Mount

1. Once the Load Cell cable has been routed through the scale frame, remove the strap

securing the weighing platform to the scale frame. Refer to the note and picture in Step 1.

2. With an assistant, lift the scale above the wall mount and then lower it into position in the

channel of the wall mount.

3. Center the scale side to side in the channel of the wall mount.

Wall

Mount

Rubber

Bumper

Rubber

Bumper
