DEVA Broadcast DB9000-RX Manuale di istruzioni

DB9000-RX

Professional IP Audio Decoder

65 Aleksandar Stamboliyski Str., 8000 Burgas, Bulgaria

Tel.: +359 56 820027, Fax: +359 56 836700

Email: [email protected], Web: www.devabroadcast.com

Quick User Guide

BEFORE YOU USE THIS PRODUCT

In order to be able to enjoy all the benefits of owning your new

DEVA product, please verify first that the latest software and

firmware release were installed.

Visit www.devabroadcast.com/downloads for the most

recent software and firmware downloads, prior the installation.

DEVA Broadcast Limited is an ISO 9001:2015 certified company.

This Quick user guide will make the installation of DB9000-RX quick and easy. Applying these

principles, you can simplify the process and save yourself extra time and effort. For more information

about the Safety precautions and the Operating environment recommendations please refer to the

User Manual.

Connect the device to a local network or to the Internet by a cable with an RJ-45 connector.

To operate the device you need to know its IP Address. In case you are not aware of it, you can hear it

through the headphones when you turn on the the device. Alternatively, use the Network discovery feature

at Local networks (for reference see Step 13).

Open a WEB Browser and enter the device IP address in the browser's address field, then press Enter.

The web interface will be displayed to you with the respective main pages: Status; Configuration; MPX;

Factory Defaults; Reboot; Firmware Update.

Click on the Configuration button. A dialog will appear. Fill in the

username and password requested, default values being: user and pass.

Device Alias

By choice, you can change the name of the device. Later on it will be used

as a title name on all WEB pages. Customizing the name will make the device

more recognizable.

Date and Time

ŸInternet Time – Enable or disable automatic time synchronization from

Internet.

ŸTime Zone – Select local time zone of the device.

ŸLocal Date and Local Time – Enter the local date and time if the

Internet Time is disabled.

NOTE: After selecting new settings, press the SAVE button to put them into

effect. Some of the new settings can reset DB9000-RX.

Current status information will be displayed

comprising Audio Status; Network Status; Connection

Status.

For further reference see the detailed explanation on

the right part of the screen.

NOTE: Clicking on the LIVE DATA icon will toggle live

data ON and OFF

Connection

STEP 1

WEB Interface

STEP 2

Status Section

STEP 3

General Settings

STEP 4

IP Audio Configuration

General Network Settings

If you prefer to use static settings please disable the DHCP and fill in the

information requested - IP Address, Netmask, Gateway, Primary and

Secondary DNS. Otherwise, enable the DHCP.

SNMP Settings

Press the Download button to download the latest available DB9000-

RX SNMP MIB file. Then specify Agent ID, Agent Port, Community, Manager

IP and Manager Port.

Agent ID is used to identify the device among others when a SNMP

notification is send. Agent - enables/disables SNMP Agent.

Web Server Settings

In order to enhance the security of DB9000-RX you can set new

username and password. A dialog box requesting your NEW username and

password may appear.

NOTE: If username and password fields are left blank, NO security is used.

FTP Server Settings

Specify the Command Port of the FTP server. Enter username and

password for the FTP server.

The FTP Server must be in Passive mode-maximum one connection at a

time.

IP Voice Announcement

In order to avoid IP voice announcement during broadcasting we

recommend you to disable this function.

IP Audio Player

DB9000-RX has one main URL and two alternative Stream Audio

Sources URL2, URL3. Switching between streams is immediate on audio

loss. When current Stream is URL2 or URL3 and connection to URL1 is

restored there will be an instantaneous switch back to URL1.

If the server does NOT use Port 80 you should enter URL and Port of the

Encoder. For example 192.165.1.21:2100.

NOTE: The selected players' decoders must match the settings of the

encoder devices on the other side of the connection.

Source Priority

DB9000-RX has one main and two backup audio sources. If the audio

signal of the main source disappear the device will switch to the first available

backup source.

When the main audio signal is recovered DB9000-RX will automatically

switch back to it. Depending on your needs the priority of the connections

should be specified.

RTP Audio Player

Choose a port and decoder.

Icecast Audio Player

Choose a port and decoder. The username and password are used to

secure the connection. Make sure to enter the same on both sides.

Analog Audio Output

Adjust the analog output level of the device.

Network Configuration

STEP 5

STEP 6

Audio Loss and Audio Recover

Select the appropriate levels of loss and recovery of the audio signal. Do not forget to set the timeout.

Set wether the loss of audio should be registered by the one channel only or for both of them.

DB9000-RX has a built-in backup audio player. It plays tracks from SD Card storage uploaded over

the FTP in case of main audio signal loss.

The MPS Audio Player permits you to Select the order in which the tracks are played by the backup

player from the possible options.

All backup audio files must be located in a single folder named Audio. It must be in the root of the SD

Card. No subfolders are allowed. The playlist file must be named playlist.m3u.

Backup Audio Configuration

STEP 7

Stereo Encoder

STEP 8

Automatic Gain Control Settings

Enable or Disable the Automatic Gain Control (AGC).

There are factory and user configurable presets available. Set your own

AGC presets changing the following parameters: Attack time, Release time,

Gain, Max gain up.

Audio Equalizer Settings

Applied equalizer gain has to be set according to the level of specified

frequency and overall level of this frequency must not exceed 0dB.

Audio Enhancement

STEP 9

The Stereo and RDS Encoder Module is an optional board.

ŸStereo Mode - Select Stereo or

Mono Mode for MPX signal.

ŸEmphasis - Select 50μS for Europe

or 75μS for USA.

ŸInjection Levels - Select injection

level from 0 to 12 % for the 19kHz

p i l o t t o n e a n d f o r t h e R D S

subcarrier.

ŸPhase Adjustment - Select a phase

of the Pilot Tone, those of the L-R

sub-carrier and RDS sub-carrier are

factory adjusted.

ŸMPX Limiter - Enable or Disable the

MPX Limiter and set the desired

Threshold and Processing.

NOTE: For further reference see the

detailed explanation on the right

part of the screen.

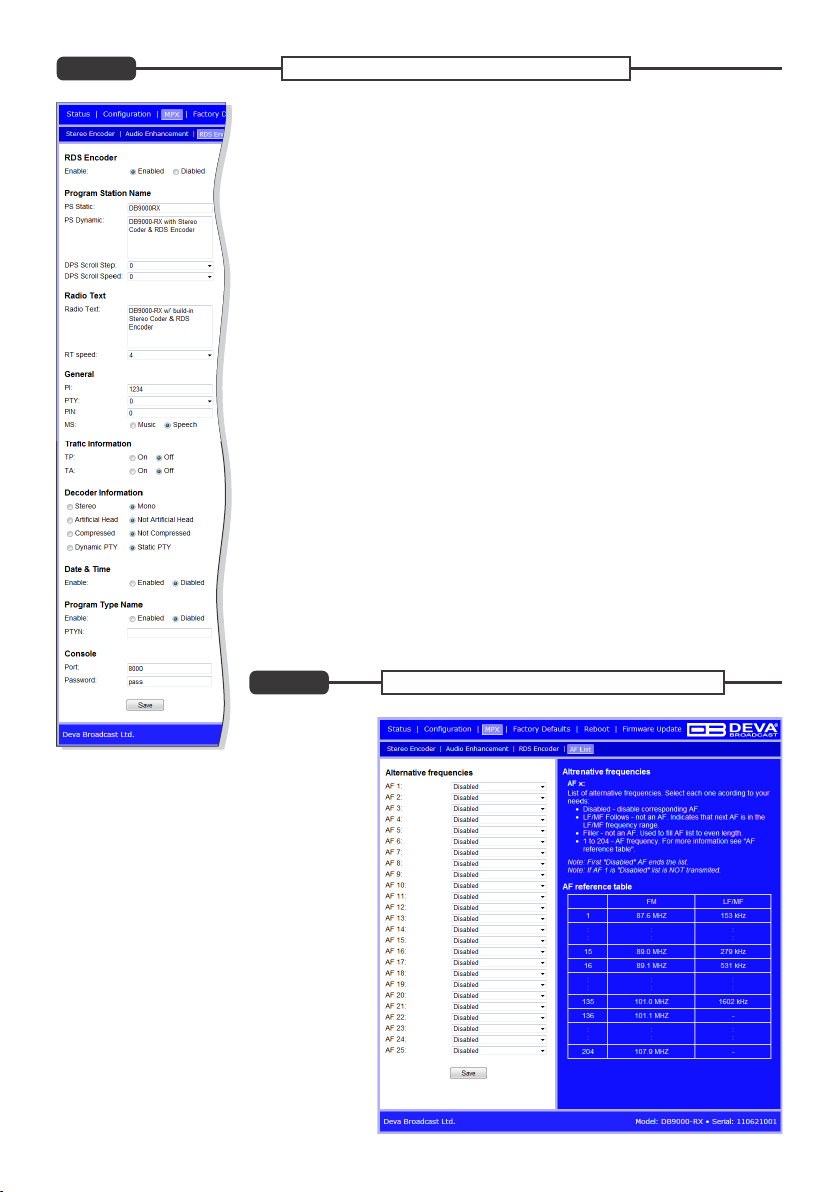

DB9000-RX has a built-in RDS Encoder, it allows you to brand your

station.

Program Station (PS) Name Settings

Comprise of PS Static, PS Dynamic, DPS Scroll Step, DPS Scroll Speed.

Radio Text Settings

After pressing the INFO button on the receiver, up to 64-character block

for visual display will appear on the faceplate of the radio.

RT Speed –Select RT transmission speed from RT off to Fast.

General Settings

Comprise of PI – Program Identification: “digital signature” of the station,

PTY – Program Type, M/S – Music / Speech Switch.

Trafic Information

TP – Traffic Program Identification. Turn TP on or Off.

TA – Traffic Announcement: Turn TA on or Off.

Decoder Information

DI – Decoder Information: This is one of several 'flags' that convey yes/no

or other very basic data.

Console Settings

Enter the TCP port of the RDS console used to edit RDS settings in real

time. Enter a Password for the RDS console: the first symbols that must be

sent to authenticate to the RDS console, otherwise the connection will drop.

If left blank, NO security is used.

Alternative Frequencies

DB9000-RX allows you to set your own

alternative frequencies.

ŸDisabled - disable corresponding

Alternative frequencies;

ŸLF/MF Follows - This tool indicates

that next Alternative frequency is in

the Low or Medium frequency range;

ŸFiller is used to fill the Alternative

frequency list to even length.

Ÿ1 to 204 - Alternative frequency. For

more information see "AF reference

table" placed on the right part of the

WEB Interface.

Stereo Encoder

STEP 10

STEP 11

1. Open Advanced sharing settings by clicking the Start button, and then on "Control Panel". In the

search box, type "network", click "Network and Sharing Center", and then, in the left panel click

"Change advanced sharing settings".

2. Select your current network profile.

3. Click Turn on network discovery, and then click Save changes. If you're prompted for an

administrator password or confirmation, type the password or provide confirmation.

4. To access the device open a new Explorer bar and click on Network . If you have successfully enabled

the network discovery option, the device will be displayed. Double click on DB9000-RX will open a

new WEB browser window.

NOTE: If you have already enabled this function on your computer just open a new Explorer bar and click

on Network. The device must be displayed. If not follow the instructions from Step 13.

This process will fully restore DB9000-RX to its Factory Defaults, including the Network settings. To

start a Hardware Reset, disconnect the power supply cable from the unit. Then locate the RESET button

on Rear panel, press and hold it. Afterwards, connect the power supply cable to the unit and keep the

RESET button hold until the POWER led starts blinking. Release the RESET button and wait for DB9000-

RX to reboot with the factory default settings.

Hardware Reset

To restore DB9000-RX to its Factory

Defaults you should first press the Restore

button. A new window will appear: confirm

that you want to restore factory defaults and

wait for the process to complete. All settings

will be restored to their factory defaults

except for Network and WEB server Settings which remain unchanged. On completion of the process the

settings should have the proper default values.

The Factory Defaults page

To start Rebooting of DB9000-RX press the

Reboot button. A dialog warning window

will appear. Confirm that you want to reboot

the device and wait for the process to

complete.

Rebooting

Firmware Update

To update the device firmware, please

select the new firmware file. Press the

Upload button. A dialog window will appear.

Confirm firmware update and wait for the

process to complete.

Please refer to the User manual for detailed information on

how to configure and explore your device.

Network discovery for Windows 7

STEP 13

Factory Defaults, Reboot, Firmware update

STEP 12

Altri manuali per DB9000-RX

Indice

Altri manuali DEVA Broadcast Convertitore multimediale

DEVA Broadcast

DEVA Broadcast DB9000-TX Manuale utente

DEVA Broadcast

DEVA Broadcast DB90-RX Manuale utente

DEVA Broadcast

DEVA Broadcast DB9000-RX Manuale utente

DEVA Broadcast

DEVA Broadcast SmartGen 4.1 Manuale di istruzioni

DEVA Broadcast

DEVA Broadcast SmartGen Micro Manuale utente

DEVA Broadcast

DEVA Broadcast SmartGen 6.0 Manuale di istruzioni

DEVA Broadcast

DEVA Broadcast DB6000-STC Manuale di istruzioni

DEVA Broadcast

DEVA Broadcast DB91-TX Manuale di istruzioni

DEVA Broadcast

DEVA Broadcast DB35 Manuale di istruzioni

DEVA Broadcast

DEVA Broadcast DB91-TX Manuale

DEVA Broadcast

DEVA Broadcast DB91-TX Manuale utente

DEVA Broadcast

DEVA Broadcast SmartGen Mini Manuale utente

DEVA Broadcast

DEVA Broadcast DB5000 Manuale di istruzioni

DEVA Broadcast

DEVA Broadcast DB91-TX Manuale

DEVA Broadcast

DEVA Broadcast DB9000-TX Manuale di istruzioni

DEVA Broadcast

DEVA Broadcast SmartGen Micro Manuale di istruzioni

DEVA Broadcast

DEVA Broadcast DB9009-TX Manuale utente

DEVA Broadcast

DEVA Broadcast DB9000-TX Manuale utente

DEVA Broadcast

DEVA Broadcast DB90-TX Manuale di istruzioni

DEVA Broadcast

DEVA Broadcast DB90-RX Manuale utente

DEVA Broadcast

DEVA Broadcast DB9000-RX Manuale utente

DEVA Broadcast

DEVA Broadcast DB91-RX Manuale di istruzioni

DEVA Broadcast

DEVA Broadcast DB90-TX Manuale

DEVA Broadcast

DEVA Broadcast DB9009-TX Manuale di istruzioni

Manuali Convertitore multimediale popolari di altre marche

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuale utente

SPROLINK

SPROLINK VA1 Manuale utente

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuale utente

Nikon

Nikon AF-S TC-20E III Manuale utente

Axis

Axis AXIS Q7406 Manuale utente

Omega

Omega TAC80B-J Manuale utente

Zoom

Zoom Thunderbolt TAC-2R Manuale utente

OST

OST iConverter 10/100M Manuale utente

Vertiv

Vertiv Netsure Manuale utente

birddog

birddog MINI Manuale utente

Roland

Roland GI-10 Manuale utente

Wallenstein

Wallenstein WX310 Manuale utente

Pace

Pace MSS 200-1 Manuale utente

Solar Converters

Solar Converters EQ 12/24-50 Manuale utente

CYP

CYP EL-7400V Manuale utente

TIE

TIE MIDI 1i1o Manuale utente

DCS

DCS Vivaldi Upsampler Manuale utente

Westermo

Westermo MCW-211 SERIES Manuale utente
