DEVAISE AZZY002 Manuale utente
V3.1
AZZY002

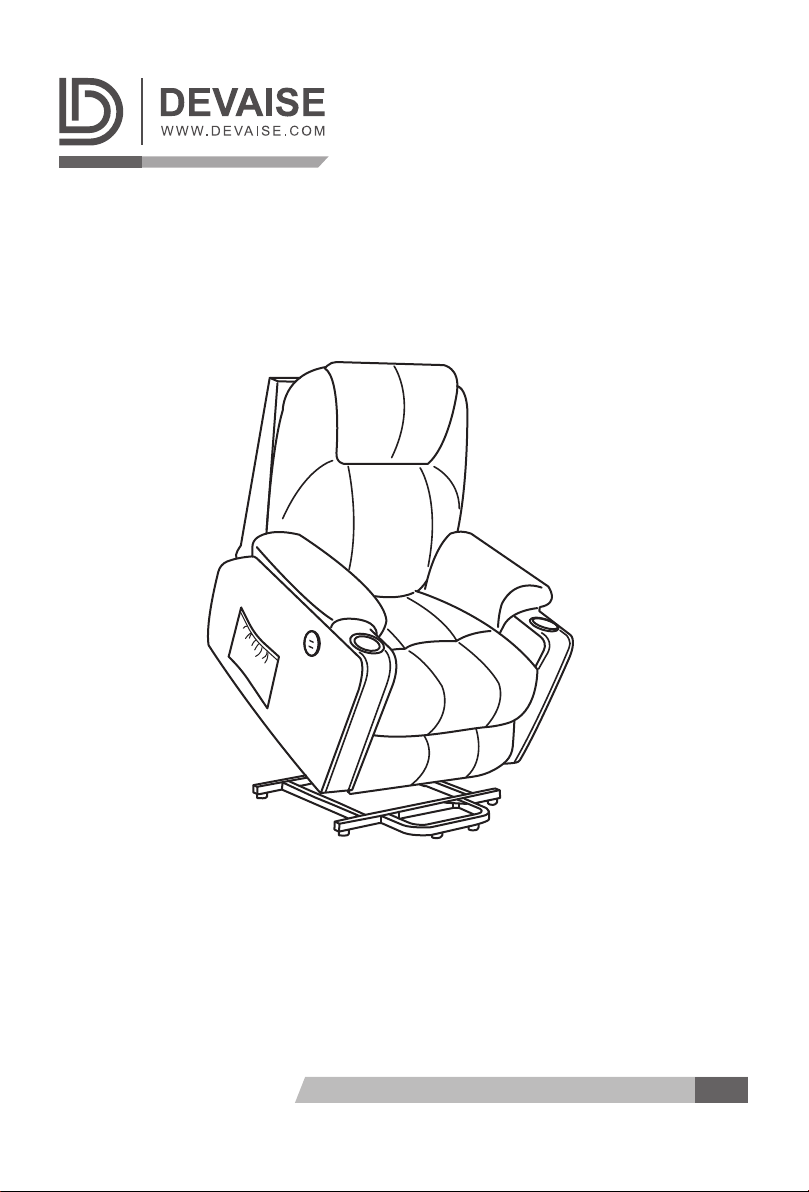

PU Single Motor Power Lift Recliner
The lift chair is wet.
Your hands are wet.
Do not clean the chair with a wet cloth.
Safety Rules
Usage:
Never place the lift chair
near a heat source (oven, chimney,
fernace etc...)
or in direct sunlight.
Switch the lift chair if any part of the lift chai
r is damaged
or
malfunctioning, if any part of the lift
chair appears to be
damaged or wiring is exposed.
Never set the lift chair in wet / damp areas or whe
re dust
can accumulate
because these could cause an electrical fault or a mechanical dysfunction.
Never use the lift chair inside your home if the room temperature is
over 120°F.
Do Not use the armchair if:
Situations where you should not use the lift chair:
Never sit on the remote or place heavy objects on top of it.
Indoors, avoid high temperatures and wet or damp areas.
Precaution:
Do not drop the remote on the floor.
Do not tug on the electric able.
Do not use the remote with wet fingers.
Do not press or touch the buttons with sharp objects.
Never unplug the remote wihout first turning the power off.
The lift chair should rest for 30 minutes after it has been used for 30
minutes.
Can't massage or heat.
Power cord problem, please make sure the indicator lit.
Remote control problem, please make sure the indicator lit.
Please check this manual and make sure power cord and remote control
connect to the right wire (there are 4 wires need to be connected).
The wires inside the chair is damaged, which we check every chair before
shipped out to make sure it's ok.
Check that you have the right voltage.
Never use force on the cable or plug.
Never pull the cable with wet hands.
When removing the plug, hold the plug, do not pull on the cable.
Do not use the lift chair system if either the cable or the plug are
damaged.
If the lift chair is not working, check the following chart.
Make sure you turn the power off and unplug from the wall outlet.
If you have any questions, please contact us.
Problems and solutions
The lift chair does not function when the button on the
control unit is activated.
Check that the plug is pushed into the wall oultlet properly.
Troubleshooting
Do not disassemble the lift chair:
Do not remove the back of the lift chair .
Do not try to disassemble or repair the lift chair yourself.
Tampering with the lift chair will void your warranty.
Correct way to handle the electrical plug:
Check whether the power supply button is on.
1
A. B.
×1 ×1
Chair base Backrest
C.
×1
Armrests
CR
CL
CL
CR
Assembly Parts
Supplies
(Big)
D. E.
OUTPUT
12V --- 1.2A
If you have any further questions, please feel free to contact us
We will reply ASAP.
Enjoy your new purchase!
Before installation, please make sure you have all the hardware,
the serial numbers are properly labeled corresponging to the list,
and the quantity is correct.
1. Position the armsrests
CL
A
Put the armrests fit into the seat, you will hear a "click" when they are in place.
2
CR
REMARK
You need to cut the white strapping
cable off and take all the accessorries
out before installation.
2. Position the backrest
B
Put the back fits into the seat, you will hear a "click" when it is in place.
3
When removing the backrest,
please pull the iron sheets up hard.
If you need to disassemble after installation, please
disassemble the backrest before pulling out the armrests
on both sides.
4
CL
A
CR
B
3.
REMARK
2
3
4
2
1
1
A
DE
5
REMARK
4. Connect the supply cable pins
No.1 and No.2 wires on Part A connect with No.1 and No.2 wires on Part B .
No.3 wire connects with part E .
No.4 wire connects with part D .
B
A
B
The pins must be connected correctly.
Warning!
If that should
happen, turn the
power off and reconnect the pins.
If the lift chair doesn't work when you finally turn it on, it is because the pins
have been connected incorrectly.
Push
Lock
5. Connect the supply cable pins
6
7
2. Please press the button , the legrest will move down, at the same time, backrest
will raise up. If you keep pressing the button, the lift chair will rise up and forward until
it elevates you a standing position.
POWER: Turn on / off massage remote control.
HEAT: Turn on / off heat function for lumbar part only.
INTENSITY: Adjust the strength of the massage according
to your needs.
MODE: Choose one massage mode you like
(pulse, press, wave, auto, normal).
You can choose 1-4 massage parts(back, lumbar, thighs, legs)
to enjoy.
POWER HEAT
INTENSITY
MODE
PULSE
LOW
HIGH
PRESS
WAVE
AUTO
NORMAL
BACK
LUNBAR
THIGH
TIMER
LEG
15Min
30Min
60Min
How to use massage remote control?
Instruction of Remote Control
1. Please keep pressing the button , the lift chair will return
from staning position to sitting postion. If you keep pressing
the button, the legrest will rise up, at the same time, backrest
will move down.
