TECHNICAL MANUAL
SPARTAN HIGH PIVOT
68
12 14 15
4
TABLE OF CONTENT
Cable
Routing
Service
Kit
Assembly
Advices
Suspensio
Set Up
Warranty
Warranty
Conditions
Frame -
Technical
Specications
4
A
C
B
6
FRAME
* DISCLAIMER: We are testing many dierent tires to establish a clearance number that cover a wide spectrum of tires with
appropriate frame clearance. However, it is impossible for us to test all tires and rim combination available on the market,
so be mindful that some combinations may result in slight rubbing if higher than 66mm in actual width.

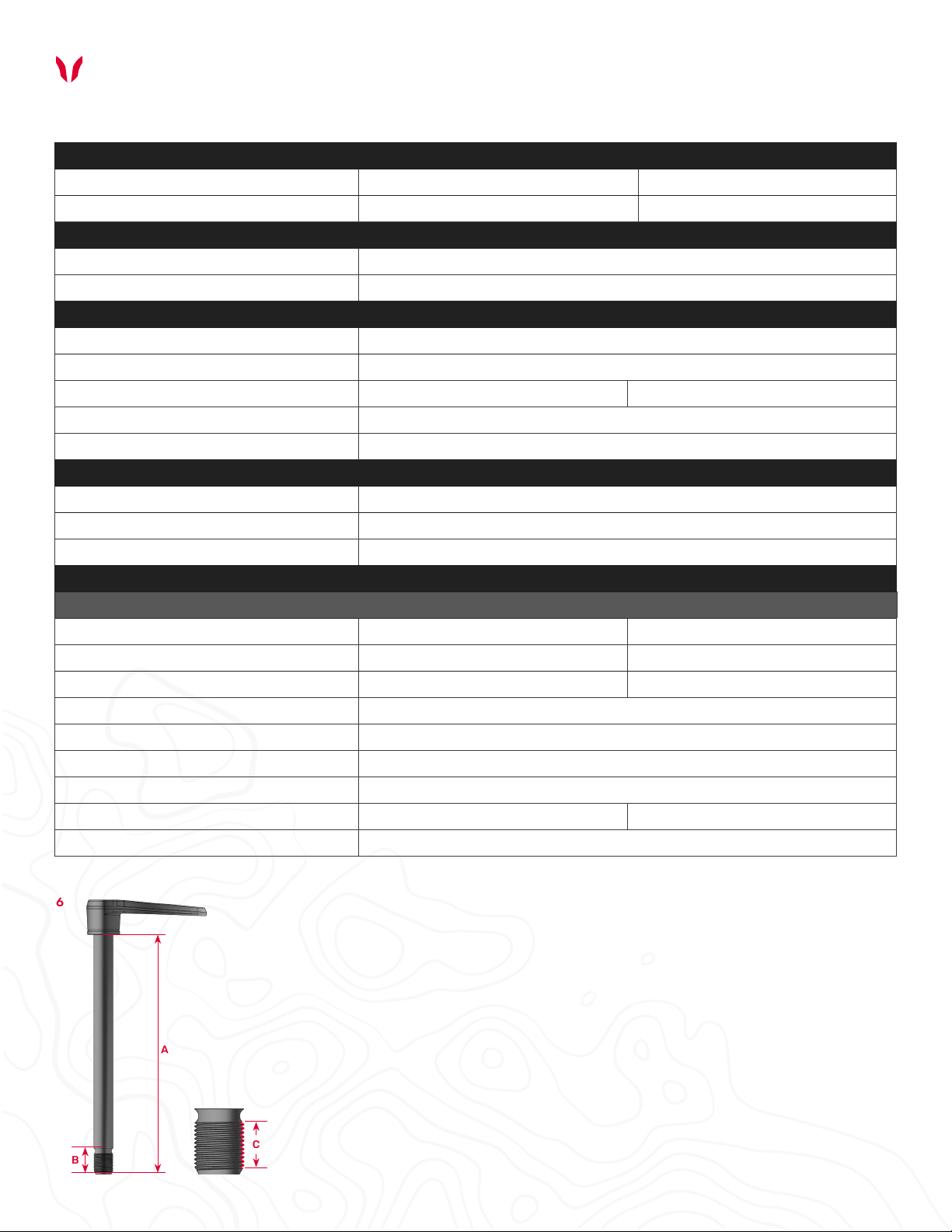

Technical Specications
Available sizes
S | M | L | XL
HEADTUBE DIMENSIONS
1. UPPER (S.H.I.S) ZS44 1-1/8"Zerostack
2. LOWER (S.H.I.S) ZS56 1.5"Zerostack
BOTTOM BRACKET
3. STANDARD 73MM BSA
4. ISCG MOUNT ISCG O5, xed
MECHANICAL DRIVETRAIN (1X)
5. REAR HUB SPACING O.L.D (Over Locknut Dimension) TA 12 x 157
6. AXLE STOCK IMPORTANT INFOS A. LENGHT: 197 |B. THREAD: 1.0MM |C. PITCH: M12xP1
7. MAXIMUM & MINIMUM CHAINING 38T 28T
8. RECOMMENDED CHAINLINE 56.5mm
9. MIN Q-FACTOR 173mm
SEATPOST AND SEATCLAMP
10. SEATPOST OUTSIDE DIAMETER (OD) 34.9mm
11. SEATPOST LENGTH (S.M,L, XL) 225mm, 250mm 285mm & 300mm
12. SEAT TUBE OUTSIDE DIAMETER (OD) 39.3mm
GEOMETRY INPUTS (BASED ON MEDIUM SIZE)
29er | FORK 170MM | TRAVEL 160MM
13. FRONT SUSPENSION (TRAVEL & SAG) 170mm 33%
14. FORK AXLE-TO-CROWN & OFFSET 581mm 51%
15. REAR SUSPENSION (TRAVEL & SAG) 160mm 33%
16. SHOCK LENGTH & STROKE 205 X 65mm
17. SPRING TYPE COMPATIBILITY AIR & COIL
18. UPPER (OR FRONT) SHOCK HARDWARE DIMENSION Trunnion
19. LOWER (OR REAR) SHOCK HARDWARE DIMENSION 35 X 10mm
20. FRONT & REAR WHEEL GEOMETRY 748mm / 29x2.5 748mm / 29x2.5
21. REAR WHEEL MAX DIMENSIONS 29x2.5*
5
1
10
11 & 12
5 & 6
2
3 & 4
15 & 16
19
7
17
9
8
13 & 14
FRAME
Technical Specications
Q-FACTOR
6
SPARTAN CARBON 2021+
Step 3
CABLE ROUTING
LEGEND
Housing outside the frame
Housing inside the frame
Seatpost housing
Speed housing
Brake housing
Step 1 | Pass the brake housing through the cavity on the top of the base.
Step 2 | Pull out the housing through the cavity on the outer surface of the
base, attach to the support created for this purpose, then pass the brake housing
through the left opening of the stopper located on the seat tube.
Step 4 | Remove the cap from on the guide located on the left side of the
down tube (use the upper cavity). * Do not replace the cap *
Slide the anti-impact foam tube over the housing up into the down tube.
Step 3 | Slide the brake housing into the top tube.
BRAKE HOUSING
Step 5 | Pass the speed housing through the opening located
below the base.
Step 4 | Take the speed housing out through the cavity under the
base, at the front.
Step 3 | Pass the speed housing under the pulley cap.
Step 1 | Pass the speed housing through the right opening of the stopper
located on the seat tube. Slide the speed housing into the top tube.
Step 2 | Pull out the housing through the stopper located on the left
side of the diagonal (use the lower cavity). * Put back the stop cap *
SPEED HOUSING
Step 1 | Pass the seat post housing through the stopper on the right side
of the diagonal.
Step 2 | Pull out the seat post housing through the bottom bracket cavity.
Slide the anti-impact foam tube over the housing up into the down tube.
Step 3 | Create a loop with the sleeve to reinsert it into the seat
tube. Pull out the seat post cover at the end of the tube.
SEATPOST HOUSING
Step 1
Step 2
Step 3
Step 1
Step 4 | Step 5
Step 2 | Step 4
Step 2
Step 3
Step 2
Step 1
7
SPARTAN 2021+
CABLE ROUTING
LEGEND
Housing outside the frame
Housing inside the frame
Seatpost housing
Speed housing
Brake housing
Step 1
Step 2
Step 1
Step 2 | Step 3 | Step 1
Step 3 | Step 4 | Step 3
Step 2
Step 1 | Attach the houssing to the tie and the cavity (using a
clip) on the top of the base.
Step 2 | Pass the housing under the shock.
Step 3 | Attach the housing to the guide located on the left side
of the diagonal. Orient to the left side.
GAINE DE FREIN
Step 1 | Pass the housing through the rear opening of the base so
that it pops out at the front.
Step 2 | Secure the housing with a clip under the front of the base using
the cavity created for this purpose.
Step 3 | Pass the housing under the shock.
Step 4 | Fix the housing in the center of the stops of the
diagonal. Orient to the left side.
GAINE DE VITESSE
Step 1 | Pass the seat post housing under the shock.
Step 2 | Pass the housing through the opening located at the
bottom of the seat post all the way to the top. Pull out the housing at
the end of the seat tube.
Step 3 | Attach the housing to the guide located on the right side of
the diagonal. Orient to the right side.
GAINE DE TIGE DE SELLE
*Follow the seat post manufacturer's instructions for adjusting the length
of the housing.
8

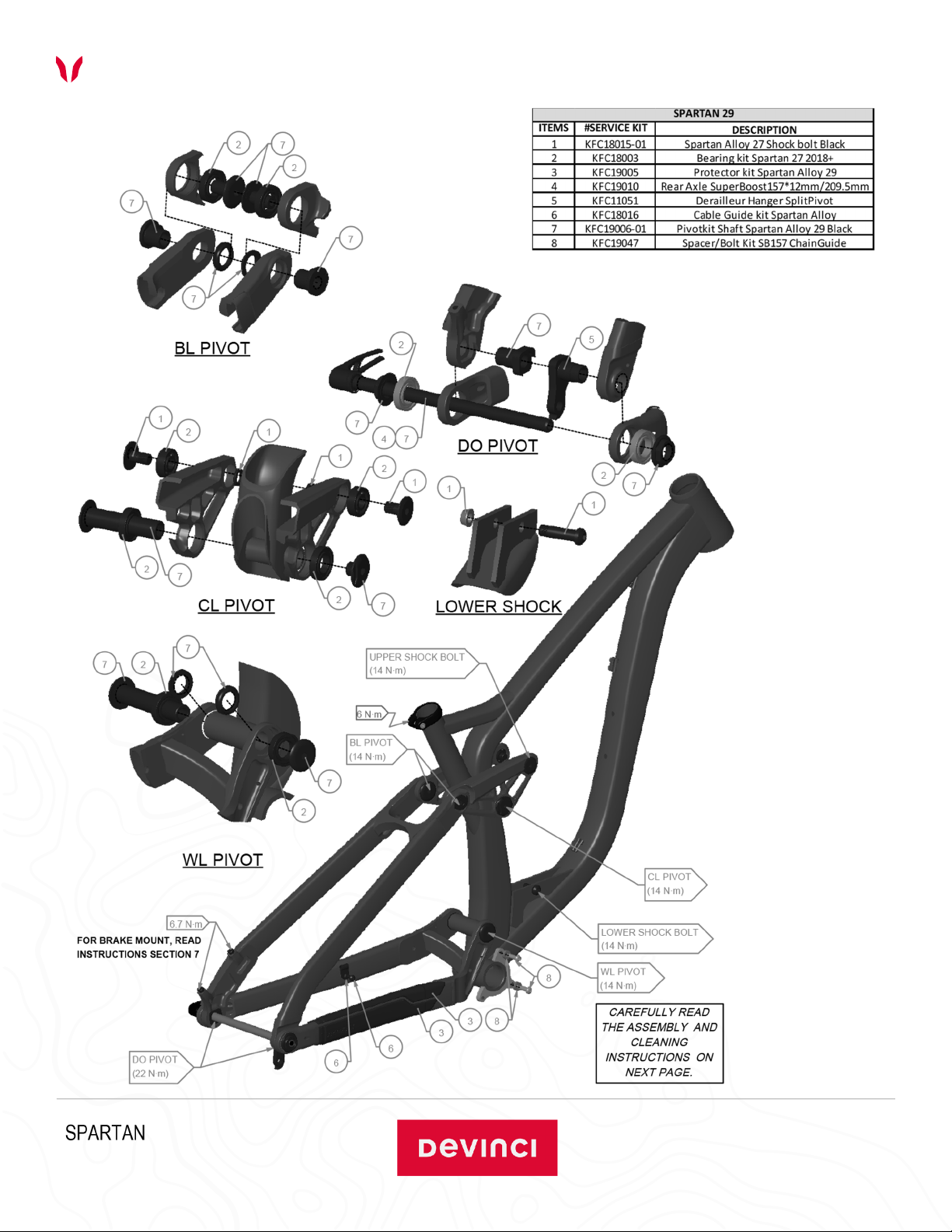

REAR AXLE
(20 N∙m)
6.7 N∙m
2
COLLAR
6 N∙m
2
4
1
1
1
2
UPPER SHOCK BOLT
(14 N∙m)
CL PIVOT
(14 N∙m)
LOWER SHOCK BOLT
(14 N∙m)
DO PIVOT
(22 N∙m)
DERAILLEUR
HANGER
(25 N∙m)
BL PIVOT
(14 N∙m)
CHAIN GUIDE
(6 N∙m)
WL PIVOT
(14 N∙m)
6
7
6
8
1
7
9
9
9
10
7
10
7
7
7
7
7
9
9
9
9
10
10
7
7
5
5
3
5
10
WARNING:
MAKE SURE TO
CAREFULLY READ THE
ASSEMBLY
INSTRUCTIONS AND
CLEANING
INSTRUCTIONS NOTES
ON NEXT PAGE.
DO PIVOT
WL PIVOT
BL PIVOT
CL PIVOT
A
Revision
PCB-044
SPARTAN CARBON 29 HP
SERVICE KIT
9
ASSEMBLY INSTRUCTIONS:
1-
THOROUGHLY CLEAN THE INTERIOR OF EACH BEARING HOUSING TO REMOVE ANY DIRT OR OLD GREASE;
2-
APPLY HIGH QUALITY WATERPROOF GREASE ON THE INSIDE FACE AND INSIDE DIAMETER OF ALL BEARING
HOUSINGS BEFORE PRESS-FIT;
3-
APPLY HIGH QUALITY WATERPROOF GREASE TO ALL PIVOT PARTS THAT CONTACT WITH THE INNER
DIAMETER OF THE BEARINGS.
4-
APPLY HIGH QUALITY WATERPROOF GREASE TO ALL NON-THREADED METAL-TO-METAL INTERFACES (EX.:
PLANAR FACE OF THE PIVOT SPACER THAT CONTACTS THE LATERAL FACES OF THE FRONT TRIANGLE WL
PIVOT). THESE INSTRUCTIONS ALSO APPLY TO THE SHOCK ASSEMBLY;
5-
UNLESS OTHERWISE SPECIFIED, APPLY BLUE LOCTITE 242 ON ALL THREADS BEFORE ASSEMBLY TO THE
SPECIFIED TORQUE VALUE;
6-
TO PREVENT DAMAGE TO THE FRAME, THE SEATPOST MUST HAVE A MINIMUM INSERTION IN THE SEAT
TUBE.
CARBON FRAME:
SMALL / MEDIUM / LARGE / X-LARGE - 100mm INSERTION
*ALWAYS VERIFY CONNECTOR CLEARANCE BEFORE FULLY INSERTING A DROPPER POST.
7-
FRG ADJUSTABLE
: THIS DESIGN ALLOWS RIDERS TO CHOOSE BETWEEN A LOW OR HIGH POSITION. WITH
FRG ADJUSTABLE TECHNOLOGY, YOU CAN FINE-TUNE YOUR RIDE TO PERSONAL TASTES OR SPECIFIC TRAIL
TYPES USING A FLIP-FLOP PIVOT MECHANISM THAT SLIGHTLY CHANGES THE BIKE'S GEOMETRY AS SHOWN
BELOW.
CLEANING INSTRUCTIONS:
IT IS A WELL KNOWN FACT THAT A CLEAN BIKE PERFOMS BETTER. DEVINCI RECOMMENDS WASHING YOUR
BIKE REGULARLY USING A BRUSH AND SOAPY WATER. HOWEVER, DEVINCI DO NOT RECOMMEND THE USE
OF A PRESSURE WASHER, SINCE THIS MAY SIGNIFICANTLY REDUCE THE SERVICE LIFE OF BALL BEARINGS.
EVEN THOUGH OUR BALL BEARINGS ARE EQUIPPED WITH HIGH QUALITY DOUBLE-LIP SEALS, HIGH
PRESSURE WATER CAN STILL PASS THESE SEALS AND REMOVE THE GREASE INSIDE THE BEARING. THIS
MAY CAUSE PREMATURE CORROSION AND WEAR OF THE BALL BEARINGS.
A
Revision
PCB-044
SPARTAN CARBON 29 HP
SERVICE KIT
