HPST16M
Power Saving Strip Timer
Warning: To reduce the risk of fire, electric shock or personal injury,
please follow the instructions precisely before you start the operation.
- Do not connect any devices that exceed the maximum ratings of the timer.
- Do not connect the timer to the appliances that contain heating elements
(cooking,appliances,heaters,irons,ect.).Failure of turning off such appliances
may lead to overheating and potential fire.
- Do not immerse in water.
- Children are not allowed to use the timer without supervision.
- Do not disassemble or repair except by authorized service staff.
Product Layout
1
2
3
4 5
1. Red Switch: Power Main Switch and Overload Protection.
2. Timer Mode Switch: Change the Timer Mode to Always ON or Always
OFF or Timer Control.
3. Timer Dial.
4. Outlets: 4 “TIMER control” outlets.
5. Outlets: 4 “SWITCH control” outlets.
Installation
This indoor mechanical power strip has 48 pins with 24 hours daily repeat
function. Full 15 Amp rating will handle lighting and heavy-duty loads.
Operation Instructions
Set the current time:

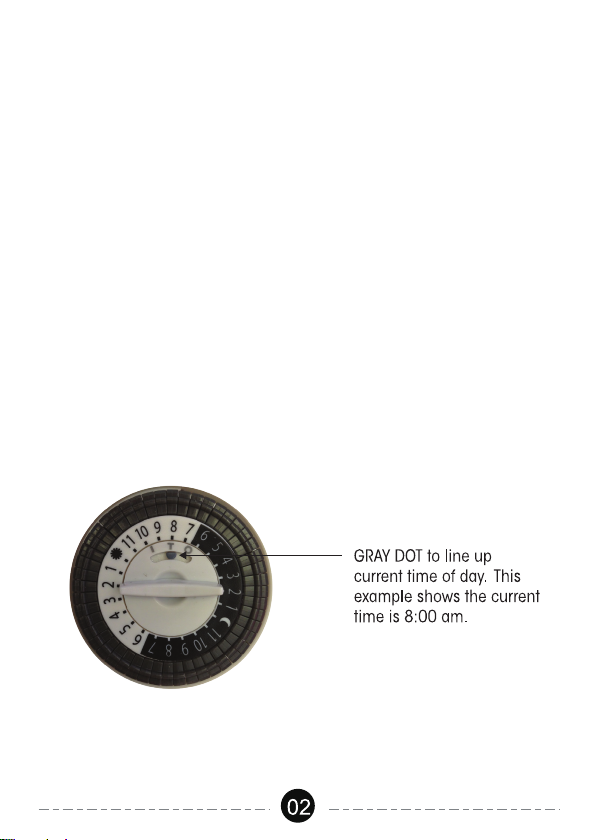

Turning dial clockwise until the gray dot lines up with the current time. The
pins (slices around the dial) are in the increments of 30 minutes. The
white semicircle stands for 7am - 6pm and the black semicircle stands for
7pm - 6am, shown as picture.
3
Specifications:
Input Voltage:
- 125VAC, 60Hz.
Max Power Rating:
- 125VAC, 15A, 60Hz, 1875W,
Cord:
- 6FT SJT 14/3 AWG.
Set the ON/OFF time:

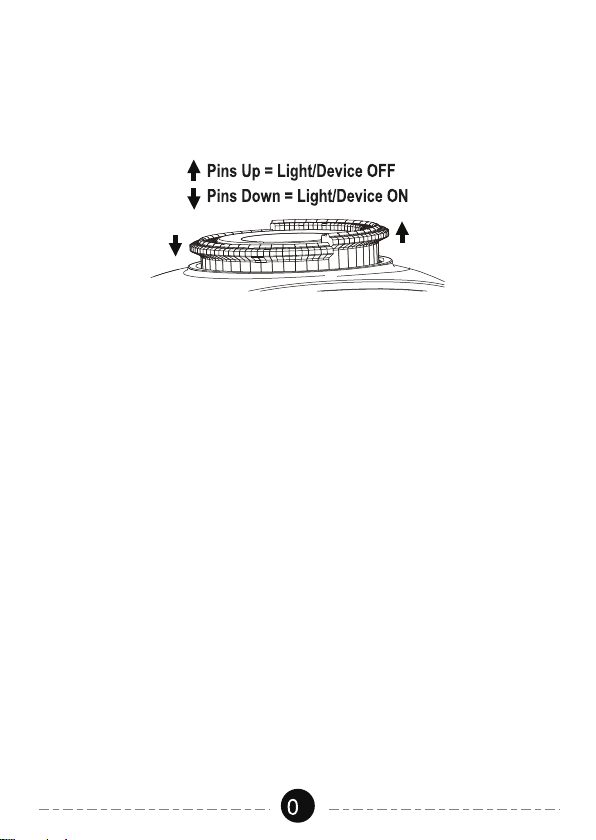

Begin with all pins pulled up. Push the pins down for the periods of time you
want the timer to be ON. Pins in down position represents ON and up position
represents OFF, shown as picture.
Install the power strip
1. Plug the power strip into a 125VAC outlet.
2. Push the “Red Switch” to “RESET” mode.
NOTE: The 4 “SWITCH control” outlets on the right of the power strip are
controlled by the main switch, when it is ON, the 4 outlets are ON,
or it is OFF.
3. The 4 “TIMER control” outlets: Change the timer mode by turning the inner
dial and aligning the gray dot with the symbol.
“ O ” for the 4 “TIMER control” outlets always OFF.
“ I ” for the 4 “TIMER control” outlets always ON.
“ T ” for the 4 “TIMER control” outlets to follow your programmed settings.
04
One Year Limited Warranty
DEWENWILS warrants this product to be free from defects in material and
workmanship for a period of one year from the date of purchase.
Warranty is void if damage is caused by misuse or improper installation.
Email: [email protected].
Our dedicated customer service team will get back to you within 24 hours.
WARNING: Timer could turn-on unexpect-
edly without the user being present. To
Reduce the Hazardous Condition - Unplug
the appliance that is plugged into the rece-
ptacle(s) controlled by the timer before se-
rvicing.
CAUTION: RISK OF ELECTRIC SHOCK, DO NOT PLUG
INTO ANOTHER RELOCATABLE POWER TAP OR AN
EXTENSION CORD.
