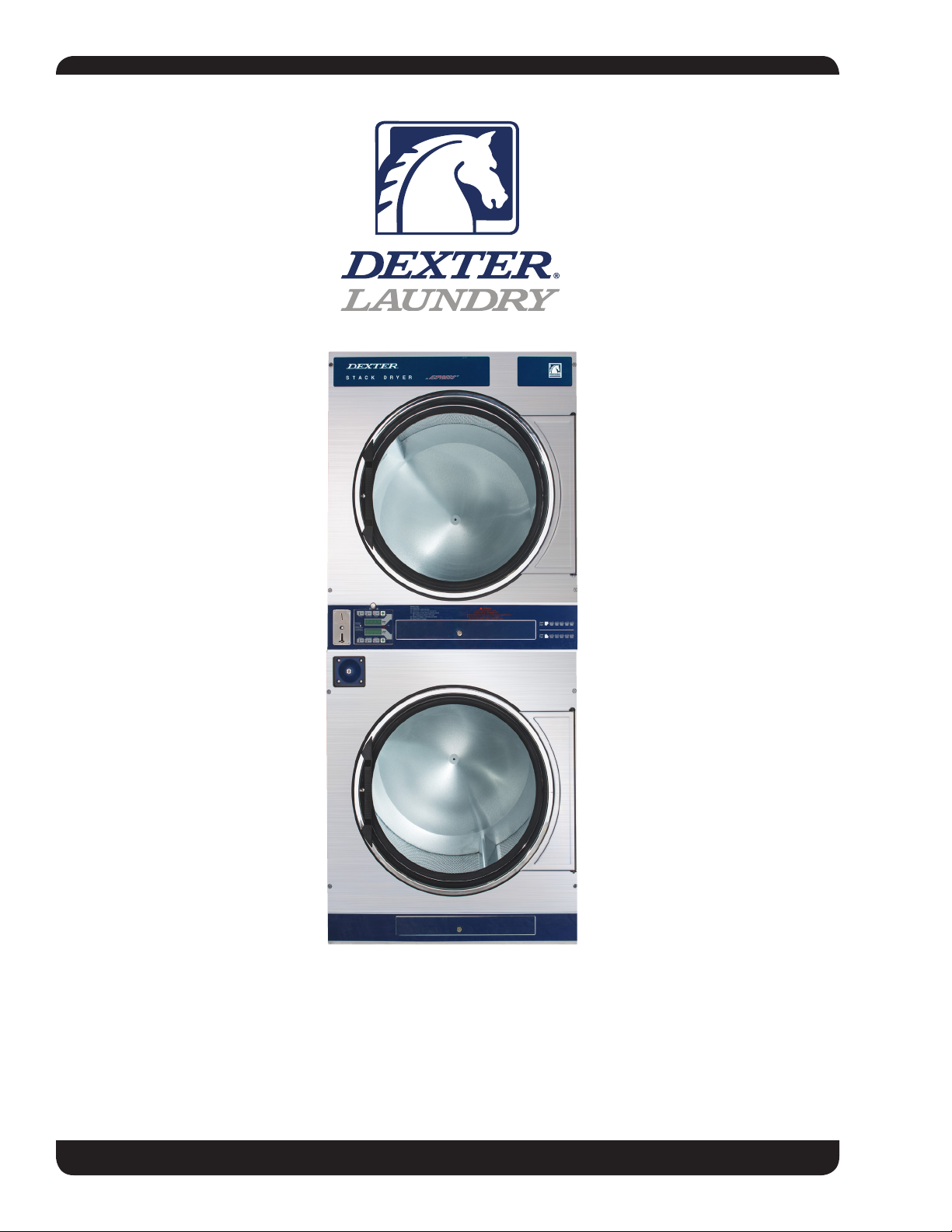

Dexter Laundry DDBD T-50-2 Series Istruzioni per la costruzione
8533-068-001 9/21Starting serial number 213052
DDBD T-50X2 Models
50 Pound Stacked Commercial Dryer
Service and Parts Manual
DDBD 50KC_ - 65, DDBD 50KC_ - 59, DDBD 50KC_ - 39
Indicates an imminently hazardous situation, which if
not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation, which if not
avoided could result in death or serious injury.
Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury. It may
also be used to alert against unsafe practices. Minor
burns, pinch points that result in bruises and minor
chemical irritation.
Indicates information or a company policy that relates
directly or indirectly to the safety of personnel or protec-
tion of property.
This is the user caution symbol. It indicates a condition
where damage to the equipment resulting in injury to
the operator could occur if operational procedures are
not followed. TO REDUCE THE RISK OF DAMAGE OR
INJURY, refer to accompanying documents; follow all
steps or procedures as instructed.
This is the electrical hazard symbol. It indicates that
there are DANGEROUS HIGH VOLTAGES PRESENT inside
the enclosure of this product. TO REDUCE THE RISK OF
FIRE OR ELECTRIC SHOCK, do not attempt to open the
enclosure or gain access to areas where you are not
instructed to do so. REFER SERVICING TO QUALIFIED
SERVICE PERSONEL ONLY
Caution! There are sharp edges on various sheet metal
parts internal to the enclosure. Use safety consciousness
when placing or moving your hands while working in the
interior of this equipment.
Caution! To reduce the risk of damage to the Water Inlet
Valve, do not supply inlet water with a temperature that
exceeds 70˚ C.
Caution! To reduce the risk of re or explosion, do not
operate this equipment in any hazardous classied
(ATEX) environment.
Equipment Safety Warnings
Symbols and Terminology Used in this Equipment
3
Part # 8533-068-001 9/21
Warning! Do not operate equipment if door glass is
damaged in any way.
Warning! Keep clear of rotating parts.
Prohibited! Do not enter this equipment or space.
Prohibited! Do not step or stand on this equipment.
Prohibited! Do not operate without all guards and covers in
place.
Prohibited! Do not operate without all guards and covers in
place.
Prohibited! Do not wash or Dry clothing impregnated with
ammable liquids (petrochemical).
Prohibited! Do not allow children to play in or around
equipment.
Equipment Safety Warnings
Symbols and Terminology Used in this Equipment
4Part # 8533-068-001 9/21
Indicates an imminently hazardous situation,
which if not avoided, will result in death or seri-
ous injury.
Indicates a potentially hazardous situation,
which if not avoided could result in death or
serious injury.
Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderate injury. It may also be used to alert
against unsafe practices. Minor burns, pinch
points that result in bruises and minor chemical
irritation.
Indicates information or a company policy that
relates directly or indirectly to the safety of per-
sonnel or protection of property.
This is the user caution symbol. It indicates a
condition where damage to the equipment re-
sulting in injury to the operator could occur if
operational procedures are not followed.
TO REDUCE THE RISK OF DAMAGE OR INJURY,
refer to accompanying documents; follow all
steps or procedures as instructed.
This is the electrical hazard symbol. It indicates
that there are DANGEROUS HIGH VOLTAGES
PRESENT inside the enclosure of this product.
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, do not attempt to open the enclosure or
gain access to areas where you are not instruct-
ed to do so. REFER SERVICING TO QUALIFIED
SERVICE PERSONEL ONLY
Caution! To reduce the risk of re or explosion,
do not operate this equipment in any hazardous
classied (ATEX) environment.
5
Part # 8533-068-001 9/21
• All Dryers must be installed in accordance to
all applicable electrical, plumbing and all other local
codes.
• These installation and operation instructions are
for use by qualied personnel only. To avoid injury
and electrical shock, do not perform any servicing
other than that contained in the installation and op-
eration instructions, unless qualied.
Do not install Equipment in an explosive atmosphere.
•Care must be stressed with all foundation work to
ensure a stable unit installation, eliminating pos-
sibilities of excessive vibration.
•Foundation must be level within 13 mm to ensure
proper washer operation.
Do not operate washer or Dryer if door glass is dam-
aged in any way.
Do not wash or Dry clothing impregnated with am-
mable liquids (petrochemical).
WARNING
6Part # 8533-068-001 9/21
Children should be supervised to
ensure they do not operate or play
in or around equipment.
Keep all panels in place to protect against electrical
shock and injury and add rigidity to washer.
WARNING
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
A washer should not be allowed to operate if any of the following occur:
• Excessive high water level.
• Machine is not connected to a properly earthed circuit.
• Door does not remain securely locked during the entire cycle.
• Vibration or shaking from an inadequate mounting or foundation
7
Part # 8533-068-001 9/21
Warning! Do not operate equipment if door glass is
damaged in any way.
Warning! Keep clear of rotating parts.
Prohibited! Do not enter this equipment or space.
Prohibited! Do not step or stand on this equip-
ment.
Prohibited! Do not operate without all guards and
covers in place.
Prohibited! Do not operate without all guards and
covers in place.
Prohibited! Do not wash or Dry clothing impreg-
nated with ammable liquids (petrochemical).
Prohibited! Do not allow children to play in or
around equipment.
8Part # 8533-068-001 9/21
Warning! Do not operate equipment if door glass is
damaged in any way.
Warning! Keep clear of rotating parts.
Prohibited! Do not enter this equipment or space.
Prohibited! Do not step or stand on this equip-
ment.
Prohibited! Do not operate without all guards and
covers in place.
Prohibited! Do not operate without all guards and
covers in place.
Prohibited! Do not wash or Dry clothing impreg-
nated with ammable liquids (petrochemical).
Prohibited! Do not allow children to play in or
around equipment.
Prohibited! Do not attempt to open, touch, or pro-
ceed before referring to the manual or unless quali-
ed.
Mandatory! Read all supporting documentation be-
fore operating or maintaining equipment.
Mandatory! Disconnect power before servicing
equipment.
Mandatory! Lock out and tag out before servicing
this equipment.
Mandatory! Children should be supervised to ensure
they do not operate equipment.
9
Part # 8533-068-001 9/21
10 Part # 8533-068-001 9/21
Notes
