P/N 8514-081-001,

75LB CAPACITY

COMPUTER CONTROL

OPL WASHER

THE

DEXTER

COMPANY OWNER'S BOOKLET

INSTALLATION & OPERATION

INSTRUCTIONS

Please read this information and retain for reference.

WARNING - THIS WASHER IS EQUIPPED WITH DEVICES AND FEATURES RELATING TO ITS SAFE

OPERATION. TO AVOID INJURY OR ELECTRICAL SHOCK, DO NOT PERFORM ANY SERVICING

UNLESS QUALIFIED TO DO SO.

IT IS THE RESPONSIBILITY OF THE OWNER TO CHECK THIS EQUIPMENT ON A FREQUENT

BASIS TO ASSURE ITS SAFE OPERATION.

A machine should not be allowed to operate if any of the following occur:

- Excessively high water level.

- If machine is not connected to a properly grounded circuit.

- If the door does not remain securely locked during the entire cycle.

- Vibration or shaking from an inadequate mounting or foundation.

WARNING - FOR SAFETY

1. Always shut off power and water supply before servicing.

2. Do not overload the washer.

3. Do not open door when cylinder is in motion or it contains water.

4. Do not bypass any safety devices of this washer.

5. Do not use volatile or flammable substances in or near this washer.

6. Keep all panels in place. They protect against shock and injury and add rigidity to the washer.

PREVENTIVE MAINTENANCE REQUIREMENTS

DAILY

- Check that the loading door remains securely locked and cannot be opened during the entire cycle.

- Check the water connections for leaks.

- Clean the top and sides of the cabinet to remove residue.

- Clean the soap dispenser and lid.

- Check the drain valve for leaking and that it opens properly.

- Check the loading door for leaks. Clean the door seal of all foreign matter.

- Leave the loading door open to aerate the washer when not in use.

QUARTERLY

- Make sure the washer is inoperative by switching off the main power supply.

- Check the V-belts for wear and proper tension.

- Clean lint and other foreign matter from around motor.

- Check all water connections for leaks.

- Wipe and clean the inside of the washer and check that all electrical components are free of moisture and dust.

- Remove and clean water inlet hose filters. Replace if necessary.

- Check anchor bolts - retighten if necessary

IMPORTANT: Replace any and all panels that were removed to perform daily and/or quarterly maintenance.

THE

DEXTER

COMPANY

INSTALLATION INSTRUCTIONS

All washers must be installed in accordance with all local, state and national building,

electrical, plumbing and other codes in effect in the area.

WARNING - THESE INSTALLATION AND SERVICING INSTRUCTIONS

ARE FOR USE BY QUALIFIED PERSONNEL ONLY. TO AVOID INJURY

AND ELECTRICAL SHOCK DO NOT PERFORM ANY SERVICING

OTHER THAN THAT CONTAINED IN THE OPERATING

INSTRUCTIONS, UNLESS QUALIFIED.

FOUNDATION REQUIREMENTS

This machine is designed for use on or over bare concrete floor - not to be used above

combustible flooring. The washer must be securely bolted and grouted to a substantial concrete

floor, or mounted and grouted upon a suitable base that is securely bolted and grouted to a

substantial concrete floor. CARE MUST BE STRESSED WITH ALL FOUNDATION WORK

TO INSURE A STABLE UNIT INSTALLATION, ELIMINATING POSSIBILITIES OF

EXCESSIVE VIBRATION. All installations must be made on sound concrete floors, 8 inches

(200 mm) or thicker. Anchor bolts or expansion anchors must be of a quality grade and a

minimum of 3/4-inch (19 mm) diameter. Six bolts are required to mount the washer to the steel

base or concrete pad.

MOUNTING

A concrete pedestal or steel-mounting base that elevates the machine approximately 4 inches

(100 mm) above the floor level is recommended to provide easy access to the loading door.

Allow a minimum of 24 inches (600mm) of clearance behind the rear of the machine, to provide

access for motor removal. Refer to Fig. 1-1 and 1-2 for machine bolt-down dimensions.

If an elevated concrete pedestal is desired, it should be embedded into the existing floor. Anchor

bolts should be 3/4" x 8" (19 mm x 200 mm), grade 8 or better, headed by a 4 inch (10 cm)

square fish plate and should protrude 2 1/2” (64 mm) above the finished surface of the pedestal.

EXPANSION ANCHORS ARE NOT RECOMMENDED FOR USE IN CONCRETE

PEDESTALS, BECAUSE THE ANCHORS ARE TOO CLOSE TO AN EDGE, CAUSING IT

TO BREAK OUT. (See Fig. 1-1 and 1-3.)

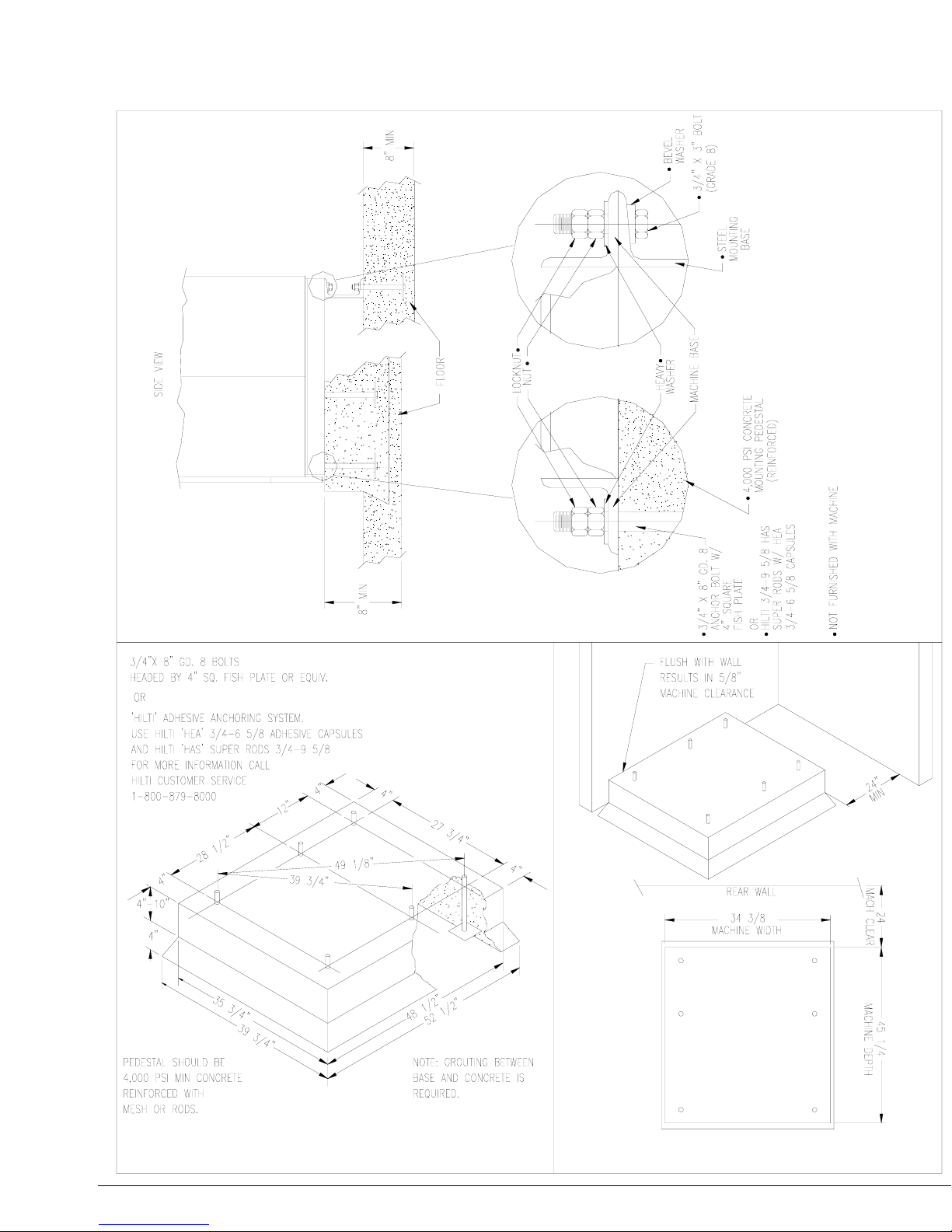

CONCRETE PEDESTAL MOUNTING

Figure 1-1 Figure 1-2

FLOOR OUTLINE

Figure 1-3

MACHINE MOUNTING DETAIL

PLUMBING

Water supply hoses are furnished with each machine. The threaded connections on the hoses are ¾-

11 ½ NHT.

Separate hot and cold water lines must be provided, maintaining 30 psi to 120 psi (207 kPa to 818

kPa) water flow pressure. A 140F (60C) degree hot water supply is recommended for best washing

results.

DRAIN

The drain outlet tube at the rear of the machine is 3 inches (76 mm) in diameter. A flexible hose

material (Pt. #9242-417-003) is available to extend this draining system. Any drain hose used must

be lower than the drain valve to assure proper draining.

ELECTRICAL

WARNING

SHUT OFF POWER AND WATER BEFORE OPENING ANY SERVICE PANELS.

Dexter single/three-phase 208-240VAC 60 Hz washing machines are intended to be permanently

installed appliances. No power cord is provided. The machine should be connected to an individual

branch circuit not shared by lighting or other equipment. The connection should be sheathed in

liquid tight flexible conduit, or equivalent, with conductors of the proper size and insulation. A

qualified technician should make such connections in accordance with the wiring diagram. (Suggest

a minimum wire size of 12 ga.) (Suggest a minimum wire size of 10 ga.for Single Phase operation)

TO MAKE ELECTRICAL CONNECTIONS: Disconnect all power to the washer. Remove screw

and lift out the cover located in the upper left corner of the machine (as viewed from the back).

¾If power is 208-240-3PH-60Hz, connect L1, L2, L3 and ground. If there is a high leg it must

be connected to L3.

¾If power is 208-240-1PH-60Hz, connect L1, L2 and Ground.

NOTE: It is important that the grounding screw next to the power terminal block TB-1 be

connected to a good external ground.

FUSING REQUIREMENTS:

SINGLE-25AMP TIME-DELAY (DUAL ELEMENT) FUSE (or equivalent circuit breaker)

THREE PHASE - 20AMP TIME-DELAY (DUAL ELEMENT) FUSE (or equivalent circuit breaker)

CONTROLS TRANSFORMER: The controls transformer is located inside the control trough and

steps a range of 208 to 240 volts down to 115 volts. There are two terminals on the controls

transformer for the primary (incoming) power. Use the terminal marked “208V” for power supplies

between 208 and 220 volts. Use the terminal marked “230V” for power supplies between 221 and

240 volts.

INJECTION SOURCE DETAILS

The washer control may be programmed to send 120V output signals for a chemical injection

system. The signals are not intended as a power source and must be limited to less than 100

milliamps of current. There is a separate terminal block for connection of the external injection

signals. For the injection sources, program codes 0 through 6 are as shown in the table below.

Dexter

Recommended

Connections

Controller

Programmed

Signals

Injection

Terminal Block

Circuits

Detergent 1 A

Bleach 2 B

Starch 3 C

Sour/Softener 4 D

5 A and B

6 C and D

0 None

CHECKOUT

After all mounting, plumbing and electrical work is completed, the washer should be run through

a cycle and checked for water leaks and proper functioning.

SPECIFICATIONS

MODEL 75LB WASHER

CAPACITY

CYLINDER SIZE

ELECTRICAL

DRIVE SYSTEM

WASH SPEED

INTERMEDIATE

EXTRACT

FINAL EXTRACT

MACHINE CONTROL

WATER INLET

DRAIN VALVE

75LBS/11.5 CUBIC FT. (34.1 kg/325 l)

30” DIA X 28” DEEP (76cm X 71cm)

208-240 VAC, 60 HZ, 1 OR 3 PHASE

SOFT START REVERSING INVERTER DRIVE

43 RPM

412 RPM (60 G’S)

485 RPM (100 G’S)

PROGRAMMABLE COMPUTER

4 SOLENOID OPERATED VALVES

FLOW RATE: 9 TO 12 GAL/MIN EACH, 30-120 PSI

3” DIAMETER

STARTING THE WASHER

A. Load the clothes into the cylinder and latch the door securely. Be sure clothing does

not get caught between the door gasket and tub front when closing the door. Do not

overload the washer.

B. Select the appropriate cycle number (1 through 6) using for the load being washed.

See the cycle descriptions in the programming section. Use the UP and DOWN keys to

change the cycle number.

C. If not using a chemical injection system, add low-sudsing powdered detergent into the

“detergent” compartment of the automatic dispenser on the top of the washer. If desired

add fabric softener to the “fabric softener” compartment. Use the amount of fabric

softener as recommended by the manufacturer.

If liquid wash products are used in the “detergent” compartment, they must be added at

the beginning of the wash cycle.

If the machine is set for pre-wash, washing products can be added to the round opening

of the dispenser or put in with the clothes when loading the cylinder before starting the

machine.

D. Press START. The display will go blank for a moment and then display the cycle

time in minutes. The clothes door will lock and remain locked until the end of the cycle.

END OF CYCLE

When the cycle is complete the time will display “0” until the door is opened and a 5-second

tone will sound. The door can now be opened. Leave the clothes door open when the machine is

not in use.

SAFETY DOOR LOCK

This machine is equipped with a Safety Door Lock that prevents opening the door for 2 to 3

minutes if the power is interrupted. This safety feature cannot be bypassed.

PROGRAMMING INSTRUCTIONS:

Programming can be accomplished manually using the machine controls or by connecting to the

machine control using a PDA (personal digital assistant). For instructions on using a PDA with

this washer control, please contact your local Dexter distributor. Please read below for manual

programming instructions.

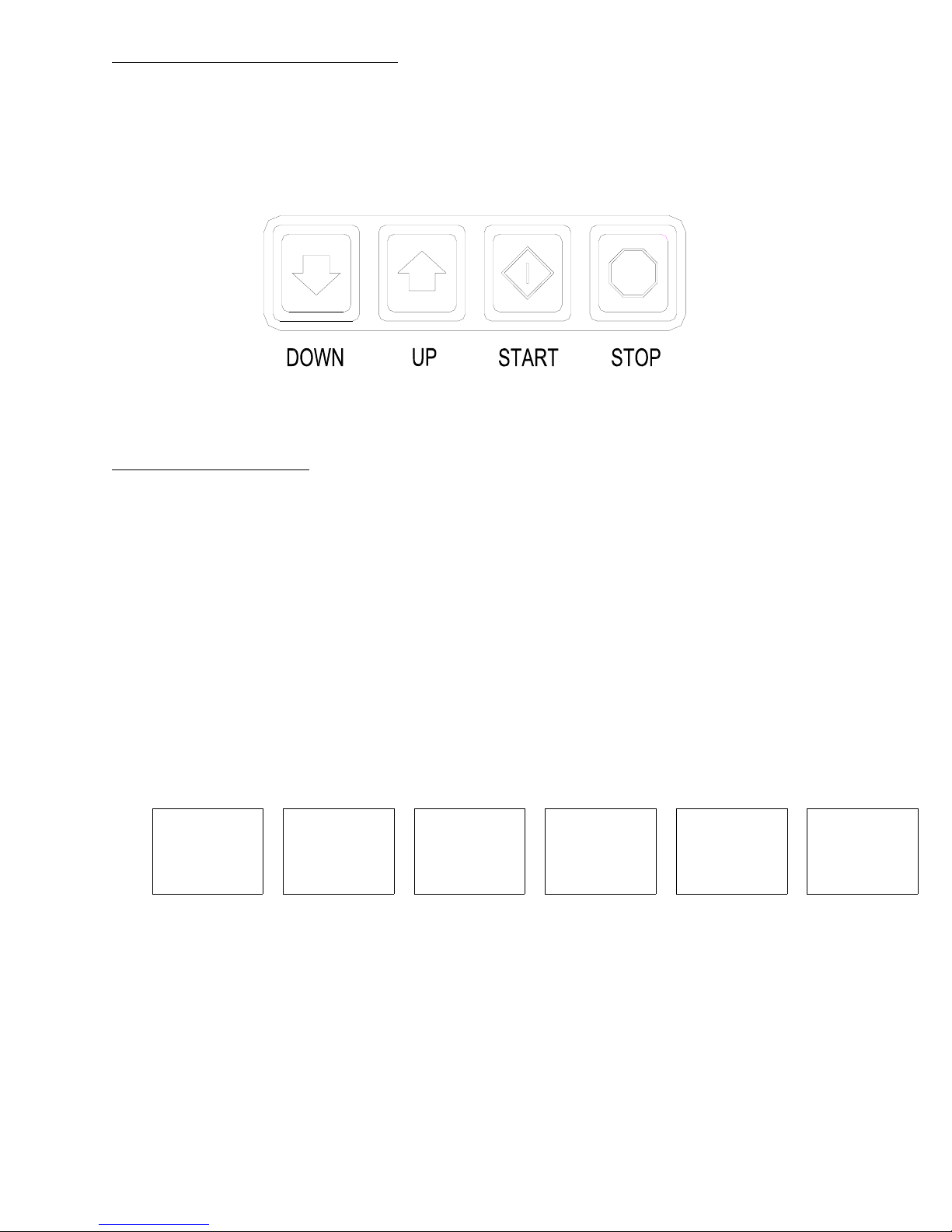

The keypad layout for the washer control is shown above.

Wash Cycle Programming

1. Turn on the power to the washer.

2. Turn the Run/Program key to the Program position. Display will show“C O” and the “ADD

BLEACH” light will blink and will continue to blink during the programming mode.

3. Press the “DOWN” or “UP” buttons to select which cycle to alter. When the desired cycle

number is displayed, press “START”.

4. The display should now show a “b”. The “b” and the cycle indicator lights indicate which

bath is being selected to alter. Press the “UP” and “DOWN” buttons to select a bath to

change and then press “START”. The indicator lights are shown below.

FINAL

RINSE

PRE

WASH

FLUSH WASH RINSE SPIN

When “RINSE” is selected, “b r1” through “b r4” may be selected. There may be multiple

rinses that are indicated by r1, r2, r3 and r4.

5. Each bath can be programmed with the following options. Use the “DOWN” and “UP” keys

to select the desired setting and the “START” key to move to the next option.

DISPLAY FUNCTION OPTIONS

Ct ** Tumble Time Two-digit amount of time in minutes.

t ** Water Temperature HH for hot, CH for warm, CC for cold

and EE for no water.

L ** Water Level Lo for low, Hl for high. 1

dF * Type of Fill d for delayed fill, t for timed fill.

S ** Spin Time Two-digit amount of time in minutes.

IS * Injection Source Single digit code indicating injector signal(s).2

1 A delayed fill will pause the time count until theselected level is reached. A timed fill will

allow the time count to continue until the selected level is reached.

2Codes for injections sources are defined at the end of the programming section. When the

No Water bath is selected, the electronic controller prohibits injection signals. The

programmed injection source value is ignored.

To exit the programming of a bath, press the “STOP” button once and use the “UP” and

“DOWN” keys select another bath. Press the “STOP” button again to select a different cycle to

change. To end programming, turn the key to “RUN” position

Note: The Wash Cycle programming mode will automatically exit and return to

the Idle mode if no buttons are pushed for one minute.

WASH CYCLE PARAMETER RANGES

The range of each cycle parameter is shown below:

Cycle Time 0 to 15 minutes for Prewash, Wash, Rinse1, 2, 3 and 4

1 to 15 minutes for Final Rinse

For the bathes that can, if the time is set to zero, then the

bath will be eliminated from the cycle.

Water Temperature HH – hot, CH – warm, CC – cold, EE – no water

Water Level HI – high, LO – low

Delay Fill The selections are “d” for delay the bath time until water

level is reached or “t” to count down bath time during the

fill.

Spin Time 0 to 10 minutes for Prewash, Wash, Rinse, 2, 3 and 4

1 to 10 minutes for Final Spin

Injection Source 0 to 6

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Dexter Laundry Rondella

Dexter Laundry

Dexter Laundry 80LB CAPACITY COMPUTER CONTROL OPL WASHER... Manuale utente

Dexter Laundry

Dexter Laundry WCVD Series Guida per l'amministratore

Dexter Laundry

Dexter Laundry WCAD Series Manuale di installazione

Dexter Laundry

Dexter Laundry WCVD Series Guida rapida

Dexter Laundry

Dexter Laundry T-300 VENDED Manuale utente

Dexter Laundry

Dexter Laundry WCVD-WN Series Manuale utente

Dexter Laundry

Dexter Laundry T-350SWD Manuale utente

Dexter Laundry

Dexter Laundry O Series Guida rapida

Dexter Laundry

Dexter Laundry 400 EXPRESS Manuale utente

Dexter Laundry

Dexter Laundry WCN Series Manuale utente

Dexter Laundry

Dexter Laundry OPL Series Guida rapida

Dexter Laundry

Dexter Laundry C Series Manuale utente

Dexter Laundry

Dexter Laundry WC 00XA-12EC X Series Manuale utente

Dexter Laundry

Dexter Laundry OPL 30 Cycle 200G Express Guida rapida

Dexter Laundry

Dexter Laundry O Series Guida rapida

Dexter Laundry

Dexter Laundry WCVD-WN Series Guida rapida

Dexter Laundry

Dexter Laundry WCAD Series Guida rapida

Dexter Laundry

Dexter Laundry T-450SWD Manuale utente

Dexter Laundry

Dexter Laundry T1200 Istruzioni per l'installazione

Dexter Laundry

Dexter Laundry T-300 VENDED Manuale utente

Dexter Laundry

Dexter Laundry WCVD-WN Series Istruzioni operative

Dexter Laundry

Dexter Laundry T-900 Guida rapida

Dexter Laundry

Dexter Laundry V-Series Manuale utente

Dexter Laundry

Dexter Laundry T-1450 Manuale di installazione

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
