DEZURIK MODELS P41, P41D AND

P42 PMV POSITIONERS

Instruction

D10112

August 2012

DeZURIK

Instructions

These instructions provide information about Models P41, P41D and P42 PMV Positioners. They are

for use by personnel who are responsible for installation, operation and maintenance of Models P41,

P41D and P42 PMV Positioners

Safety Messages

All safety messages in the instructions are flagged with an exclamation symbol and the word Caution,

Warning or Danger. These messages indicate procedures that must be followed exactly to avoid

equipment damage, personal injury or death. Safety label(s) on the product indicate hazards that can

cause equipment damage, personal injury or death. If a safety label becomes difficult to see or read, or

if a label has been removed, please contact DeZURIK for replacement label(s).

Personnel involved in the installation or maintenance of valves should be constantly alert to

potential emission of pipeline material and take appropriate safety precautions. Always wear

suitable protection when dealing with hazardous pipeline materials. Handle valves that have

been removed from service with the assumption of pipeline material within the valve.

Inspection

Your Model P41, P41D or P42 PMV Positioner has been packaged to provide protection during

shipment; however, it can be damaged in transport. Carefully inspect the unit for damage upon arrival

and file a claim with the carrier if damage is apparent.

Parts

Order parts from your local DeZURIK sales representative, or directly from DeZURIK. When ordering

parts, please include the 7-digit part number and 4-digit revision number (example: 9999999R000)

located on the data plate attached to the valve assembly. Also include the part name, the assembly

drawing number, the balloon number and the quantity stated on the assembly drawing.

DeZURIK Service

DeZURIK service personnel are available to install, maintain and repair all DeZURIK products.

DeZURIK also offers customized training programs and consultation services.

For more information, contact your local DeZURIK sales representative or visit our website at

www.dezurik.com.

DeZURIK

August 2012 Page 3 D10112

Table of Contents

Description - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Cam Selection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Air and Electrical Connections - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Maintenance

Cleaning Positioner Body - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Cleaning the Restriction Plug - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Adjustments - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Linkage Rod Adjustment - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Zero Adjustment - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Range Adjustment - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Gain Adjustment - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Reversing Valve Action - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Trouble Shooting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

DeZURIK

D10112 Page 4 August 2012

Description

The Model P41, P41D and P42 PMV Electro-Pneumatic positioner is a precision instrument which,

when used in conjunction with a cylinder actuator, can provide the exacting control necessary to satisfy

the most demanding process requirements. The positioner will accept either a 0–20mA or 4–20mA

input signal.

Cam Selection

Each cam is designed to provide split range instrument signals. Standard cam characterization is linear;

however, other characterizations are available.

Installation

Positioners installed in hazardous areas can be ignition sources. Ensure positioners used in

hazardous areas have proper fire/explosion ratings.

Air and Electrical Connections

1. Connect instrument quality supply air to the positioner "S" port.

Note: Supply air should be clean, dry and oil-free, with pressure not exceeding the maximum pressure

rating of the cylinder.

2. Remove the top cover and the side frame from the positioner to allow access to the terminal

block.

3. Connect input signal wires to the terminal block inside the positioner.

Note: The positioner case has a 1/2" NPT hole for wiring connector.

4. Actuator piping is connected at the factory to positioner ports C1 and C2. When used on spring-

return actuators, one of the ports is plugged.

DeZURIK

August 2012 Page 5 D10112

Maintenance

Cleaning Positioner Body

To ensure proper positioner operation, it is necessary to periodically clean the positioner valve body

and the restriction plug according to the following steps.

1. Close the valve..

Failure to close the valve may result in the valve slamming shut while the positioner is being

cleaned..

2. Disconnect supply air and instrument signal to the positioner.

3. Remove cylinder tubing from the positioner.

4. Remove the four positioner cover screws and the cover.

5. Remove the side frame from the positioner.

6. Make a note of the position of the indicator, then remove the indicator screw and the indicator.

7. Remove the three screws that hold the valve body to the positioner housing, and carefully lift out

the valve body.

8. Ensure the spool does not bind against the tip of the balance arm. See Figure 1 for parts

location.

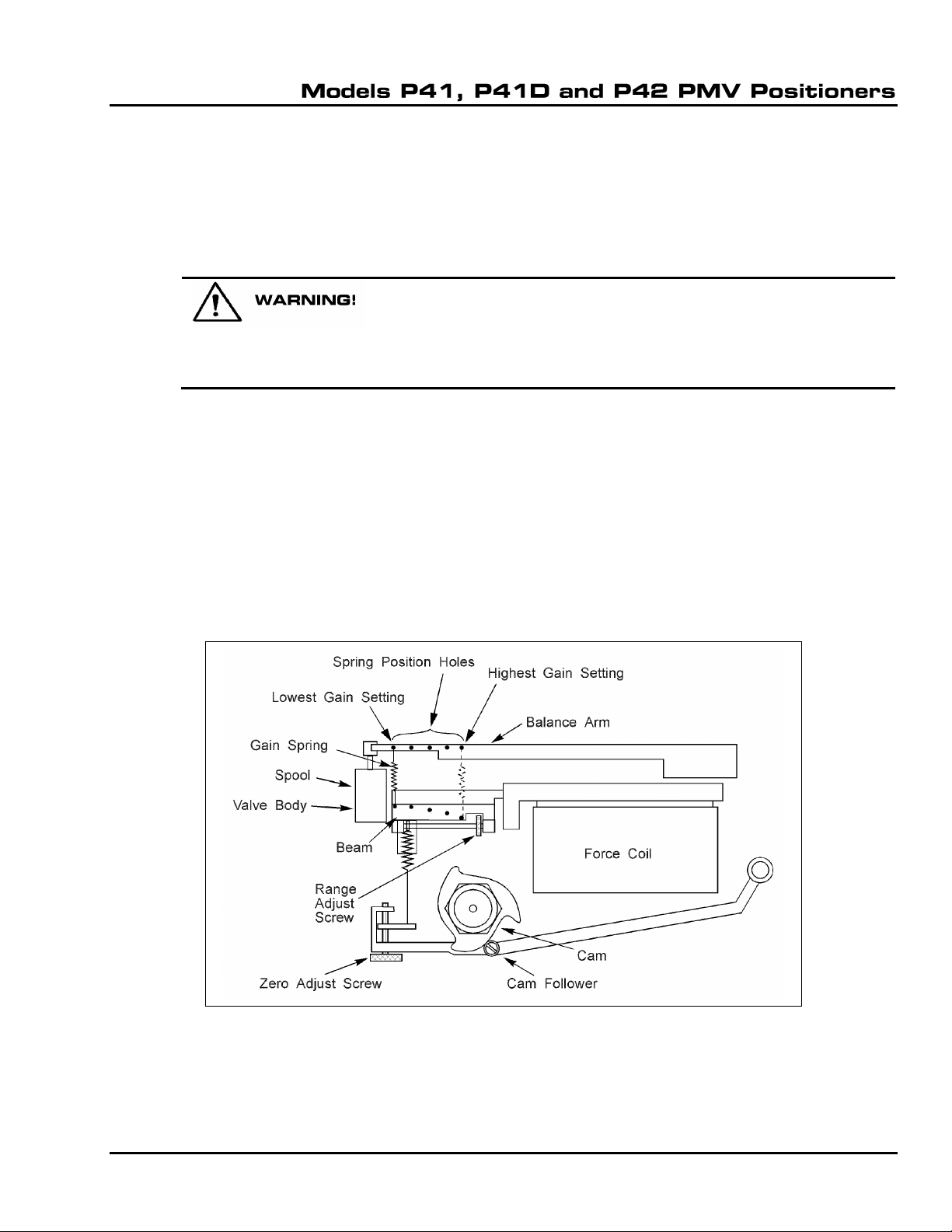

Figure 1 –Component Identification

9. Pull the spool out of the body and wash the components.

10. Dry the parts with compressed air, and ensure the ports are clear.

DeZURIK

D10112 Page 6 August 2012

Maintenance (continued)

11. Replace any worn components, then install the spool into the valve body,.

12. Fasten the valve body to the positioner housing and tighten the screws evenly.

13. Place the indicator in the position noted in Step 6, and secure with the screw.

14. Install the side frame and the positioner cover.

15. Connect the tubing from the cylinder to the positioner.

16. Connect supply air and instrument signal to the positioner.

Cleaning the Restriction Plug

1. Remove the restriction plug. (See Figure 2.)

2. Clean the restriction hole (drilled crosswise through the restriction plug) with a fine (0.007inch

diameter) wire.

Note: Do not enlarge the restriction hole.

3. Inspect the O-rings, then install the restriction plug.

4. Install an in-line air filter in the positioner supply port.

Note: Contact the DeZURIK Parts Department to order the filter.

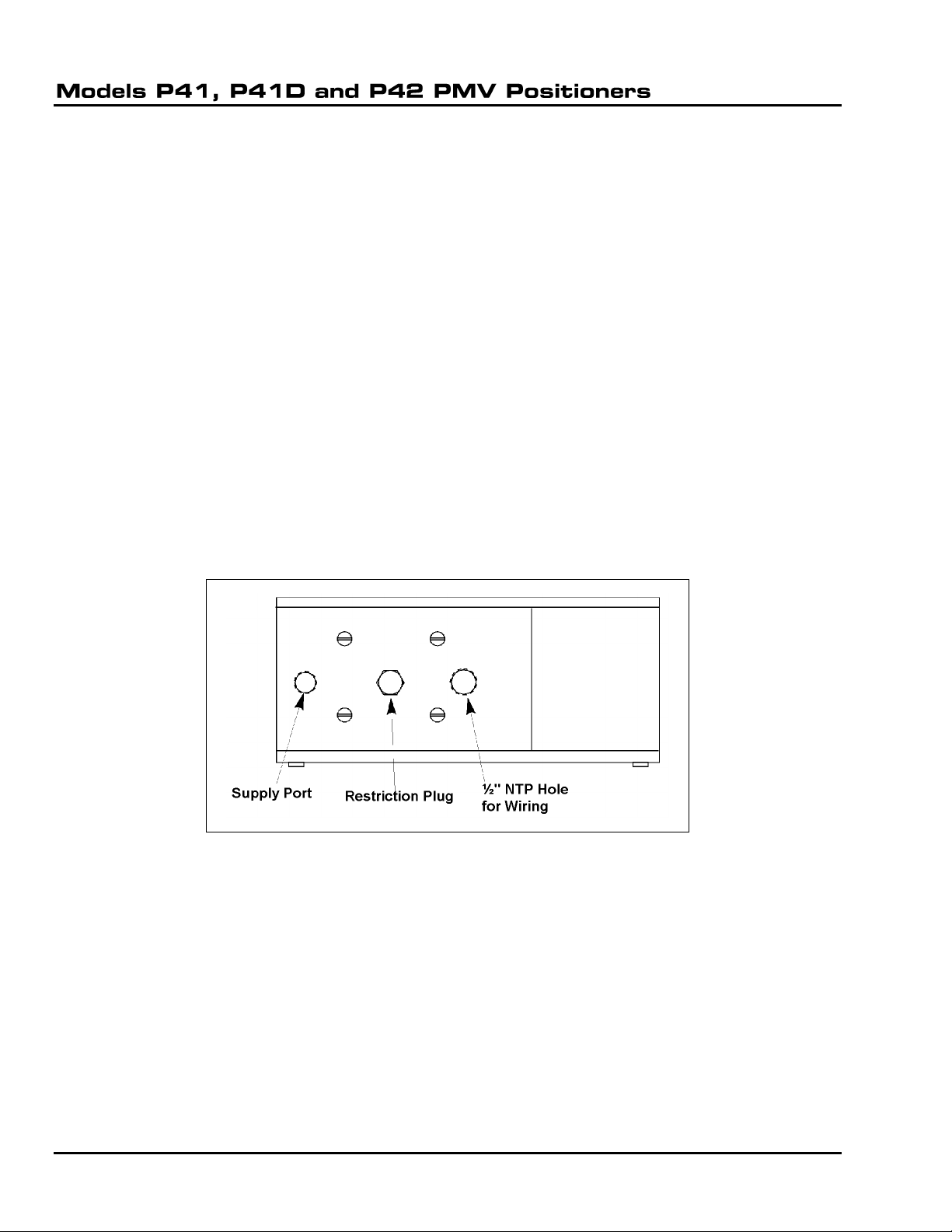

Figure 2 –Restriction Plug Location

Adjustments

These instructions are written for a unit that is piped to Open the valve on an increasing signal. If your

unit is piped to Close the valve on an increasing signal, the valve action will be the opposite of what is

described here.

Linkage Rod Adjustment

If valve position feedback is transmitted through a linkage rod, adjust the length of the rod as follows:

1. Remove the top cover and side frame from the positioner body before adjusting.

2. Set the positioner input signal at the minimum value of its range; for example, 4mA for a 4-

20mA range.

DeZURIK

August 2012 Page 7 D10112

Adjustments (continued)

3. Adjust the length of the rod until the valve is in the position corresponding to the minimum input

signal.

Zero Adjustment

1. Set the positioner input signal at the minimum value of its range, for example, 4mA for a 4-

20mA range.

2. Turn the zero adjust screw clockwise until the valve closes. (See Figure 1 for location of

adjusting screws.)

3. Increase the instrument signal slightly above the minimum range value.

Note: If the valve does not begin to open, turn the zero adjust screw counterclockwise until the valve

just starts to move.

4. Since the zero and range adjustments are interrelated, check the range setting and readjust it, if

necessary.

Range Adjustment

1. Set the positioner input signal at 20mA.

2. Turn the range adjust screw until the valve is in the OPEN position.

3. Decrease the input signal slightly.

4. If the valve does not begin to close, turn the range adjust screw until the valve just starts to

move.

5. Since the zero and range adjustments are interrelated, check the zero setting and readjust it, if

necessary.

DeZURIK

D10112 Page 8 August 2012

Adjustments (continued)

Gain Adjustment

The gain adjustment is preset at the factory to match

your actuator under average conditions. Table A lists

the factory presets.

If it is necessary to adjust the gain,

follow the appropriate procedure:

TO REDUCE GAIN - Move the gain spring away from

the force coil. Ensure the spring is securely hooked in

the beam holes and balance arm notches.

TO INCREASE GAIN - Move the gain spring toward

the force coil. Ensure the spring is securely hooked in

the beam holes and balance arm notches.

Note: After adjusting the gain, you must readjust the zero

and range settings.

Table A: Gain Spring Position

Settings

Actuator

Spring Position

G2C6

Lowest Setting

R1C4

R1C6

R2C6

DR40

G4C8

Second from Lowest

Setting

R2C8

G6C4

Middle Setting

G6C6

G6C8

G12C6

G12C8

G12C10

R3C8

R3C10

DR55/85

DR145/250

Highest Setting

DeZURIK

August 2012 Page 9 D10112

Reversing Valve Action

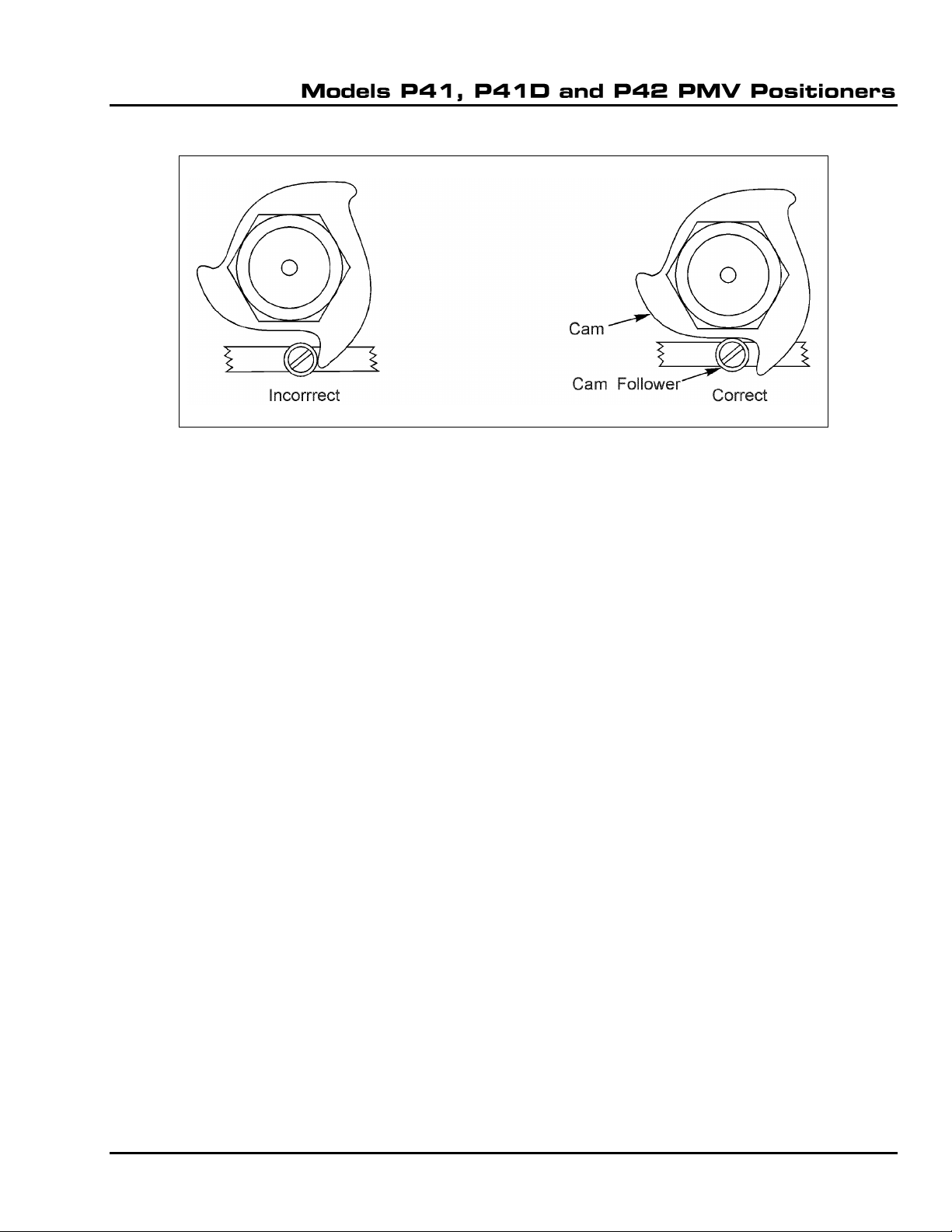

Figure 3 –Cam Position

To change from having the valve Open, to having it Close, on an increasing signal, follow the steps

below:

1. Close the valve. (Failure to close the valve may result in the valve slamming shut.)

2. Relieve supply air pressure.

3. Reverse the cylinder tubing connections at positioner ports C1 and C2.

4. Remove the four screws that fasten the positioner cover to the positioner, and remove the

cover.

5. Note the position of the indicator, then remove the indicator screw and indicator.

6. Note the cam range being used, then remove the nut and cam.

7. Invert the cam and install it on the input shaft.

Note: Thread the nut loosely.

8. Connect the air supply.

9. Set the positioner input signal at the minimum value of its range, for example, 4mA for a 4–

20mA range.

10. Position the cam as shown in the right side of Figure 3.

Note: Ensure the ball bearing does not ride up on the inactive portion of the cam.

11. Tighten the cam nut.

Note: The cam will turn slightly with the nut as it is tightened. Turn the cam slightly counterclockwise

before tightening the nut, to allow for this.

12. Install the position indicator and the positioner cover.

DeZURIK

D10112 Page 10 August 2012

Troubleshooting

Condition

Possible Cause

Corrective Action

Signal change has no effect on

actuator position

No supply air pressure.

Check for correct air supply.

Signal wires connected wrong.

Check markings on terminal

block.

Broken wire between positioner

terminal block and printed circuit

board.

Check continuity of wiring, and

check for tight connections.

Piping between positioner and

actuator is wrong.

See Assembly Drawing for

correct piping.

Wrong portion of cam being

used.

See Figure 3.

A slight change in input signal

fully actuates valve

Piping between positioner and

actuator is wrong.

See Assembly Drawing for

correct piping.

Inaccurate positioning

Valve body dirty.

See “Maintenance” section.

Restrictor or nozzle dirty.

See “Maintenance” section

Magnet gap has iron dust.

Clean gap.

Supply pressure too low.

Check for correct air supply.

Torque needed to turn valve has

increased.

Look for valve obstructions or

fouling.

Overshoot or hunting during

positioning

Gain setting wrong.

See “Adjustments” section.

Capacity of supply piping too

low, or air filter is plugged.

Check for correct air supply and

clean the filter.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali DeZurik Posizionatore della valvola

DeZurik

DeZurik PMV P36C Manuale utente

DeZurik

DeZurik P200 Manuale

Manuali Posizionatore della valvola popolari di altre marche

Parker

Parker 404XE Series Manuale utente

Ytc

Ytc TMP-3000 Manuale utente

PI M-605 Series Manuale utente

Pepperl+Fuchs

Pepperl+Fuchs PXV100AS-F200-SSI-V19 Manuale utente

RTK

RTK RE 3442 Series Manuale utente

CVS Controls

CVS Controls 1200 Manuale utente

Parker

Parker MX80L series Manuale utente

Westlock

Westlock Quantum 2800 Manuale

Samson

Samson 3730-0 Manuale di servizio

Samson

Samson TROVIS 3730-3 Manuale di servizio

ESCO Technologies

ESCO Technologies ETS LINDGREN 2302-001 Manuale utente

SMC Networks

SMC Networks IP8000 Manuale utente

Samson

Samson FOUNDATION 3730-5 Manuale di servizio

Samson

Samson TROVIS SAFE 3731-3 Manuale di servizio

Flowserve

Flowserve Logix 3400MD Manuale utente

halstrup-walcher

halstrup-walcher HIPERDRIVE Manuale utente

ABB

ABB TZIDC Manuale di formazione

Samson

Samson FOUNDATION 3730-5 Manuale di servizio
