DFI NT70-SA Manuale utente

This publication contains information that is protected by copyright.

No part of it may be reproduced in any form or by any means or

used to make any transformation/adaptation without the prior

written permission from the copyright holders.

This publication is provided for informational purposes only. The

manufacturer makes no representations or warranties with respect to

the contents or use of this manual and specifically disclaims any

express or implied warranties of merchantability or fitness for any

particular purpose. The user will assume the entire risk of the use or

the results of the use of this document. Further, the manufacturer

reserves the right to revise this publication and make changes to its

contents at any time, without obligation to notify any person or

entity of such revisions or changes.

Trademarks

Windows® 98, Windows® 98 SE, Windows® ME, Windows® 000

and Windows NT® 4.0 are registered trademarks of Microsoft

Corporation. Intel® and Pentium® 4 are registered trademarks of

Intel Corporation. Award is a registered trademark of Award

Software, Inc. Other trademarks and registered trademarks of

products appearing in this manual are the properties of their

respective holders.

Caution

To avoid damage to the system:

 Use the correct AC input voltage range.

To reduce the risk of electric shock:

 Unplug the power cord before removing the system chassis

cover for installation or servicing. After installation or servicing,

cover the system chassis before plugging the power cord.

Battery:

 Danger of explosion if battery incorrectly replaced.

 Replace only with the same or equivalent type recommend by

the manufacturer.

 Dispose of used batteries according to the battery

manufacturers instructions.

Joystick or MIDI port:

 Do not use any joystick or MIDI device that requires more than

10A current at 5V DC. There is a risk of fire for devices that

exceed this limit.

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC rules.

These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a residential

installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio

communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the

following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and the receiver.

 Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

 Consult the dealer or an experienced radio TV technician for

help.

Notice:

1. The changes or modifications not expressly approved by the

party responsible for compliance could void the user's authority

to operate the equipment.

. Shielded interface cables must be used in order to comply with

the emission limits.

Quick Setup Guide

Quick Setup

Guide

Table of Contents

Chapter 1

Quick Setup Guide.............................................

Chapter 2

En lish......................................................................

Chapter 3

Français (French).................................................

Chapter 4

Deutsch (German)................................................

Chapter 5

Español (Spanish)..................................................

NT70-SR

Onboard audio

- AC97 codec

- Game/MIDI port

- Audio jacks

- Internal audio

- Front audio (J51)

Onboard LAN

- Intel 8 56 ET

- RJ45 LAN port

- LAN setting (JP73)

Onboard RAID

- Promise 0 65R

- RAID IDE connectors

- RAID IDE LED

- RAID setting (JP74)

NT70-SLNT70-SCNT70-SA

Quick Setup Guide

Quick Setup

Guide

Chapter 1 - Quick Setup Guide

Table of Contents

1.1 System Board Layout..................................................................................................

1. Jumpers.....................................................................................................................................

1.3 Ports and Connectors................................................................................................

1.4 Award BIOS Setup Utility.......................................................................................

Note:

The users manual in the provided CD contains detailed information

about the system board. If, in some cases, some information doesnt

match those shown in this manual, this manual should always be

regarded as the most updated version.

Quick Setup Guide

Quick Setup

Guide

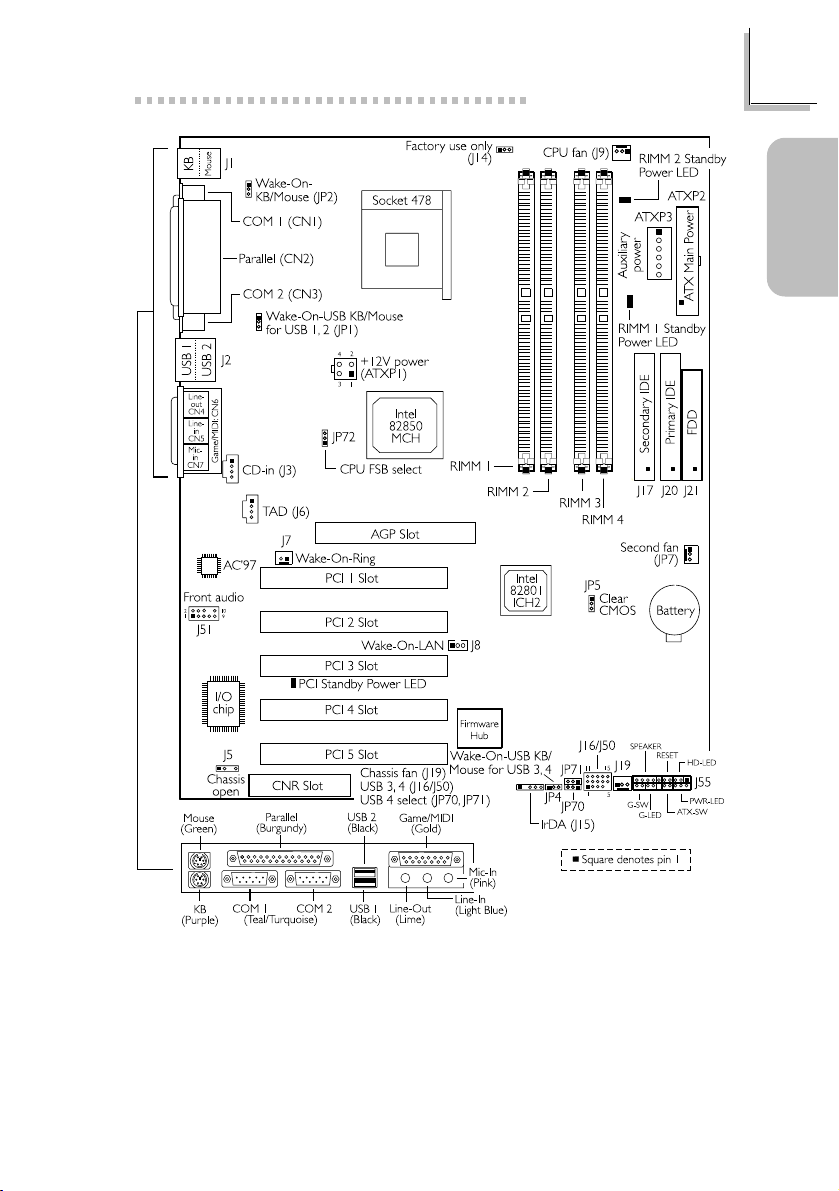

1.1 System Board Layout

NT70-SA

(Supports onboard audio, AN and RAID)

Quick Setup Guide

Quick Setup

Guide

NT70-SC

(Supports onboard audio)

Quick Setup Guide

Quick Setup

Guide

NT70-SL

(Supports onboard audio and AN)

Quick Setup Guide

Quick Setup

Guide

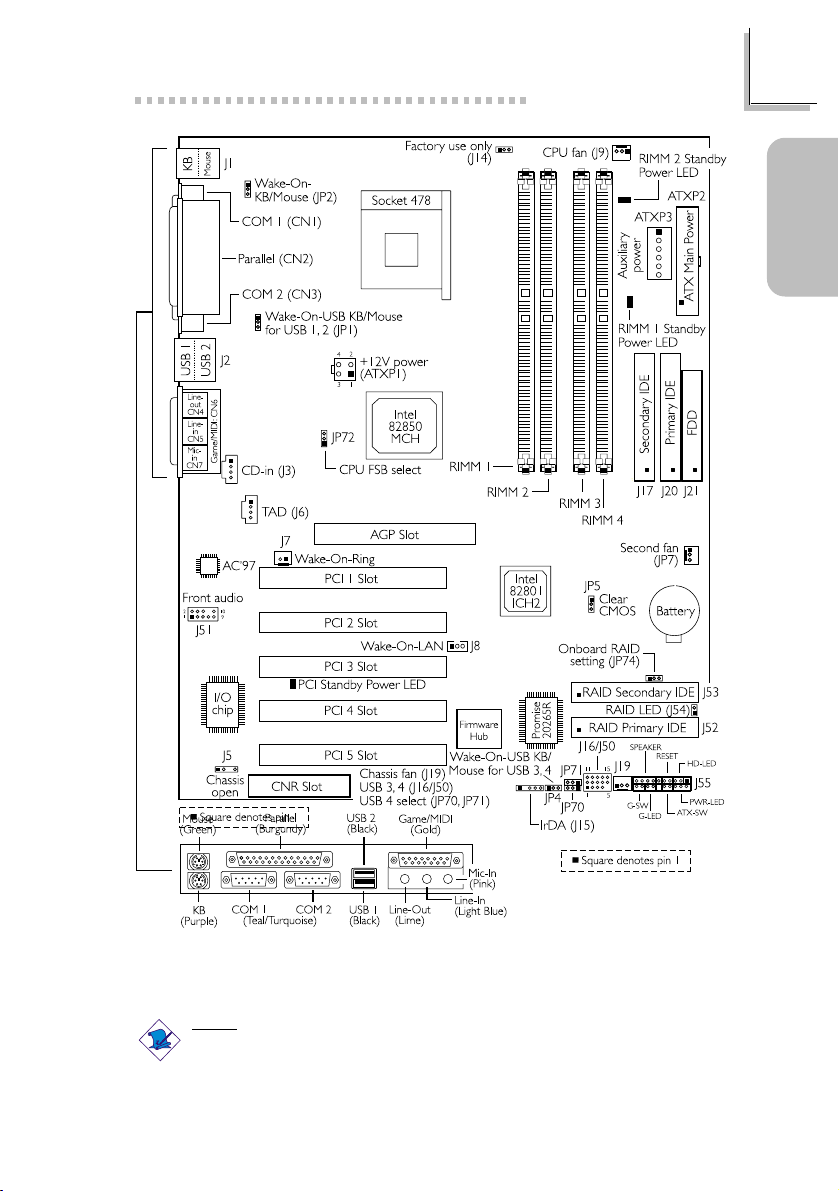

NT70-SR

(Supports onboard audio and RAID)

Note:

The illustrations on the following pages are based on the NT70-SA/S

system board, which is the board that supports onboard AN.

Quick Setup Guide

Quick Setup

Guide

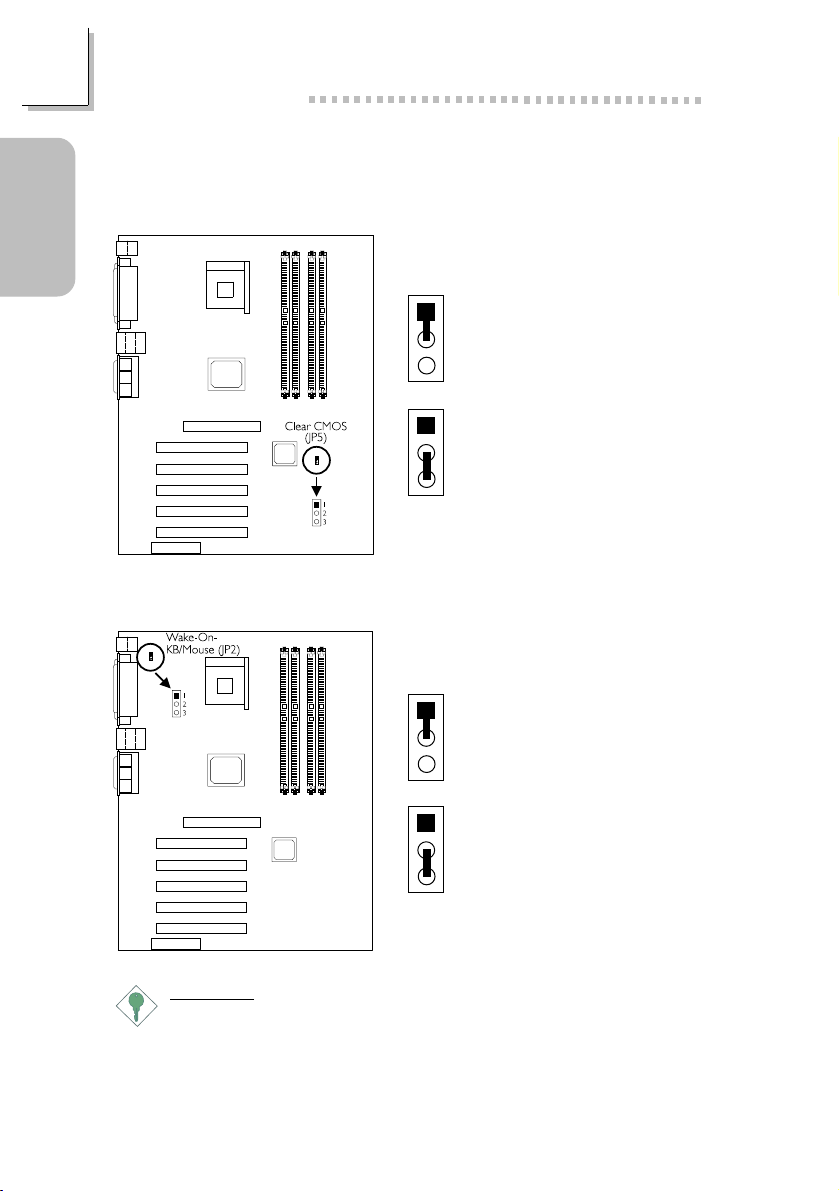

1.2 Jumpers

1.2.1 Clear CMOS Data - JP5

-3 On:

Clear CMOS Data

1- On:

Normal (default)

1.2.2 Wake-On-Keyboard / Wake-On-Mouse - JP2

1- On:

Disable the Wake-On-

KB/Mouse function

(default)

-3 On:

Enable the Wake-On-

KB/Mouse function

Important:

The 5VSB power source of your power supply must support

≥

720mA.

Quick Setup Guide

Quick Setup

Guide

1.2.3 Wake-On-USB Keyboard/Mouse - JP1 and JP4

Important:

 If you are using the Wake-On-USB Keyboard/Mouse function for

2 USB ports, the 5VSB power source of your power supply must

support

≥

1.5A.

 If you are using the Wake-On-USB Keyboard/Mouse function for

4 USB ports, the 5VSB power source of your power supply must

support

≥

2A.

JP1 - for the USB keyboard/mouse that is connected to the USB 1 or

USB port.

JP4 - for the USB keyboard/mouse that is connected to the USB 3 or

USB 4 port.

USB KB/Mouse Wake-Up From S3 in the Power Management Setup

submenu of the BIOS must also be enabled.

1 3

JP1

JP4

JP1

JP4

-3 On: Enable

the Wake-On-USB

KB/Mouse

1- On: Disable

the Wake-On-USB

KB/Mouse (default)
