Dialogic®CTbus/SCbus Adapter
Installation
Part Number
64-0010-02
Copyright © 1997-2007
Dialogic Corporation.
All Rights Reserved.
The Dialogic®CTbus/SCbus Adapter is used to interconnect
Dialogic®CTbus boards with Dialogic®SCbus boards in the
same chassis. Only one adapter is required per system.
Before You Begin
Protect Yourself from Electric Shock
The CTbus carries electrical signals. To reduce the risk
of electric shock:
Switch off the power and remove power cords
before opening the PC cover.
Do not re-attach power cords and switch on power
to the PC while the PC cover is removed.
Protect the Board from Damage
Protect the Board from Static Electricity
CAUTION: All computer boards are sensitive to
electrostatic discharge (“ESD”). Handle all static-
sensitive boards and components at a static-safe work
area, and observe anti-static precautions at all times.
If you are not familiar with ESD safety precautions, visit
http://www.dialogic.com/support/hwinstall to learn more.
Unpacking the Board
Unpack the Dialogic®CTbus/SCbus Adapter (“adapter”)
according to the following steps:
1. Prepare a static-safeguarded work area.
2. Carefully remove the adapter from the shipping
carton and the anti-static packaging. Handle the
adapter by the edges and avoid touching the
components.
3. Lay the adapter on the static-dissipative work
surface.
Note: Place the adapter in static-shielding bags when carrying
it from station to station.
CAUTION: Do not remove the adapter from the anti-
static packaging until you are ready to install it.
Observe proper anti-static precautions at all times.
Installing the CTbus/SCbus Adapter
Before installing the CTbus/SCbus Adapter, ensure that the
Dialogic®boards in your chassis are positioned in the correct
order. The board on which the adapter will be installed must
be inserted in the first PCI slot adjacent to the ISA slot (Figure
1).

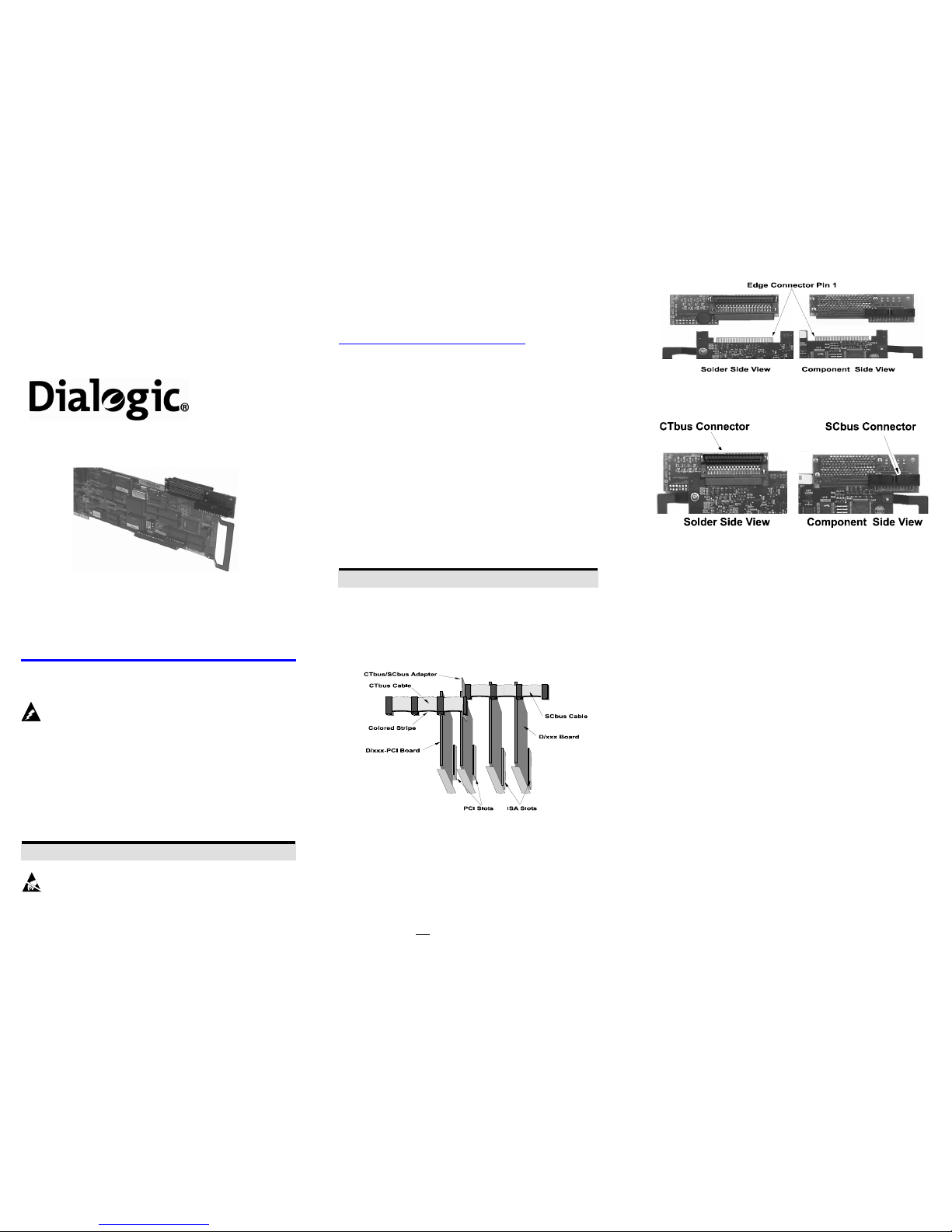

Figure 1. Board Order
To install the Dialogic®CTbus/SCbus Adapter:
1. Locate the board that will be used to connect the
CTbus/SCbus Adapter. It will be the card inserted in the
first PCI slot adjacent to the ISA slot.
2. Align pin 1 of the CTbus/SCbus Adapter with pin 1 of the
edge connector on the board (Figure 2). NOTE: Edge
connector is not labeled.
Figure 2. Adapter Alignment (D/41ESC-PCI shown)
3. Press the CTbus/SCbus Adapter to the board (Figure 3).
Figure 3. Connect the Adapter (D/41ESC-PCI shown)
4. Connect the CTbus and SCbus cables as per the
installation instructions for your Dialogic®board(s).
Warranty and Return Information
Warranty Period
For specific warranty information for this adapter, refer to
the Warranty section of the Products page, located at
this URL: http://www.dialogic.com/warranties/.
Contacting Technical Support
Dialogic provides technical support for its products through a
network of value added distributors who are trained to answer
technical questions on installing and configuring Dialogic®
products. If you are unsure how
to contact your support channel, please call Dialogic in the
United States at 973-967-6600 (9am-5pm EST) and we will
assist in obtaining the appropriate support channel. Outside
the United States please refer to
http://www.dialogic.com/support/contact to obtain local
contact information.
Dialogic also provides direct support via Dialogic®Pro™
Services agreements. For more details of direct support from
Dialogic please refer to:
http://www.dialogic.com/support/DialogicPro.
Returning a Product
To return a board for warranty repair or any other
returns, please refer to the following:
http://www.dialogic.com/support/hwfaults. To return a
board for warranty repair, please refer to the following:
http://www.dialogic.com/support/hwfaults. For all other
returns, contact your vendor or Dialogic Customer
Support (for more information, see
http://www.dialogic.com/support/contact/ ).
Sales Assistance
If you have a sales question, please contact your local Sales
Representative or the Regional Sales Office for your area.
Address, telephone and fax numbers, are available at the
Dialogic website located at:
http://www.dialogic.com/contact.htm.
To purchase Dialogic®products, please refer to the following
website to locate the appropriate supplier.
http://www.dialogic.com/purchase.htm.
