CR8900A

10m/6m/2m/70cm FM Mobile Antenna

Optimized for Trunk Lid Mounting

Instruction Sheet

The CR8900Ais a 10m/6m/2m/70cm FM Quad Band Mobile antenna. Specifically designed to work withYaesu

model FT8900R radio. (Tuned for FM segment of each Amateur band.)

Specifications

FREQUENCY: 29.5-29.7/51-54/144-148/440-450MHz

GAIN: 2.15 dBi (10m/6m), 2.15 dBi (2m), 5.5dBi (70cm)

POWER: 60 Watts FM

IMPEDANCE: 50 Ohms

VSWR: 1.5:1(Nominal)

ELEMENT PHASING: 1/4 Wave (29/50), ½ Wave (2m), 2-5/8 Wave (70cm)

GROUNDING: Required for optimum performance

LENGTH: 491/2"

WEIGHT: 1.2 lbs. (490g)

MOUNT: UHF MALE (PL259)

WARRANTY: 1 Year against defects in material or workmanship.

RECOMMENDED MOUNTS: K400C, K400S, K600M or K600S trunk mounts.

INSTALLATION INSTRUCTIONS

NOTE: THIS ANTENNA REQUIRES TUNING TO DESIRED FREQUENCY. USE QUALITY VSWR METER

TO INSURE PROPER ADJUSTMENT. THE CR8900A REQUIRES PROPER VEHICLE GROUND.

MOUNTING LOCATION WILL AFFECT VSWR. NOT RECOMMENDED FOR MAGNET MOUNTS OR

MOUNTING IN CENTER OF ROOF.

(1) Remove antenna from package and inspect contents to insure it is complete.

(2) Choose desired mounting location to insure maximum strength of mount, and proper vehicle ground to yield best

performance of antenna. NOTE: MATCHING NETWORK IS COMPENSATED FOR TRUNK LIP MOUNTING

AND IS NOT RECOMMENDED FOR CENTER ROOF MOUNTING.

(3) Install antenna on vehicle. Be sure the mount has screws contacting Trunk Lid.

(4) With quality VSWR meter, check VSWR of each band for proper tuning.

DIAMOND ANTENNA Products are distributed by RF PARTS COMPANY

435 S. Pacific Street • San Marcos, CA 92078 • (760) 744-0900

www.diamondantenna.net

ANTENNA TUNING:

Check VSWR on 6 meters first. Loosen set-screws (020907) on base coil (020906) to raise or lower center frequency. Upon

reaching accepted VSWR on 6m &2m, tighten set-screws (020907). Tune

````````` 10m by adjusting the tuning whip (020901). Raising the tuning whip (020901) will effect both 6m and 10m center

frequency. It is best to tune the 6m band first to reach optimum center frequency, then proceed to adjust for 10m optimum

center frequency. Tune until satisfactory VSWR is obtained at both 6m and 10m center frequency. Verify setting results in

best fit for each band. Tighten set screw (020908) using removable Loctite Threadlocker #242 or similar product to insure

proper fastening of setscrews and whip section.

Should you have difficulty in tuning the 10m & 6m bands, the cause would be most likely attributed to

grounding characteristics of the vehicle trunk lid. It is sometimes necessary to add short grounding

straps or copper braid from trunk lid to body panel (to lower resonant frequency).

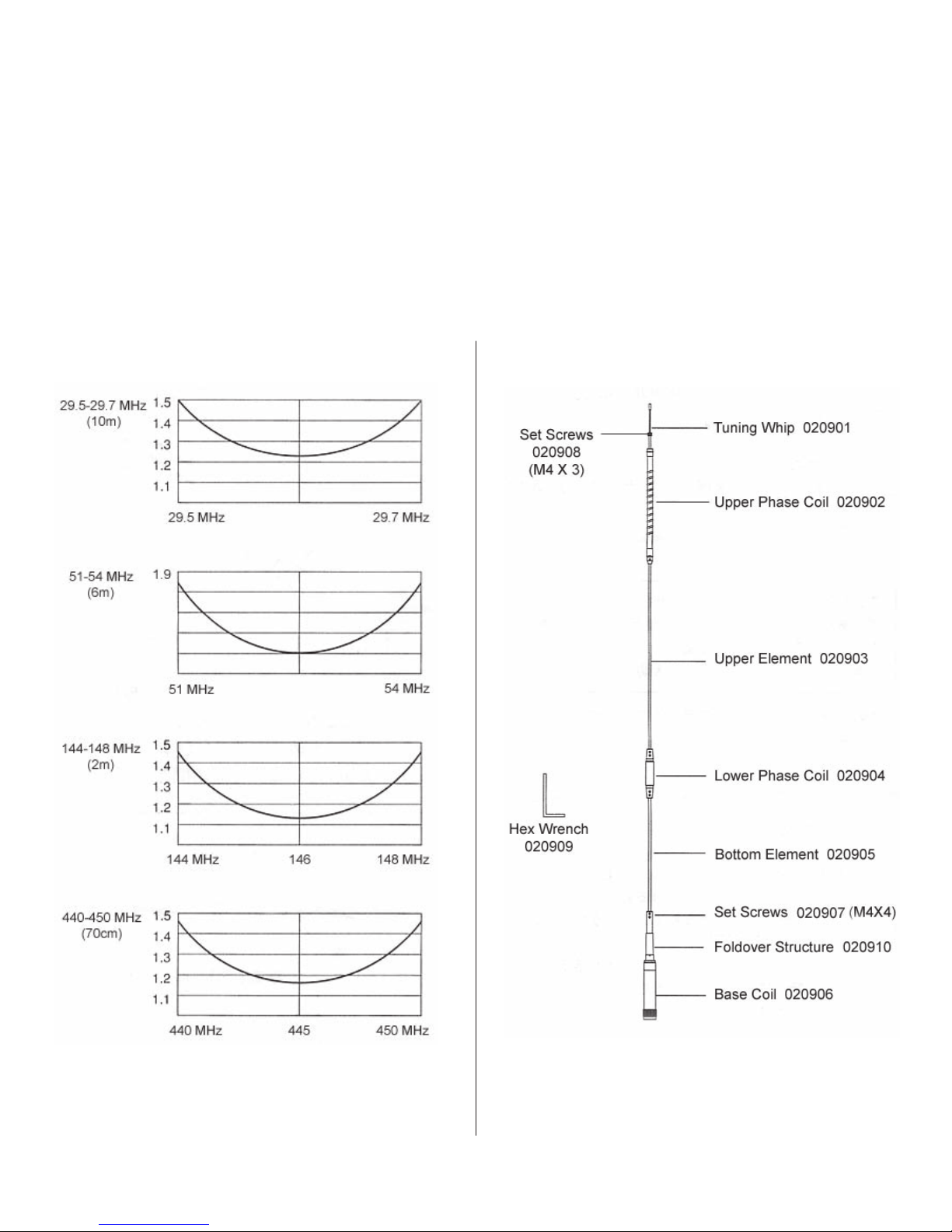

TypicalVSWR curvesfor

CR8900AwithDiamondK400STrunkMount

Youmayexpectyourresultsto varysomewhat,depending

uponmountused,andindividualgroundingcharacteristics

oftrunk lid, etc.

→

Adjust for best

VSWR at

52.5 MHz

& 146 MHz

(10 meters)
