Diamond Digital DV191 Manuale utente
Diamond Digital DV191/B
Colour TFT LCD Monitor
19” (48 cm) LCD Panel Size
Copyright 2004, Mitsubishi Electric Australia Pty. Ltd. All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or
translated into any language or computer language, in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission.
i
Table of Contents
1Important Safety Instructions ..........................................11
2Features.............................................................................22
3
3Unpacking the Monitor.....................................................3
4Hardware Installation .......................................................5
5
5Windows driver installation .............................................7
6Setting the Display Resolution........................................8
Choosing the Best Resolution...........................................8
Supported Graphics Modes and Refresh Rate Selection..9
7
7Adjusting the Monitor.....................................................12
User Controls..................................................................12
Adjusting the Monitor's Display .......................................13
OSD Function Menu .......................................................13
Function Description .......................................................13
8
8Frequently Asked Questions .........................................17
9
9Specifications .................................................................19
10 Service Contacts.............................................................21
ii
Disclaimer
Mitsubishi Electric Australia Pty. Ltd. makes no representations or warranties,
either expressed or implied, with respect to the contents hereof and
specifically disclaims any warranties, merchantability or fitness for any
particular purpose. Further, Mitsubishi Electric Australia reserves the right to
revise this publication and to make changes from time to time in the contents
hereof without obligation to notify any person of such revision or changes.
Diamond Digital is a registered trademark of Mitsubishi Electric Australia Pty. Ltd.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
All other trademarks remain the property of their respective owners.
Reference Information
For future reference, write the following information about your monitor in
the space below. The serial number is found on the back of the product or
on the bottom of its stand.
Monitor Information
Product Name: DV191/B
Serial Number:
Date of Purchase:
Dealer Information
Dealer:
Telephone
Number:
Address:
1
1
1
1
Important Safety Instructions
Please read the following safety instructions before installing or cleaning your
Diamond Digital monitor:
1. Unplug the monitor’s power cable from the wall outlet before cleaning. Do
not use liquid or aerosol cleaners. Use a soft cloth to clean the monitor
housing.
2. Slots and openings on the back or top of the cabinet are provided for
ventilation. They must not be blocked or covered. This product should
never be placed near or over a radiator or other heat source, or used in a
built-in installation unless proper ventilation is provided.
3. Never push objects of any kind, or spill liquid of any kind into this product.
4. Do not attempt to service this product yourself as opening or removing
covers may expose you to dangerous voltages or other hazards.
5. Do not apply pressure to the LCD screen. Excess pressure can damage
the LCD panel.
6. If any abnormal operation or accident (such as dropping the unit) occurs,
disconnect the monitor from the wall power outlet and contact qualified
service personnel.
7. Turn the audio volume control of the built-in speakers to minimum (0) and
turn the monitor off before connecting or disconnecting any audio cable.
2
2
2
2
Features
Your DV191 Monitor features:
♦XGA (1280 x 1024 pixel) Resolution LCD Panel
♦High Brightness Level – 300 cd/m2(typical)
♦High Contrast Ratio – 700:1 (typical)
♦True Colour Display
With 16.2M (RGB 6bit data) colour, the DV191 monitor offers you better
image quality.
♦High Quality Ratiometric Expansion
With any resolution within the monitor’s specified range, your Diamond
Digital DV191 monitor can expand the image to full screen.
♦Plug and Play Compatibility with Microsoft®Windows®95, 98, 2000,
Me and XP
♦Space Saving - only 210 mm deep
♦Light Weight - only 5.5 kg
♦Lower Power Consumption
55W maximum during operation with audio.
♦Power Saving
Power management complies with VESA DPMS standard. When the
system is idle (in monitor off mode), the monitor automatically cuts its
power consumption to less than 3 W.
♦On Screen Display
Allows you to adjust all settings simply using on-screen menus.
♦Built-in Stereo Amplifier and Speakers
♦Support Kensington security locks
3
3
3
3
Unpacking the Monitor
Please check that the following items are included with your monitor. If they are
missing or damaged, please contact your place of purchase immediately.
LCD monito
r
User’s Manual
User's
Manual
DVI-D Cable
V
GA Cable
4
4
Power Cord Audio Cable
Locate the model name and the serial number label on the back of your monitor,
and write the details of the monitor and your place of purchase in the space on
page (ii) of this manual for future reference.
5
5
4
4
Hardware Installation
Connecting the Monitor Base
Remove the base from the packing box and place it
on the desk. Next, remove the LCD display and
carefully seat it on the base. (See fig.1-1 )
Fi
g
ure 1-1
Viewing Angle Adjustment
The LCD Monitor is designed to allow users to
have a comfortable viewing angle. The
viewing angle can be adjusted from -5°to
+25°.(See fig. 1-2)
\ Figure 1-2
Connecting the Display to your Computer
Using the VGA cable
1. Power off your computer.
2. Connect one end of the VGA signal cable to
the LCD Monitor’s VGA port. (See Fig 1-3)
3. Connect the other end of the signal cable to
the VGA port on your PC.
4. Make sure connections are secure.
Using the DVI cable
1. Power off your computer.
2. Connect one end of the DVI signal cable to the
LCD Monitor’s DVI port. (See Fig 1-3)
3. Connect the other end of the signal cable to
the DVI port on your PC.
4. Make sure connections are secure.
Figure 1-3
6
6

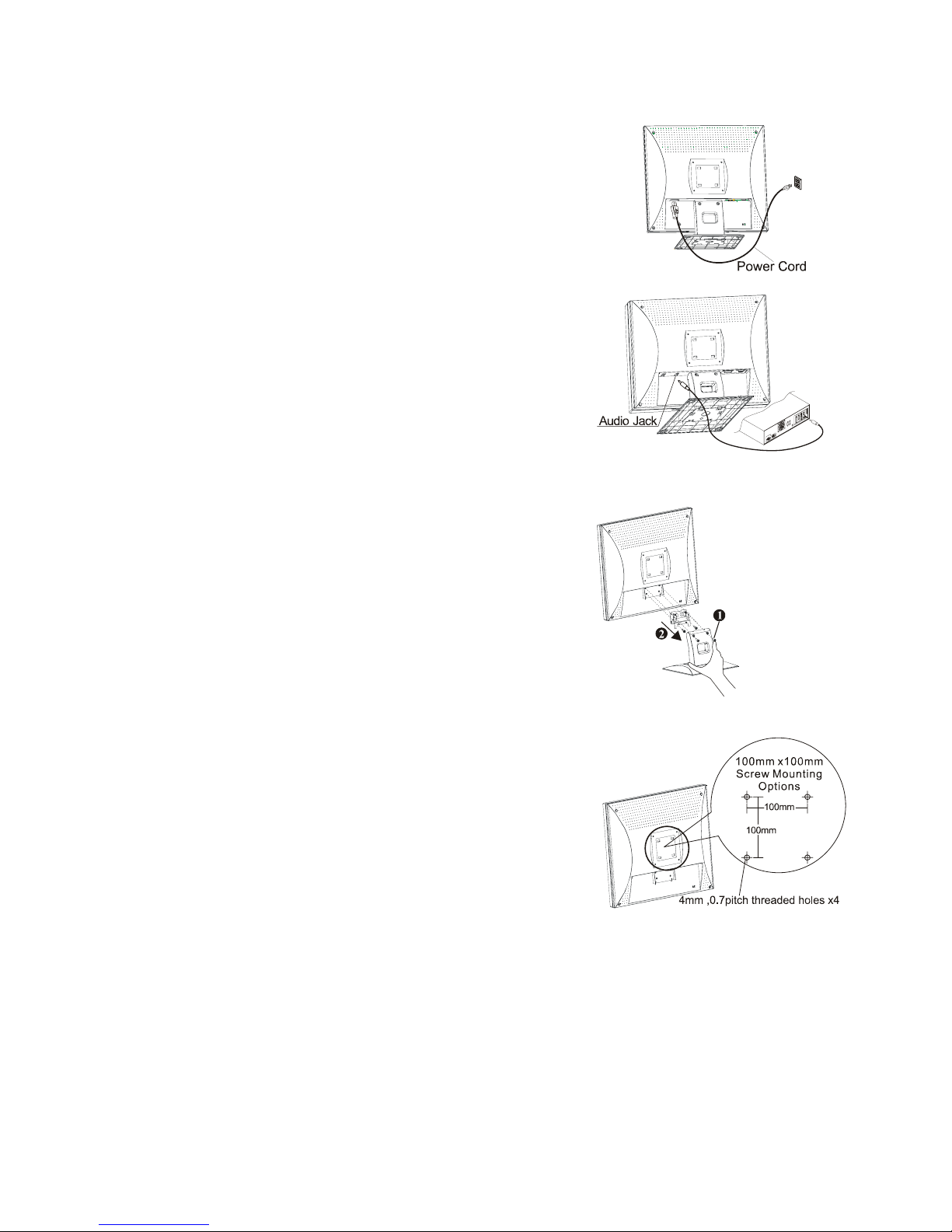

Connecting the AC Power
1. Connect the power cord to the AC socket.
(See Fig. 1-4)
2. Connect the power cord to an AC power
source.
Figure 1-4
Connecting the Audio Cable
1. Connect the audio cable to the Line Out jack
on your PC's sound card. (See Fig. 1-5)
2. Connect the other end of the audio cable to the
LCD Monitor's audio jack.
Figure 1-5
Instructions for VESA Mounting
To detach the LCD Monitor from its stand, unscrew
the two screws nfor the monitor stand and pull it
downwards to remove, then unscrew the four
screws ofor the monitor stand bracket and pull
this down to remove.
Figure 1-6
Interface for Arm Applications
Before installing the mounting device, please refer
to Fig.1-7.
The rear of this LCD display has four integrated 4
mm, 0.7 pitch threaded nuts, as well as four 5mm
access holes in the plastic covering as illustrated in
Figure 1-2. (These specifications meet the VESA Flat
Panel Monitor Physical Mounting Interface
Standard).
Figure 1-7
