Diamond View DV158 Manuale utente
DIAMOND VIEW DV158
Colour TFT LCD Monitor
15” (38.4 cm) LCD Panel Size
Copyright 2001, Mitsubishi Electric Australia Pty. Ltd. All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system
or translated into any language or computer language, in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission.
i
Table of Contents
1
1Important Safety Instructions ............................. 1
2
2Features ................................................................ 2
3
3Unpacking the Monitor ........................................ 3
4Monitor Overview ................................................. 4
5
5Hardware Installation........................................... 5
6
6Windows Software Installation ........................... 6
Windows 95 .......................................................... 6
Windows 98 .......................................................... 6
Windows Me (Millennium Edition) ........................ 7
Windows 2000 ...................................................... 7
Windows XP ......................................................... 8
7
7Setting the Display Resolution........................... 9
Choosing the Best Resolution .............................. 9
Supported Graphics Modes and Refresh Rate
Selection ............................................................. 10
8
8Adjusting the Monitor........................................ 12
Picture Optimisation ........................................... 12
Manual Picture Adjustment ................................ 12
Restoring the Factory Default Settings .............. 15
On Screen Display Functions............................. 15
ii
9
9Frequently Asked Questions ............................ 16
1
10
0Specifications ..................................................... 18
1
11
1Service Contacts ................................................ 20
New Zealand ...................................................... 21
iii
Disclaimer
Mitsubishi Electric Australia Pty. Ltd. makes no representations or
warranties, either expressed or implied, with respect to the contents hereof
and specifically disclaims any warranties, merchantability or fitness for any
particular purpose. Further, Mitsubishi Electric Australia reserves the right
to revise this publication and to make changes from time to time in the
contents hereof without obligation to notify any person of such revision or
changes.
Diamond View is a registered trademark of Mitsubishi Electric Australia Pty. Ltd.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
All other trademarks remain the property of their respective owners.
Reference Information
For future reference, write the following information about your monitor
in the space below. The serial number is on the back of the product or
on the bottom of its stand.
Monitor Information
Product Name: Diamond View DV158
Serial Number:
Date of Purchase:
Dealer Information
Dealer:
Telephone
Number:
Address:
1
1
1
Important Safety
Instructions
Please read the following safety instructions before installing or cleaning
your Diamond View monitor:
1. Unplug the monitor’s power cable from the wall outlet before cleaning.
Do not use liquid or aerosol cleaners. Use a soft cloth to clean the
monitor housing.
2. Slots and openings on the back or top of the cabinet are provided for
ventilation. They must not be blocked or covered. This product should
never be placed near or over a radiator or other heat source, or in a
built-in installation unless proper ventilation is provided.
3. Never push objects of any kind, or spill liquid of any kind into this
product.
4. Do not attempt to service this product yourself as opening or removing
covers may expose you to dangerous voltages or other risks.
5. If any abnormal operation or accident (such as dropping the unit)
occurs, disconnect the monitor from the wall power outlet and contact
qualified service personnel.
6. Turn the audio volume control of the built-in speakers to minimum (0)
and turn the monitor off before connecting or disconnecting any audio
cable.
2
2
2
Features
Your Diamond View DV158 Monitor features:
♦XGA (1024 x 768 pixel) Resolution LCD Panel
♦High Brightness – 250 cd/m2
♦High Contrast Ratio –350:1
♦True Colour Display
With dithering support, Diamond View DV158 monitor enhances the
visual effect and offers you better image quality.
♦High Quality Ratiometric Expansion
With any resolution within the monitor’s specified range, your
Diamond View DV158 monitor can expand the image to full screen.
♦Auto Adjustment Function
The auto-adjustment key automatically optimises the displayed
image.
♦Plug and Play Compatibility with MicrosoftWindows95, 98,
2000, Me and XP
♦Space Saving - only 202 mm deep
♦Light Weight - only 3.8 kg
♦Lower Power Consumption
36 W maximum during operation with audio.
♦Power Saving
Power management complies with VESA DPMS standard. When the
system is idle (in monitor off mode), the monitor automatically cuts its
power consumption to less than 5 W.
♦On Screen Display
Allows you to adjust all settings simply using on-screen menus.
♦Built-in Stereo Amplifier and Speakers
3
3
3
Unpacking the
Monitor

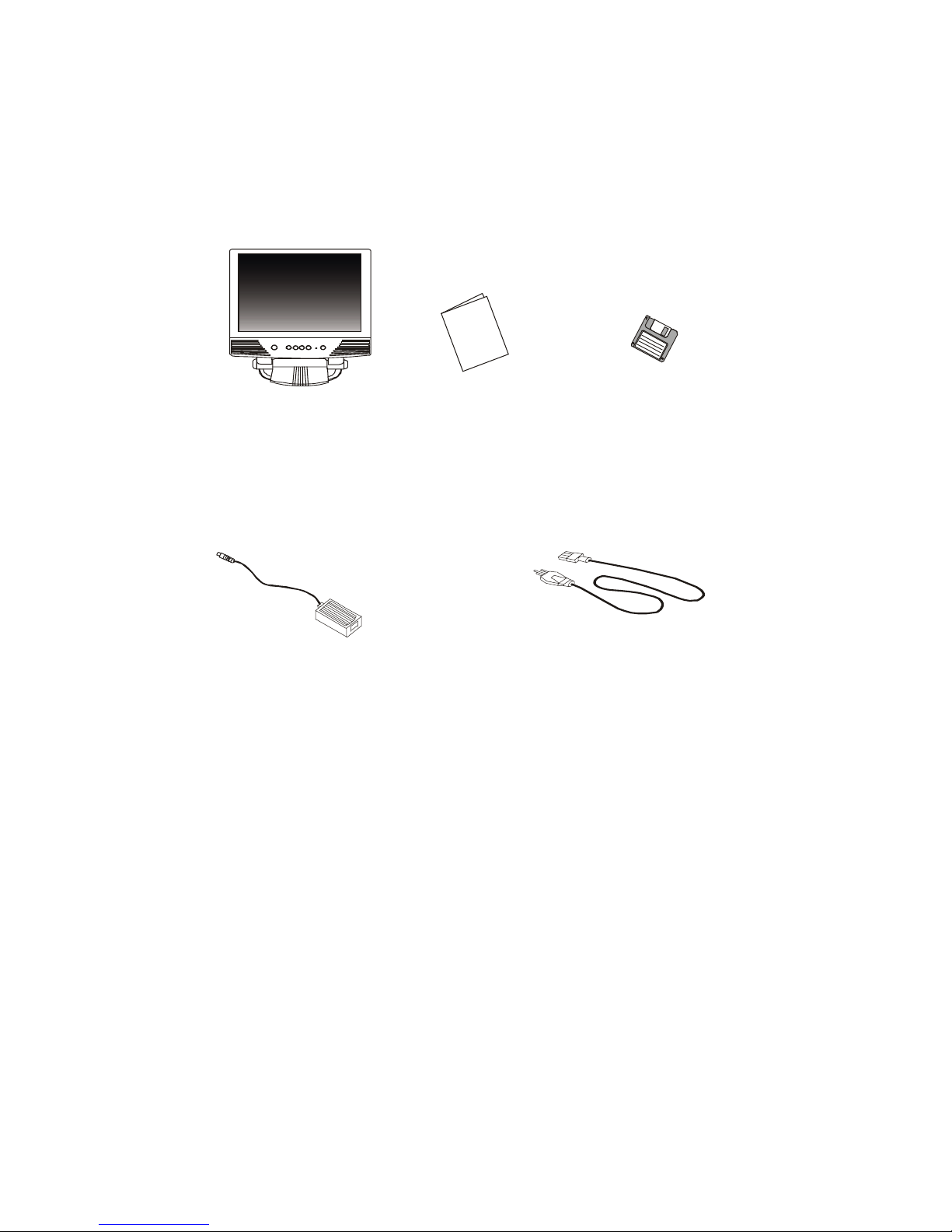

Please check that the following items are included with your monitor. If they
are missing or damaged, please contact your place of purchase
immediately.
Locate the model name and the serial number label on the back of your
monitor and write the details of the monitor and your place of purchase in
the space on page (ii) of this manual for future reference.
User's
Manual
LCD monito
r
User’s Manual Utilities and Drive
r
Floppy Diskette
Power
A
dapto
r
Power Cord
4
4
4

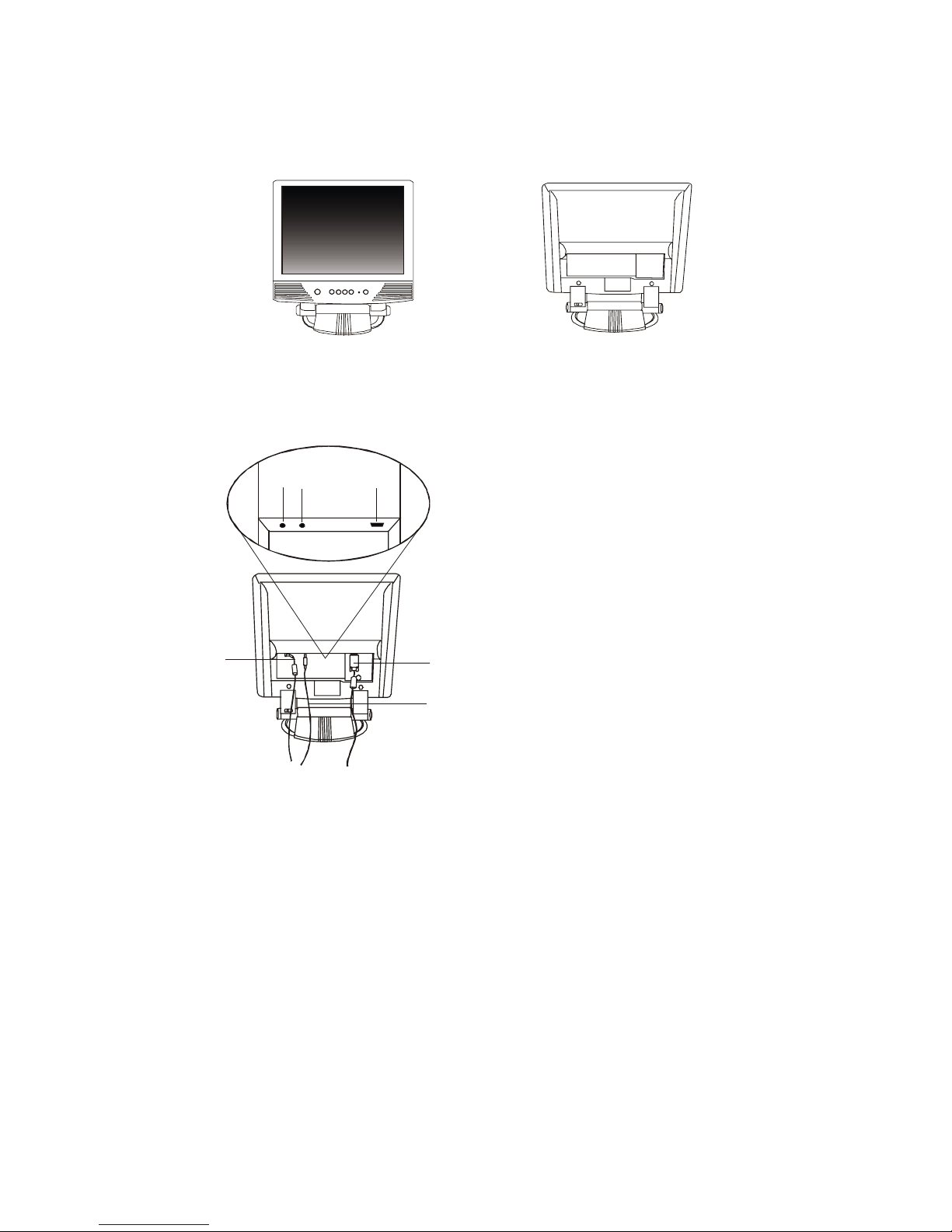

Monitor Overview
Front View Back View
With the rear and base covers removed:
1. Video jack
2. Audio jack
3. Power jack
4. Video cable
5. Audio cable
6. Power adaptor cable
6
3
5
2
4
1
5
5
5
Hardware Installation
Your monitor is equipped with an AC adaptor that has a power supply with
a voltage range from 100 to 240 Volts AC at a frequency of 50 to 60 Hz.
Make sure that your local power supply is within the supported range. If you
are unsure, please contact your electricity supplier.
To install your Diamond View DV158 monitor:
1. Make sure that the power to the computer and the power to the monitor
are both turned off.
2. Connect the blue connector
of the monitor’s VGA cable to
the VGA output of the
computer‘s graphics card.
3. Connect the stereo audio
cable from the monitor’s
audio jack to the Audio output
of your computer’s sound
card.
4. Connect power cord to the power adaptor first, and then connect the
power adaptor to LCD monitor.
5. Connect the power cord from the power adaptor to an AC power
socket. Please make sure, that you have easy access to the power
socket so you can disconnect the unit from the power socket should
you need to.
Signal
Power adaptor
