Diamond DFV-411/S Manuale utente

Mod: DFV-411/S

Production code: SDA-104E

02/2014

CONVECTION

CONVECTION+HUMIDIFICATION

COMBI DIRECT

304/104/107

ANALOGIC

CONVECTION - STEAM OVEN

INSTRUCTIONS FOR THE INSTALLATION,

USE AND MAINTENANCE

4 x 2/3 GN / 4 - 7 x 1/1 GN ANALOGIC

WARNING !

Before making any type of connection of this equipment (electrical or

hydraulic), carefully read the instructions in this manual.

The installation must be carried out only by qualied technical

personnel.

FOREWORD

The contents of this manual are generic and not all the functions described may be available on

your product.

The manufacturer declines all responsibility for possible inaccuracies contained in this pamphlet, due to

printing or copy errors. We reserve the right to make on our own products those changes to be considered

necessary or useful, without jeopardizing the essential characteristics.

Read the instructions for use very carefully paying particular attention to the rules concerning safety de-

vices. This appliance must only be used for what it has been designed for and built for and that is: all baking

of dishes and regenerating pre-cooked and/or frozen food.

4 x 2/3 GN / 4 - 7 x 1/1 GN ANALOGIC

INDEX

0.0A Dimensions 4 x 2/3 GN

0.0B Dimensions 4 x 1/1 GN

0.0C Dimensions 7 x 1/1 GN

Supports dimensions

INSTALLATION

1.0 Declaration of Conformity

1.1 European Directive ROHS 2011/65/UE

1.6 Technical data for electrical connection

2.0 Installing the appliance

2.2 Electrical connection

2.3 Hydraulic connection – water inlet

2.3A Technical data table water connection

2.4 Hydraulic connection- water drainage

3.0 Control and safety devices

3.1 Spare parts replacing

3.2 Checking the functions

USE AND MAINTENANCE

4.1 Programming and operation mod. Convection

4.1A Description control panel components Convection

4.2 Programming and operation mod. Convection + Manual Humidication

4.2A Description control panel components Convection + Manual Humidication

4.3 Programming and operation mod. Combi Direct

4.3A Description control panel components Combi Direct

4.4 Starting the oven

4.5 Auxiliary commands and controls

4.6 Turning the oven off

9.0 Maintenance

9.1 What to do in the case of a breakdown and/or extended period of non use

10.0 Cooking tips

10.1 Remedies to cooking hitches

4 x 2/3 GN

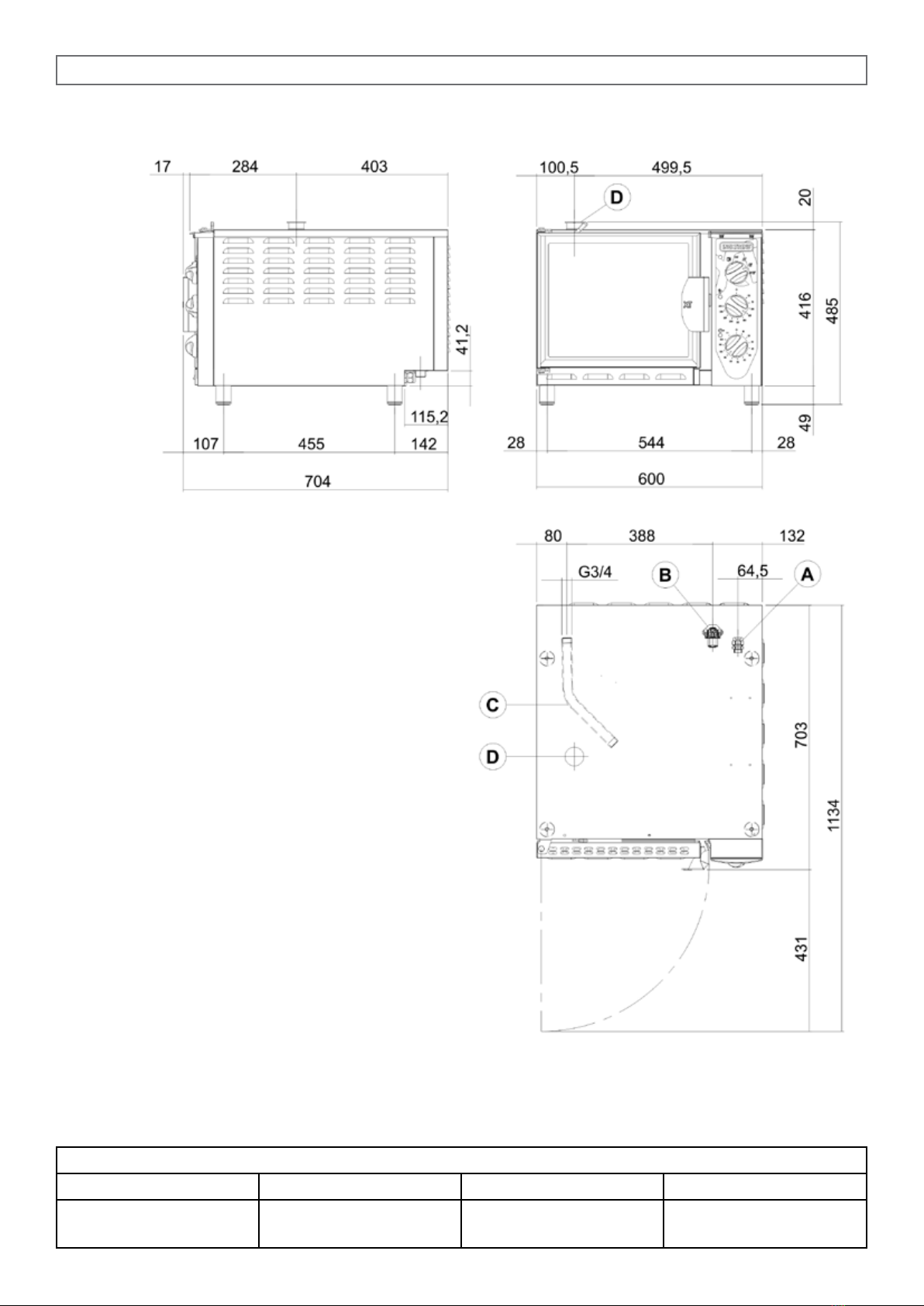

0.1A Dimensions mod. 4 x 2/3 GN

Model Dimensions Capacity Trays distance

4 x 2/3 GN

Electric cm 60 x 70 x h 48 4 x 2/3 GN

4 x 1/2 GN 67 mm

A- Electrical connection

B- Water inlet Ø 3/4”

C- Water drainage Ø 40 mm

D- Cooking chamber relief valve Ø 60 mm

4 x 2/3 GN / 4 - 7 x 1/1 GN ANALOGIC

4 x 1/1 GN

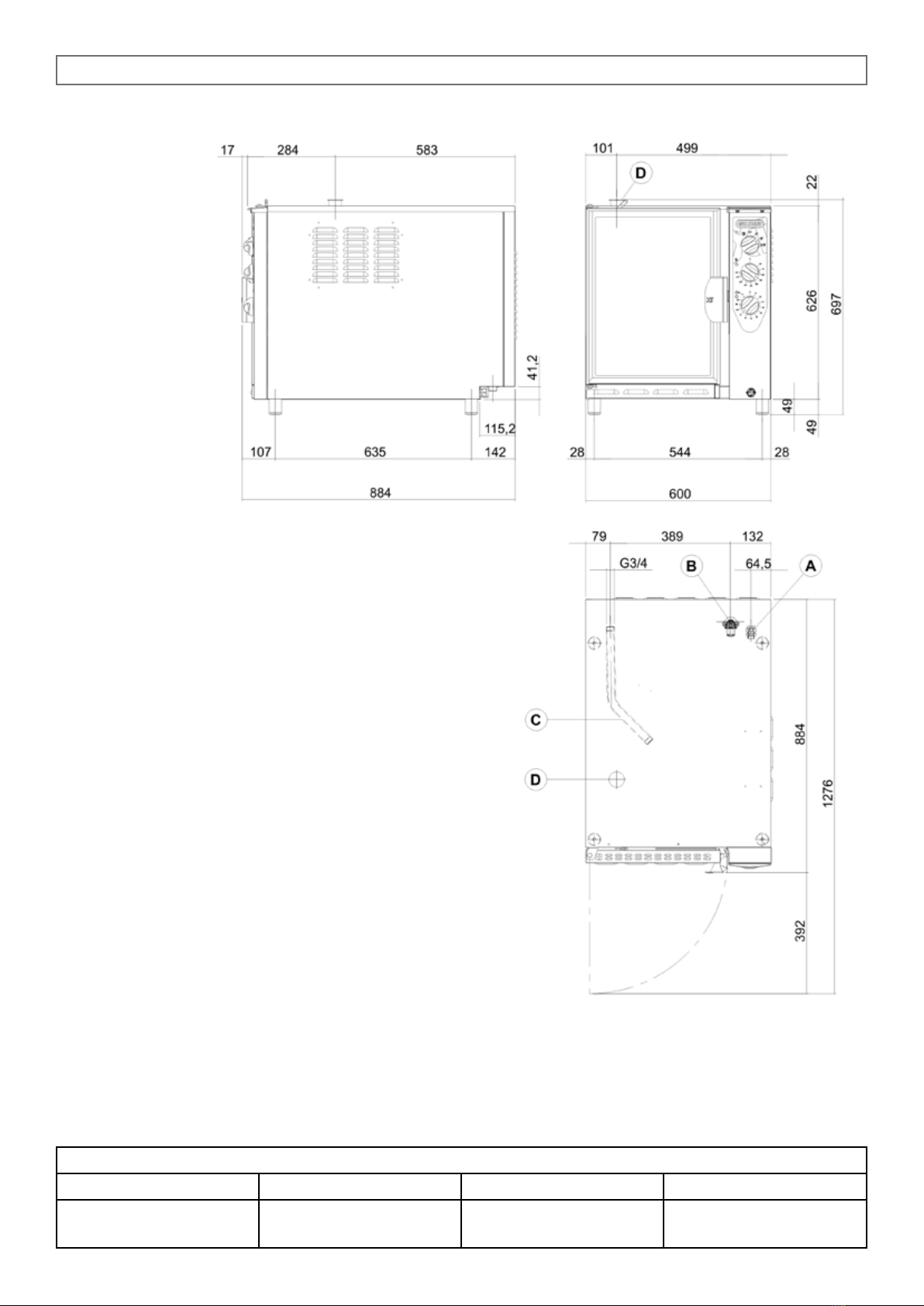

0.1B Dimensions mod. 4 x 1/1 GN

Model Dimensions Capacity Trays distance

4 x 1/1 GN

Electric cm 60 x 88 x h 48 4 x 1/1 GN

8 x 1/2 GN 67 mm

A- Electrical connection

B- Water inlet Ø 3/4”

C- Water drainage Ø 40 mm

D- Cooking chamber relief valve Ø 60 mm

4 x 2/3 GN / 4 - 7 x 1/1 GN ANALOGIC

7 x 1/1 GN

0.1C Dimensions mod. 7 x 1/1 GN

Model Dimensions Capacity Trays distance

7 x 1/1 GN

Electric cm 60 x 88 x h 70 7 x 1/1 GN

14 x 1/2 GN 67 mm

A- Electrical connection

B- Water inlet Ø 3/4”

C- Water drainage Ø 40 mm

D- Cooking chamber relief valve Ø 60 mm

4 x 2/3 GN / 4 - 7 x 1/1 GN ANALOGIC

Stand with tray-slides

for mod. 0.1A (4 x 2/3 GN)

Stand with tray-slides

for mod. 0.1B (4 x 1/1 GN)

and mod. 0.1C (7 x 1/1 GN)

4 x 2/3 GN / 4 - 7 x 1/1 GN ANALOGIC

INSTALLATION

1.0 DECLARATION OF CONFORMITY

The Manufacturer declares that the appliances conform to the EEC norms.

They must be installed in accordance with current standards, especially regarding aeration of the prem-

ises and the exhaust gas evacuation system.

Note: The Manufacturer declines all and every responsibility for any direct damages caused by: an

incorrect use, wrong installation or bad maintenance.

1.1 EUROPEAN DIRECTIVE ROHS 2011/65/UE

This appliance is marked according to the European directive 2011/65/UE on Waste Electrical and Elec-

tronic Equipment (WEEE). By ensuring this product is disposed correctly, you will help prevent potential

negative consequences for the environment and human health, which could otherwise be caused by inap-

propriate waste handling of this product.

The symbol on the product, or on the documents accompanying the product, indi-

cates that this appliance may not be treated as household waste.

Instead it shall be handed over to the applicable collection point for the recycling of

electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for

waste disposal.

1.6 TECHNICAL DATA FOR ELECTRICAL CONNECTION

Model Power loading

and voltage

no. and motor

power

Heating

power

Absorbed

current

Feed cable

section

4 x 2/3 GN 3.0 kW

230V+ 1 ~ 50/60 Hz 1 x 250 W 2.6 kW 5.0 A 3 x 1.5 mm2

4 x 2/3 GN 4.3 kW

400 V+3N~50/60 Hz 1 x 250 W 3.9 kW 7.5 A 5 x 1.5 mm2

4 x 1/1 GN 5.2 kW

400 V+3N~50/60 Hz 1 x 250 W 4.9 kW 8.5 A 5 x 1.5 mm2

7 x 1/1 GN 7.5 kW

400 V+3N~50/60 Hz 1 x 250 W 7.2 kW 12.5 A 5 x 2.5 mm2

4 x 2/3 GN / 4 - 7 x 1/1 GN ANALOGIC
