DIEBOLD NIXDORF RM4H Manuale utente
Recycling Module RM4H
Operator manual
Table of Contents
2 Recycling Module RM4H - Operator manual 01750306327A
Table of Contents
1 Recycling module RM4H ............................................................. 4
1.1 Basic information ............................................................................ 5
1.2 Head unit......................................................................................... 7
1.3 Safe unit ......................................................................................... 8
1.3.1 Front View....................................................................................... 8
1.3.2 Rear view ........................................................................................ 9
1.4 Important Safety Precautions ....................................................... 11
1.5 CINEO banknote storage............................................................... 13
1.5.1 Overview....................................................................................... 13
1.5.2 CINEO cassettes concept............................................................... 14
1.5.3 Tamper monitoring ....................................................................... 16
1.5.4 LED status messages ..................................................................... 16
1.5.5 Standard cassette Basic/Midrange ............................................... 17
1.5.6 All In Box ....................................................................................... 19
1.5.7 Reel storage module ..................................................................... 21
1.5.8 LED display – Power supply........................................................... 22
1.6 Handling of the CINEO banknote storage ..................................... 23
1.6.1 Safety Information ........................................................................ 23
1.6.2 CINEO cassette.............................................................................. 25
1.7 Description of note transport paths ............................................. 41
1.7.1 Note paths head module .............................................................. 41
1.7.2 Banknote paths safe module ........................................................ 42
1.8 Note jam troubleshooting............................................................. 43
1.8.1 Safety precaution.......................................................................... 44
1.8.2 Notes on operating the head unit................................................. 45
1.8.3 Pushing in the input/output tray .................................................. 48
1.8.4 Pulling out / pushing in the coin tray ............................................ 50
1.8.5 Opening/closing the upper Transport Unit................................... 51
1.8.6 Opening/Closing the bottom of the upper transport unit ............ 53
1.8.7 Opening/closing the middle transprot unit .................................. 54
1.8.8 Opening/Closing the lower transport unit.................................... 56
Table of Contents
01750306327A Recycling Module RM4H - Operator manual 3
1.8.9 Opening/Closing the counterfeit tray ........................................... 58
1.8.10 Opening / closing the retract box ................................................. 60
1.8.11 Opening / Closing the head / safe transport module ................... 62
1.8.12 Emptying the All In Box ................................................................. 64
1.8.13 Opening / Closing the vertical transport....................................... 67
1.9 Settings ......................................................................................... 69
1.9.1 Fundamentals ............................................................................... 69
1.9.2 Banknote size settings for the input/output module.................... 71
1.9.3 Banknote size settings for CINEO cassettes .................................. 76
1.9.4 Setting the banknote width in the CINEO cassettes ..................... 78
1.10 Cleaning, Service and Maintenance.............................................. 80
1.10.1 Approved cleaning agents............................................................. 80
1.10.2 Scan panels of the banknote reader ............................................. 81
1.11 Technical Information ................................................................... 83
1.11.1 Standard cassette Basic/Midrange ............................................... 83
1.11.2 Compact cassette Basic/Midrange................................................ 83
1.11.3 High End standard cassette........................................................... 84
1.11.4 High End compact cassette........................................................... 84
1.11.5 Reel storage fixed position ........................................................... 85
1.11.6 All In Box ....................................................................................... 85
Recycling module RM4H
4 Recycling Module RM4H - Operator manual 01750306327A

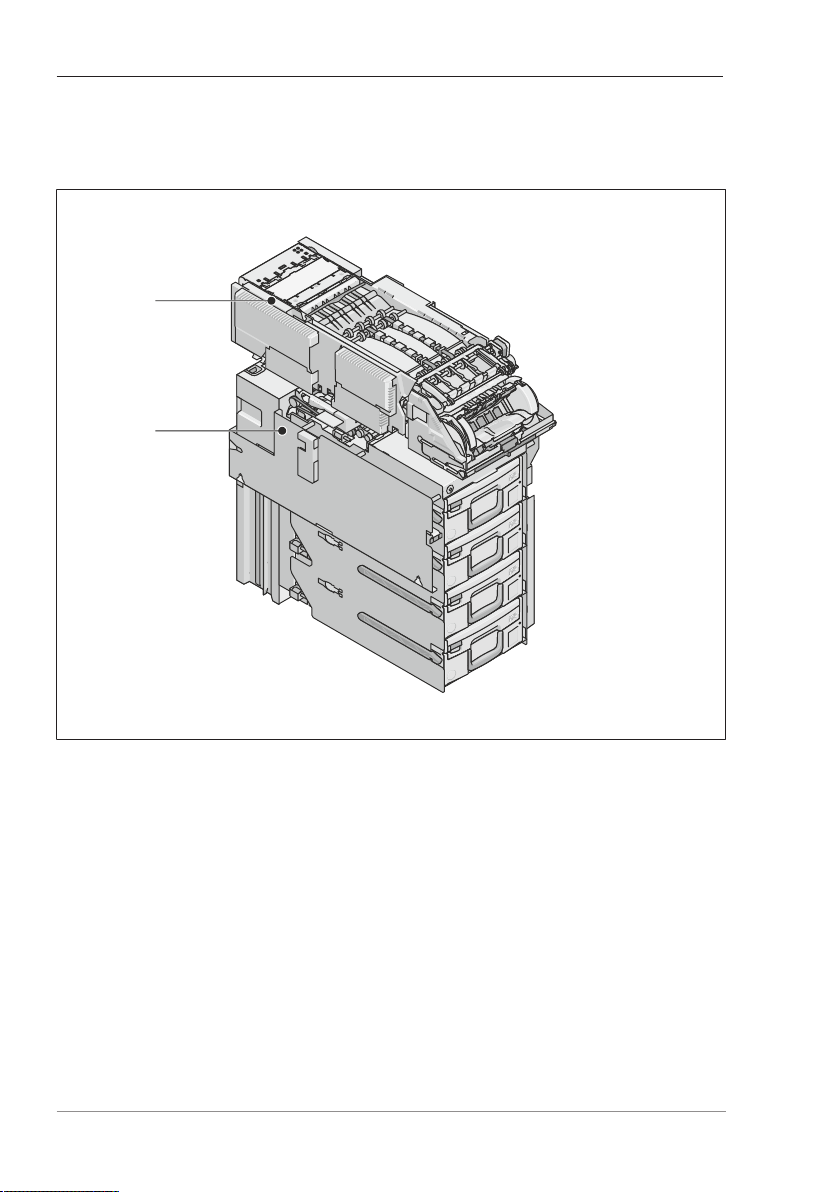

1 Recycling module RM4H
2
1
1 Head Unit 2Safe unit
Recycling module RM4H
01750306327A Recycling Module RM4H - Operator manual 5
1.1 Basic information
The RM4H is designed as a built-in module for automated teller machines
and is used in automated teller machine with Frontload and Rearload
systems. The RM4H module for the Frontload device type is displayed in
the preceding.
The RM4H permits banknotes to be deposited and withdrawn. This model
consists of a head unit and a safe unit.
It is possible to deposit one or more banknotes. When there are several
banknotes they are input as a bundle. Today a bundle is allowed to be
made up of max. 300 banknotes, in which case individual banknotes in a
bundle do not have to be sorted.
To prevent malfunctioning, all RM4H users must pay attention to the
quality of banknotes which are to be inserted. The RM4H allows slightly
damaged banknotes to be processed. However, if the notes exceed the
defined limits, the device will not be able to process the notes correctly.
Verification of the banknotes takes place in the banknote validator. Using
loadable, country-specific currency data as a reference, the authenticity of
the banknotes is checked here:
– Banknotes that are recognized as authentic are initially stored in the
fixed position reel storage (escrow) after being deposited. This enables
the banknotes to be returned if the deposit procedure is canceled. Af-
ter the customer has confirmed the transaction the banknotes are once
more verified in the banknote validator and transported to the CINEO
cassettes in the safe unit for storage.
– Unsuitable banknotes that are deposited are removed from the pro-
cessing procedure and returned to the customer.
– Deposited banknotes which are recognized as counterfeit are placed in
the head module in a separate counterfeit cassette.
Recycling module RM4H
6 Recycling Module RM4H - Operator manual 01750306327A
NOTICE
Counterfeit money can also be handled differently, depending on the reg-
ulations of the country in question.
– Banknotes from erroneous or trial dispensing processes, banknotes
suspected to be counterfeit as well as banknotes forgotten or not re-
moved by the customer in a withdrawal are placed in the reject/retract
cassette or in the All In Box.
The input/output tray is protected by a shutter.
Recycling module RM4H
01750306327A Recycling Module RM4H - Operator manual 7

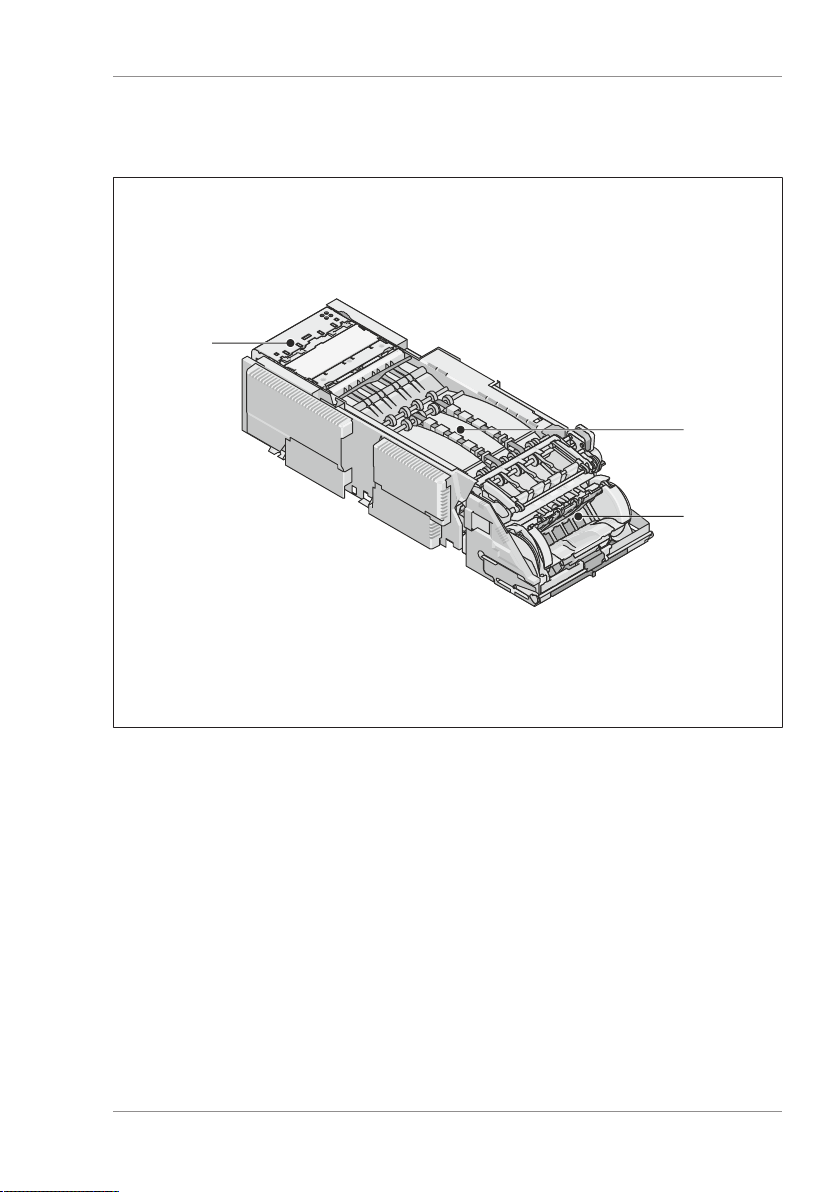

1.2 Head unit
1

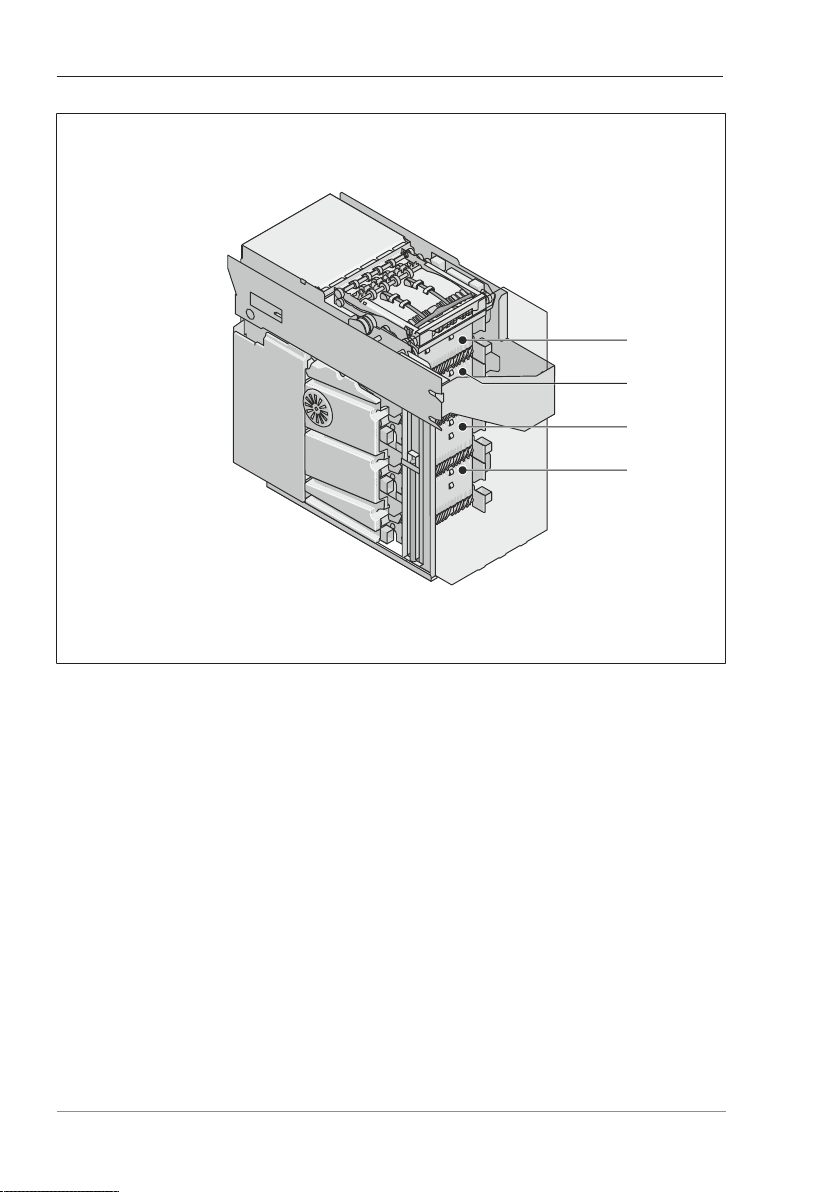

2
3
1 storage on a drum (Escrow)
2 Head transport module
3 Input/output tray
Recycling module RM4H
8 Recycling Module RM4H - Operator manual 01750306327A

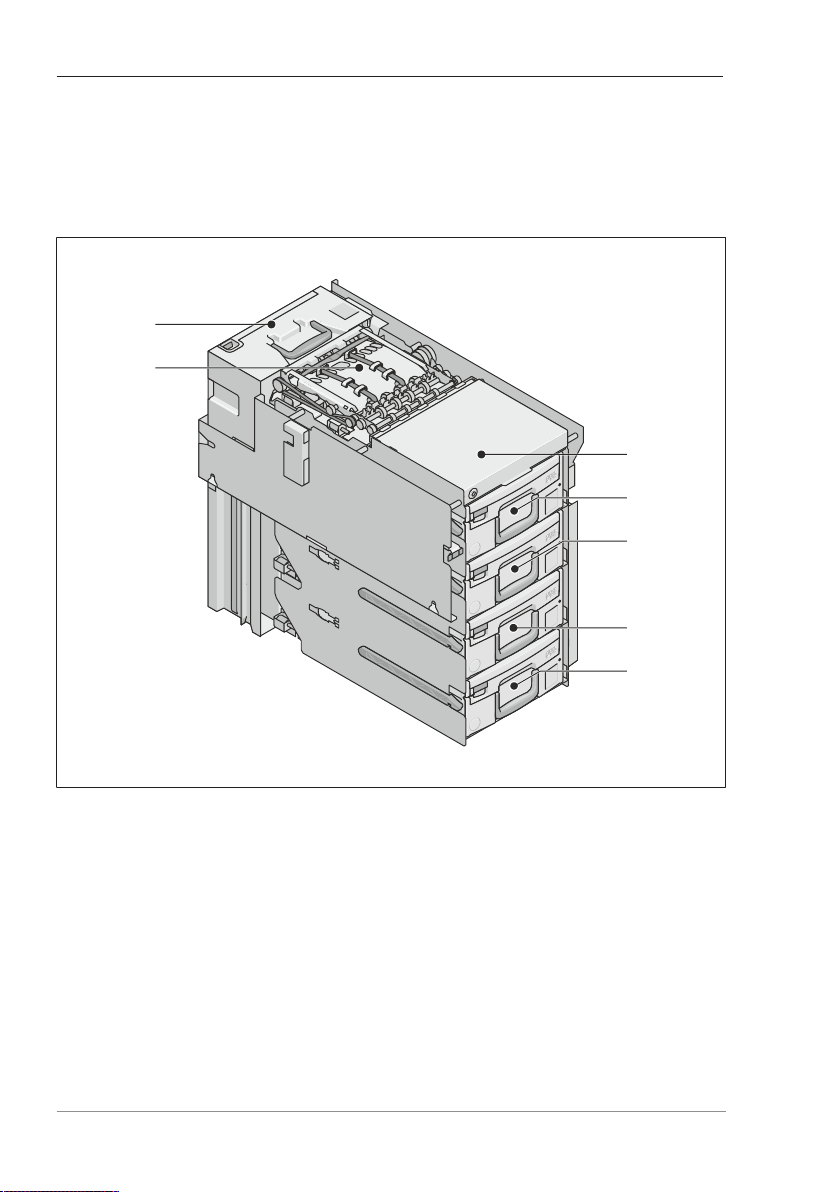

1.3 Safe unit
1.3.1 Front View
1
2
3
4
5
6
7
1 All In Box
2 Distributor module
3 Retract box
4-7 CINEO standard cassette
Recycling module RM4H
01750306327A Recycling Module RM4H - Operator manual 9

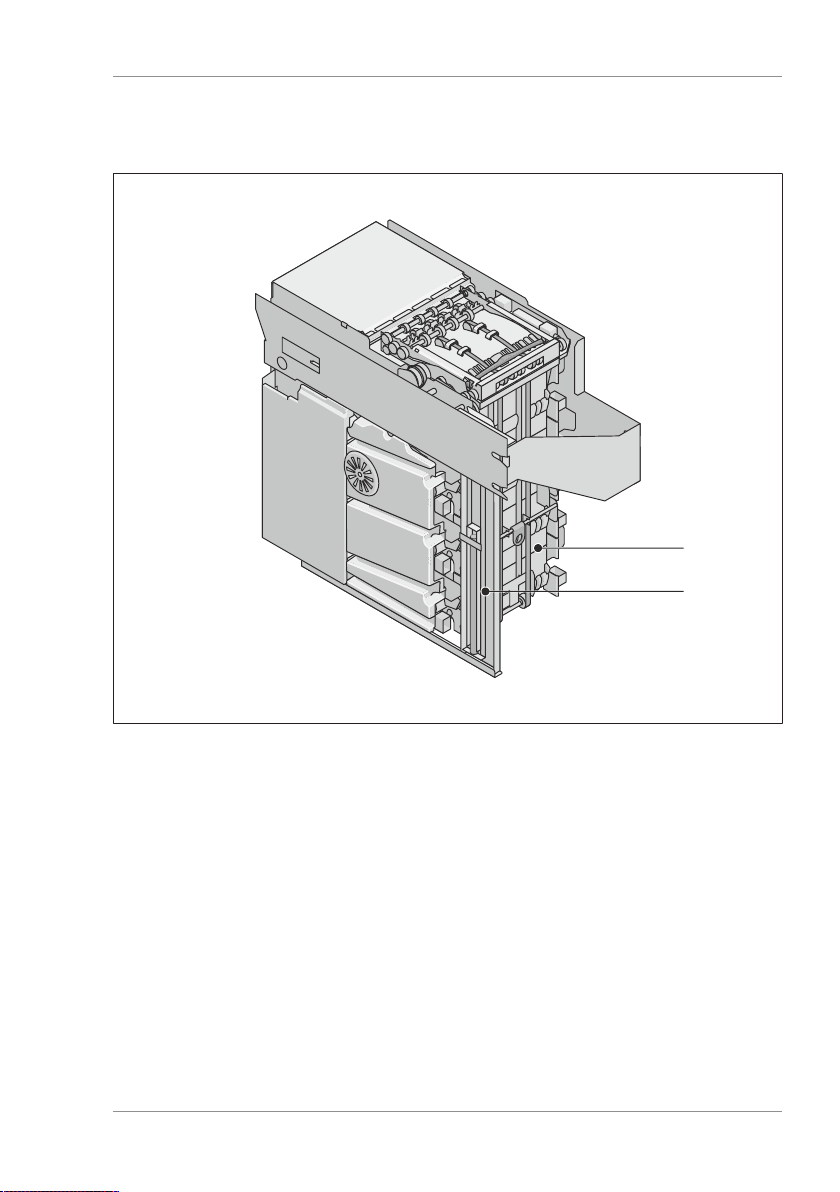

1.3.2 Rear view
1
2
1 Vertical transport
2 Damper All In Box
Recycling module RM4H
10 Recycling Module RM4H - Operator manual 01750306327A
2
3
1
4
1-4 VS module
