Digi-tech Expression Factory EX-7 Manuale utente

DECLARATION OF CONFORMITY

Manufacturer’s Name: DigiTech®

Manufacturer’s Address: 8760 S. Sandy Parkway

Sandy, Utah 84070, U.S.A.

declares that the product:

Product name: EX 7

Product option: all (requires Class II power adapter that conforms

to the requirements of EN60065, EN60742, or

equivalent.)

conforms to the following Product Speciﬁcations:

Safety IEC 60065 (1998)

EMC EN 55013 (2001 + A1)

EN 55020 (1998)

Supplementary Information:

The product herewith complies with the requirements of the Low Voltage

Directive 73/23/EEC and the EMC Directive 89/336/EEC as amended by

Directive 93/68/EEC.

Vice-President of Engineering - MI

8760 S. Sandy Parkway

Sandy, Utah 84070, U.S.A.

Date: December 27, 2004

European Contact: Your local DigiTech Sales and Service Ofﬁce or

Harman Music Group

8760 South Sandy Parkway

Sandy, Utah, 84070 U.S.A.

Ph: (801) 566-8800

Fax: (801) 568-7583

Warning

For your protection, please read the following:

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Do not use this apparatus near water.

5. Clean only with dry cloth.

6. Do not block any ventilation openings. Install in ac-

cordance with the manufacturer’s instructions.

7. Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including

ampliﬁers) that produce heat.

8. Protect the power cord from being walked on or

pinched particularly at plugs, convenience receptacles,

and the point where they exit from the apparatus.

9. Unplug this apparatus during lightning storms or when

unused for long periods of time.

10. No user serviceable parts inside. Refer all servicing to

qualiﬁed service personnel. Servicing is required when

the apparatus has been damaged in any way, such as

power-supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does

not operate normally, or has been dropped.

11. WARNING:To reduce the risk of ﬁre or electric shock,

do not expose this apparatus to rain or moisture.

12. Refer to labels on the unit, including bottom cover, or

other markings and pertinent information.

Congratulations and special thanks from DigiTech®for choosing the

Expression FactoryTM Pedal.

When you want to express emotion with your guitar, two hands are great,

but two hands and a foot are better.Years ago, pioneering musicians and

engineers developed technology that let your foot alter and enhance your

guitar’s tone while your ﬁngers are busy playing the notes.These pedals

were so revolutionary, they’ve endured and evolved through the years: the

wah pedal, the ﬂanger, the rotary speaker, the pitch bender, the chorus,

and the volume swell.These pedals placed guitarists’ feet on the path to

the future of modern music.

The DigiTech Expression Factory captures seven of the most versatile and

dramatic pedal-controlled effects in guitar equipment history: the Vox®

Clyde McCoy WahTM* and the Dunlop®Cry BabyTM

Wah*, the Leslie®

147 Rotary Speaker*, the A/DATM Flanger*, the Unicord Uni-VibeTM*,

the DigiTech®XP300 Space StationTM Synth SwellTM*, and the DigiTech

Whammy®*.The Expression Factory lets you walk in the shoes of many

mighty guitarists before you, who discovered that with one foot on the

stage or the studio ﬂoor, and the other foot on an expression pedal, the

journey through exciting and dramatic guitar tones will never end.

* DigiTech, X-Series, CIT, Flexible Output Mode, DOD,Whammy, Space Station, Synth Swell, Metal Master,

Expression Factory, Johnson Ampliﬁcation, and Distortion Factory are trademarks of Harman International

Industries, Inc. Other product names modeled in this product are trademarks of their respective companies

that do not endorse and are not associated or afﬁliated with DigiTech. They are trademarks of other manu-

facturers and were used merely to identify products whose sounds were reviewed in the creation of this

product.

Included Items

The DigiTech®Expression FactoryTM Pedal includes the following items:

• DigiTech Expression Factory Pedal

• PS0913B Power Supply

• This Owner’s Manual

• DigiTech Warranty Card

• DigiTech Brochure

Please make sure that all of these items have been included before you

get started.

Setup Directions

Follow these setup directions before use:

1.Turn the volume down on the ampliﬁer/mixer you are connecting to.

2. Connect the pedal output to the ampliﬁer/mixer input.

3. Connect the guitar to the pedal input.

4. Connect the power supply to the pedal.

5.Turn up your ampliﬁer/mixer level to your desired listening level.

6.Turn on the Effect Model by pressing the TOE SWITCH (or turn on

the Effect + Distortion Model by pressing the HEEL SWITCH).

The Expression FactoryTM Features at a Glance

The Expression FactoryTM has seven Effect Models that you can select

(one at a time) and control with your foot by using the Expression Pedal.

You can also modify each Effect Model’s tone and behavior with three

knobs.

The Expression Factory also has seven selectable Distortion Models that

can only be used (one at a time) in conjunction with any Effect Model.

You can modify each Distortion Model with three knobs.

The Expression Factory has six Cabinet Models (based on the cabinets

of popular ampliﬁers) which are associated with the seven Distortion

Models.

The Expression Factory can also be used as a volume pedal.

The Expression FactoryTM outputs can be conﬁgured in one of four Out-

put Modes:

1. Mono Mode – Outputs a mono signal through either the OUT 1 (AMP)

jack or the OUT 2 (MIXER) jack.

2. Stereo Mixer Mode – Outputs a stereo signal through both the OUT 1

(AMP) and OUT 2 (MIXER) jacks, suitable for connecting to a mixer or

recording device.

3. Stereo Amp Mode – Outputs a stereo signal through both the OUT 1

(AMP) and OUT 2 (MIXER) jacks, suitable for connecting to an ampli-

ﬁer.

4. Amp + Mixer Mode – Outputs a mono signal through the OUT 1

(AMP) jack suitable for connecting to an ampliﬁer, and also outputs a

mono signal through the OUT 2 (MIXER) jack, suitable for connecting

to a mixer or recording device.

When the Expression Factory is shipped from the factory, the default

modes are Mono Mode and Stereo Mixer Mode. Refer to the Flexible

Output ModeTM Setup section of this manual for more information.

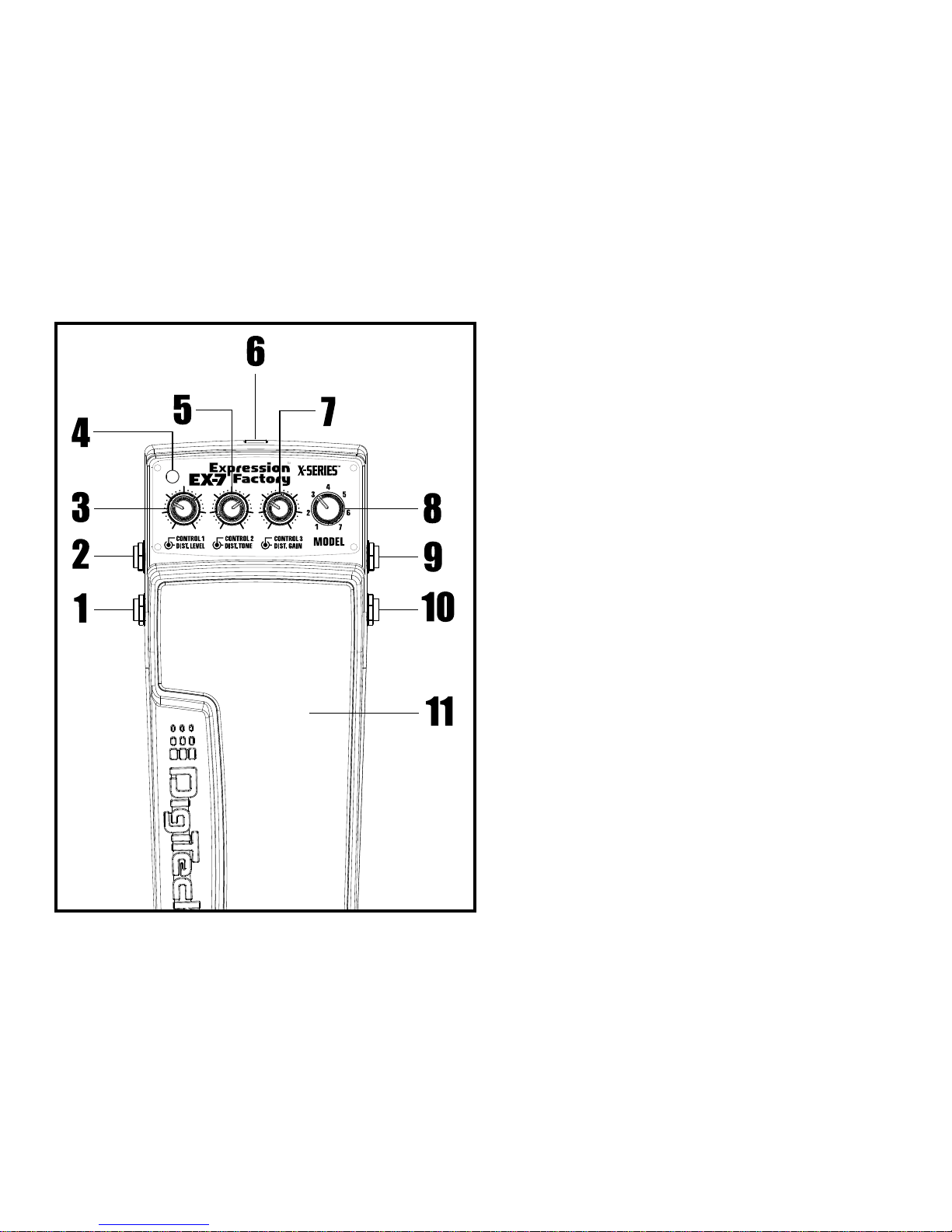

1. OUT 1 (AMP)*

Connect this output jack to your

guitar ampliﬁer. Refer to the Flex-

ible Output ModeTM Setup sec-

tion for more information.

2. OUT 2 (MIXER)*

This output has been speciﬁcally

tailored for use with a full range

audio system and is designed to be

plugged directly into a mixer or

recording device for optimal per-

formance. Refer to the Flexible

Output Mode Setup section for

more information.

3. (Tip) - CONTROL 1

Model dependent. Refer to the Ef-

fect Model Control table for more

information.

(Ring) - DIST LEVEL

Controls distortion level.

* Use only unbalanced TS instrument cables.

4. INDICATOR LED

This LED indicates the status of

the selected Model or the current

Mode: OFF=bypass, GREEN=Effect

Model on, RED=Effect Model and

Distortion Model on, FLASHING

YELLOW=Distoriton Model Select

mode.

5. (Tip) - CONTROL 2

Model dependent. Refer to the Ef-

fect Model Control table for more

information.

(Ring) - DIST TONE

Controls distortion tone.

6. POWER SUPPLY JACK

Connect only the included PS0913B

(9V AC) power supply to this jack.

Note that the Expression FactoryTM

is not equipped for battery power.

7. (Tip) - CONTROL 3

Model dependent. Refer to the Ef-

fect Model Control table for more

information.

(Ring) - DIST GAIN

Controls distortion gain.

8. MODEL

This knob selects one of the seven

different Effect Models:

1. Dunlop®Cry BabyTM Wah

2.Vintage Vox®Clyde McCoy

Wah

3. DigiTech®XP300 Space

StationTM Synth SwellTM

4. DigiTech Whammy®

5. Unicord Uni-VibeTM

6. Leslie®147 Rotary Speaker

7.A/DA

TM Flanger

Refer to the Model Descriptions

section for detailed explanations of

each model’s controls.

9. INPUT

Connect your instrument to this

jack.

10. FOOTSWITCH

Plug in the optional FS3X

footswitch here. Refer to the

Using the Optional FS3X

Footswitch section to see what

the FS3X can do with the Expres-

sion FactoryTM.

11. EXPRESSION PEDAL

Serves as a variable control for each

of the Effect Models. Also used

for engaging the HEEL and TOE

SWITCHES, which enable the

selected Effect Models and Distor-

tion Models. (Refer to the Effect

Model Control table for more

information about the EXPRES-

SION PEDAL.)

To enable the HEEL or TOE

SWITCHES, press ﬁrmly on the

heel or toe of the EXPRESSION

PEDAL. The INDICATOR LED

will change color when the HEEL

or TOE SWITCH is engaged.

If the EXPRESSION PEDAL’s

range becomes diminished over

time, it may be necessary to re-cali-

brate the pedal. Refer to the

Calibrating the Expression Ped-

al section for more information.
